Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric lift chair in China. We warmly welcome you to buy discount electric lift chair for sale here from our factory. Quality products and reasonable price are available.

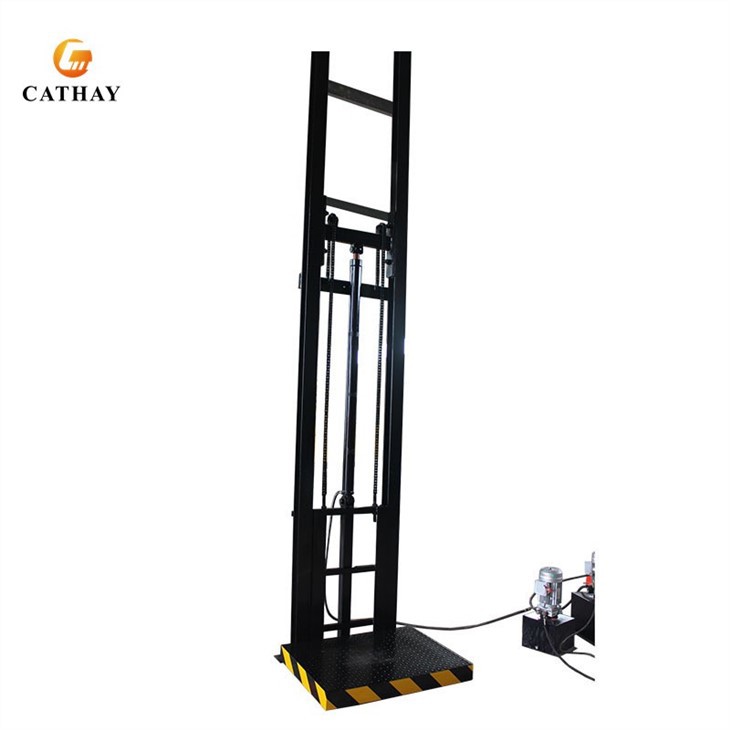

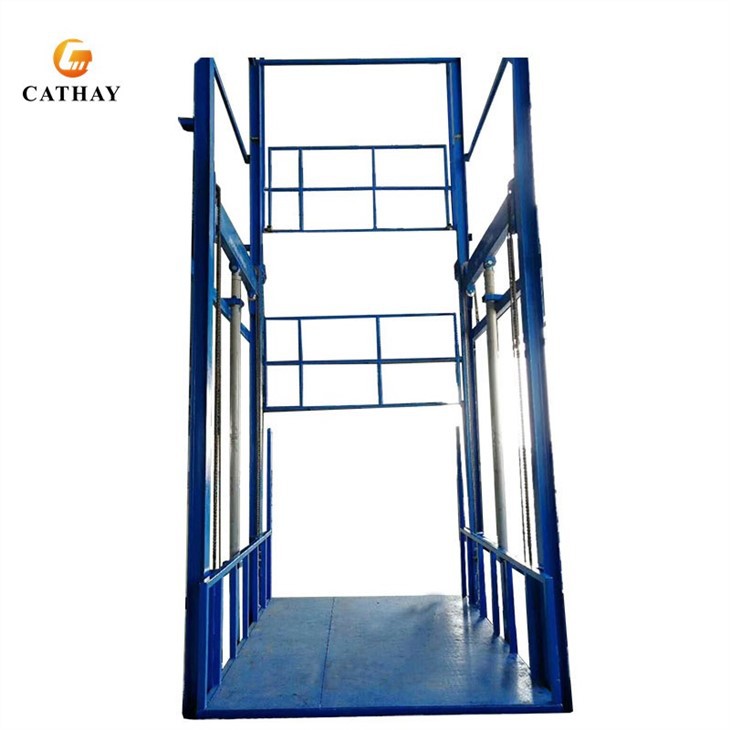

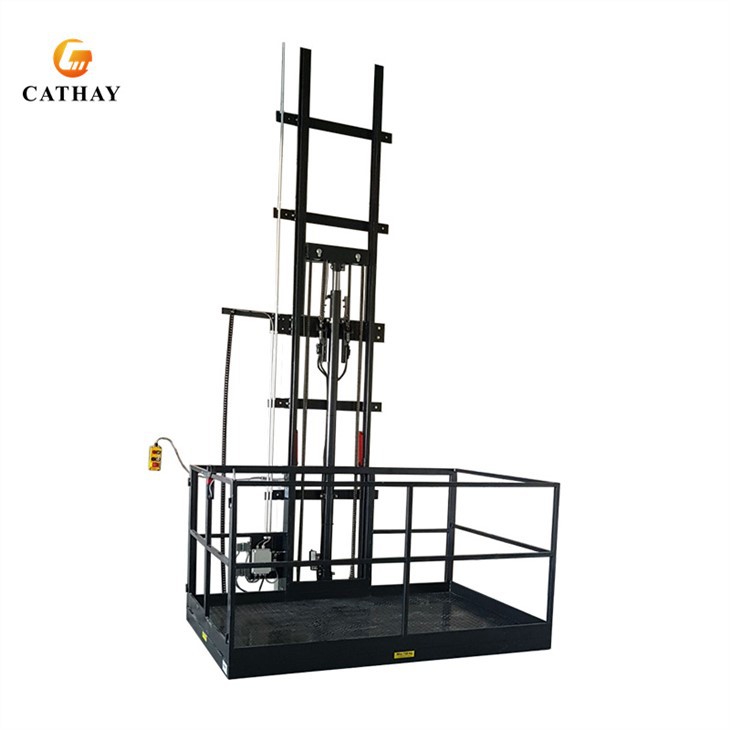

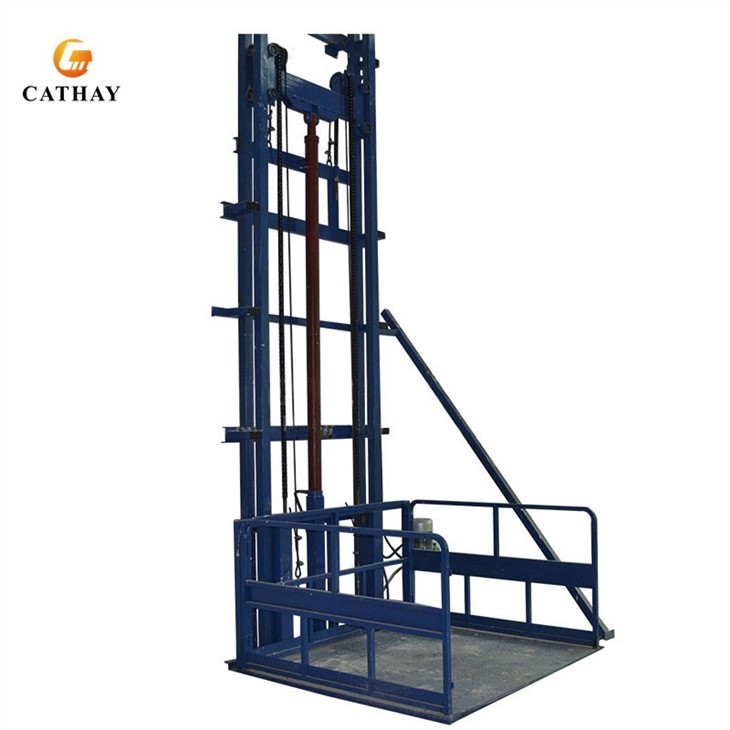

CATHAYLIFT cargo lift is a non-scissor hydraulic lifting mechanical equipment, which uses hydraulic cylinder as the main power, and is driven by heavy chain and wire rope to ensure the absolute safety of the machine operation. There is no need for pits and machine rooms, and it is especially suitable for the transportation of goods between multiple floors such as multi-storey industrial plants, warehouses, and supermarkets. The Cargo lift product has a solid structure, large load capacity, stable lifting, simple and convenient installation and maintenance, and is an economical and practical ideal cargo transportation equipment for replacing elevators between low floors. According to the installation environment and use requirements of the lifting platform, different optional configurations can be selected to achieve better use results. This product is mainly used in chemical, high temperature, high pressure, power plants and other enterprises.

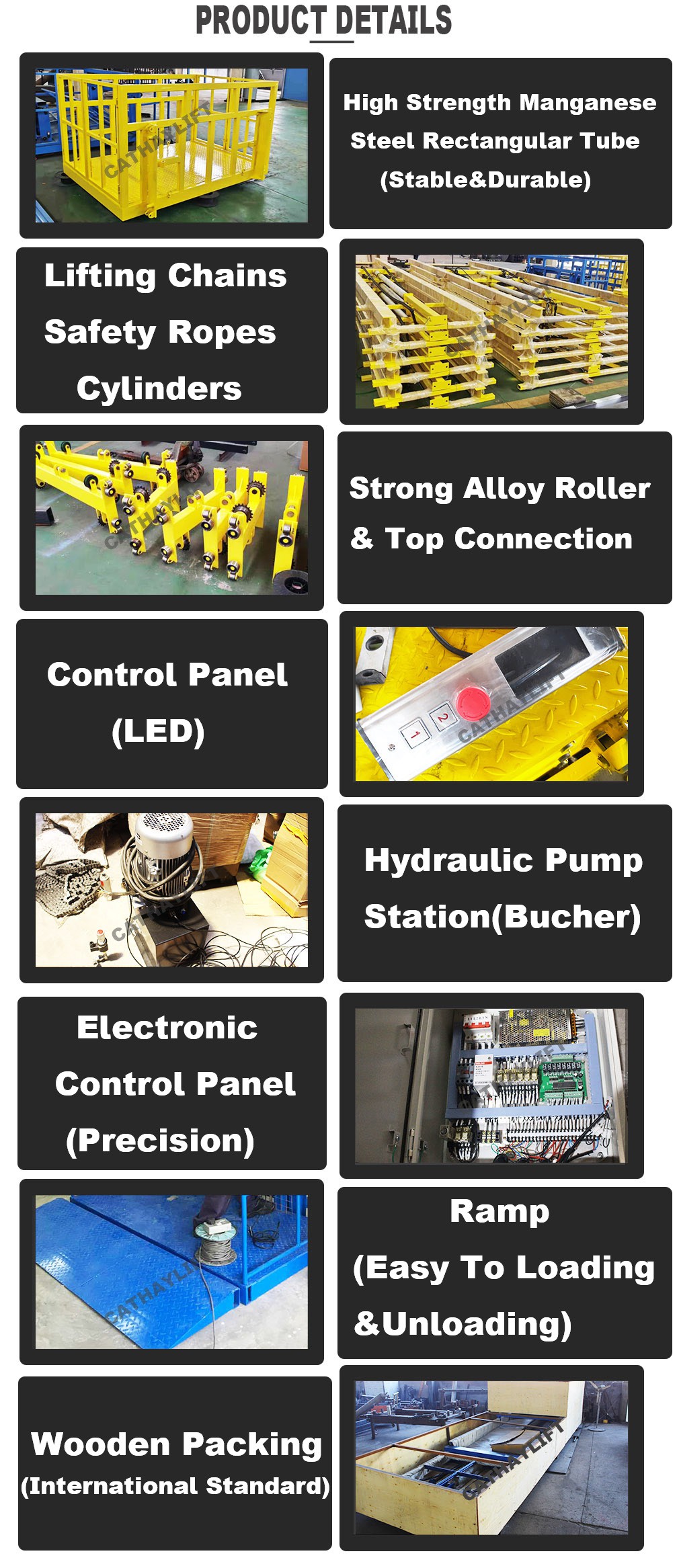

Products Details
●Manual drop in power failure, emergency stop button, convenient, fast and practical;
● omized according to the site environment;
● Especially suitable for 2-3 storey steel structure factory buildings, both inside and outside can be used;
●The pumping station adopts Sino-foreign joint venture pumping station. If the speed requirement is too high, use imported customized pumping station to meet the ideal delivery requirements;
● Cylinders and seals use imported parts to solve the problem of unstable oil pressure and oil leakage of parts;
● Electrical components are optional, (Delixi, Shanghai People Electric, Schneider of France, Siemens of Germany)
In addition to the safety device of the traditional traction elevator, the hydraulic elevator also has:
● Relief valve: it can prevent the system pressure from being too high during upward movement
● Emergency manual valve: When the power fails, the car can be dropped to the nearest floor in an emergency to open the door.
● Manual pump: When the system fails, the manual pump can be operated to pump out high-pressure oil to make the car rise to the nearest floor;
● Pipeline rupture valve: when the hydraulic system pipeline ruptures and the car stalls and descends, it can automatically cut off the oil circuit to stop the descent
● Fuel tank oil temperature protection: When the oil temperature in the fuel tank exceeds the standard setting value, the oil temperature protection device will generate a signal to suspend the use of the elevator, and the elevator can be started only after the oil temperature drops.
● Low failure rate: due to the adoption of advanced hydraulic system and good control method, the failure rate of elevator operation can be minimized.
● Low power consumption: When the hydraulic elevator goes down, it is driven by the pressure generated by its own weight, which greatly saves energy.

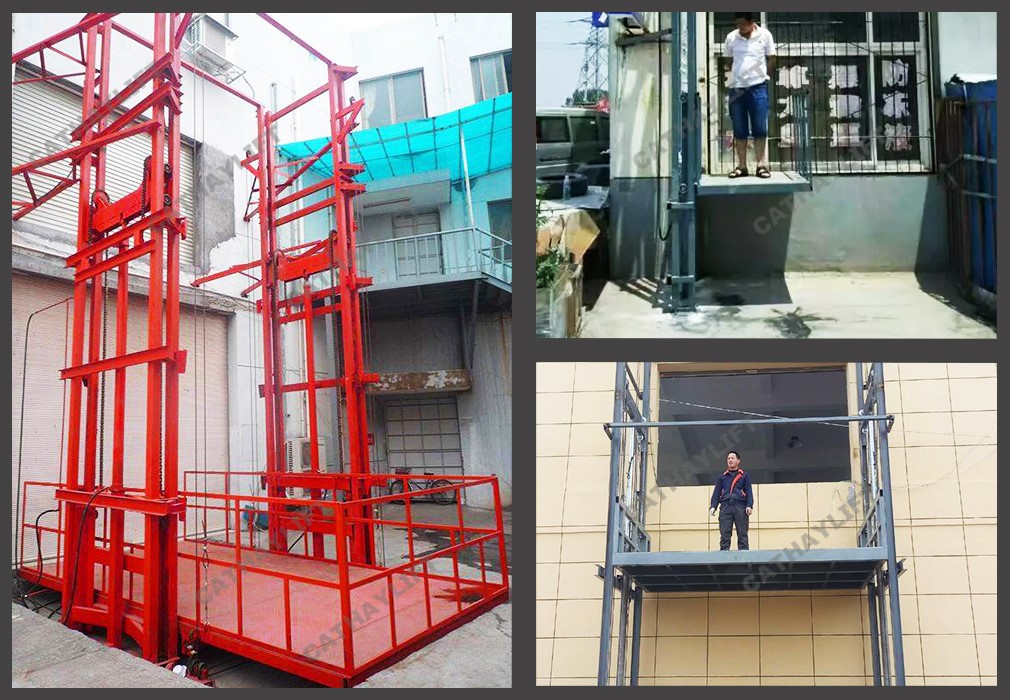

Real Order
