Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of vertical mast in China. We warmly welcome you to buy discount vertical mast for sale here from our factory. Quality products and reasonable price are available.

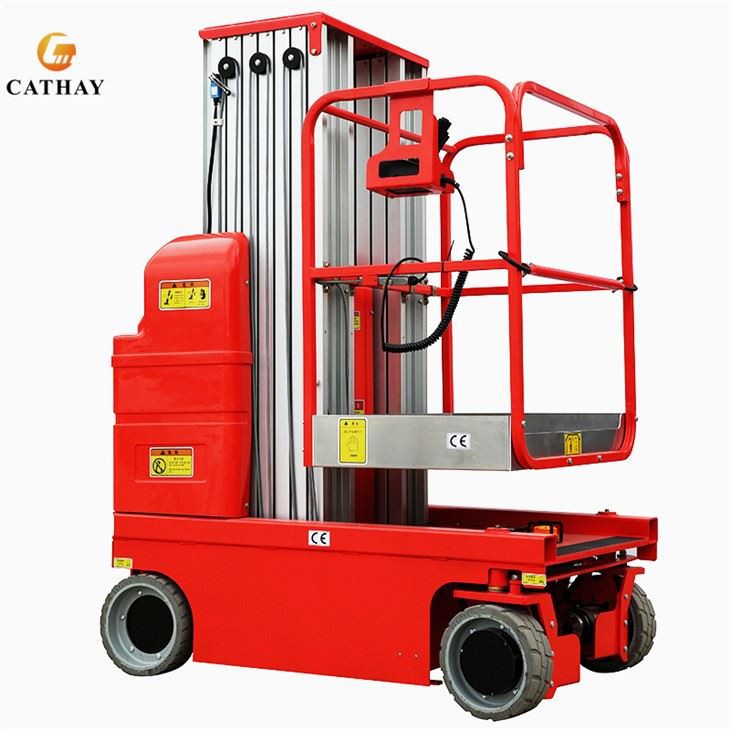

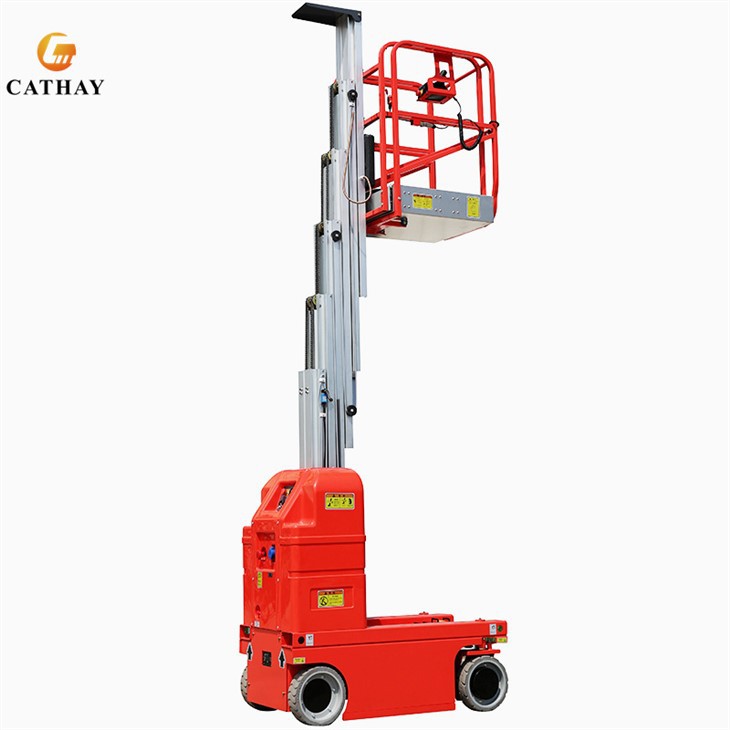

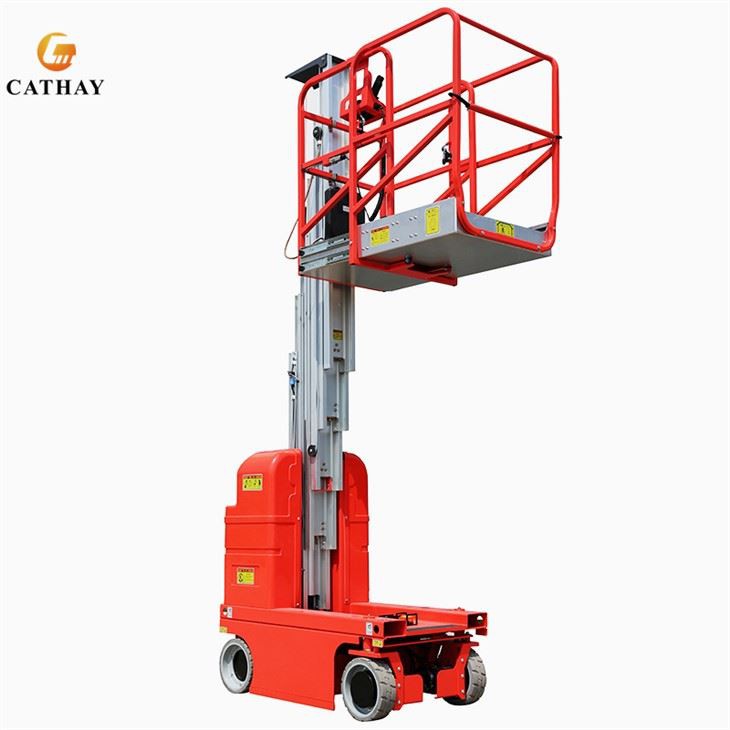

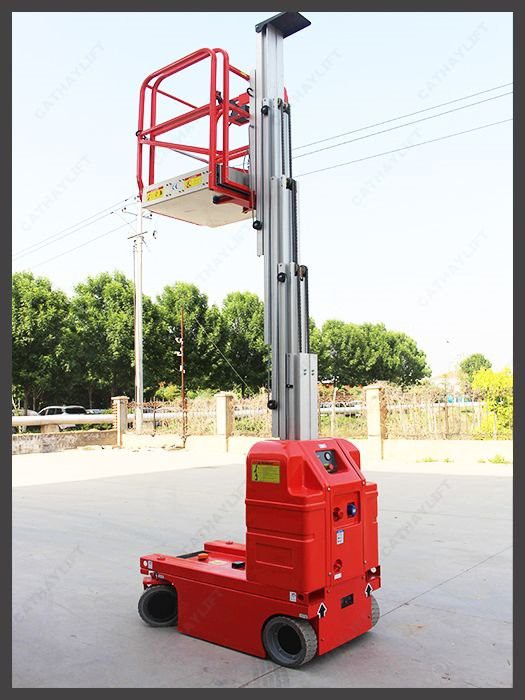

The driveable vertical mast lift has a maximum working height of 9.5m, a maximum load of 150kg, and the design of an additional extensible platform, compact body, and high mobility, which can make it work in various narrow places. With a smaller turning radius, tasks can be flexibly completed even between warehouse shelves. More safety design, CE, Rohs, ISO9001 certification has fully guaranteed the quality and safety of the product.
Model No. | CR-6 | CR-7.5 | |
Max.Platform Height | Mm | 6000 | 7500 |
Max Working Height | Mm | 8000 | 9500 |
Load Capacity | Mm | 150Kg | 125kg |
Occupants | Mm | 1 | 1 |
Overall Size | Mm | 1400(1890)*760*1990 | 1400(1890)*1020*1990 |
Platform Size | Mm | 1260*700 | |
Wheel Base | Mm | 1140 | |
Max Drive Speed(Platform Stowed) | Km/h | 4 | |
Max Drive Speed(Platform Extended) | Km/h | 1.1 | |
Min Turn Radius | Mm | 0 | |
Up/Down Speed | /Sec | 43/35Sec | 48/40Sec |
Driving Wheel Size | Mm | Φ230X80 | |
Battery | V/Ah | 2X12Vdc/100Ah | |
Lifting Motor | / | 24Vdc/1.3Kw | |
Net Weight | Kg | 1120 | 1170 |
Charger | 24V/15A | 24V/15A | |
Product Details:
● Greater maneuverability and smoothness=
● Compact and light-weight
● Hydraulically controlled front wheel steering, front wheel electric drive (maintenance-free brushless AC motor)
● With machine tilt sensing function
● Easy to setup and use
● Extra platform deck +0.48m
● Equipped with buzzer, strobe light, horn, emergency drop cable, waterproof charging plug
● Minimal downtime and maintenance
Details Images:

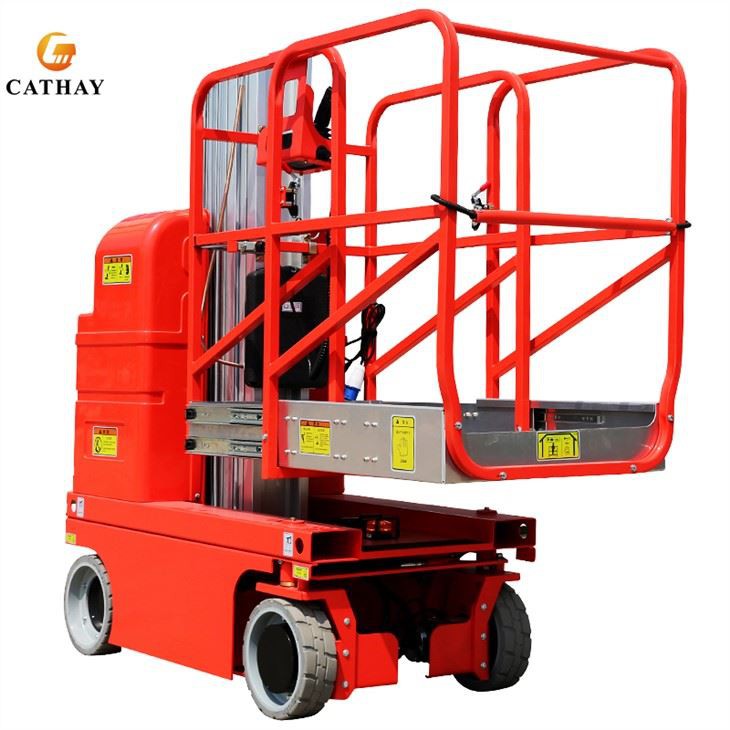

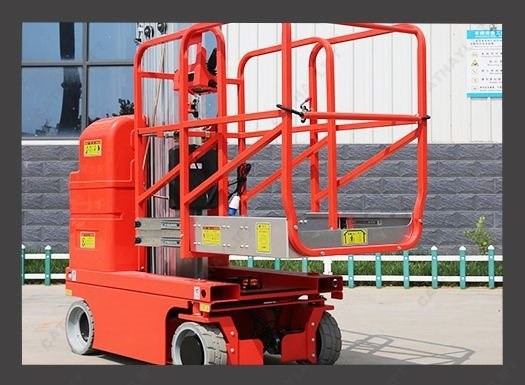

Platform extension deck:
The telescopic guardrail can extend 480mm longitudinally to ensure larger working area.
Self-locking basket and seat belt buckle

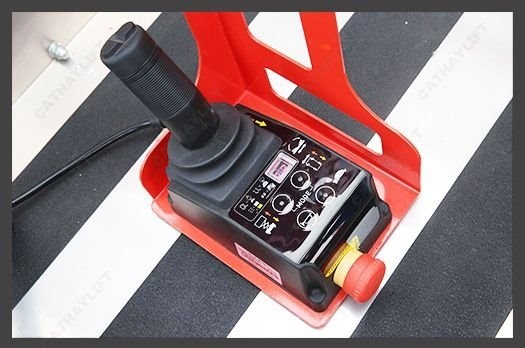

Platform control handle:
The handle is equipped with a fault code display, preventing misoperation, the red button is an emergency stop switch, and a horn, which can be controlled to move, turn, lift, and descend on the platform.

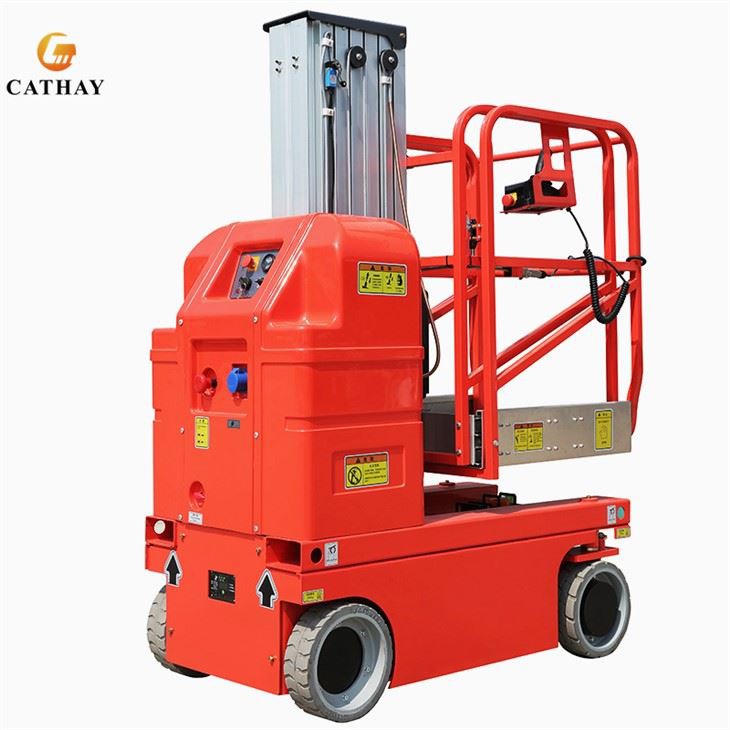

Ground control panel:
It can be raised and lowered from the ground.

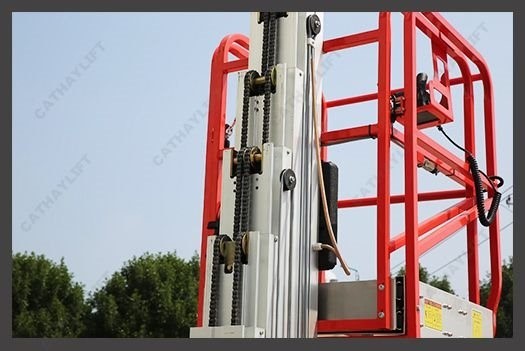

Aluminum mast, Lifting Chain and anti-wearing cable:
6005T5 high strength aviation aluminum，lifting cahine, Wear-resistant cables are resistant to high temperature, low temperature, extreme weather, and mechanical pressure.

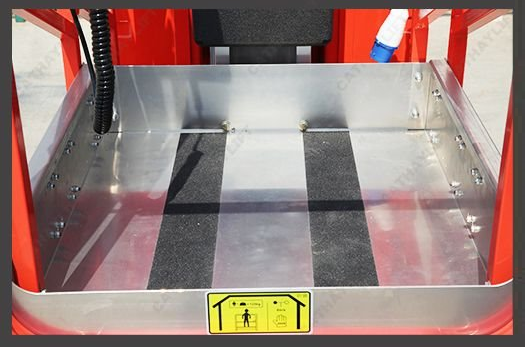

Anti-slip black pads
It can prevent the staff from slipping and the occurrence of danger.

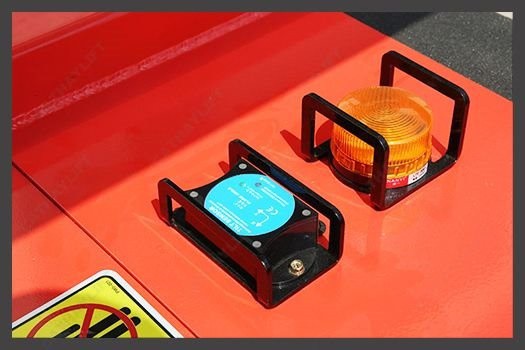

Buzzer, Strobe light, tilt sensor:
When working, the buzzer light and strobe light work normally to remind surrounding people and operators. Machine tilt sensing function: After the platform rises to 2 meters, when the ground tilts more than 2 degrees, the sensor sends a signal, and it can only descend at this time. Other functions resume when the platform height drops below 2 meters.

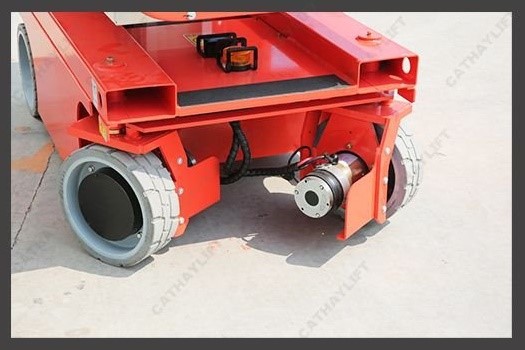

Hydraulically controlled front wheel steering,electric drive:
Hydraulic pump station provides steering, electric drive, characterized by high precision, high sensitivity, low noise.

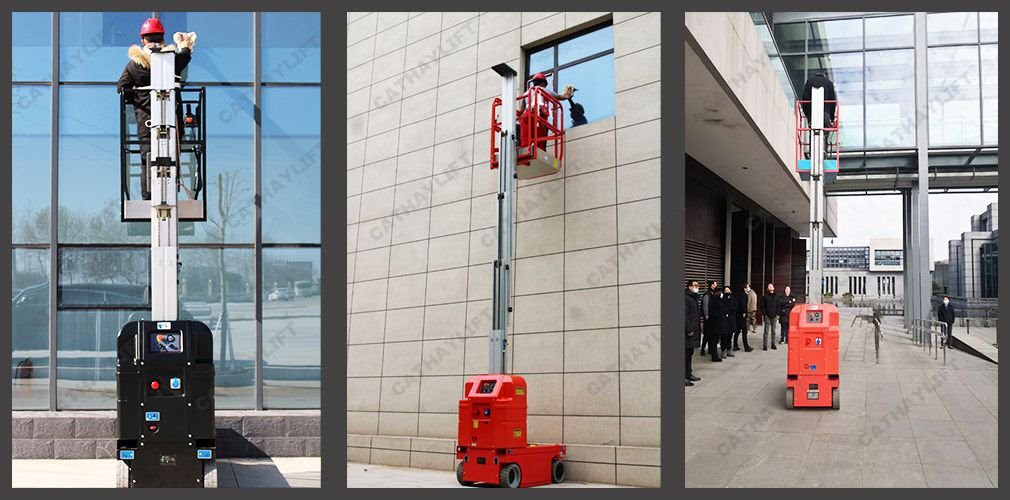

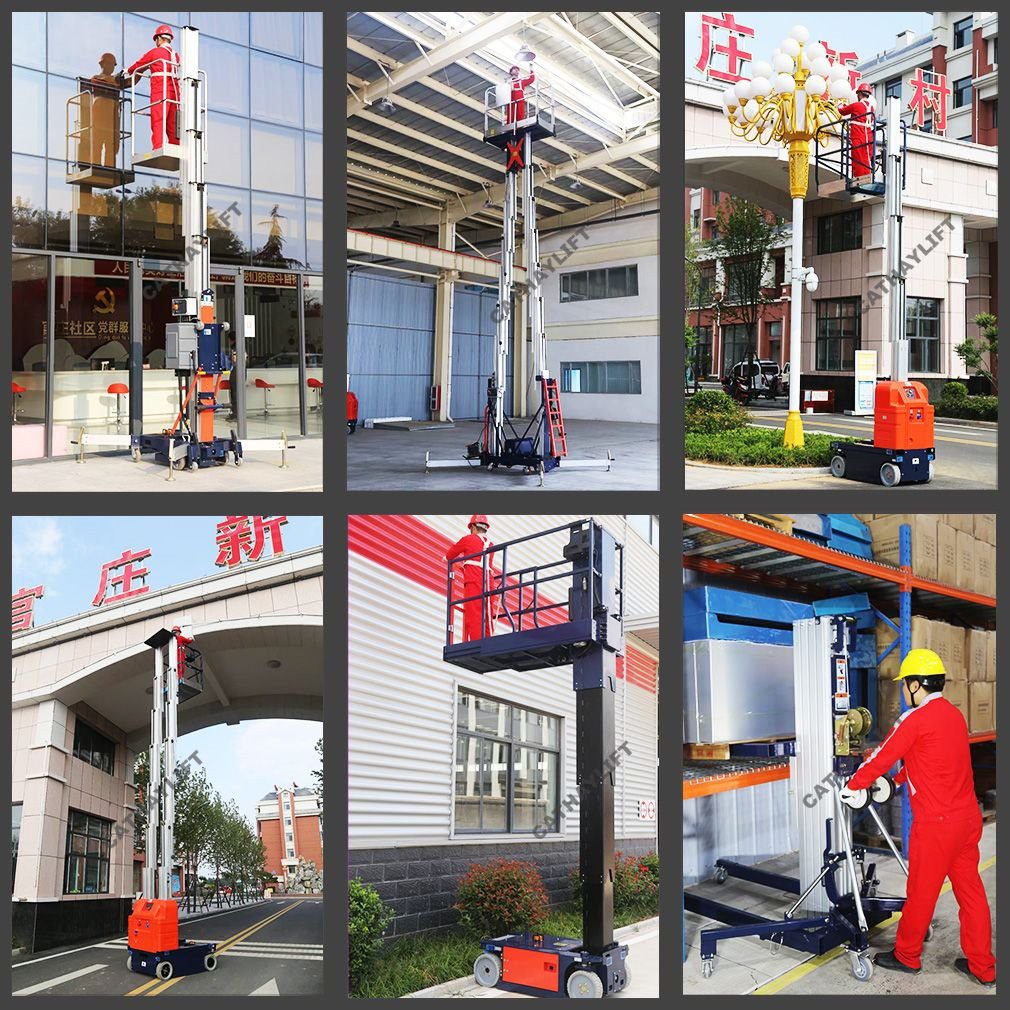

Application

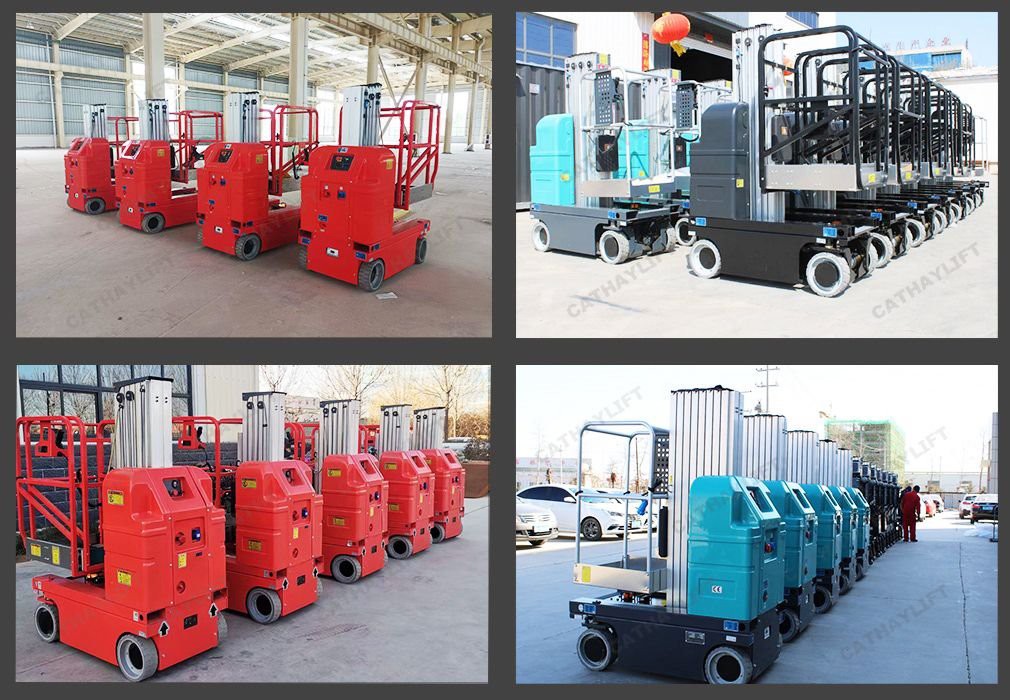

Real Order:
