Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of low level access platform in China. We warmly welcome you to buy discount low level access platform for sale here from our factory. Quality products and reasonable price are available.
The unique power main structure of The low-level access platform is high-quality high-strength aluminum alloy thin-walled long cylinders, and high-molecular polymer polytetrafluoroethylene sliders are used between the long cylinders so that the long cylinders cooperate closely and slide flexibly. Compact size, lightweight, flexible and easy to move, safe and reliable, non-marking rubber tires can make it move on various grounds, 25% Grade Ability can meet common climbing needs. Our vertical masts are responsive, strong, reliable, and very easy to use and maintain, making them ideal for safe and efficient work at heights.
Model Type No. | CSTAR-3600 | CSTAR-4800 | CSTAR-6000 |
Max.Platform Height | 3.6m | 4.8m | 6m |
Max Working Height | 5.6m | 6.8m | 8m |
Load Capacity | 227kg | 159kg | |
Extendable platform capacity | 114kg | ||
Platform Size | 1.3x0.7m | ||
Extendable Platform Length | 0.51m | ||
Wheel Base | 1.04m | ||
Inner Turning Radius | 0m | ||
Outer Turning Radius | 1.4m | ||
Travel Speed(Stowed) | 4km/h | ||
Travel Speed(Raised) | 1.1km/h | ||
Up/down Speed | 31/32sec | 41.5/42sec | 52/53sec |
Grade Ability | 25% | ||
Drive Tires | 305X100mm | ||
Drive Motors | 2X24VDC/0.5KW | ||
Lifting Motor | 24DC/1.3KW | ||
Battery | 2X12V/100AH | ||
Charger | 24V/15A | ||
Weight | 810kg | 980kg | 1060kg |
Products Details
● Use in various places
● High precision driving and smoothness
● High agility and durability
● Smart Transport and Lifting
● Intelligent maintenance-free lead-acid battery (Qiu Jian)
● Minimal maintenance and downtime
● Brushless AC Motor (DC power drive)
● easy access to parts
● Best value on the market
Details Images

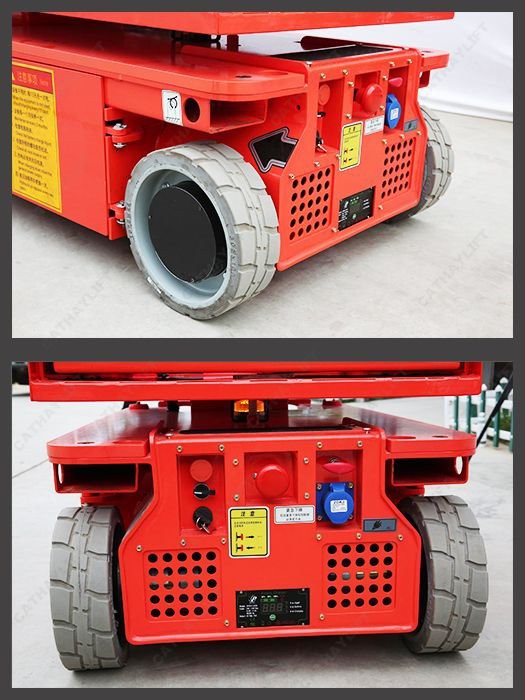

Ground control system:
The big red button is the main power switch, the small red button is the emergency stop button, and the red flat round button is the emergency drop valve.
Platform control handler:
Anti-misoperation design, you need to hold the handle first, and then lift or move the machine, the screen can display the fault code, and the high-altitude operation status will display the "turtle speed" movement to prevent the occurrence of the danger of rapid movement.

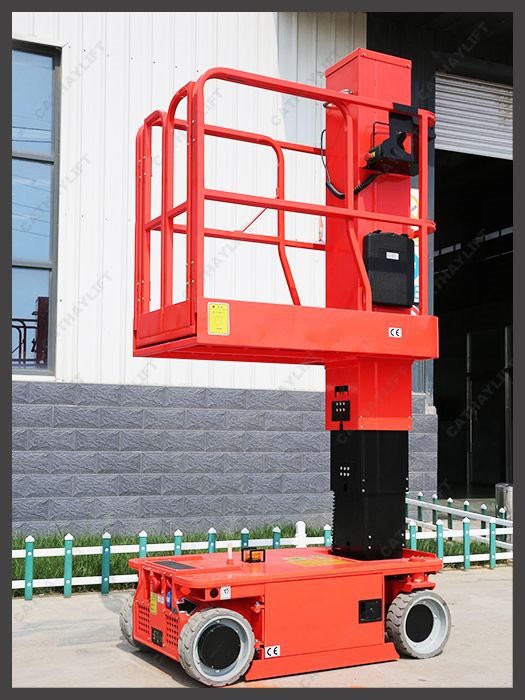

Durable telescopic mast design:
Made of high-strength steel, surface shot blasting, and plastic spraying, Durable lifting chain, anti-corrosion, waterproof, drought-resistant, and resistant to a certain degree of mechanical stress.
Buzzer:
When the lift is working, the buzzer light will flash and an alarm sound will occur to remind the staff and the surrounding people.
Non-marking rubber silent solid tire:
Ensure that the machine can work on any slap grounds.
Standard forklift hole:
Black sticker arrow tip that here is a standard forklift hole, which is convenient for long-distance transportation.

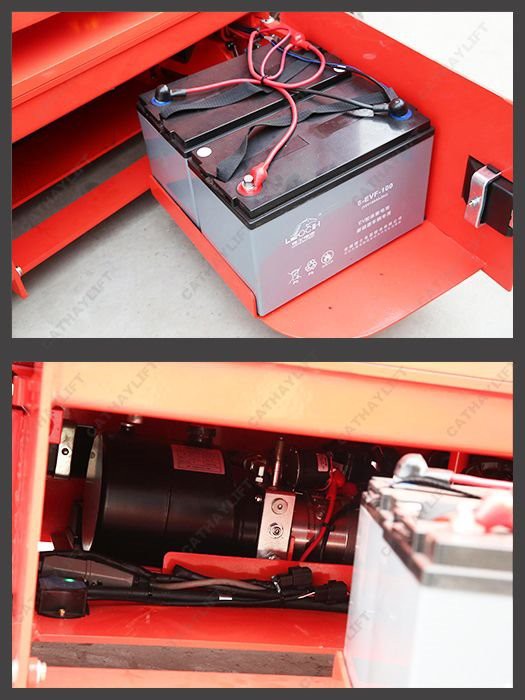

Maintenance-free lead-acid battery:
Lifetime maintenance-free, compared with traditional batteries, it has the advantages of no need to add any liquid, less corrosion to wiring piles and wires, strong resistance to overcharging, large starting current, and long battery storage time.
Pump statation and tilt sensor:
It can be easily inspected and maintained. There is an inclination sensor on the outer side of the light, which will automatically detect the level of the ground.

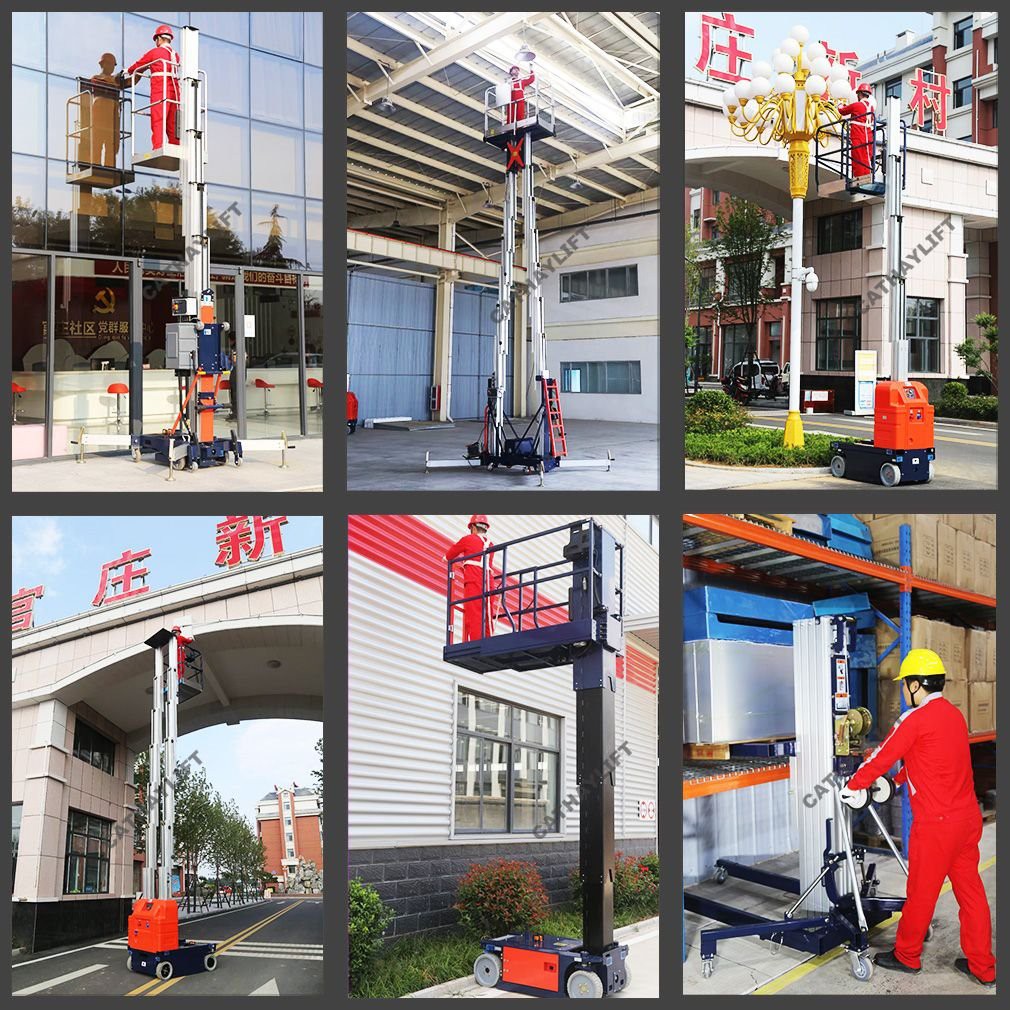

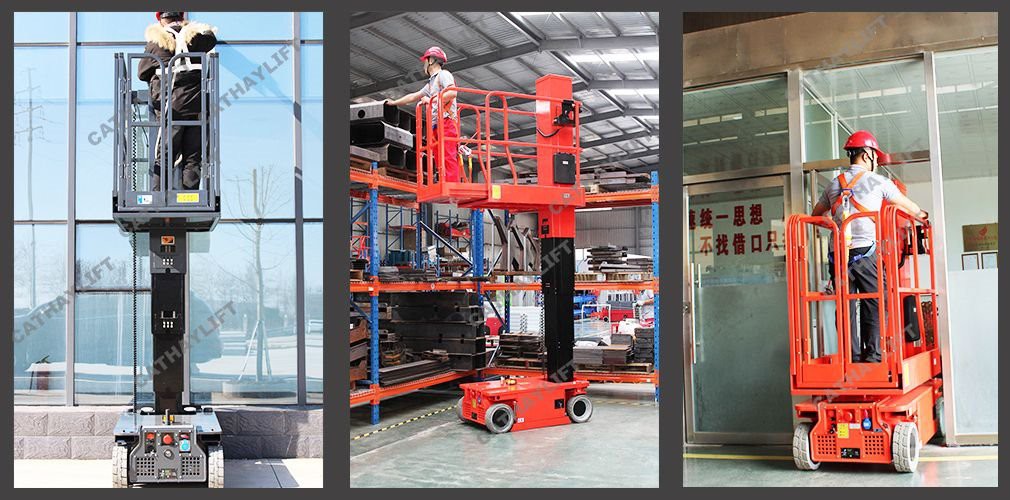

Application

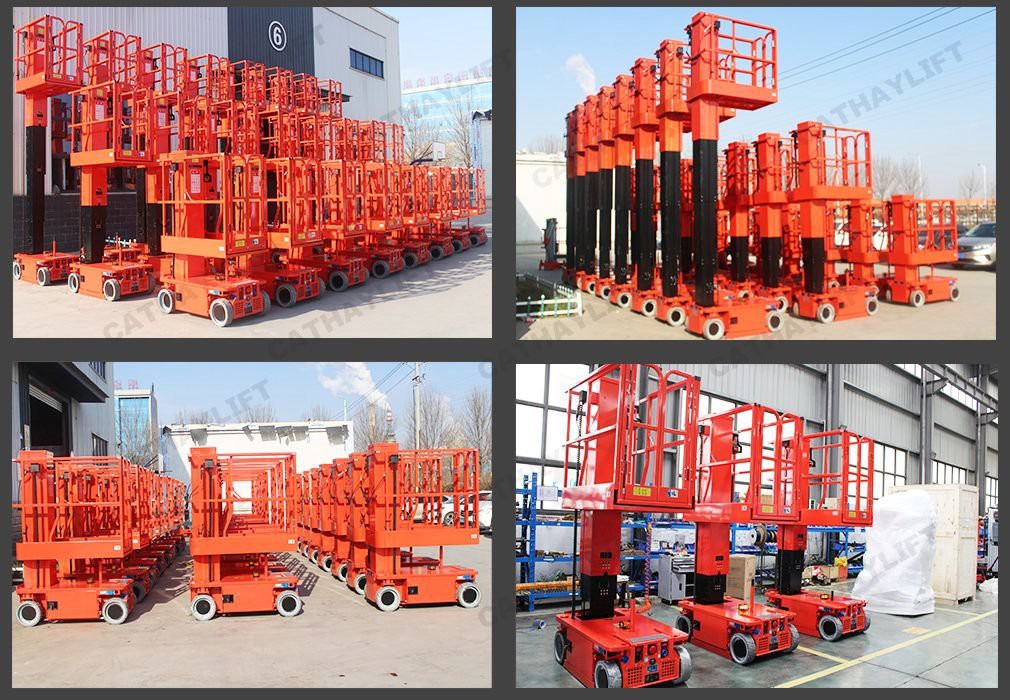

Real Order:
