Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of vertical lift in China. We warmly welcome you to buy discount vertical lift for sale here from our factory. Quality products and reasonable price are available.

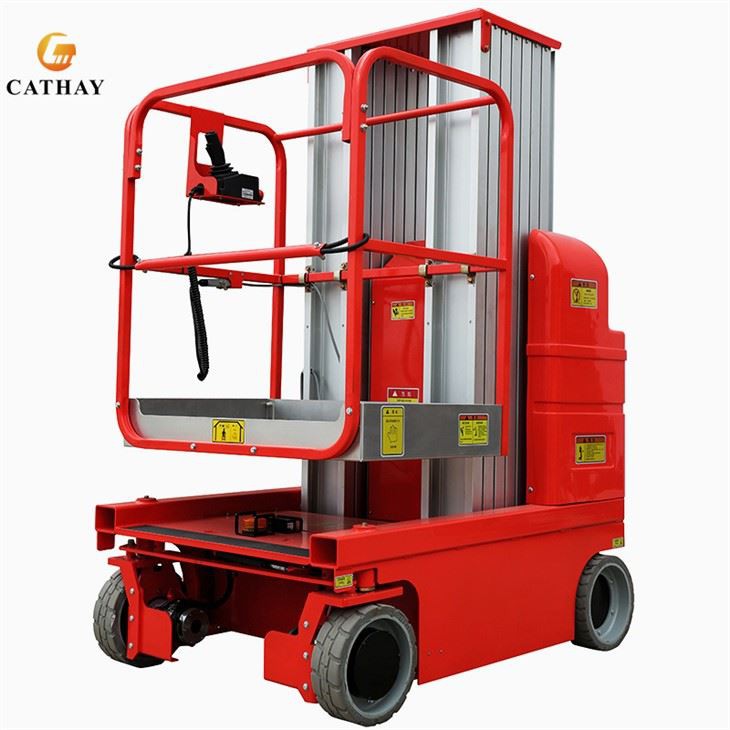

The vertical lift can lift up and down freely under different working conditions without an external power supply or external power traction, and the walking and steering of the equipment can be completed by only one person. The operator only needs to grasp the control handle in front of the equipment to complete the equipment forward, backward, steering, fast, slow walking, and up and down actions. It is flexible to move, easy to operate, labor-saving, and labor-saving. It is especially suitable for a wide range of high-altitude operations such as stations, docks, airports, power plants, stadiums, large enterprises, etc.
Model No. | CR-7.5D | CR-9D | |
Max.Platform Height | mm | 7500 | 9000 |
Max Working Height | mm | 9500 | 11000 |
Load Capacity | mm | 200Kg | 150kg |
Occupants | mm | 1 | 1 |
Overall Size | mm | 1460*1020*1990 | 1460*820*1990 |
Platform Size | mm | 1000*620 | |
Wheel Base | mm | 1140 | |
Max Drive Speed(Platform Stowed) | Km/h | 4 | |
Max Drive Speed(Platform Extended) | Km/h | 1.1 | |
Min Turn Radius | mm | 0 | |
UP/Down Speed | /SEC | 48/40SEC | 53/48SEC |
Driving Wheel Size | mm | Φ230X80 | |
Battery | V/Ah | 2X12VDC/100AH | |
Lifting Motor | / | 24VDC/1.3KW | |
Net Weight | kg | 1260 | 1360 |
Charger | 24V/15A | 24V/15A | |
Product Details:
● Proportional control
● Automatic braking system
● Automatic pothole protection system
● Anti-pinch protection system
● 4×2 Drive
● Tilt protection system
● Fault self-diagnosis system
● Oil Pipe Explosion-Proof system
Details Images:
Movable control panel on the platform:
American CURTIS steering handles, with low failure rate and streamlining, good handling, more flexible steering and no wheel slip.
Bottom control panel:
Ground control system, which can be operated from the ground to work.
Tilt sensor, buzzer, Strobe light:
When working, the warning light and buzzer light will continue to work. In order to prevent danger, the tilt sensor automatically detects whether the road meets the working requirements. When the raised height is greater than two meters and the road angle is greater than two degrees the machine will automatically power off.
Hydraulic steering, electric drive 4×2 Drive:
Wheels with silent non-marking rubber tires，High precision hydraulic steering, electric drive, low error rate and high sensitivity.

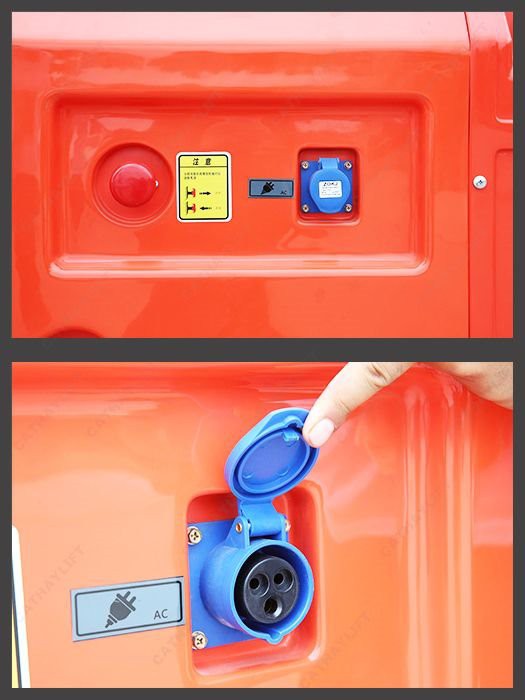

Battery charger and power switch:
Red main power switch, The blue is the battery charger socket, the charger is built-in.

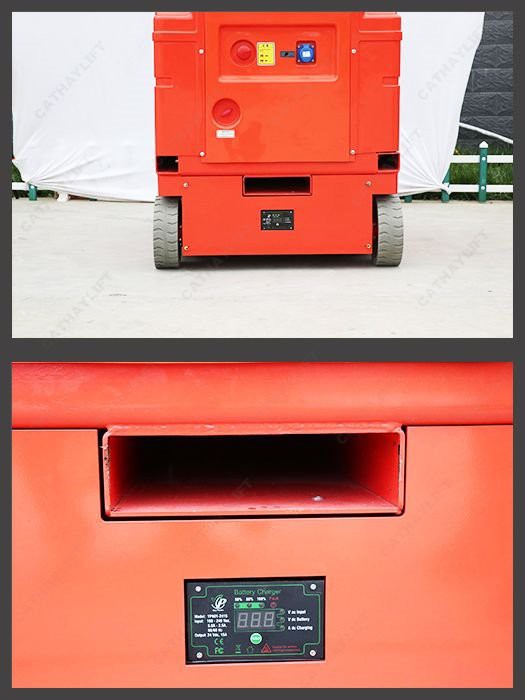

Standard forklift hole one the side of the body:
It is convenient for long-distance transportation and protects the lift from damage when loading and unloading.
Fault self-diagnosis system:
Automatic detection of machine failure, code display, and display the remaining battery power.

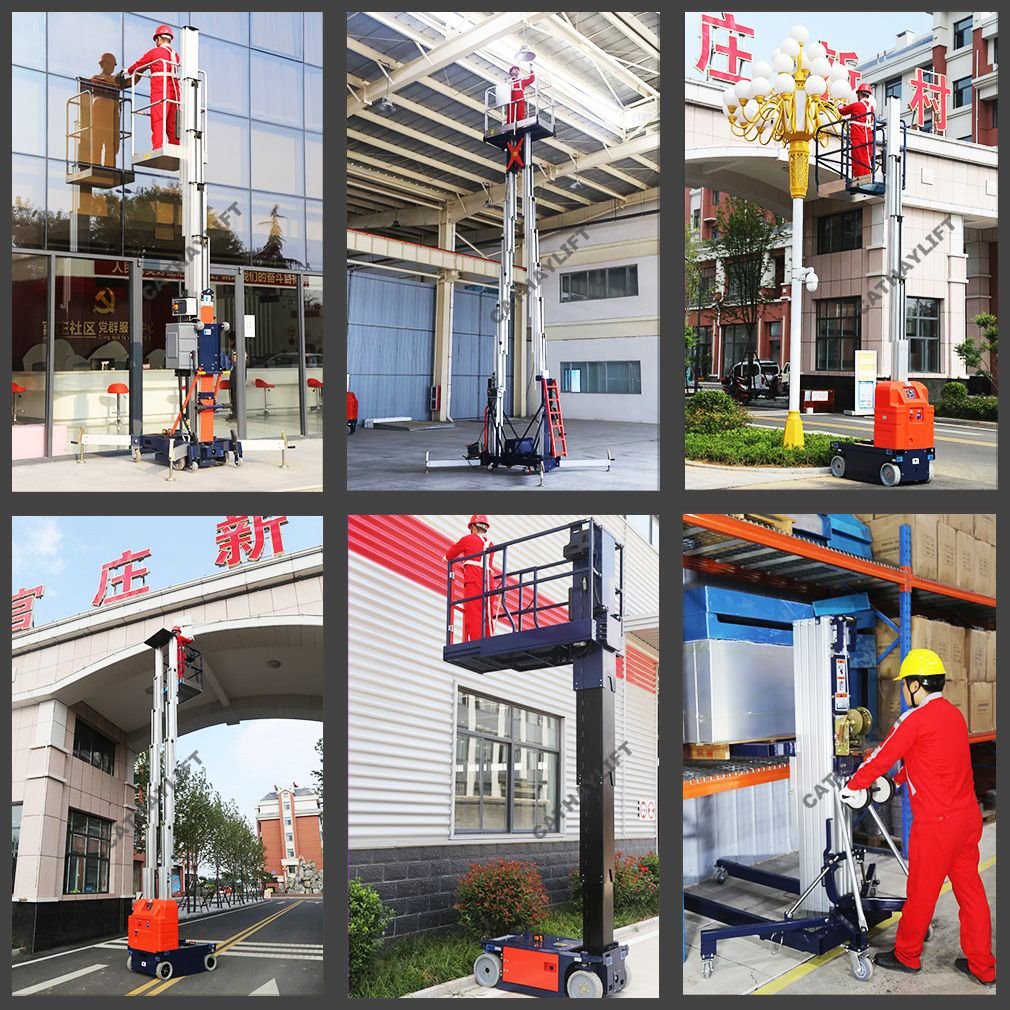

Application

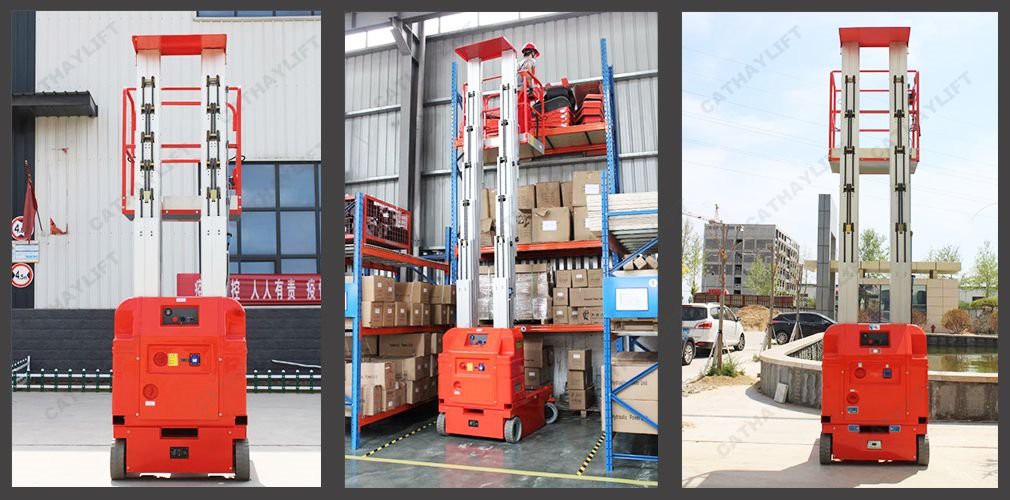

Real Order:
