Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of crawler mobile elevated work platform in China. We warmly welcome you to buy discount crawler mobile elevated work platform for sale here from our factory. Quality products and reasonable price are available.

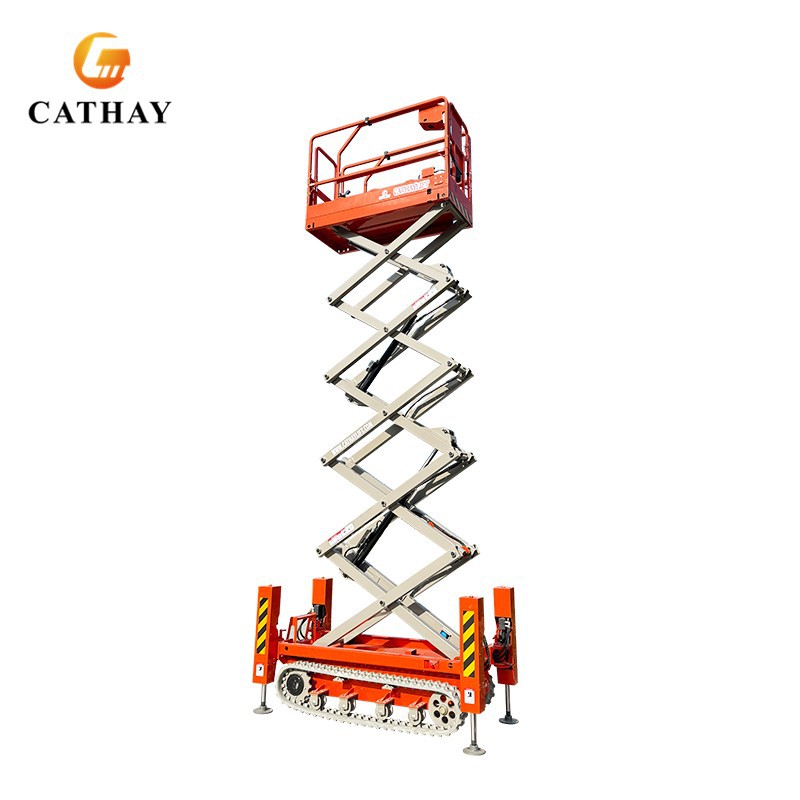

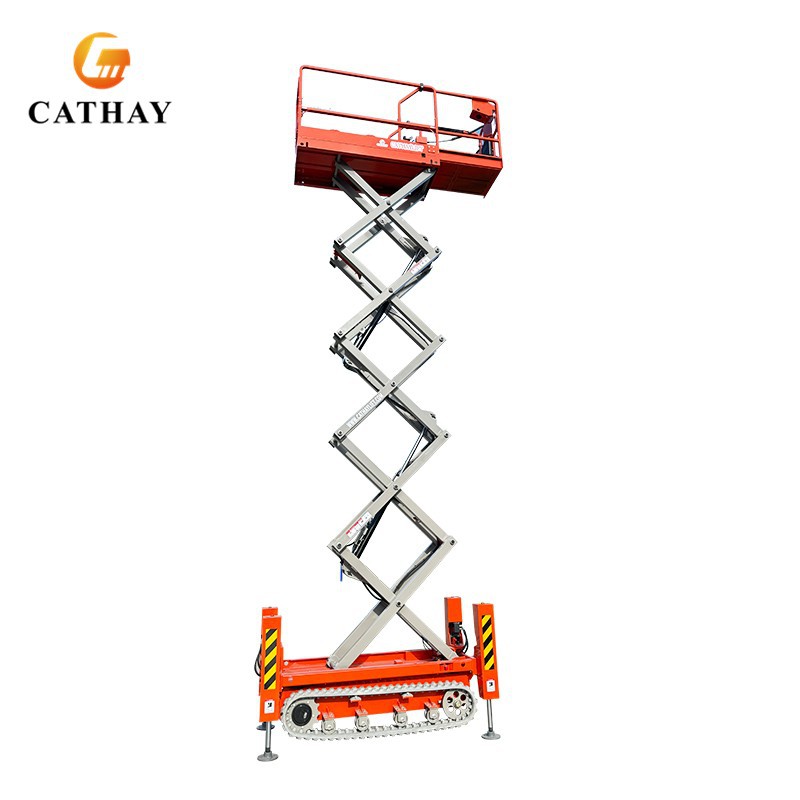

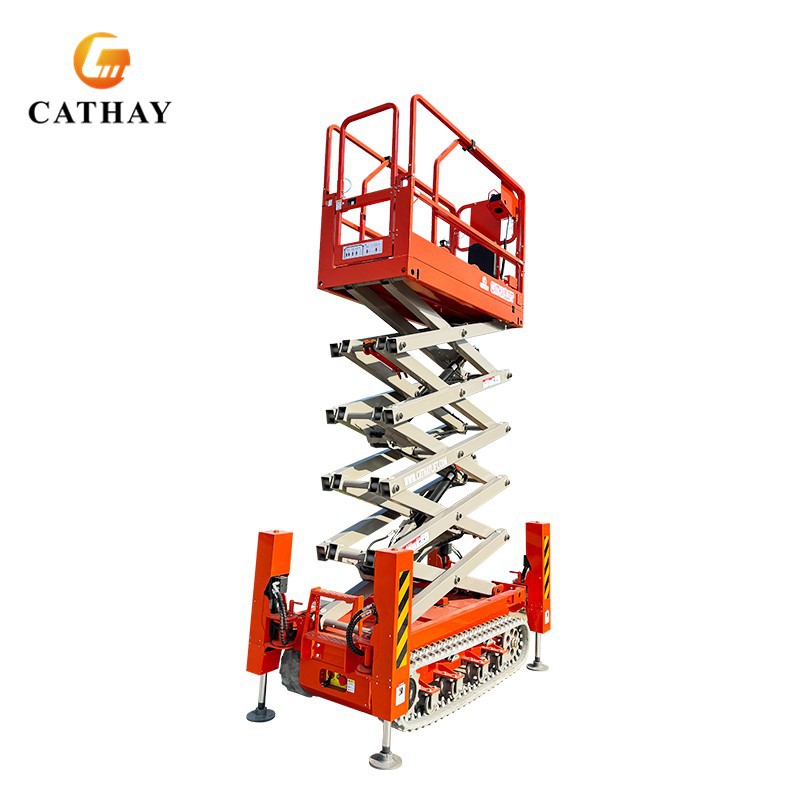

Crawler Mobile Elevated Work Platform
Crawler Mobile Elevated Work Platform can choose different models according to the customer's working height and load capacity. This device is easy to operate and can be completed by one person. Its tracked chassis provides excellent stability on uneven or soft ground, reducing the risk of tipping and enabling operations in areas where wheeled platforms would falter.

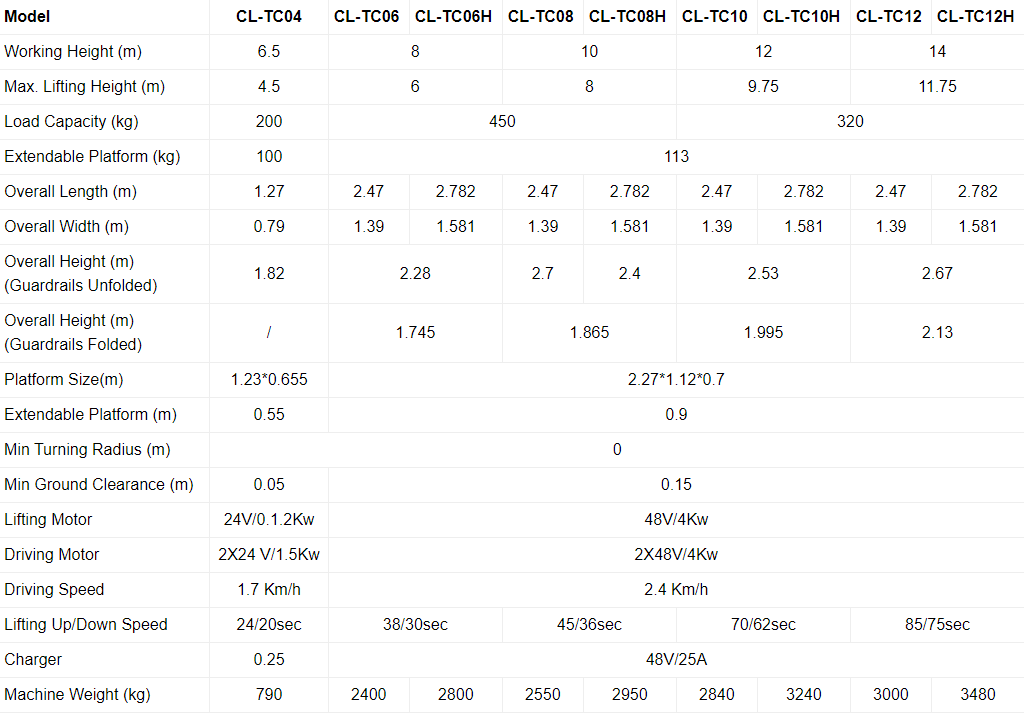

Product Details:

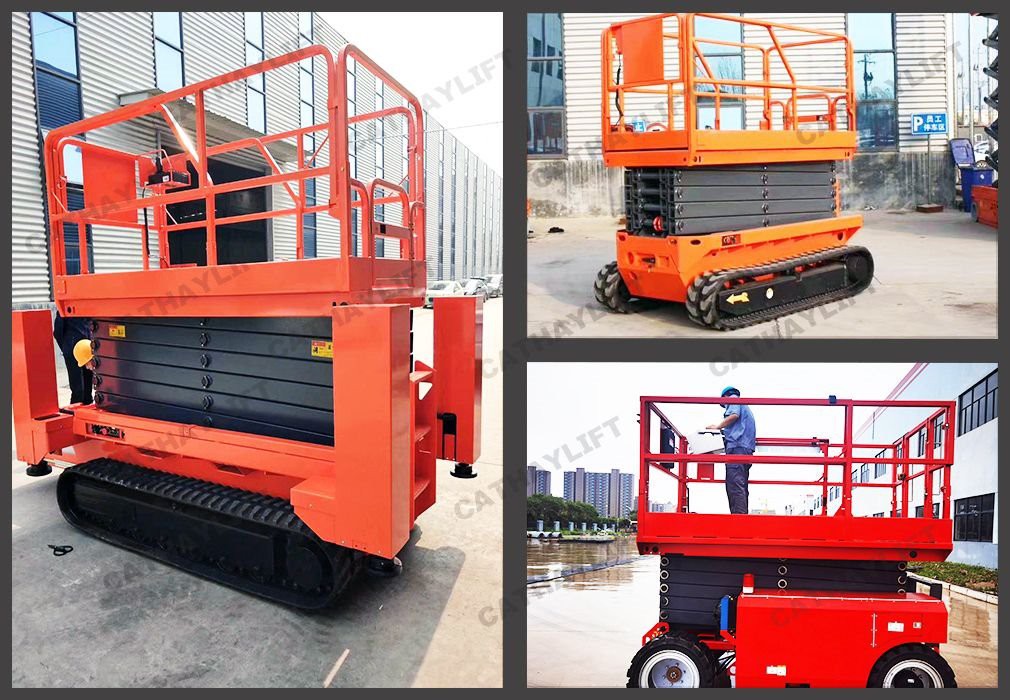

Real Order:
Advantages:
1.The Crawler Mobile Elevated Work Platform is a powerful tool designed for operations in rough and varied terrains.
2.Its crawler design distributes ground pressure evenly, allowing it to operate on soft, muddy, and rocky surfaces without sinking.
3.The platform is highly mobile and can navigate narrow spaces, forests, and confined construction sites with ease.
4.The small turning radius allows it to maneuver efficiently in tight areas, minimizing the need for extensive site preparation.
5.The MEWP features a high-torque AC motor, offering strong power and energy efficiency with minimal maintenance.
6.It operates on electric power, providing zero emissions and low noise, making it suitable for indoor and environmentally sensitive tasks.

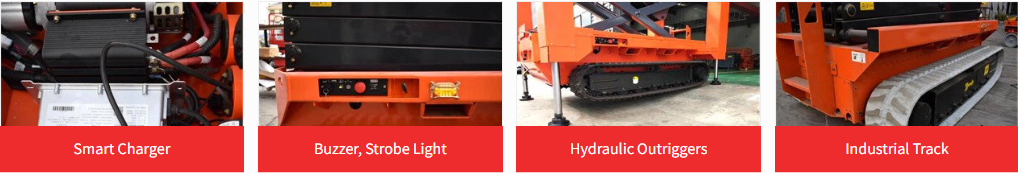

7.An optional large-capacity Trojan battery ensures extended runtime, while the diesel option allows for flexibility in remote areas.

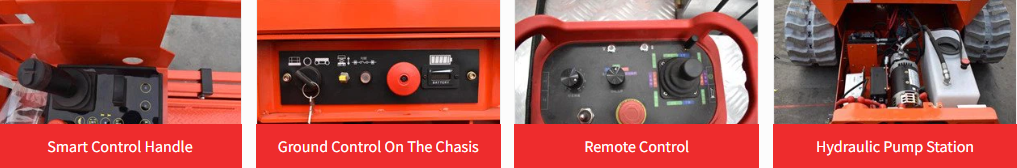

8.The platform's centralized handle and electric start make operation intuitive and user-friendly.
9.Its interactive touchscreen display provides real-time data, parameter adjustments, and quick fault diagnostics for efficient maintenance.
10.With a lifting range of 4.5m to 16m and a 450kg load capacity, it is perfect for high-altitude tasks and transporting materials across uneven ground.

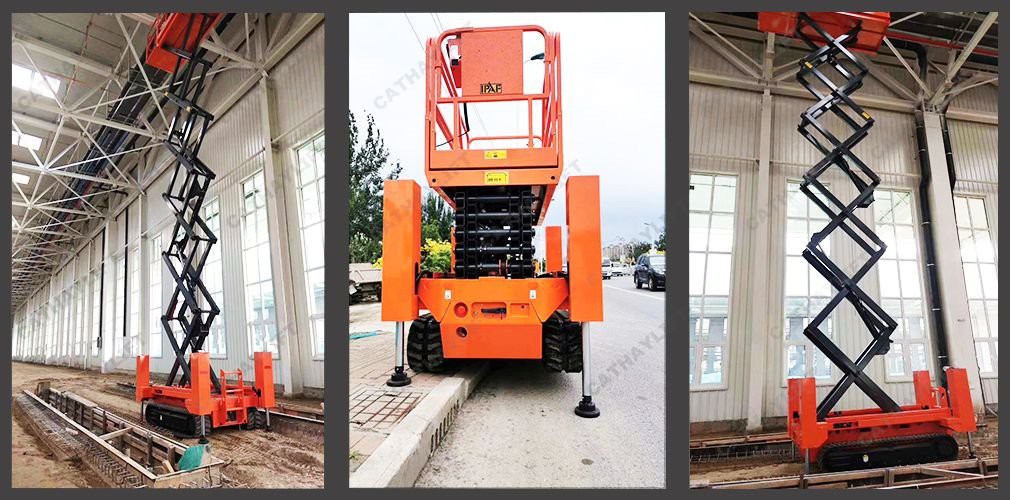

Real Order
|
MODEL |
CSTAR-8100 |
|
Max. Platform Height |
9.2m |
|
Max. Working Height |
11.2m |
|
Loading capacity |
200kg |
|
Occupants |
2 |
|
Platform Dimension |
0.62*0.87m |
|
Max. Horizontal Reach |
3m |
|
Up and Over Height |
7.89m |
|
Guardrail height |
1.1m |
|
Ground Clearance(Stowed) |
70mm |
|
Ground Clearance(Raised) |
19mm |
|
Wheelbase |
1.22m |
|
Turning Radius(Inside/Outside) |
0.23/1.65m |
|
Turret Rotation |
345° |
|
Jib Movement |
130° |
|
Travel Speed(Stowed) |
4.5km/h |
|
Travel Speed(Raised) |
0.5km/h |
|
Up/Down Speed |
42/385 |
|
Max. Working Slope |
X-2.5°,Y-2.5° |
|
Overall Length |
2.53m |
|
Overall Width |
1.0m |
|
Overall Height(stowed) |
1.99m |
|
Tyres |
φ381*127mm |
|
Driving Motor |
24V/0.9kw |
|
Lifting Motor |
24V/3kw |
|
Battery |
24V/240Ah |
|
Charger |
24V/30A |
|
Weight |
2950kg |
