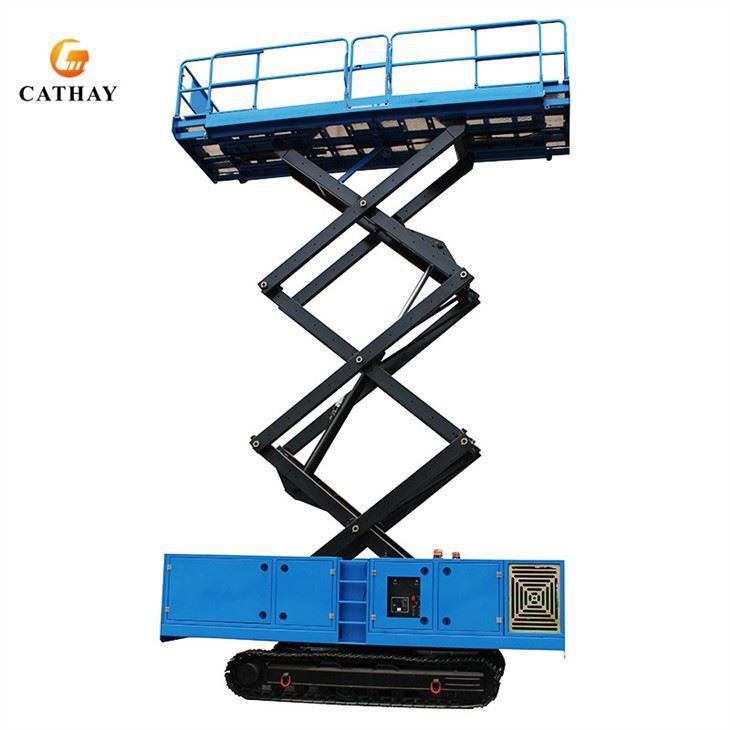

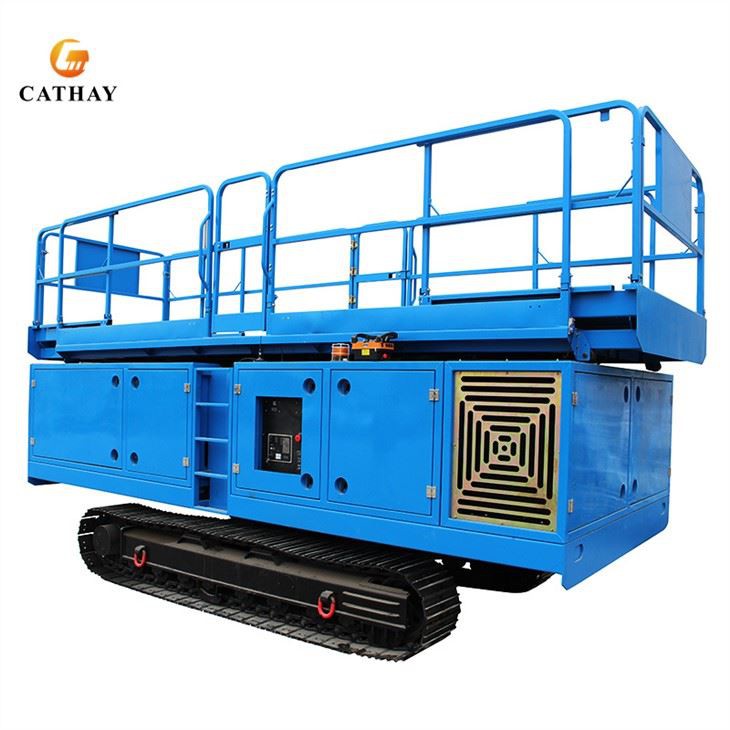

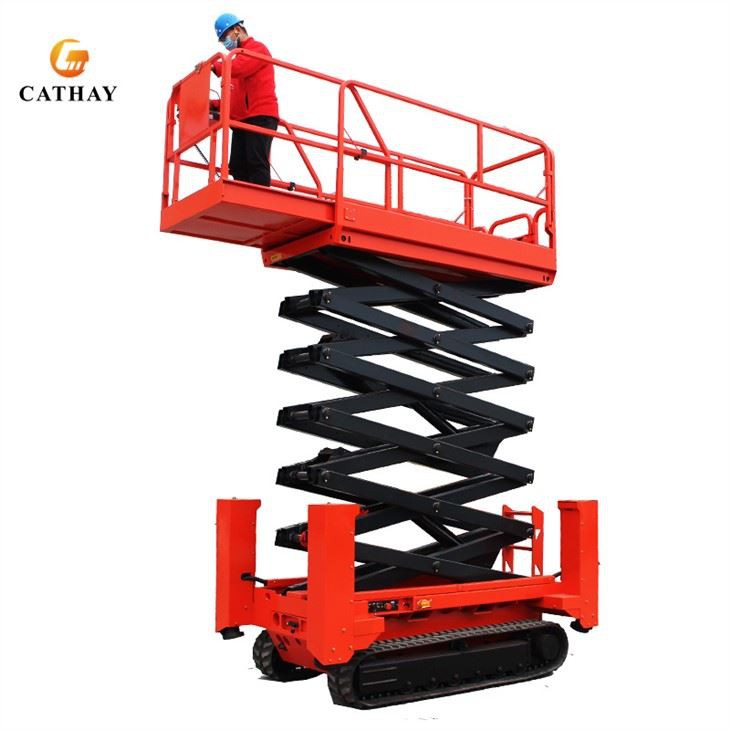

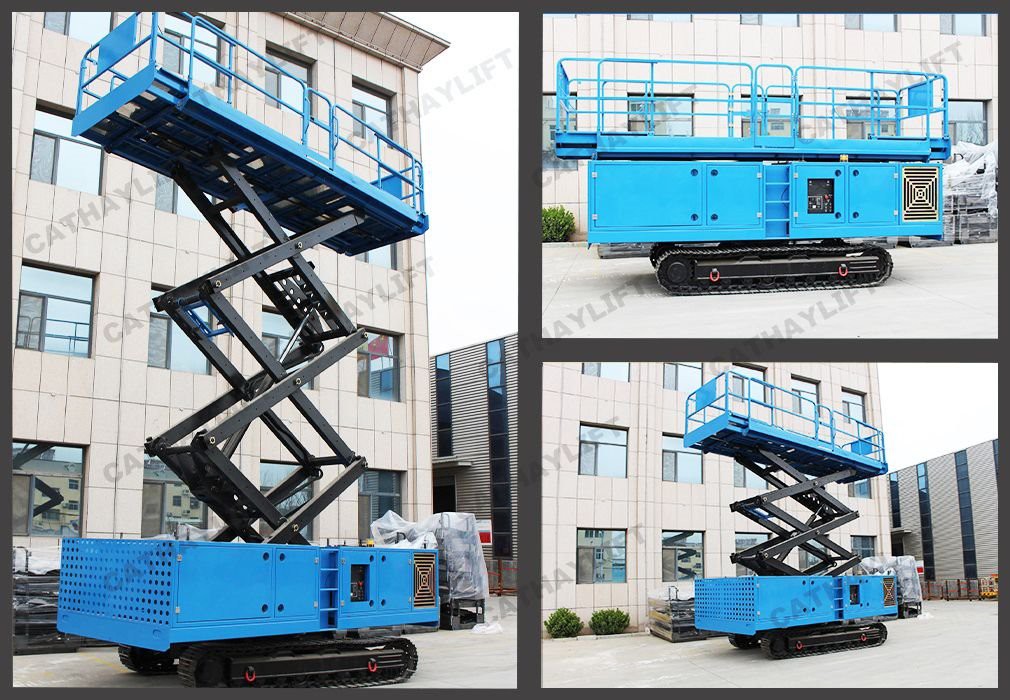

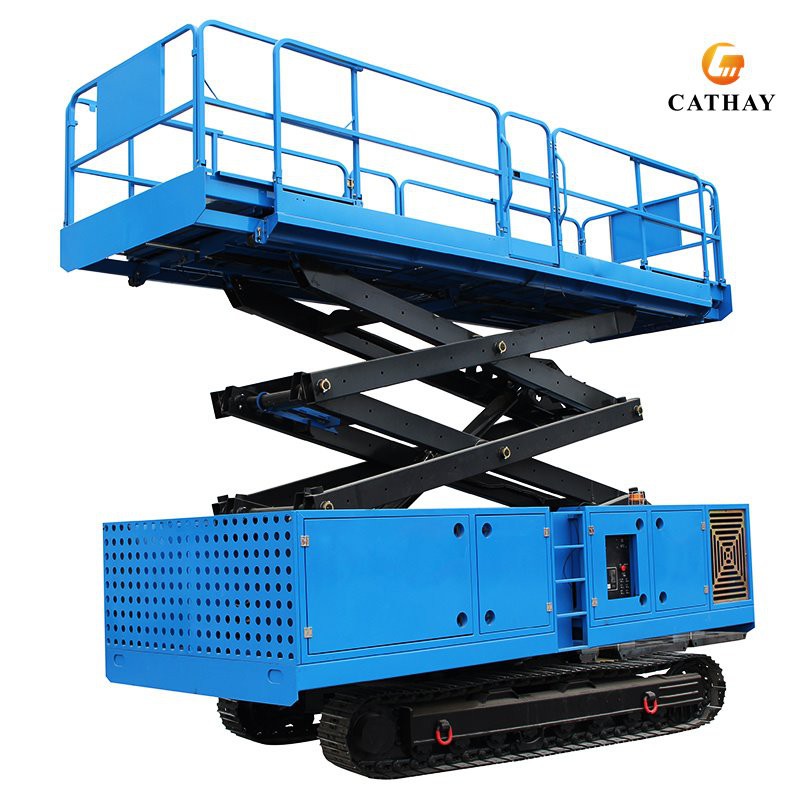

Track Scissor Lift

The crawler scissor lift is a very convenient high-altitude operation vehicle, especially when the road surface is relatively complicated, it can still give full play to the advantages of stability during high-altitude operations. The crawler scissor lift is also called intelligent full self-propelled The high-altitude operation vehicle is a multi-functional aerial operation equipment with a safety warning, automatic lifting, and automatic walking. The lifting height ranges from 4 meters to 12 meters. Its advantage is that it can be applied to various complex road conditions, such as snow, muddy roads, and uneven roads. The ability to adapt to the environment is extremely strong, and it can carry out high-altitude operations through the power supply worn by the device itself when there is no power supply in the field. Crawler walking lifting platforms with different heights, sizes and loads can be customized according to user requirements.

● Equipment track width; 400mm;

● Walking reducer + motor (two-speed): 50Ml/r, speed ratio 53.7. (Yining);

● The equipment hydraulic system is equipped with a proportional valve;

● Walking plunger pump + lift pump: 50CC/50CC/10CC (domestic first-line brand);

● The diesel engine is Weichai: 71KW;

● Diesel tank: 50L
