Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hydraulic floor crane in China. We warmly welcome you to buy discount hydraulic floor crane for sale here from our factory. Quality products and reasonable price are available.

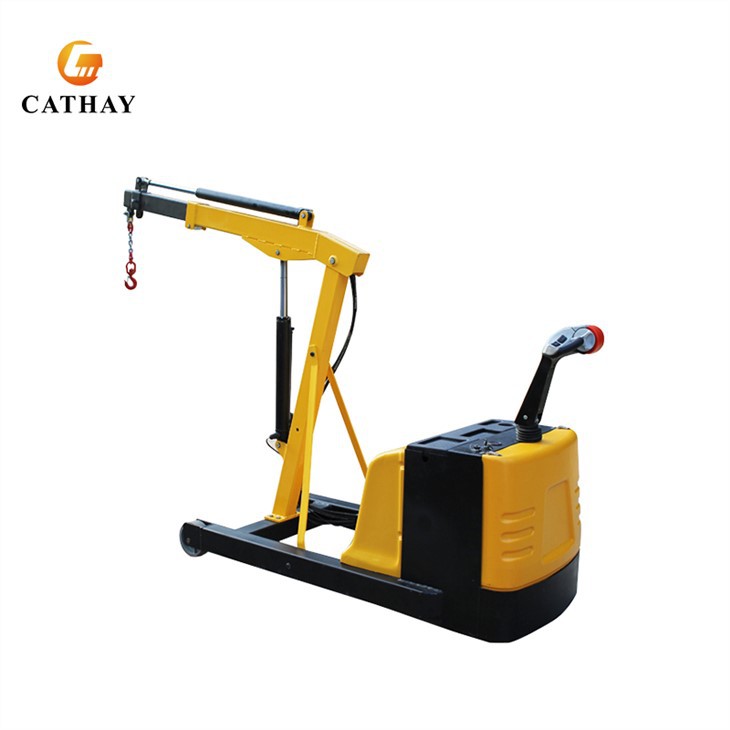

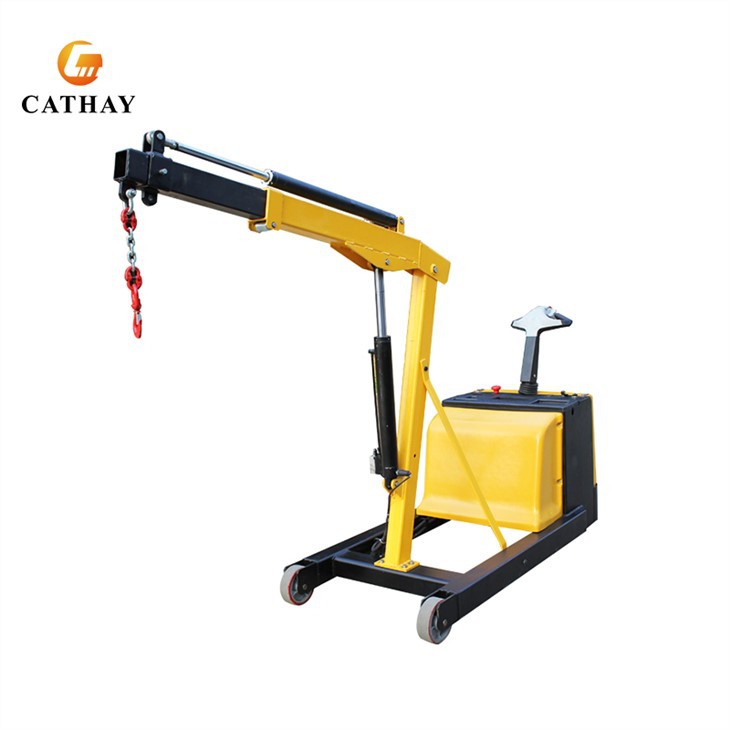

The Hydraulic Floor Crane truly shows that small size can make a big difference. Electric lifting, hydraulic lifting, charging and plug-in dual-use. Strong power and small working space.
Model Type | CSEC-1200 | CSEC-1200A | CSEC-700 | CSEC-900R |
Horizontal Reach | 1280+610+610mm | 1280+610+610mm | 1220+610+610mm | 1280mm+610mm+610mm |
Load Capacity | 1200kg | 1200kg(1280mm) | 700kg(1220mm) | 900kg(1280mm) |
Load Capacity (stage 1) | 600kg(1280~1890mm) | 600kg(1280~1890mm) | 400kg(1220~1830mm) | 450kg(1280~1890mm) |
Load Capacity (stage 2) | 300kg(1890~2500mm) | 300kg(1890~2500mm) | 200kg(1890~2440mm) | 250KG(1890~2500mm) |
Max Lifting Height | 3570mm | 3540mm | 3560mm | 3180mm |
Min Lifting Height | 960mm | 935mm | 950mm | 1410mm |
Retracted size(W*L*H) | 1920*760*1600mm | 1865*1490*1570mm | 2595*760*1580mm | 2000*1854*1550mm |
Arm Electric Rotation | / | / | / | 120°left/right |

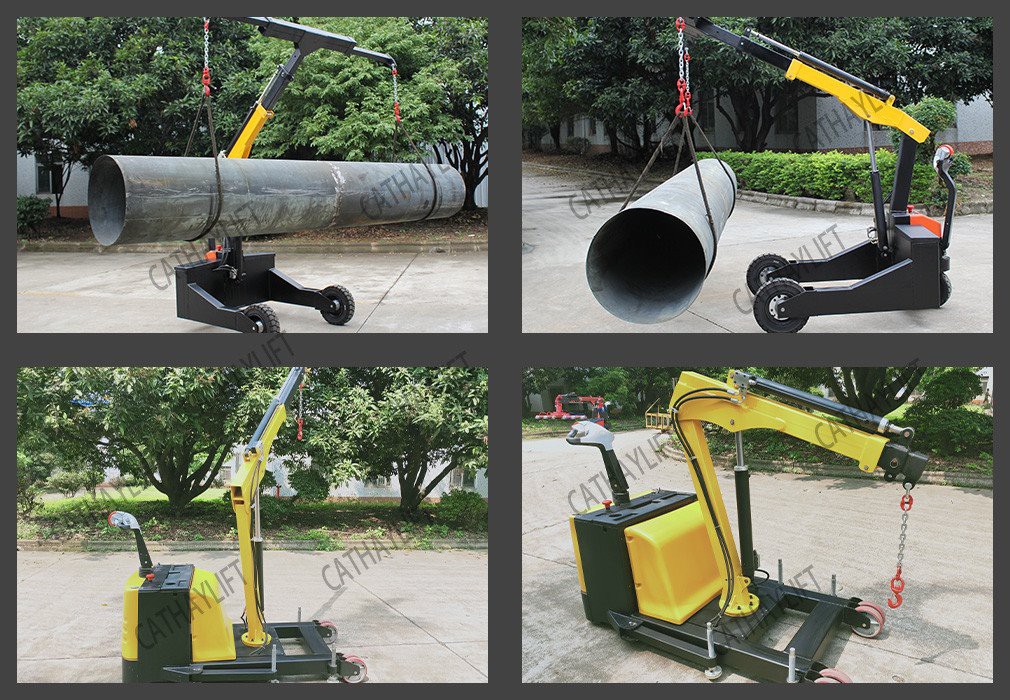

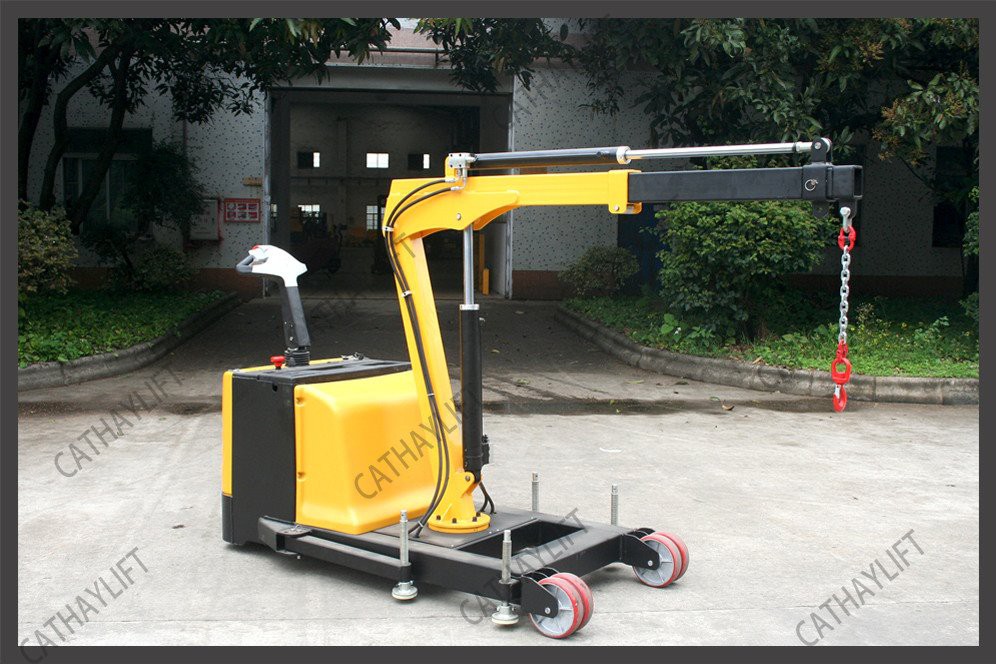

Details Images:

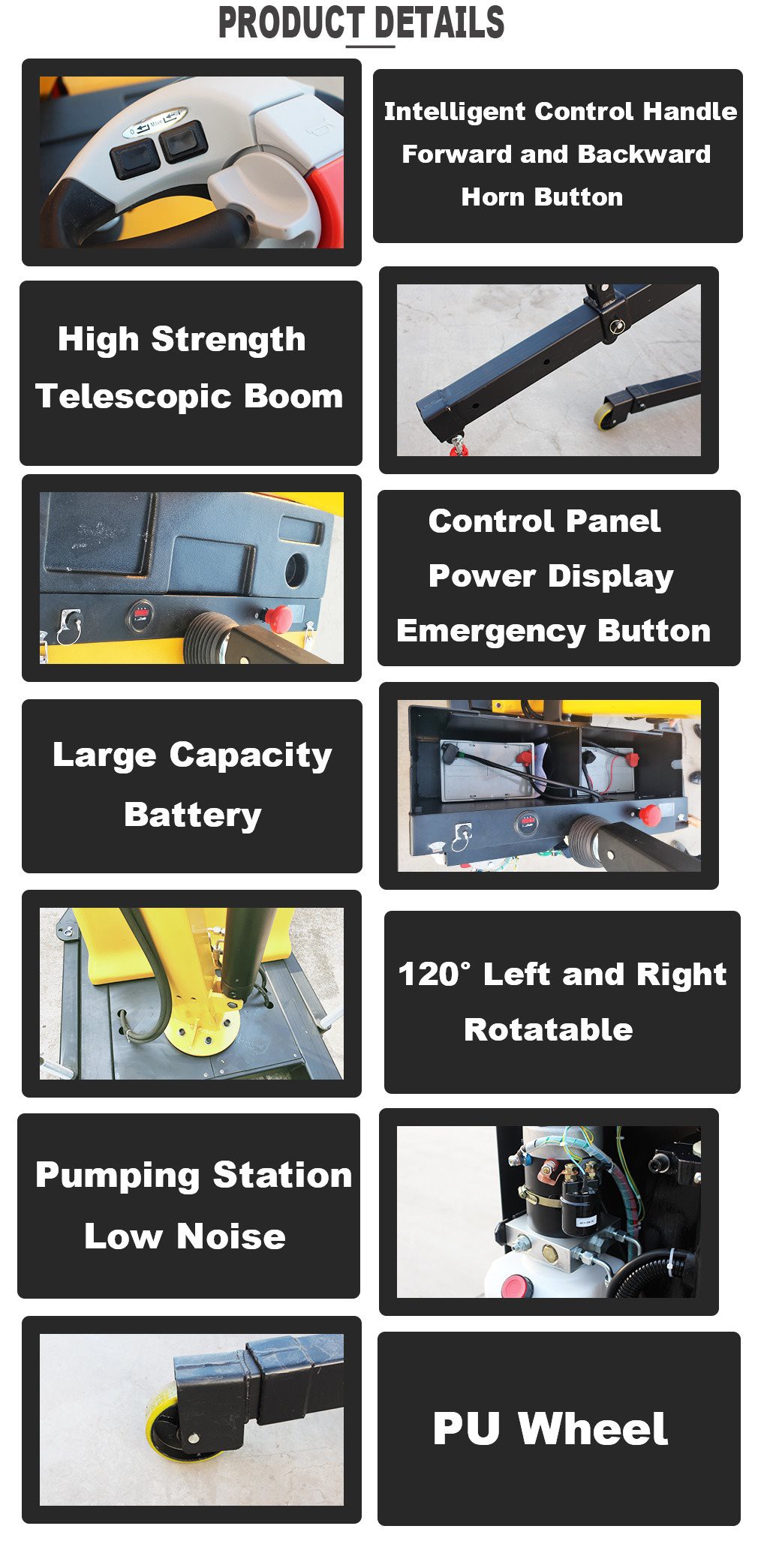

● The main boom and the telescopic boom can be folded for easy transportation and storage. High-quality imported oil cylinders are used, which are safe and durable.
● Electric lifting, electric telescopic, hand-pulled walking, and optional electric walking. The main arm can be equipped with a 120° rotatable structure design. More flexible and changeable operation.
● Heavy-duty design hook, suitable for working with a variety of spreaders, and equipped with a snap lock to prevent the hanging objects from falling off, making it safer.
● The electric telescopic arm is designed with an auxiliary roller skating device, which makes the boom more stable and smoother when it is telescopic.
● High-quality hydraulic cylinder, good sealing performance, effectively avoid leakage, and make the cargo lift more stable and powerful.
● The console is simple and elegant, integrating the power switch, power display meter, emergency button, lifting push rod, and boom telescopic push rod, which is convenient for operation.
More Details:
Real Order
