Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric mobile floor crane in China. We warmly welcome you to buy discount electric mobile floor crane for sale here from our factory. Quality products and reasonable price are available.

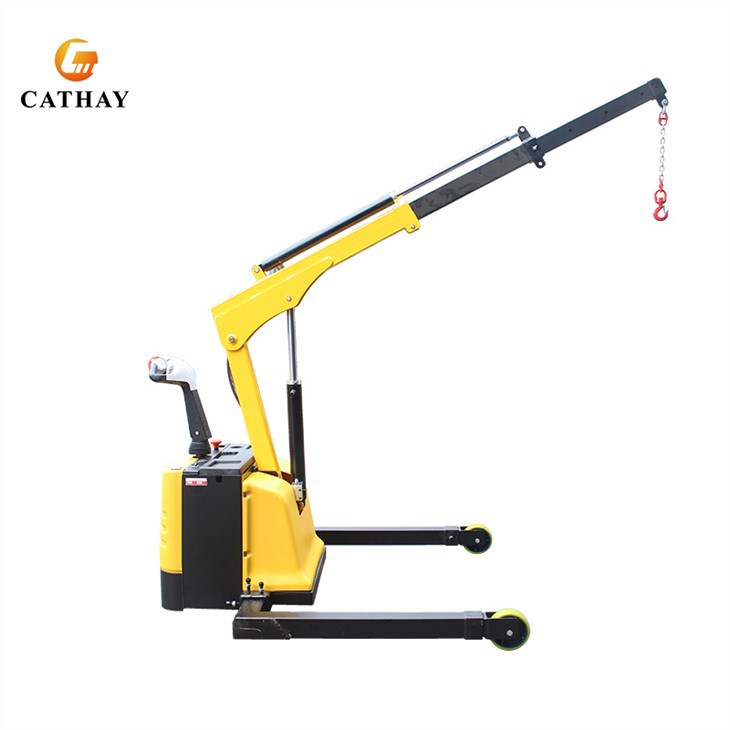

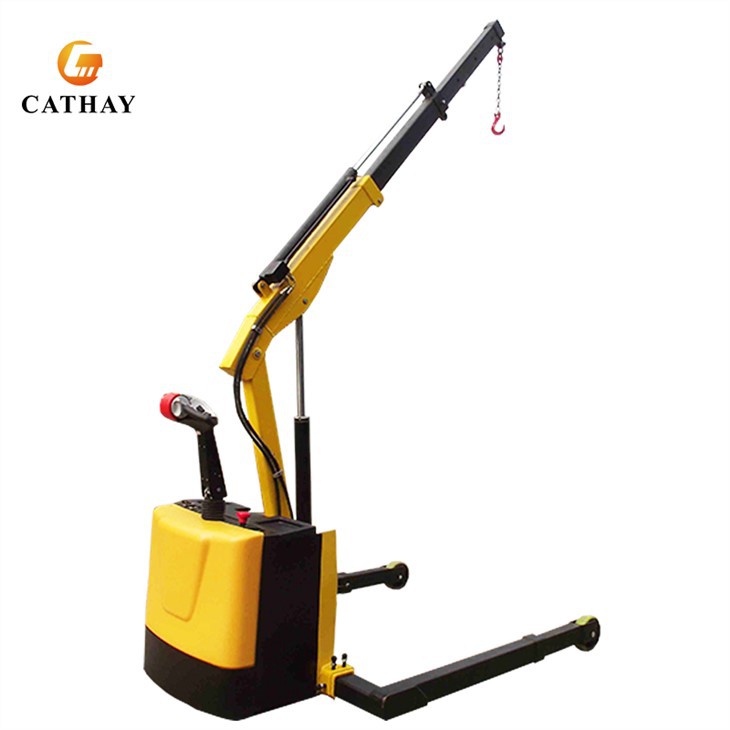

The CATHAYLIFT Mobile Floor Crane used by machanics and machinists, it has adjustable lifting capacities between 700kg to 1200kg. The hydralic floor crane also features four steel swivel casters and a crane handle to easily maneuver in tight spaces.
Model Type | CSEC-1200 | CSEC-1200A | CSEC-700 | CSEC-900R |
Horizontal Reach | 1280+610+610mm | 1280+610+610mm | 1220+610+610mm | 1280mm+610mm+610mm |
Load Capacity | 1200kg | 1200kg(1280mm) | 700kg(1220mm) | 900kg(1280mm) |
Load Capacity (stage 1) | 600kg(1280~1890mm) | 600kg(1280~1890mm) | 400kg(1220~1830mm) | 450kg(1280~1890mm) |
Load Capacity (stage 2) | 300kg(1890~2500mm) | 300kg(1890~2500mm) | 200kg(1890~2440mm) | 250KG(1890~2500mm) |
Max Lifting Height | 3570mm | 3540mm | 3560mm | 3180mm |
Min Lifting Height | 960mm | 935mm | 950mm | 1410mm |
Retracted size(W*L*H) | 1920*760*1600mm | 1865*1490*1570mm | 2595*760*1580mm | 2000*1854*1550mm |
Arm Electric Rotation | / | / | / | 120°left/right |
Product Details
Features&Advantages:

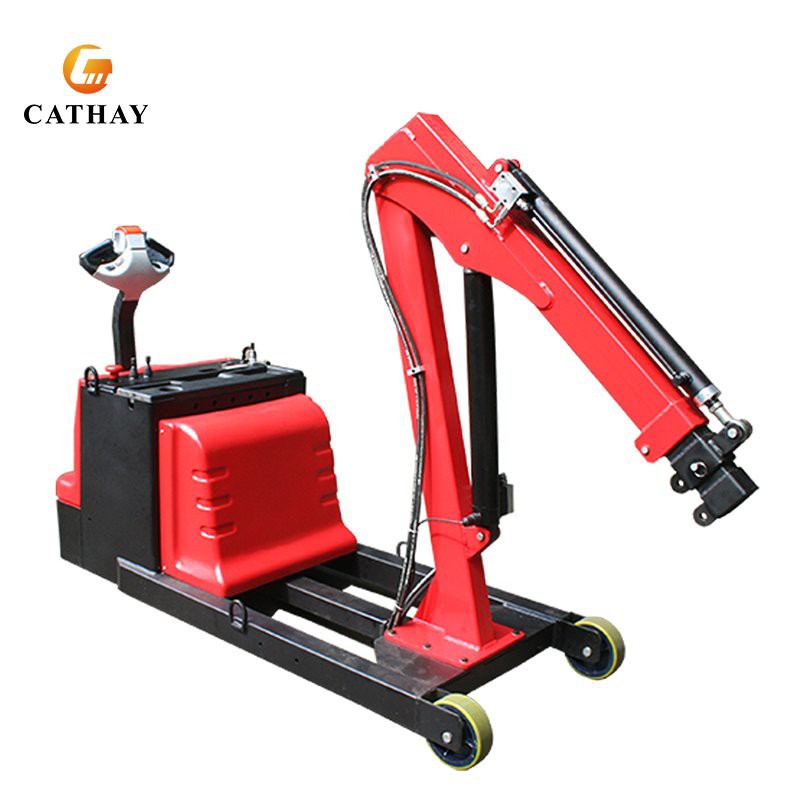

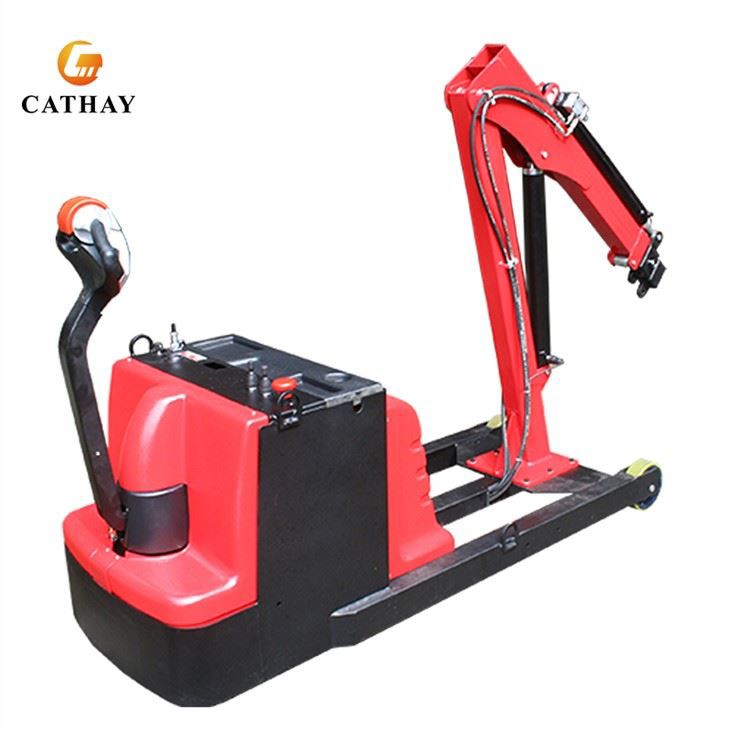

● The electric rotary crane consists of a base, a column, a boom, a traveling mechanism, a jacking cylinder, an electric motor, a gear pump and other parts. It can be rotated 120° left and right, which is convenient to move when loading and unloading heavy objects.
● The electric walking boom is equipped with a battery, which can walk and lift electrically without an external power supply. Large-capacity battery, long battery life, multi-cycle use.
● The electric walking boom adopts two universal wheels and two directional wheels, which is convenient for turning. Wheels are constructed of polyurethane wheel material.
● The electronic control system adopts the device imported from the United States, which is simple and elegant. One control platform can control multiple functions: boom extension, lifting, walking forward and backward.
● The electronic control system has a power display area, which can clearly see the use of power. And equipped with a horn device, if you don't know if there is anyone in front of you when you are loading the goods, you can honk the horn to remind the surrounding staff, safety warning.
● The electronic control system is equipped with an emergency brake button. When the equipment is not working suddenly, the emergency brake button can be pressed immediately to ensure that the goods will not fall and cause personal injury.
● The equipment is equipped with a counterweight area. When handling goods with different loads, you can place appropriate counterweights according to the nameplate instructions to make the work safer.
Real Order
