Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric powered floor crane in China. We warmly welcome you to buy discount electric powered floor crane for sale here from our factory. Quality products and reasonable price are available.

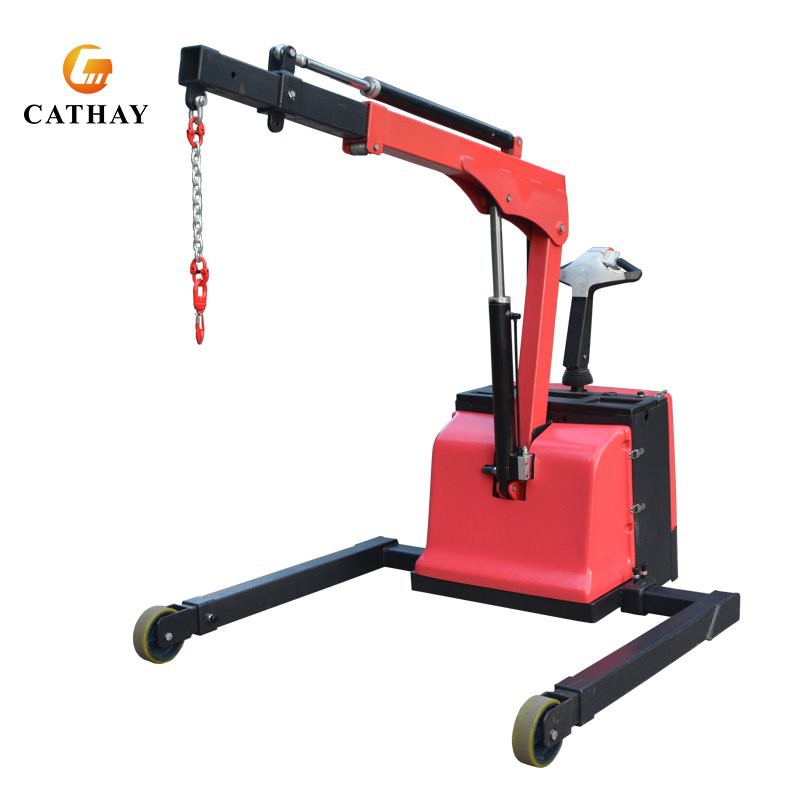

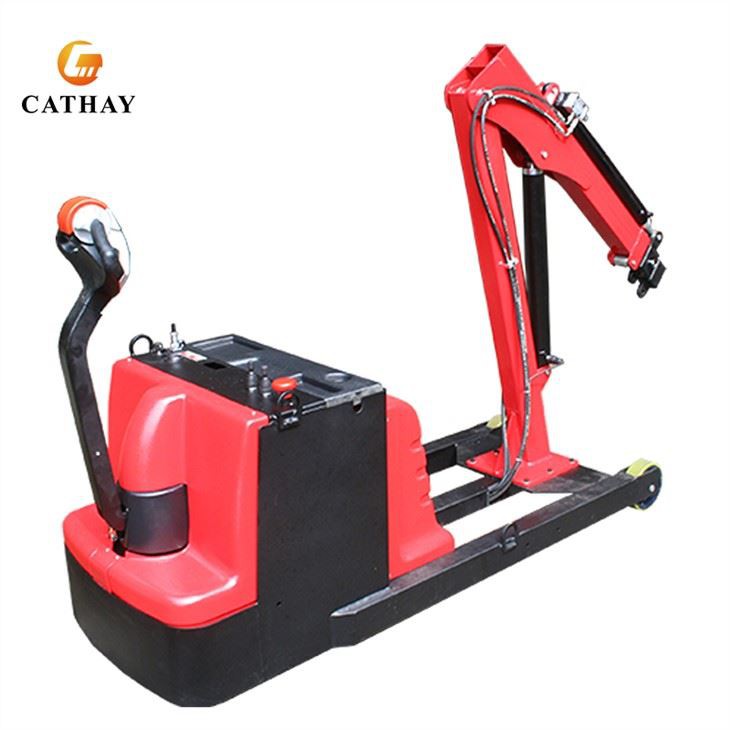

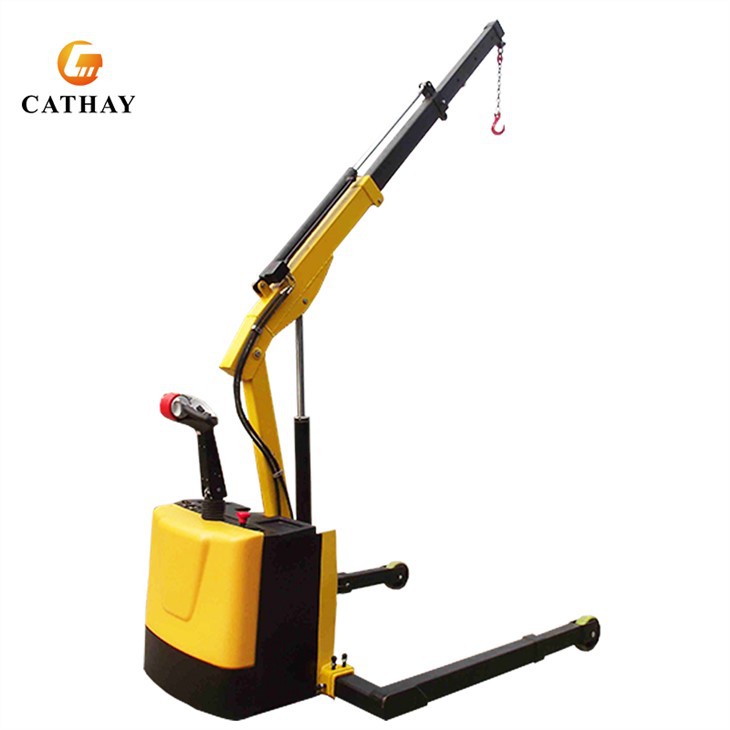

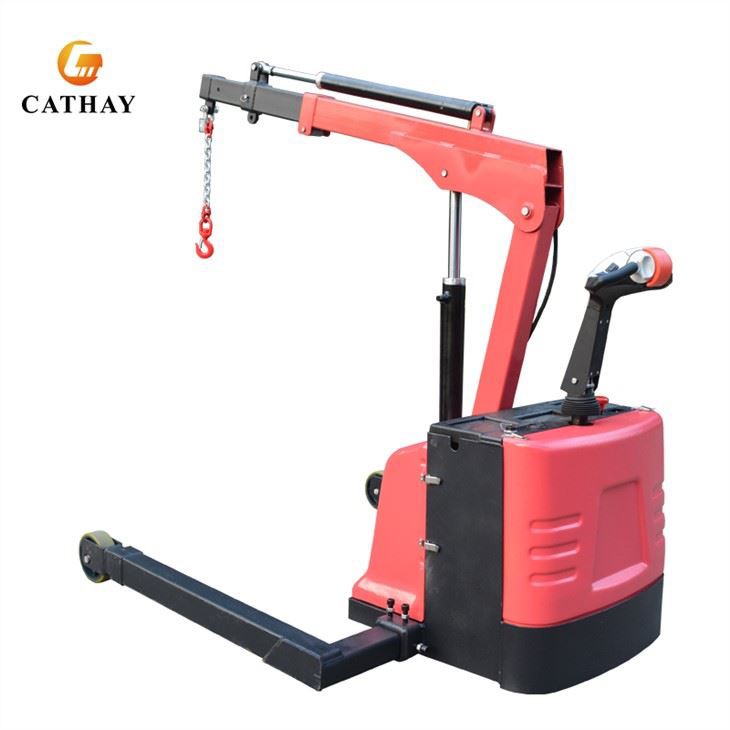

The CATHAY Electric Floor cranes are perfect for lifting heavy objects in job shop settings, but there are always different and unique lifting requirements. CATHAY's latest CRANE rotatable main arm is designed with an automatic positioning device, which firmly locks the swivel arm to ensure customer safety.
Model Type | CSEC-1200 | CSEC-1200A | CSEC-700 | CSEC-900R |
Horizontal Reach | 1280+610+610mm | 1280+610+610mm | 1220+610+610mm | 1280mm+610mm+610mm |
Load Capacity | 1200kg | 1200kg(1280mm) | 700kg(1220mm) | 900kg(1280mm) |
Load Capacity (stage 1) | 600kg(1280~1890mm) | 600kg(1280~1890mm) | 400kg(1220~1830mm) | 450kg(1280~1890mm) |
Load Capacity (stage 2) | 300kg(1890~2500mm) | 300kg(1890~2500mm) | 200kg(1890~2440mm) | 250KG(1890~2500mm) |
Max Lifting Height | 3570mm | 3540mm | 3560mm | 3180mm |
Min Lifting Height | 960mm | 935mm | 950mm | 1410mm |
Retracted size(W*L*H) | 1920*760*1600mm | 1865*1490*1570mm | 2595*760*1580mm | 2000*1854*1550mm |
Arm Electric Rotation | / | / | / | 120°left/right |
Product Details
Features&Advantages:
● The drive system adopts the American CURTIS stepless speed regulation electronic control system, which is flexible in operation, safe and reliable. Equipped with high-quality pump station and maintenance-free battery pack, saving later maintenance costs and time.
● The equipment is equipped with an electric wire rope hook, which completely solves the problem that the effective horizontal distance of the hook is reduced when the boom is upward.
● The pull-out support leg design structure can effectively solve the balance problem, and at the same time make the equipment chassis more stable, the cargo transportation is safer, and the shaking amplitude is small.
● The walking system adopts 24V, and the rise and fall adopts 380V/50Hz three-phase electricity. Because the needs of different customers are different, we can customize according to specific requirements.
● The maintenance-free battery is fully charged to complete a day's work, work during the day, and charge at night. The smart charger automatically powers off and balances the battery voltage
● The no-load climbing ability of the equipment is as high as 10%, and the full-load climbing ability is 5%. The full load travel speed is 4km/h.
● The equipment is also equipped with a unique foot brake structure, which activates the foot brake during the working process to prevent severe shaking and balance the equipment. easy to use.
Real Order
