Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hydraulic mobile floor crane in China. We warmly welcome you to buy discount hydraulic mobile floor crane for sale here from our factory. Quality products and reasonable price are available.

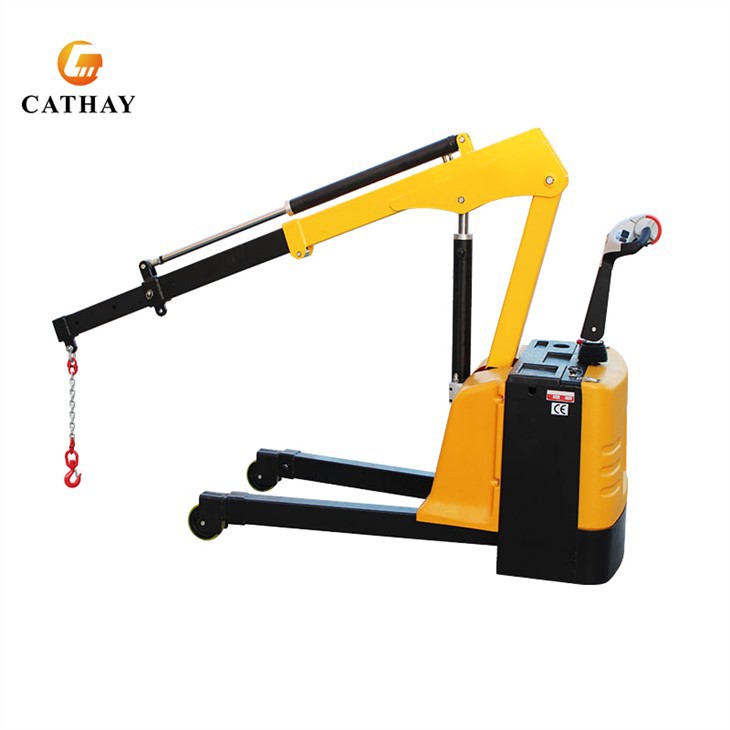

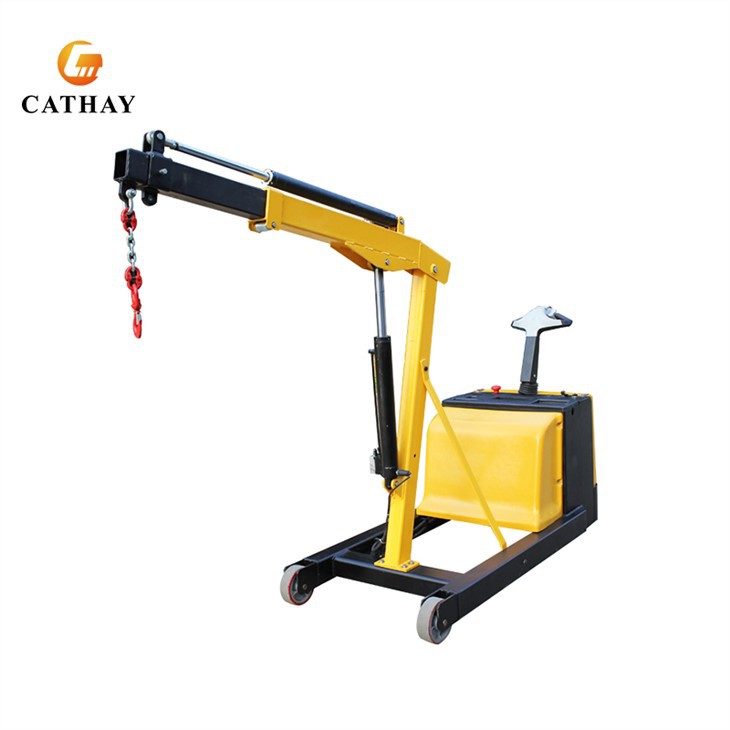

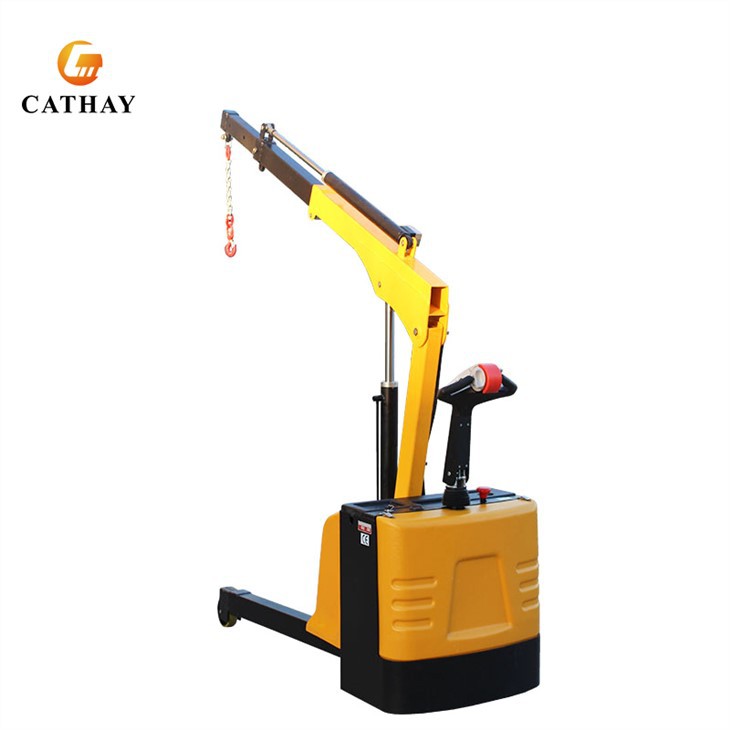

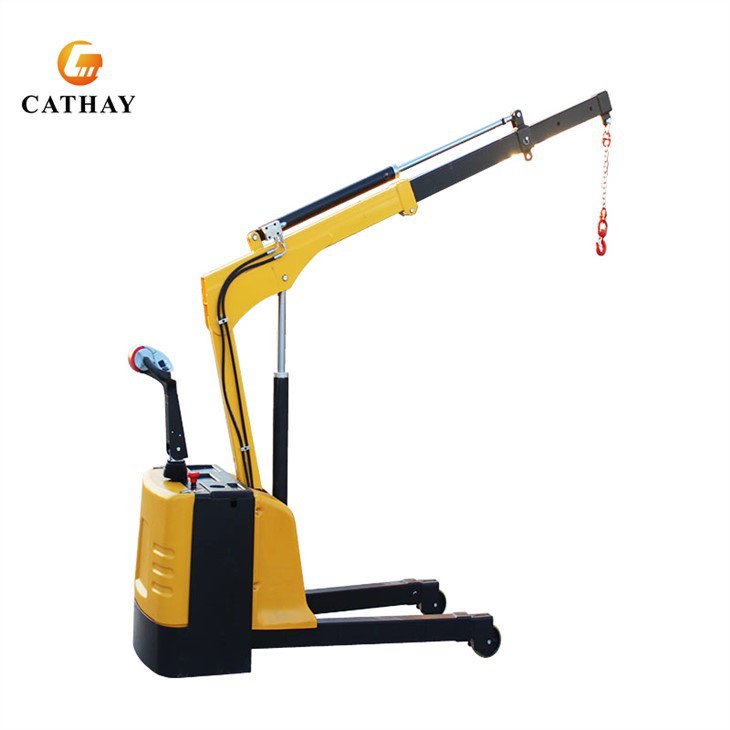

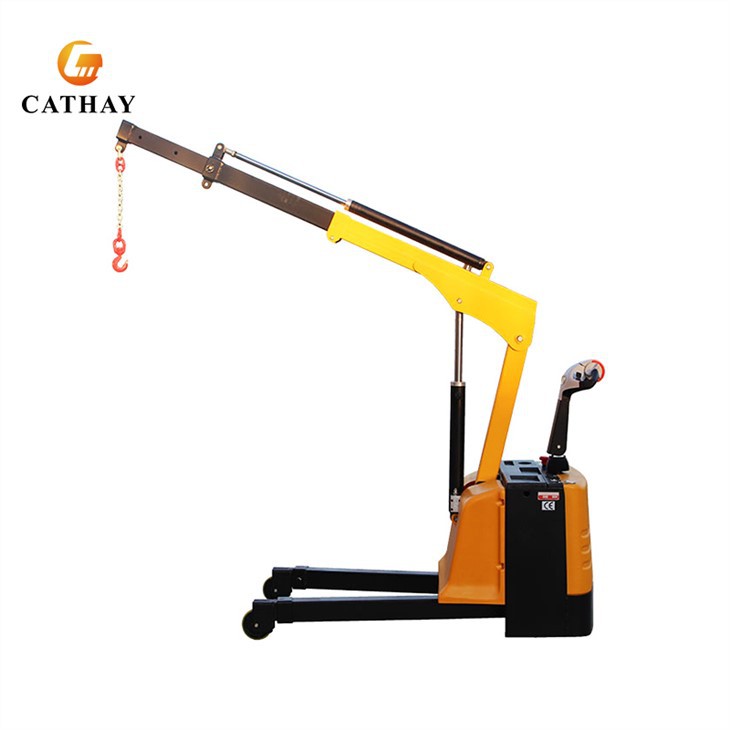

Hydraulic Mobile Floor Crane's telescopic arms and support legs are foldable in a small package size.It is more suitable for working in narrow spaces instead of large forklifts.
Model Type | CSEC-1200 | CSEC-1200A | CSEC-700 | CSEC-900R |
Horizontal Reach | 1280+610+610mm | 1280+610+610mm | 1220+610+610mm | 1280mm+610mm+610mm |
Load Capacity | 1200kg | 1200kg(1280mm) | 700kg(1220mm) | 900kg(1280mm) |
Load Capacity (stage 1) | 600kg(1280~1890mm) | 600kg(1280~1890mm) | 400kg(1220~1830mm) | 450kg(1280~1890mm) |
Load Capacity (stage 2) | 300kg(1890~2500mm) | 300kg(1890~2500mm) | 200kg(1890~2440mm) | 250KG(1890~2500mm) |
Max Lifting Height | 3570mm | 3540mm | 3560mm | 3180mm |
Min Lifting Height | 960mm | 935mm | 950mm | 1410mm |
Retracted size(W*L*H) | 1920*760*1600mm | 1865*1490*1570mm | 2595*760*1580mm | 2000*1854*1550mm |
Arm Electric Rotation | / | / | / | 120°left/right |
Product Details
Features&Advantages:
● Outriggers can be folded, easy to pack Small size, easy to store and transport, suitable for small spaces that forklifts can't access.
● The outriggers can be fixed with fixing bolts when working, and the outriggers can be folded up and placed in the corner when not working, saving storage space.
● Electric lifting and telescoping greatly save labor, and the boom adopts electro-hydraulic lifting/telescopic, which has a very wide range and is flexible and adjustable. The telescopic arm is also divided into two parts: electric telescopic and manual adjustment, and the manual adjustment part is longer.
● The telescopic arm can be extended and retracted by colleagues with heavy objects. If the telescopic range is not long enough, we also have manual telescopic parts to fully meet customer needs.
● This Crane can be used to lift various items, such as oil drums, motors, cement, heavy steel, etc. It is suitable for various types of work, and it can also replace the spreader to meet various needs.
● From the moment the customer receives the goods, we provide 1-year warranty service, if there is any product quality problem, we will provide free after-sales service.
