Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mobile floor crane in China. We warmly welcome you to buy discount mobile floor crane for sale here from our factory. Quality products and reasonable price are available.

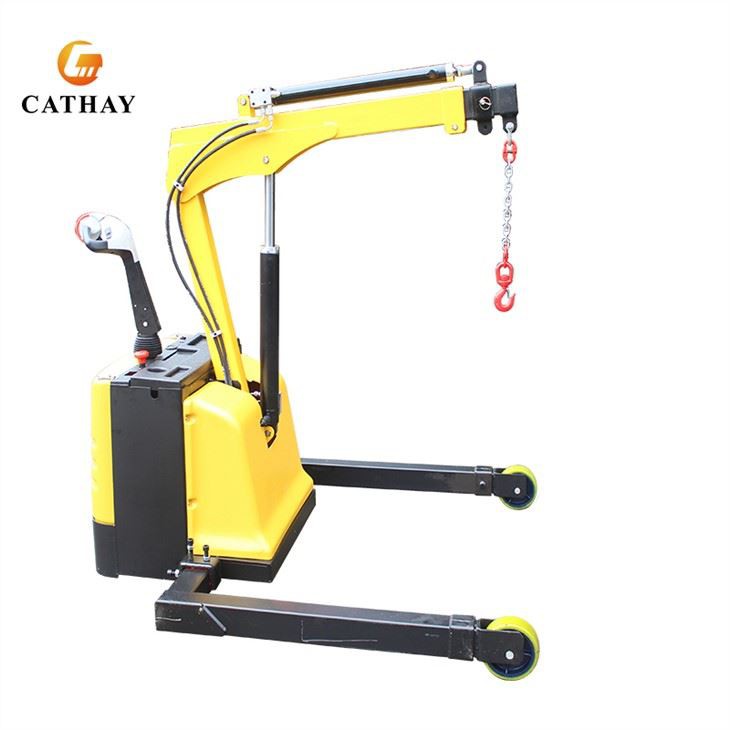

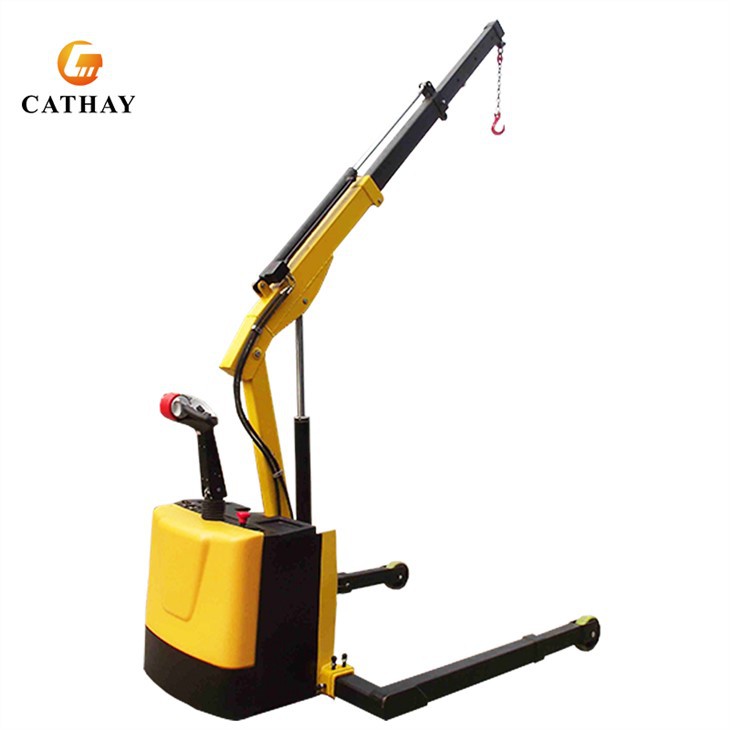

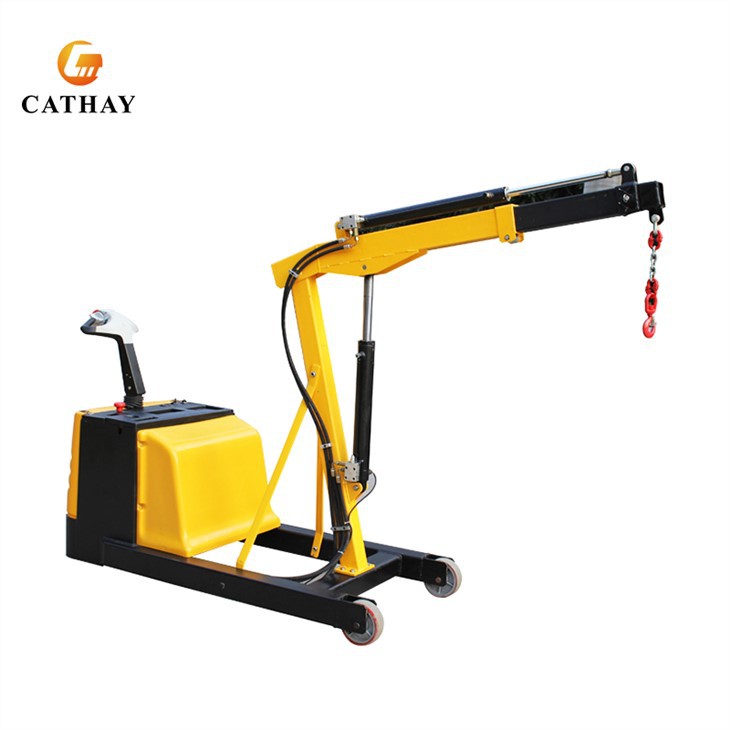

The CATHAYLIFT Mobile Floor Crane always insists on making high-quality products, we can customize cranes with different loads according to customer needs. According to different usage scenarios, equipped with suitable tires. The compact design of the crane is ergonomically used in the tightest of spaces. Full power design is friendly for operators to use for lifting, extending, and driving. The integrated hydraulic system provides a safety velocity fuse, adjustable flow control and compensated flow control valve, overlord relief valve, and so forth. The driving system provides all the safety features of standard walkie trucks, such as speed control, emergency stop and magnetic brake, and so forth. With just a button, you can lift and move everything to everywhere you need.
Model Type | CSEC-1200 | CSEC-1200A | CSEC-700 | CSEC-900R |
Horiontal Reach ended 2 stages) | 1280+610+610mm | 1280+610+610mm | 1220+610+610mm | 1280mm+610mm+610mm |
Load Capacity | 1200kg | 1200kg(1280mm) | 700kg(1220mm) | 900kg(1280mm) |
Load Capacity (stage 1) | 600kg(1280~1890mm) | 600kg(1280~1890mm) | 400kg(1220~1830mm) | 450kg(1280~1890mm) |
Load Capacity (stage 2) | 300kg(1890~2500mm) | 300kg(1890~2500mm) | 200kg(1890~2440mm) | 250KG(1890~2500mm) |
Max Lifting Height | 3570mm | 3540mm | 3560mm | 3180mm |
Min Lifting Height | 960mm | 935mm | 950mm | 1410mm |
Retracted size(W*L*H) | 1920*760*1600mm | 1865*1490*1570mm | 2595*760*1580mm | 2000*1854*1550mm |
Arm Electric Rotation | / | / | / | 120°left/right |
Cautions:
1. Read and understand Operator's Manual before using the truck.
2. Do not operate this crane unless you are trained and authorized.
3. Do not overload this crane. Check the capacity plate for loading weight and lifting height. Do not handle unstably or loosely stacked loads.
4. Operate the crane only from the designated operating load position. Never place any part of your body under the truck or near moving parts. Do not ride or carry passengers.
5. Before leaving the truck, remember the full low-down lifting mechanism and set the parking brake by making sure the handle is in a vertical position and turn off the power with the switch key.
6. Travel slowly and with caution on slopes. Always travel with load-end downgrades.
7. The drive system of this crane could be only used for long distances when it is without load. It does not allow for transporting with the load. When it is with load the drive system only be used for changing direction and moving the crane when it is in a smooth area & in safe conditions. When moving the crane with load, the boom should be fully retracted, otherwise, any wrong operation may cause a series of damage to equipment and injured to the person.
Operation:
TO RAISE AND LOWER There are two buttons located on the right side of the handle. One is for raising the hook. The other one is for lowering the hook. Make sure that there is no one standing near the Crane or the load when raising or lowering.
TO TRAVEL The butterfly switch controls the direction and speed of the lift Crane. Rotate the butterfly controls located on the upper part of the handle. Rotate the butterfly control CW towards the forks, and the Crane towards in the forks the first direction. The speed of the Crane is controlled by the degree of rotation in either direction.
TO BRAKE This Crane is equipped with a brake that is applied between 10~15 degrees of the vertical position and between 85~90 degrees of the lower position in the vertical operating of the handle. The brake can be operated at any point in the lateral operating of the handle. When you release your hand from the handle, it will resume the neutral position automatically, as the brake in work. Always make sure that the brake is at work before operating the Crane. When packed, always put the handle in the full vertical position with the brake applied and the forks lowered.
DIRECTIONAL REVERSING SAFETY BUTTON At the top of the handle, the red reversing button is designed to protect the operator from injury. If the top of the handle comes in touch with the operator's body during operation, the Crane will automatically reverse direction and travel away from the operator. Then immediately release your hands off the butterfly control and put the handle up and brake on. The safety reversing button is spring-loaded, so it automatically resumes its original position after being activated.
HORN A horn is located on the front side of the handle.
KEY LOCK Before operating the Crane, turn on the electric power first. The key lock is located on the battery pack cover.
