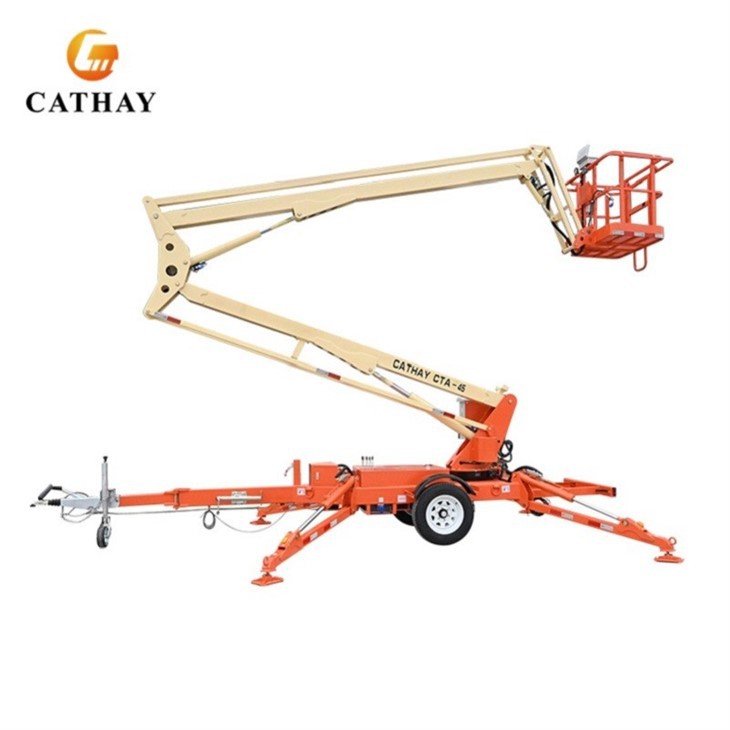

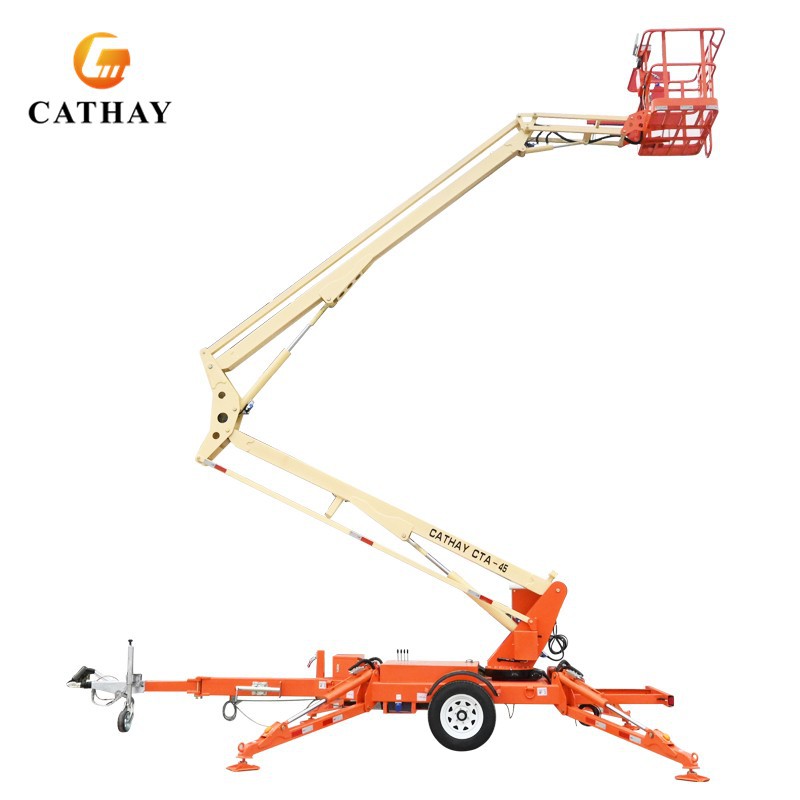

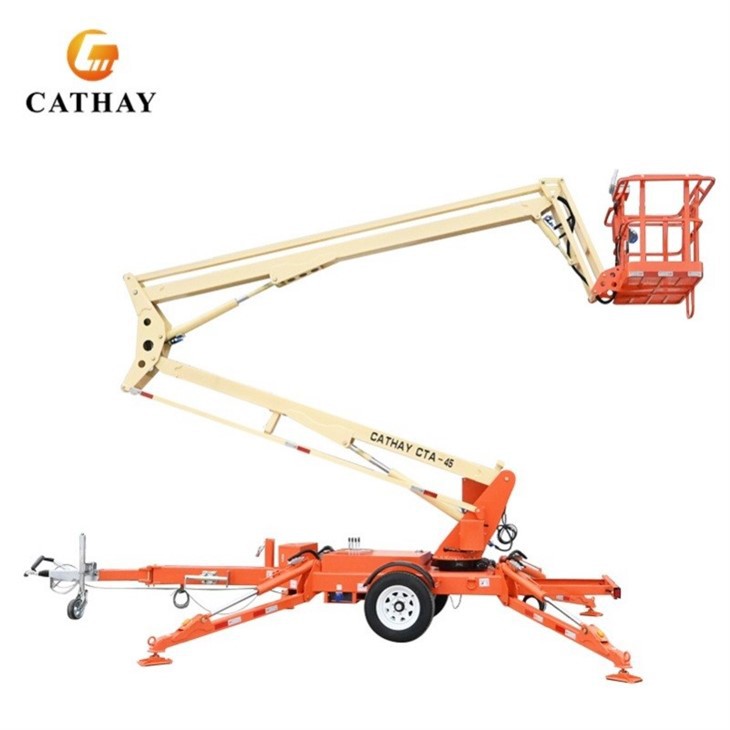

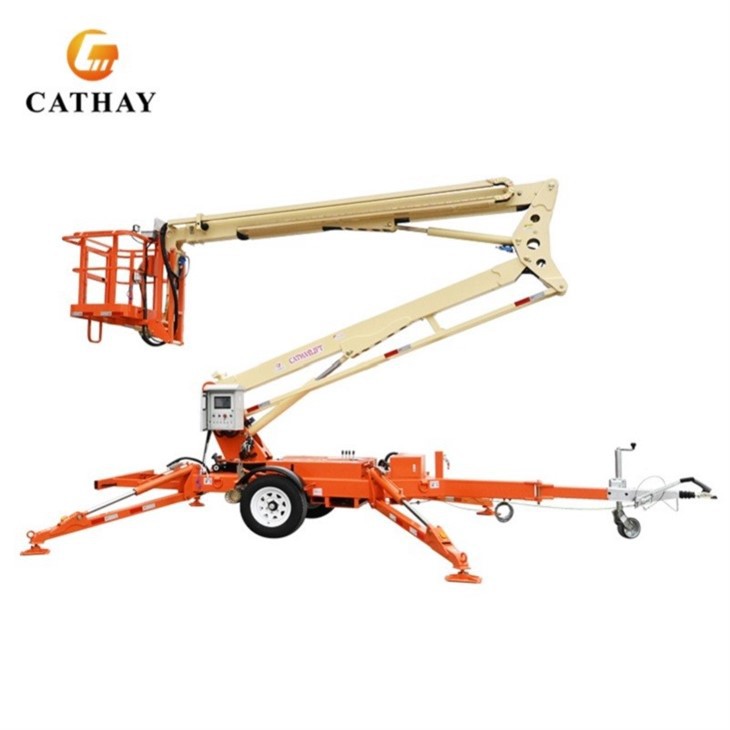

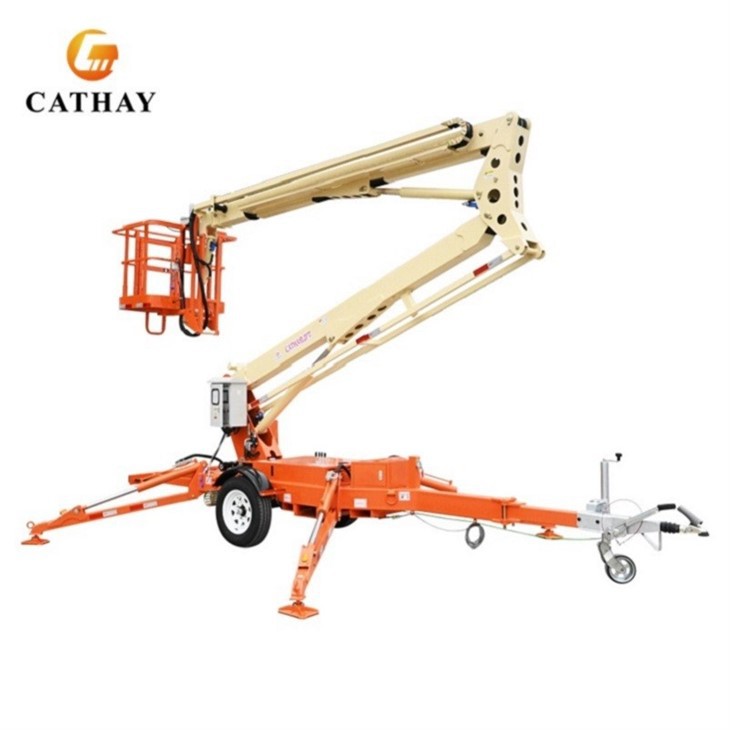

10m to 24m Towable/Towed Trailer Boom Lift

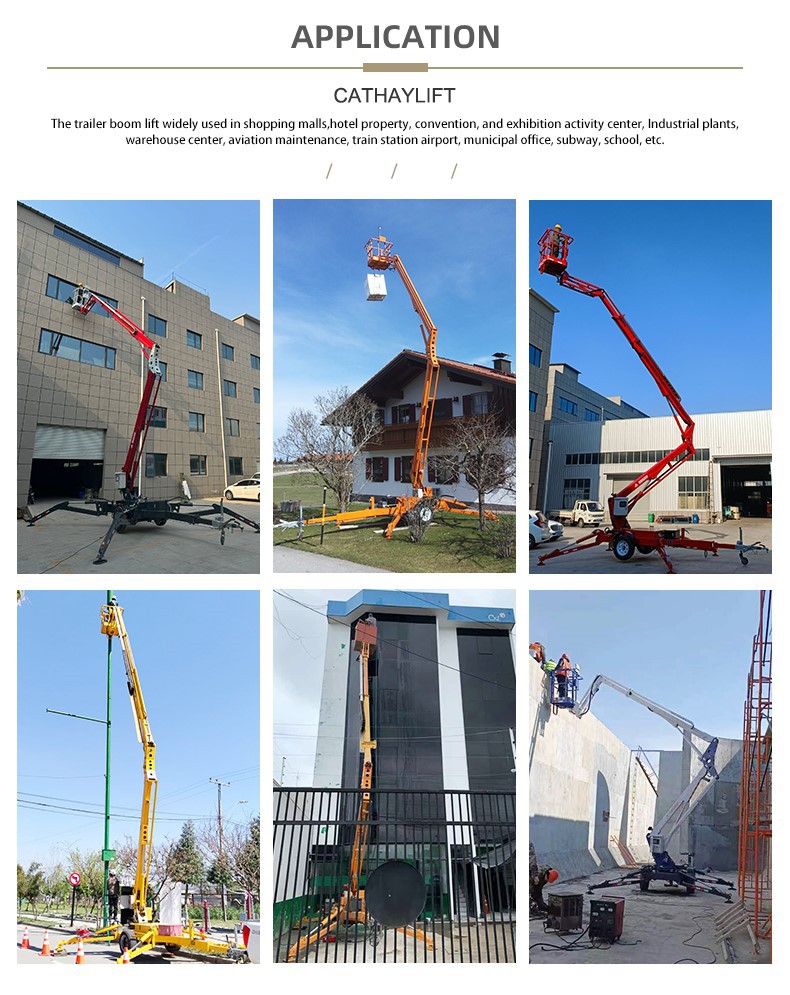

The Cathaylift Towable/Towed Trailer Boom Lift offers a working height range of 10 to 20 meters (with a working height of 12 to 22 meters) and a load capacity of 200~300 kg. Its trailer-mounted design allows for easy mobility and can be towed by a conventional vehicle, requiring no commercial driver's license. Equipped with hydraulic stabilizers and an automatic leveling system, it ensures stable and safe operation. This knuckle boom lift is ideal for various aerial operations, including maintenance and construction, significantly improving efficiency and safety, making it a reliable tool for professionals working at height.Furthermore, we have recently upgraded the electrical control box system, which not only features proportional control but also self-diagnostic capabilities. The upper control system inside the basket can also be used for remote control. Optional features include basket rotation and friction-assisted movement devices.

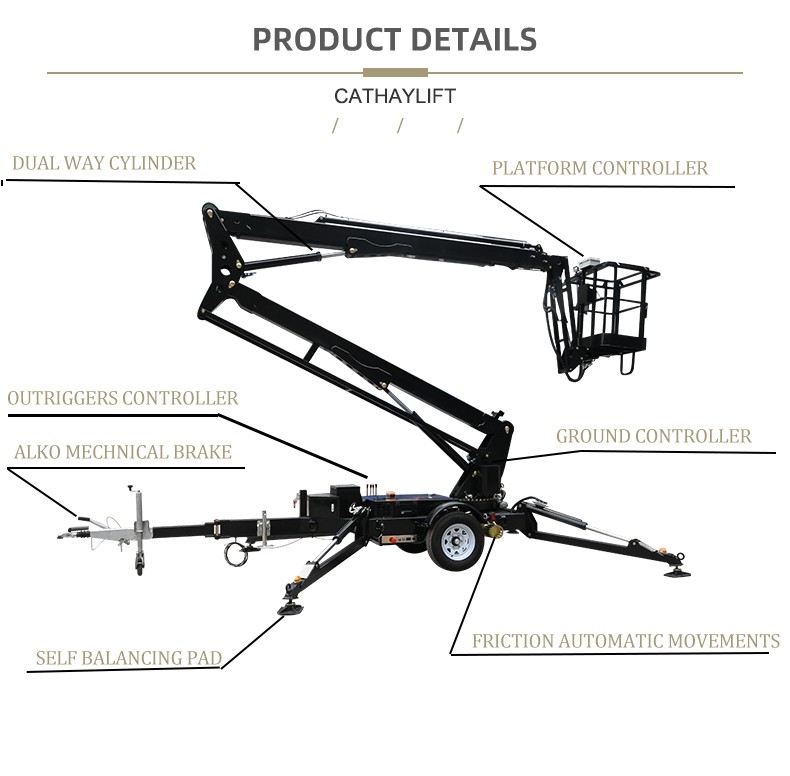

Products Details
Advantages:
1. The entire machine undergoes electrophoretic rust prevention treatment, unlike most products on the market. This provides a high level of rust resistance, preventing rust even in humid or high-salt environments such as near the sea.
2. With the optional dual-power system (diesel and battery), the two power sources do not share a pump station. This means that even if the battery power fails, the diesel power can still operate independently without affecting normal operation; the two systems are independent.
3. An additional AC outlet can be added inside the basket for convenient carrying of power tools. Water and air lines can also be installed inside the basket for convenient high-altitude cleaning operations.
4. Taillights, brake cables, and axles strictly comply with European regulations.

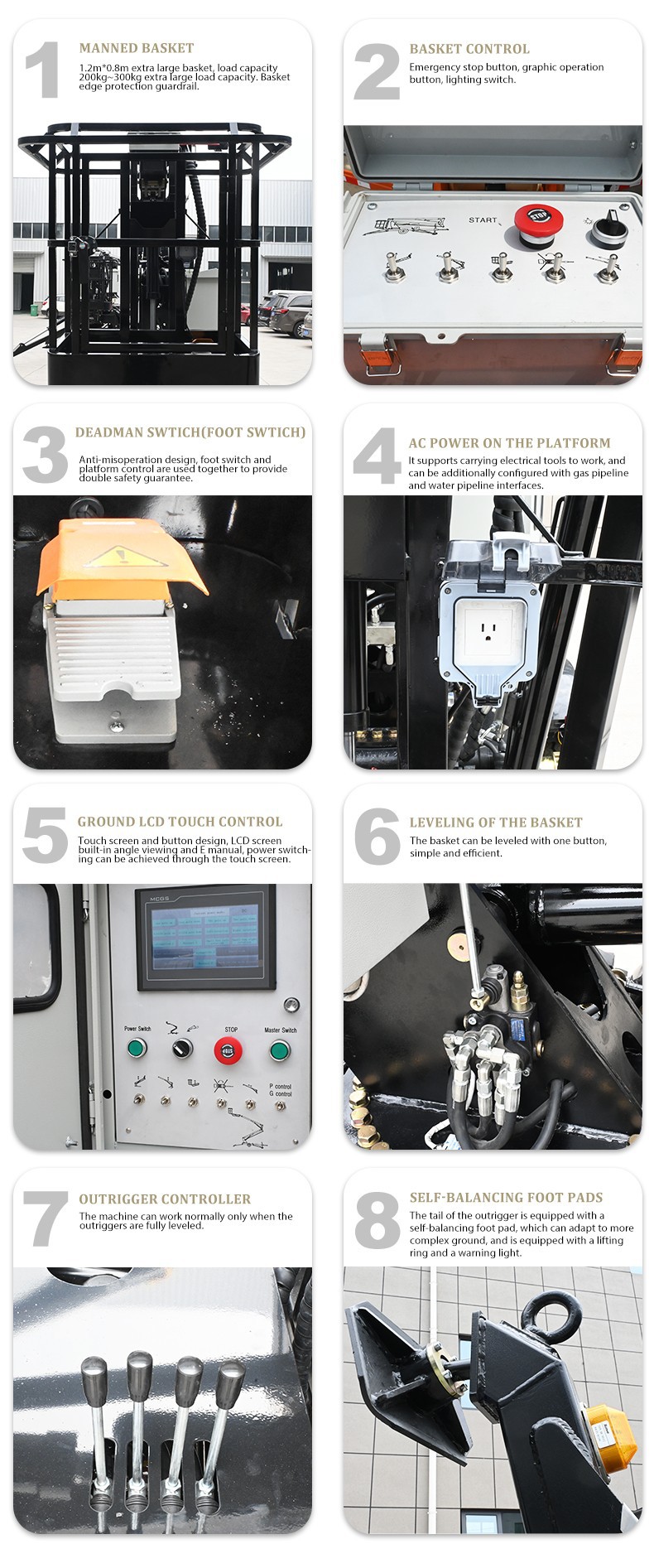

5. Proportional control and an ECU with self-diagnostic capabilities.
6. Multiple optional features allow for adaptable operation to different working conditions, such as basket rotation, one-button outrigger leveling, aluminum alloy basket, insulated basket, and friction-assisted movement.

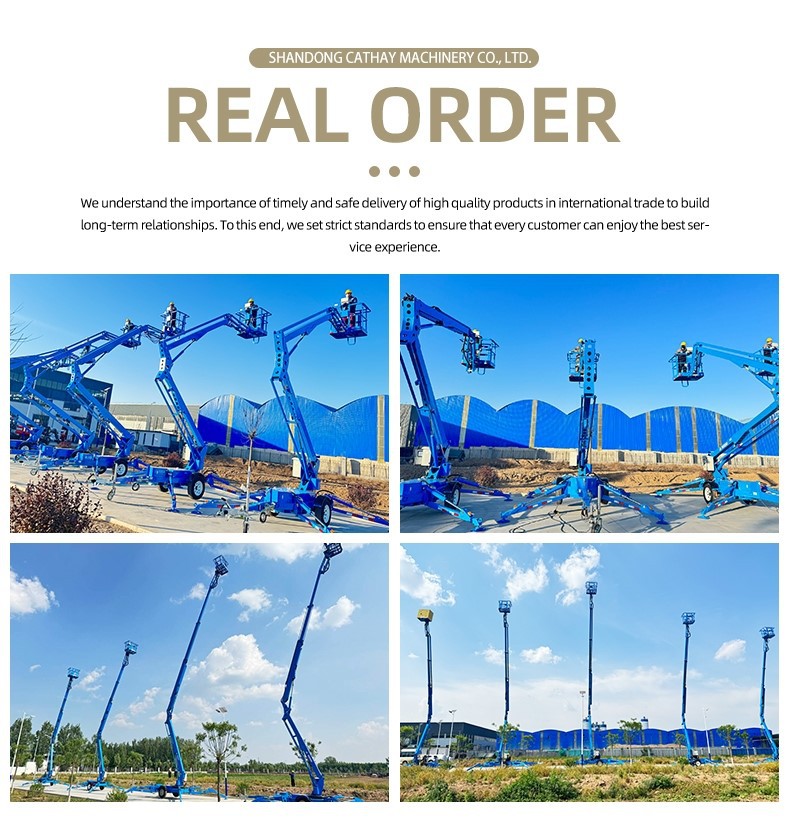

Real Order
|
Model Type |
CTA-12A |
CTA-14A |
CTA-16T |
CTA-18T |
CTA-20T |
CTA-22T |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18M |
20M |
|
Working height |
12M |
14M |
16M |
18M |
20M |
22M |
|
Load Capacity |
227KG |
|||||
|
Platform size |
1.2*0.8M |
|||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2150KG |
2350KG |
2800KG |
3100KG |
|
Overall Size( L*W*H) |
5.2*1.7*2.1M |
6.2*1.7*2.1M |
5.6*1.7*2.1M |
5.7*1.7*2.2M |
6.5*1.8*2.3M |
5.8*1.9*2.3M |
|
Power optional |
AC-electrical Power (Xi'an Motor) |
|||||
|
Diesel Power Motor (YSD Motor) |
||||||
|
Gasoline Power (Honda Motor) |
||||||
|
DC Battery Power (Bucher Motor) |
||||||
|
AC+ Diesel/Gas Power (Dual Power) |
||||||
|
AC/Diesel/Gas+DC Power (Dual Power) |
||||||
|
Extra Optional |
Friction wheel walking device: (Automatic Moving) |
|||||
