Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of trailer boom lift in China. We warmly welcome you to buy discount trailer boom lift for sale here from our factory. Quality products and reasonable price are available.
Trailer boom lifts can work on many kinds of ground, such as grass, stadium ground, and other sensitive ground. With a working height of 12m~22m and a load capacity of 200kg, it can meet all kinds of high-altitude work requirements. A variety of power can be optional, battery, AC, diesel, gasoline, and hybrid, making it work better.
Model Type | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
Working height | 12M | 14M | 16M | 18M | 20M | 22M |
Load Capacity | 200KG | |||||
Platform size | 0.9*0.7M | |||||
Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 3000KG | 3100KG |
Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Power optional | AC-electrical Power (Xi’an Motor) | |||||
Diesel Power Motor (YSD Motor) | ||||||
Gasoline Power (Honda Motor) | ||||||
DC Battery Power (Bucher Motor) | ||||||
AC+ Diesel/Gas Power (Dual Power) | ||||||
AC/Diesel/Gas+DC Power (Dual Power) | ||||||
Extra Optional | Friction wheel walking device: (Automatic Moving) | |||||
Products Details:
● Applied to various aerial work projects
● Compact and portable, it can be towed over long distances by various vehicles- No commercial driver’s license needed
● Hydraulic outriggers with automatic leveling device
● Full proportional hydraulic control, large platform, simple and fast control.
● 360˚ continuous turntable rotation
● Friction wheel walking device: (Automatic Moving)
● Multiple power options, minimal maintenance
● Best Selling
Details Images:
Ground control panel and Platform control system:
The ground control system is equipped with an LED display screen, and there are multiple language systems to choose from. You can also enter other languages by yourself. It is also equipped with an electronic version of the manual, and you can view all the parameters of the machine and the angle parameters of each outrigger. The platform control system is equipped with an anti-misoperation button and an emergency stop button.

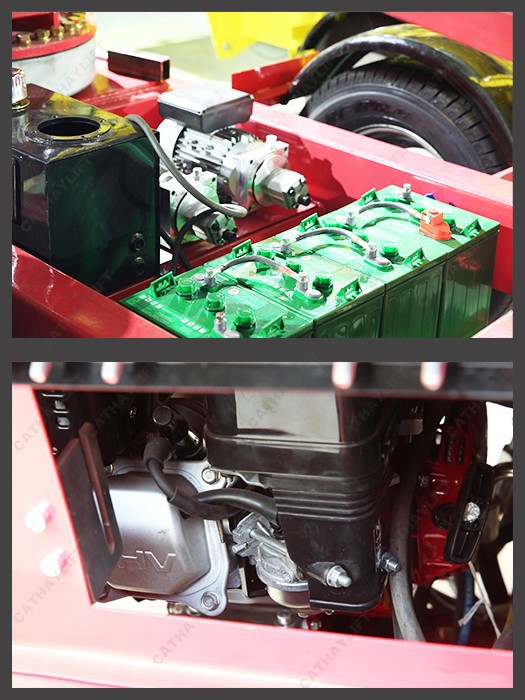

Multiple power options:
Optional 1> Diesel motor
Optional 2> DC Battery motor
Optional 3> AC electric motor
Optional 4> Gasoline motor
Optional 5> Hybrid Power
Outrigger Controller：
The four outrigger controllers correspond to the four outriggers. Before working, the outriggers are controlled to be released, and the force is evenly applied to achieve a balanced status.
Torsion Shaft, Pneumatic Rubber Wheels, automatic moving:
The torsion shaft has excellent buffer performance and good elasticity, rubber wheels are installed on the two ends of the torsion shaft. When one wheel jumps, the torsion shaft will Drive the other wheel to jump relevantly, consequently reducing the tilting and jolt of the body. Because of its torsion rigidity, the boom lift’s roll stiffness and stability are highly improved. Automatic moving
More details:
LED Light on the basket for night working
Tail Light & Brake Light
Warning Light on 4pcs automatic supporting legs
Germany Imported ALKO Brand Brakes
Water Proof Control Panel on Platform
Dead Man Switch,Waterproof Control Panel
Waterproof Electrical Box, Battery Power Indicator,Emergency Stop
YSD Diesel Motor (Standard)
Diesel/Gas Motors are equipped with the manual accelerators.
Honda Gasoline Engine (Optional)
Switzerland Bucher DC Battery Motor (Optional)
Charging Socket As Per Requests
Torsion Shaft with great shock absorption function

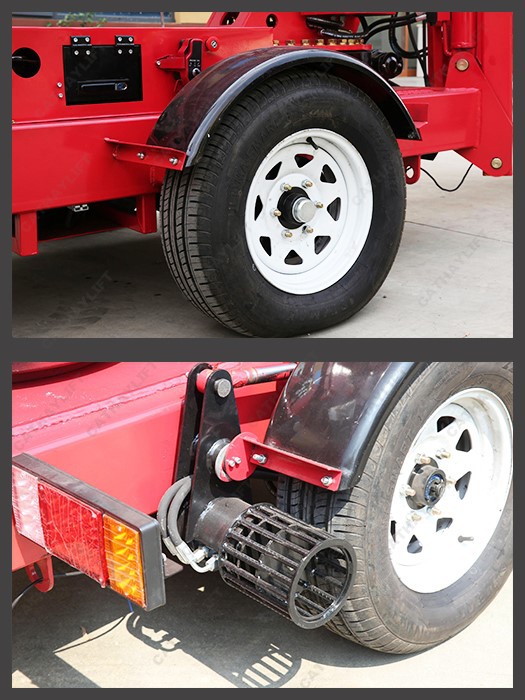

Pneumatic Rubber Wheels, Electric Magnetic Brake
Two Way Cylinder with Balance Valve&Emergency Decline Switch
Precise Hydraulic Hose,absolutely no oil leak
Control Rod for 4pcs Automatic Hydraulic Supporting Legs
Hydraulic Oil Tank Filtration Alarm System
2 Windows for easy maintenance
360-degree Turn Plate with Speed Reducer Technology Motor.

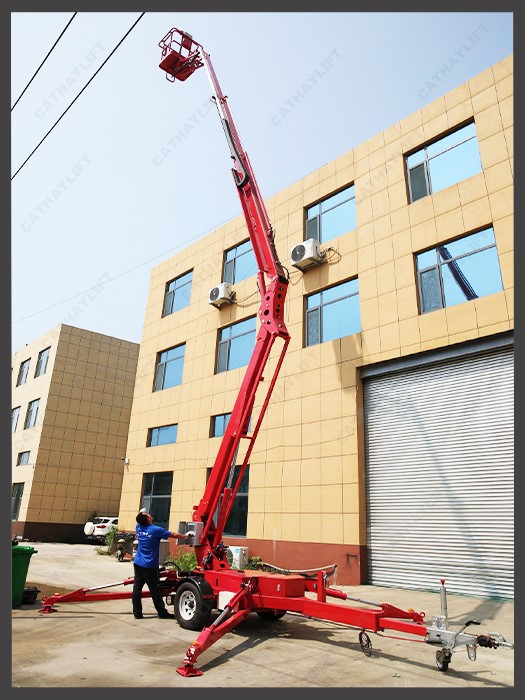

Telescopic Boom for 14m 16m model types
Special Design Cambered Joint
Precise Joint Connection/Clamps
Sliding Block of Telescopic Boom
Durable basket with Anti Pinch Design Structure
Ladder and Door of the Platform
Basket Adjust Leveling Switch
Automatic moving(Optional)
Small Cylinder Under Basket to Keep the Platform Horizontal
Lifting and Keep Balance Chain (for 16m)
Safety Lock of Arm.Prevent Shake when Tow the Lift
Tilt Angle Sensor, Platform won’t Up/Down if the body is more than 4°
Limited Switch for Safety Precaution
Siren can be connected or disconnected
Dismountable Towing Rod
Excellent Cutting and Powder Coating Spray Paint
Neat Wiring and Hydraulic Hoses
Very Compact and Precise Structure Design
4pcs Automatic Hydraulic Supporting Legs
with flexible Angle Adjustment Function
Rubber Balance Wheels
Full set of English Warning Notes
Smart Battery Charger

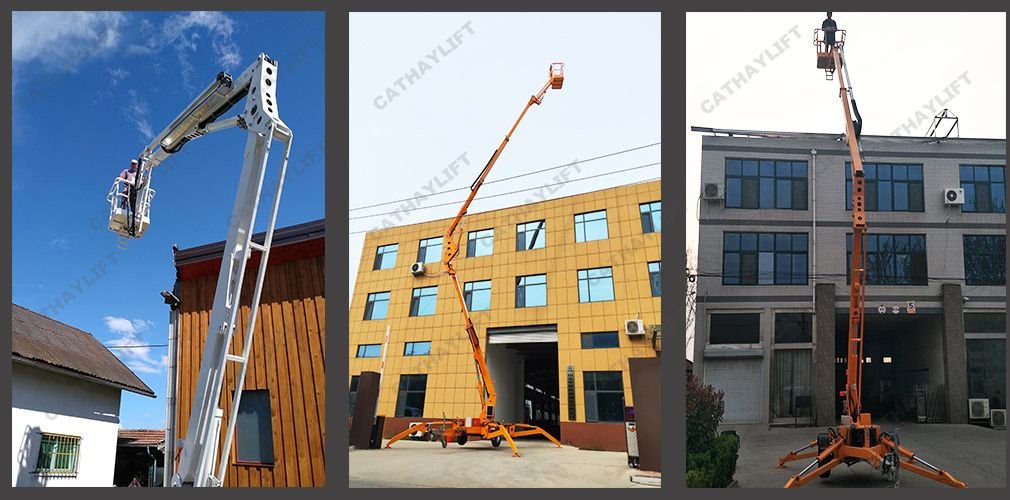

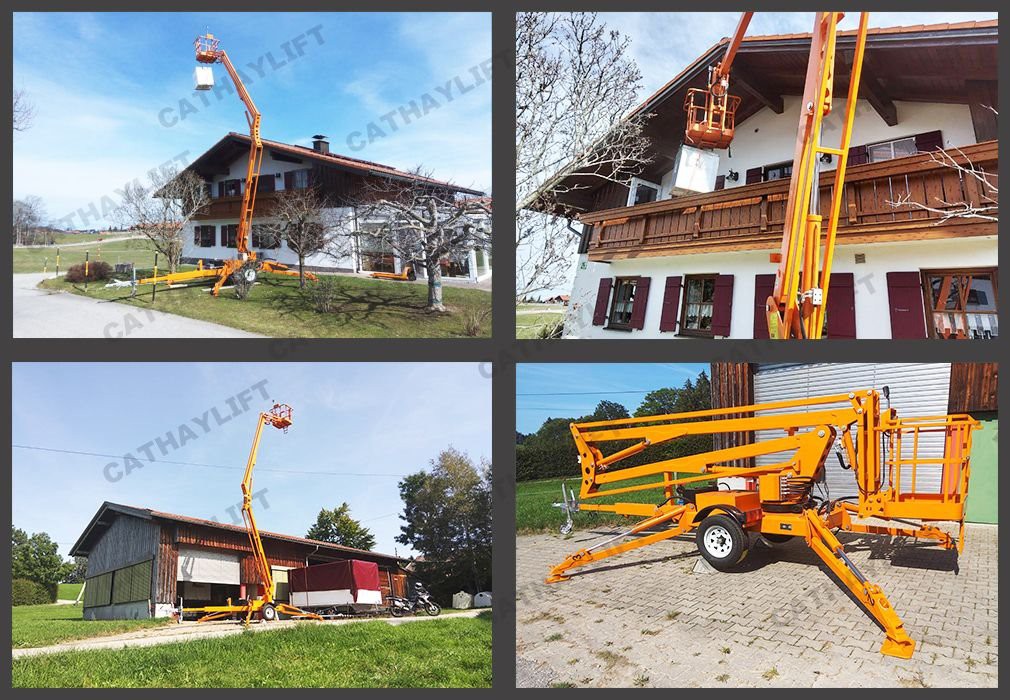

Real Order:
