Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of trailer mounted cherry picker in China. We warmly welcome you to buy discount trailer mounted cherry picker for sale here from our factory. Quality products and reasonable price are available.
CATHAYLIFT has the international CE certification issued by the SGS testing agency, which many manufacturers do not have. We pay attention to product quality and aesthetics, using high-quality new steel, reasonable design, strong and stable, the three-dimensional rotary lift device can maintain the posture of the lifted material by itself, and can realize the flexible adjustment of the lifted material at multiple angles, positions and directions in the air Requirements, the speed control is sensitive, the fretting performance is good, the design and appearance are mainly American GEINE, and the built-in is all assembled with the highest configuration. The quality is hard enough and the shape is beautiful. Trailer mounted cherry picker has a maximum working radius of 11m, which can cross obstacles and enter narrow spaces. It has good practicability and can achieve efficient, economical and safer aerial work.
Model Type | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
Load capacity | 200KG | |||||
Platform size | 0.9*0.7M | |||||
Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 3000KG | 3100KG |
Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Power optional | AC Power (Xi'an Motor) | |||||
Diesel Power Motor (YSD Motor) | ||||||
Gasoline Power (Honda Motor) | ||||||
DC Battery Power (Bucher Motor) | ||||||
AC+ Diesel/Gas Power (Dual Power) | ||||||
AC/Diesel/Gas+DC Power (Dual Power) | ||||||
Details Images:

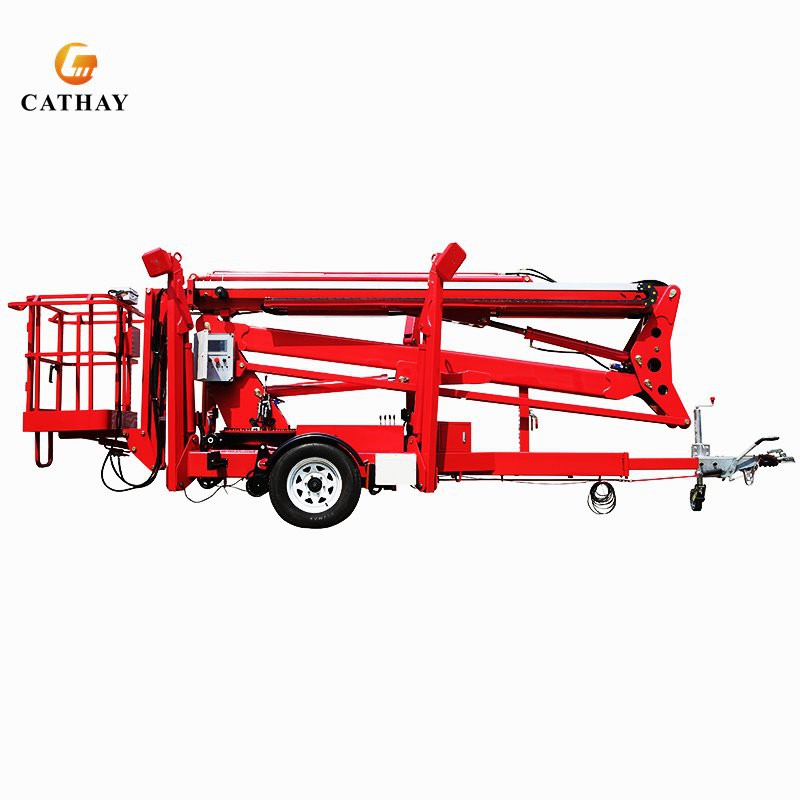

Contracted State
Stretched State
Stretched State
Brakes(Alko)
Extra Manual Brake
Auxiliary Front Wheel
Wear-Resistant Cable
Mechanical Arc Joint (Durable)
Telescopic Boom Conveyor Belt
Cylinder (Middle Arm)
Toolbox
The Electromagnetic Valve
Additional Auxiliary Casters
Outrigger Control Handle
Outriggers (With Strobe Lights And Self-Balancing)
The Electromagnetic Valve
Oil Level Indicator(Gas,Diesel)
Pneumatic Tires
Basket Leveling Device
Tilt Sensor
Rotary Motor (360 Degree Rotation)
Mechanical Chain
Rollers For Telescopc Boom
The Electromagnetic Valve
Basket
Cylinder For Basket
Door Locking
Arm Cylinder
Outrigger Cylinder
Manual Ignition

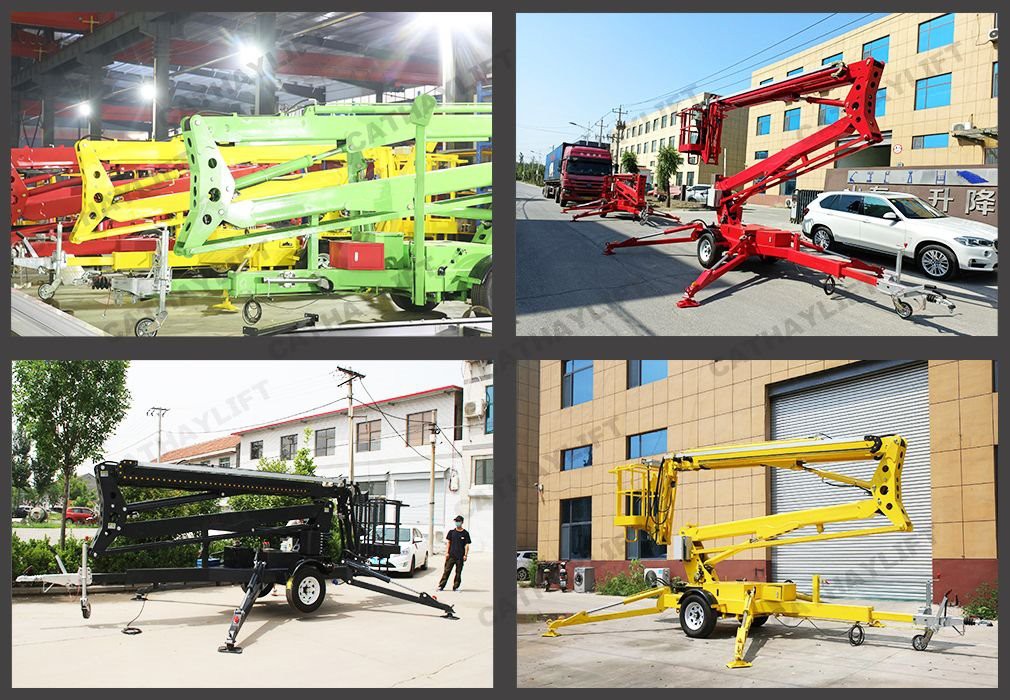

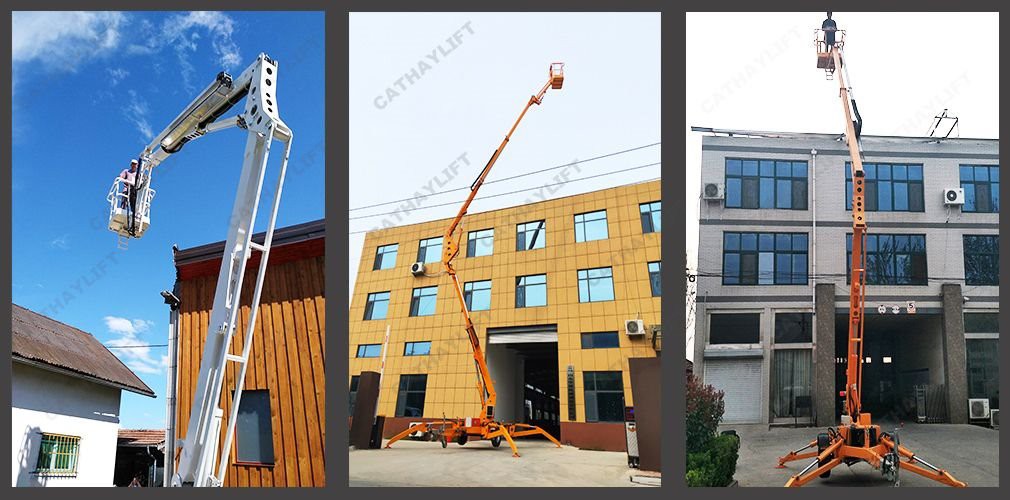

Real Order:
