Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of trailer mounted boom lift in China. We warmly welcome you to buy discount trailer mounted boom lift for sale here from our factory. Quality products and reasonable price are available.

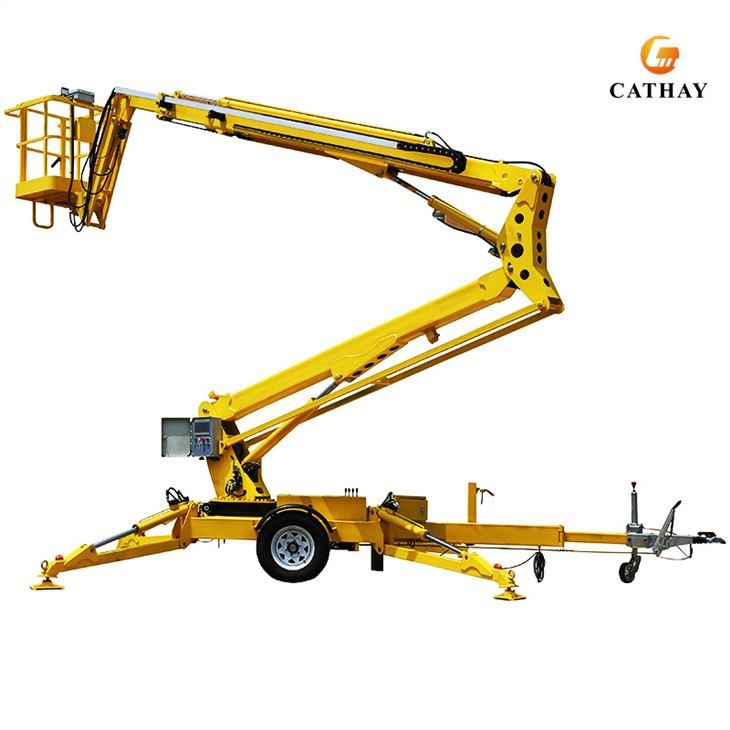

Trailer mounted boom lift is divided into two different types: telescopic and articulated. The maximum platform height is 14m and the models with higher lift height are all telescopic versions. Horizontal working radius 5.5m~11m, 360-degree rotating table, makes it have outstanding performance in various aerial work projects.
|
Model Type |
CTA-10A |
CTA-12A |
CTA-14T |
CTA-16T |
CTA-18T |
CTA-20T |
|
Version |
Articulated |
Articulated |
Telescopic |
Telescopic |
Telescopic |
Telescopic |
|
Lifting height |
10M |
12M |
14M |
16M |
18M |
20M |
|
Working height |
12M |
14M |
16M |
18M |
20M |
22M |
|
Load capacity |
200KG |
|||||
|
Platform size |
0.9*0.7M |
|||||
|
Working radius |
5.5M |
6.5M |
8.5M |
10.5M |
11M |
11M |
|
Net Weight |
1855KG |
2050KG |
2500KG |
2800KG |
3000KG |
3100KG |
|
Overall Size( L*W*H) |
5.2*1.7*2.1M |
6.2*1.7*2.1M |
5.6*1.7*2.1M |
5.7*1.7*2.2M |
6.5*1.8*2.3M |
5.8*1.9*2.3M |
|
Supporting Legs Stride Distance(Horizontal) |
3.0 M |
3.6 M |
3.6 M |
3.9 M |
3.9 M |
3.9 M |
|
Supporting Legs Stride Distance (Vertical) |
4.7 M |
4.7 M |
4.7 M |
4.9 M |
4.9 M |
4.9 M |
|
Wind Resistance Level |
≦5 |
|||||
|
20’/40’ Container Loading Quantity |
20’/1set |
20’/1set |
20’/1set |
20’/1set |
20’/1set |
20’/1set |
|
40’/3sets |
40’/3sets |
40’/3sets |
40’/3sets |
40’/3sets |
40’/2sets |
|
|
Power optional |
AC-electrical Power (Xi’an Motor) |
|||||
|
Diesel Power Motor (YSD Motor) |
||||||
|
Gasoline Power (Honda Motor) |
||||||
|
DC Battery Power (Bucher Motor) |
||||||
|
AC+ Diesel/Gas Power (Dual Power) |
||||||
|
AC/Diesel/Gas+DC Power (Dual Power) |
||||||
|
Extra Optional |
Friction wheel walking device: (Automatic Moving) |
|||||
Details Images:
Contracted State
Stretched State
Stretched State
Brakes(Alko)
Extra Manual Brake
Auxiliary Front Wheel
Wear-Resistant Cable
Mechanical Arc Joint (Durable)
Telescopic Boom Conveyor Belt
Cylinder (Middle Arm)
Toolbox
The Electromagnetic Valve
Additional Auxiliary Casters
Outrigger Control Handle
Outriggers (With Strobe Lights And Self-Balancing)
The Electromagnetic Valve
Oil Level Indicator(Gas,Diesel)
Pneumatic Tires
Basket Leveling Device
Tilt Sensor
Rotary Motor (360 Degree Rotation)
Mechanical Chain
Rollers For Telescopc Boom
The Electromagnetic Valve
Basket
Cylinder For Basket
Door Locking
Arm Cylinder
Outrigger Cylinder
Manual Ignition

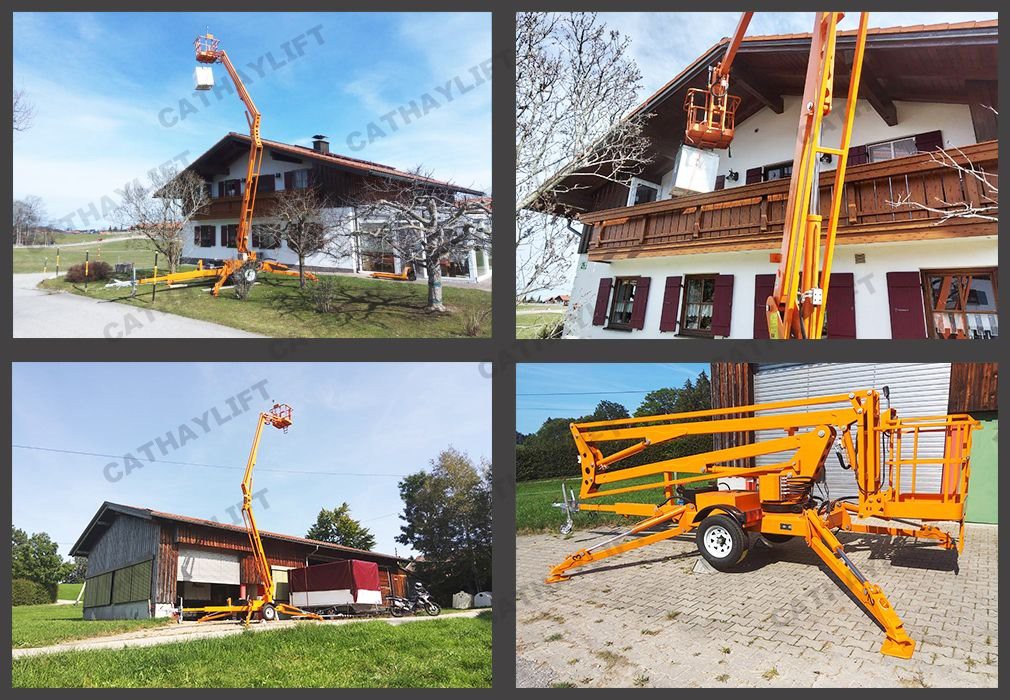

Real Order:
