Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of trailer hitch boom lift in China. We warmly welcome you to buy discount trailer hitch boom lift for sale here from our factory. Quality products and reasonable price are available.
Model Type | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
Working height | 12M | 14M | 16M | 18M | 20M | 22M |
Load capacity | 200KG | |||||
Platform size | 0.9*0.7M | |||||
Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 3000KG | 3100KG |
Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Supporting Legs Stride Distance(Horizontal) | 3.0 M | 3.6 M | 3.6 M | 3.9 M | 3.9 M | 3.9 M |
Supporting Legs Stride Distance (Vertical) | 4.7 M | 4.7 M | 4.7 M | 4.9 M | 4.9 M | 4.9 M |
Wind Resistance Level | ≦5 | |||||
20'/40' Container Loading Quantity | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set |
40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/2sets | |
Power optional | AC-electrical Power (Xi'an Motor) | |||||
Diesel Power Motor (YSD Motor) | ||||||
Gasoline Power (Honda Motor) | ||||||
DC Battery Power (Bucher Motor) | ||||||
AC+ Diesel/Gas Power (Dual Power) | ||||||
AC/Diesel/Gas+DC Power (Dual Power) | ||||||
Extra Optional | Automatic Moving | |||||
Why choose us:
● Use Germany ALKO brand brakes with high quality
● Use Switzerland Bucher brand DC pump station
● Use Japan Honda brand Gas pump station
● Use China Famous YSD brand diesel pump station
● Use a waterproof and dustproof electrical box. Suitable for outdoors working.
● Waterproof control pane can be used when raining.
● Self Levelling sole for efficient and safe operation
● Waterproof diesel engine, motor, and battery cover
● Humanized access hole for daily convenient maintenance
● Manual Diesel engine accelerator is much more flexible to operate.
● Two-way cylinders with balance valve and emergency decline switch. Even hydraulic hose ruptures, the platform will none drop down to guarantee completely safe.
● Equipped with basket leveling switch, make adjusting basket much easier.
● Equipped with Torsion Shaft with great shock absorption function, which makes it better for walking on the road.
● Hydraulic oil filtration alarm system, remind you to replace hydraulic oil when there is an impurity in the oil.
● Basket and Armlock system avoid equipment body waggling during transportation.
● Humanized Flood lights on the platform for working
● Equipped with brake lights connected with a tractor.
● Equipped with caution lights on each leg.
● Anti-pinch hand basket.
● Equipped with a safety harness to protect the operator.
● Stable Rotary motor,360°rotation.
● Wide Horizontal reach from 5m to 10.5m
● Max 120Km/h Working Speed
● Multi power for choice, such as AC, DC, AC&DC, Diesel, Gas, and so on.
● Offer FREE quick-wear parts for quick replacement
More details:
Night Work Lights
Tail & Brake Light
Outriggers(Ring, Warning light)
ALKO (Germany)
Waterproof Control System(on the platform )
Intuitive operation(Anti-operation)
Control system on the ground
YSD Diesel Motor(Diesel power)
Manual accelerator(Diesel,Gas)
Honda Motor (Gasoline)
Bucher(Switherland) DC Battery Motor (DC)
Charging Socket (Custom accepted)
Torsion Shaft with great shock absorption function
Pneumatic Rubber Wheels, Electric Magnetic Brake
Two Way Cylinder with Balance Valve&Emergency Decline Switch
Fully sealed tubing
Control handling for 4 outriggers
Hydraulic oil filter alarm device
2 door for maintenance
360degree Turn Plate with Speed Reducer Technology Motor.
Telescopic Boom for more than 14m model
Special Design Cambered Joint
Precise Joint Connection/Clamps
Roller
Anti-pinch durable basket
Ladder
Self-leveling basket
Auxiliary friction moving wheel
Basket Balance Cylinder
Lift balance chain(more than 16m model )
Arm lock (to prevent shaking during shipping)
Tilt Angle Sensor,Platform won't run if body more than 4°
Limited Switch
Siren can be connected or disconnected
Retractable Towing Arm
Shot blasting, plastic spraying
Neatly sealed hydraulic hoses
Compact and sophisticated sturcture
Four hydraulic outriggers equipped
With horizontal self-balancing device, flexible and efficient
Rubber auxiliary wheel
Warning notes
Smart Battery Charger

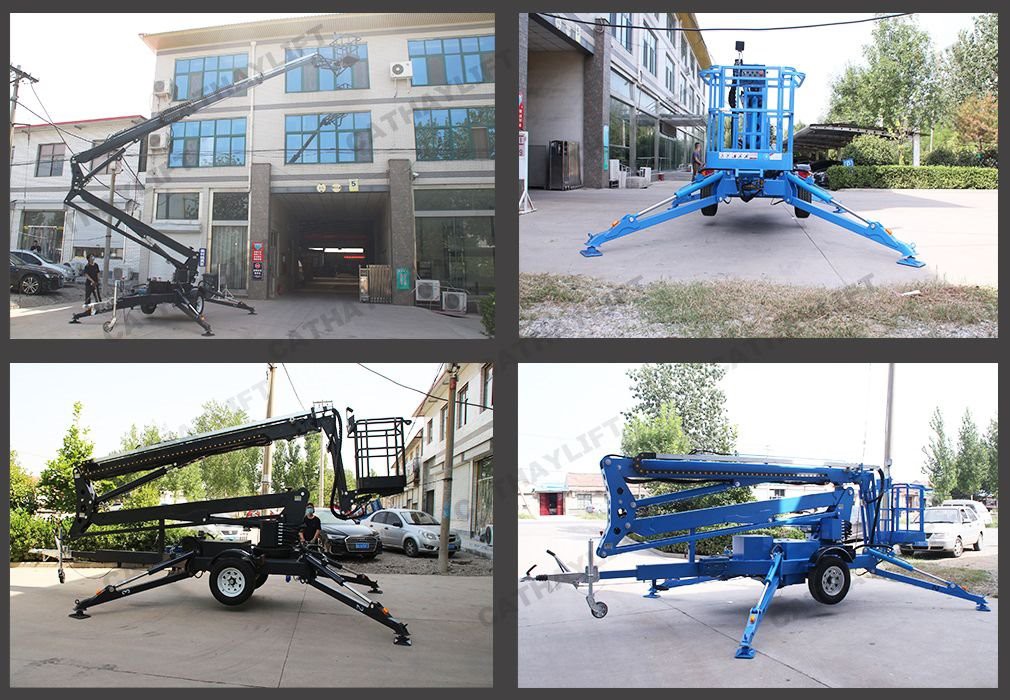

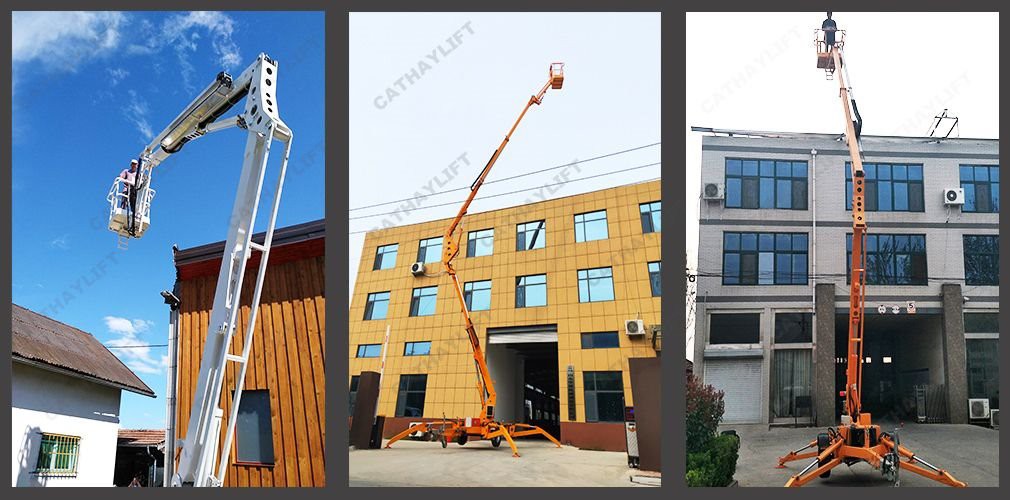

Real Order:
