Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of spider lift cherry picker in China. We warmly welcome you to buy discount spider lift cherry picker for sale here from our factory. Quality products and reasonable price are available.
Spider Lift Cherry picker is a convenient and reliable aerial work platform, and the product has obtained CE, Rohs, ISO9001, and other certifications. The whole car is made of high-strength metal, a compact body, intuitive operation, LCD digital touch screen control system, German ALKL brakes, a one-button leveling basket system, a high-precision solenoid valve, Swiss Buch motor, and a series of high-end accessories, can Effectively solve a variety of high-altitude work needs. All machines are rigorously tested before leaving the factory to ensure that each machine can be put to work immediately upon receipt by customers, creating higher value for customers.
Model Type | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
Working height | 12M | 14M | 16M | 18M | 20M | 22M |
Load Capacity | 200KG | |||||
Platform size | 0.9*0.7M | |||||
Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 3000KG | 3100KG |
Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Details Images:

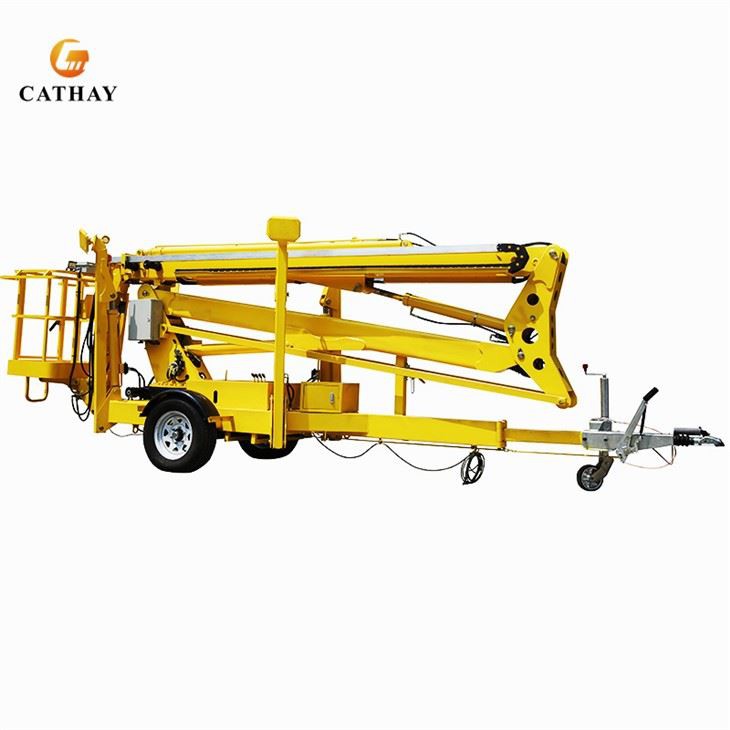

Contracted State

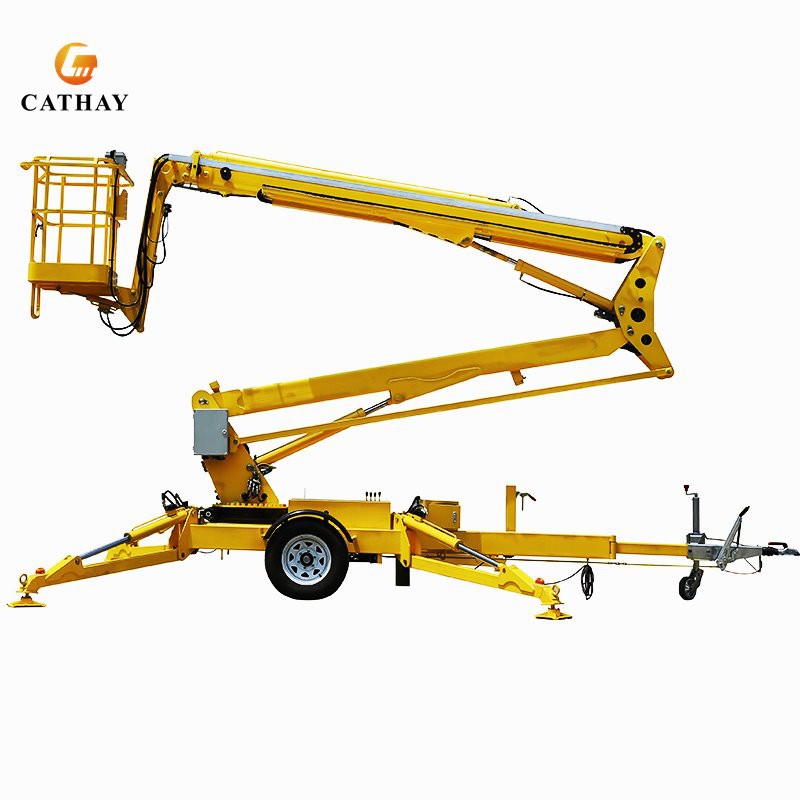

Stretched State
Stretched State
Brakes(Alko)
Extra Manual Brake
Auxiliary Front Wheel
Wear-Resistant Cable
Mechanical Arc Joint (Durable)
Telescopic Boom Conveyor Belt
Cylinder (Middle Arm)
Toolbox
The Electromagnetic Valve
Additional Auxiliary Casters
Outrigger Control Handle
Outriggers (With Strobe Lights And Self-Balancing)
The Electromagnetic Valve
Oil Level Indicator(Gas,Diesel)
Pneumatic Tires
Basket Leveling Device
Tilt Sensor
Rotary Motor (360 Degree Rotation)
Mechanical Chain
Rollers For Telescopic Boom
The Electromagnetic Valve
Basket
Cylinder For Basket
Door Locking
Arm Cylinder
Outrigger Cylinder
Manual Ignition
Main component description:
1. power source:
The CTASeries-type aerial work platform can be powered by a diesel engine, a battery, or an external power source to drive the hydraulic pump to work.
2. the working arm:
The working arm of the CTA Series type aerial work platform is a folding arm structure (where CTA-14T, CTA-16T, and CTA-18T are the structure of the folding arm and the telescopic arm), and the lifting/lowering action of the working arm is realized by the hydraulic cylinder and can be arbitrarily within the allowable working range. Adjust the angle of the working arm.
3. turntable slewing mechanism:
It is composed of a turntable, slewing bearing, hydraulic motor, and reducer. The working arm is mounted on the rotary platform. The hydraulic motor drives the reducer to drive the slewing bearing to make the turntable achieve 360° rotation.
4. working platform rotation (optional):
Optional work platform rotation is available as needed to increase the working range.
5. hydraulic system:
The hydraulic system of the CTA Series series platform is a medium and high-pressure hydraulic system. The system uses hydraulic components from famous brand manufacturers at home and abroad, which are reliable and durable.
6. the console:
The CTA Series platform is hydraulic and electrical. It is equipped with electric operating handles on the upper and lower consoles for easy use.
