Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of small electric boom lift in China. We warmly welcome you to buy discount small electric boom lift for sale here from our factory. Quality products and reasonable price are available.

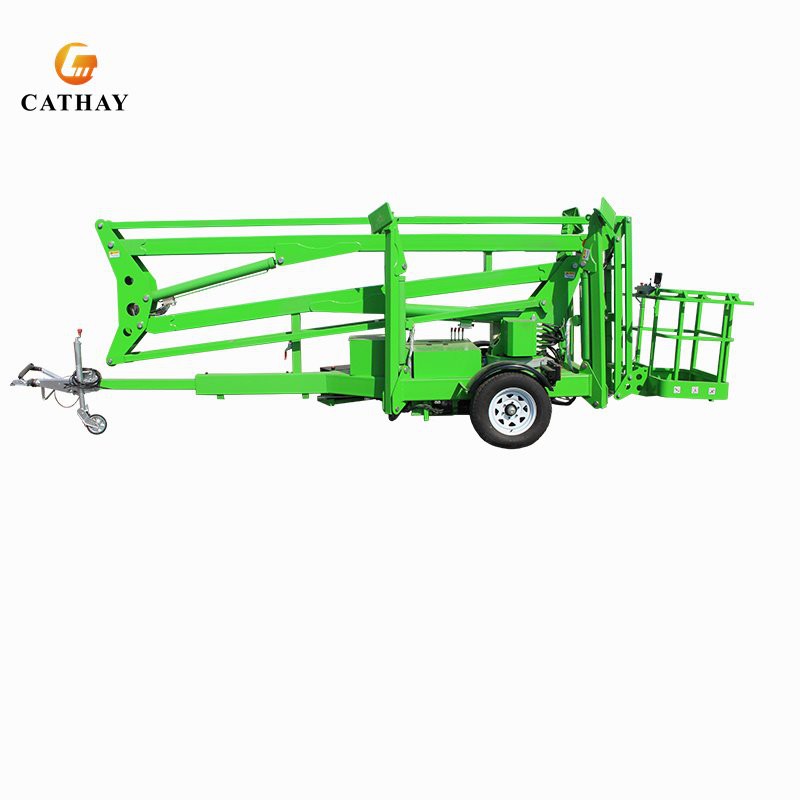

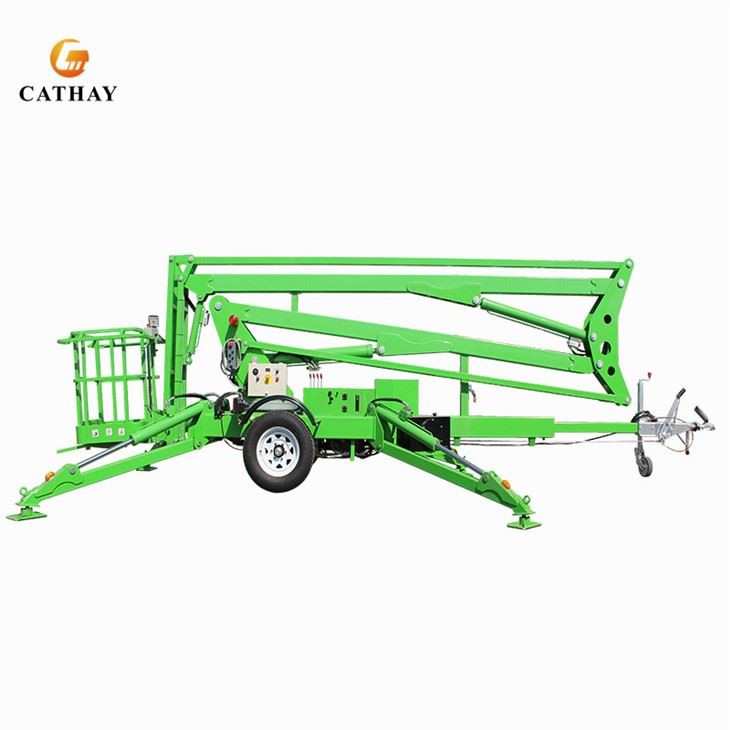

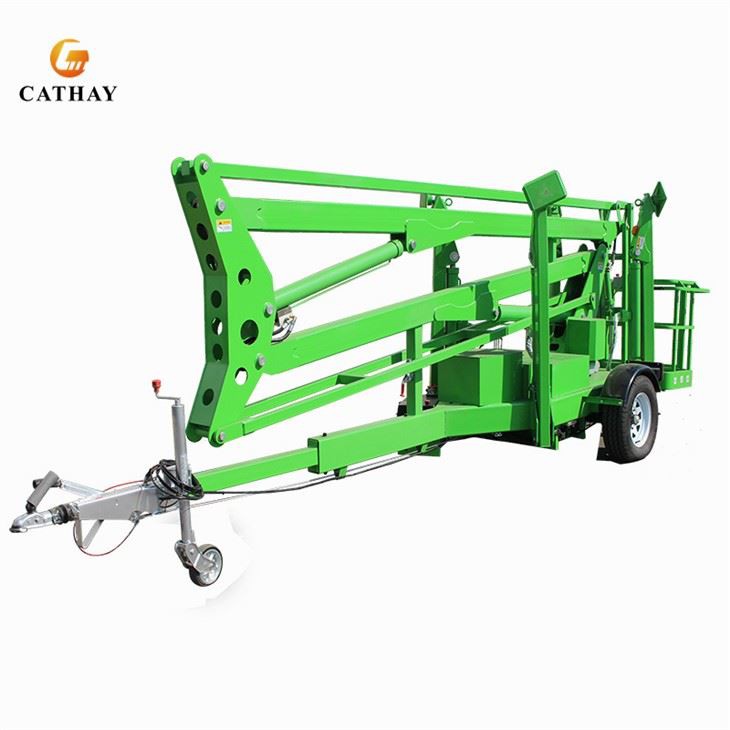

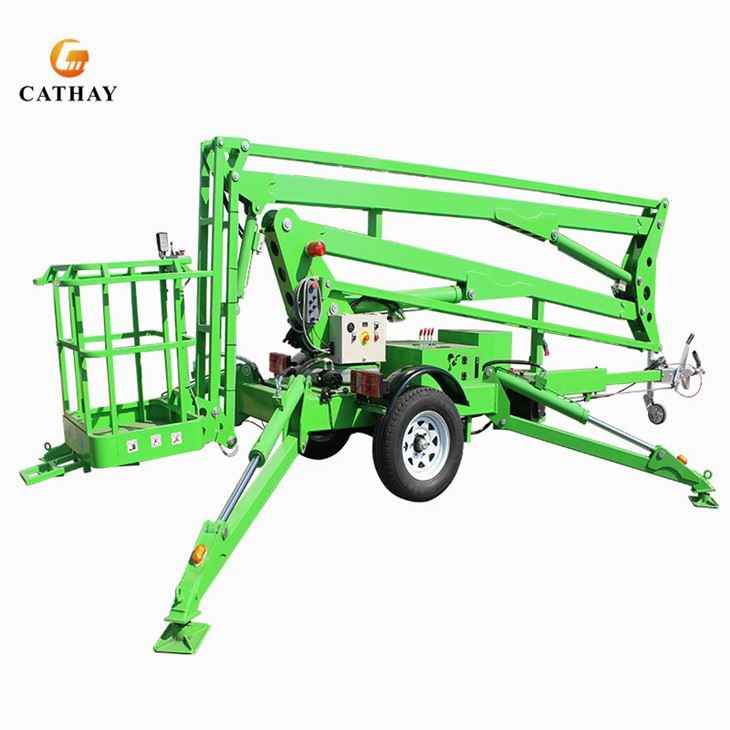

The Small Electric Boom Lift battery model features a bucher motor that reduces noise by up to 20 decibels, saves energy levels up to 70%, and has a longer lifespan, higher efficiency, lower wear, and resistance to cavitation. The brake adopts the advantages of German ALKO, which is light in weight, simple in structure, fast in braking response and can shorten the braking distance. The braking method is electromagnetic braking. The advantage is that the braking is reliable, the braking force can be adjusted at any time, and the better brake synchronizers are equipped with The gyroscope can automatically increase or decrease the braking force according to the slope of the road. The product is equipped with an inclination sensor. When the horizontal angle is greater than three degrees, the machine will automatically lock. At this time, the machine can only be controlled to rise, but not descend.
Model Type | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
Load capacity | 200KG | |||||
Platform size | 0.9*0.7M | |||||
Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 3000KG | 3100KG |
Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Power optional | AC Power (Xi'an Motor) | |||||
Diesel Power Motor (YSD Motor) | ||||||
Gasoline Power (Honda Motor) | ||||||
DC Battery Power (Bucher Motor) | ||||||
AC+ Diesel/Gas Power (Dual Power) | ||||||
AC/Diesel/Gas+DC Power (Dual Power) | ||||||
More details:
LED Light on the basket for night working
Tail Light & Brake Light
Warning Light on 4pcs automatic supporting legs
Germany Imported ALKO Brand Brakes
Water Proof Control Panel on Platform
Dead Man Switch,Waterproof Control Panel
Waterproof Electrical Box, Battery Power Indicator,Emergency Stop
YSD Diesel Motor (Standard)
Diesel/Gas Motor are equipped with manual accelerator.
Honda Gasoline Engine (Optional)
Switzerland Bucher DC Battery Motor (Optional)
Charging Socket As Per Requests
Torsion Shaft with great shock absorption function
Pneumatic Rubber Wheels,Electric Magnetic Brake
Two Way Cylinder with Balance Valve&Emergency Decline Switch
Precise Hydraulic Hose,absolutely no oil leak
Control Rod for 4pcs Automatic Hydraulic Supporting Legs
Hydraulic Oil Tank Filtration Alarm System
2 Windows for easy maintenance
360degree Turn Plate with Speed Reducer Technology Motor.
Telescopic Boom for 14m 16m model types
Special Design Cambered Joint
Precise Joint Connection/Clamps
Sliding Block of Telescopic Boom
Durable basket with Anti Pinch Design Structure
Ladder and Door of the Platform
Basket Adjust Leveling Switch
Automatic moving(Optional)
Small Cylinder Under Basket to Keep the Platform Horizontal
Lifting and Keep Balance Chain (for 16m)
Safety Lock of Arm.Prevent Shake when Tow the Lift
Tilt Angle Sensor,Platform won't Up/Down if body more than 4°
Limited Switch for Safety Precaution
Siren can be connected or disconnected
Dismountable Towing Rod
Excellent Cutting and Powder Coating Spray Paint
Neat Wiring and Hydraulic Hoses
Very Compact and Precise Structure Design
4pcs Automatic Hydraulic Supporting Legs
With flexible Angle Adjustment Function
Rubber Balance Wheels
Full set of English Warning Notes
Smart Battery Charger

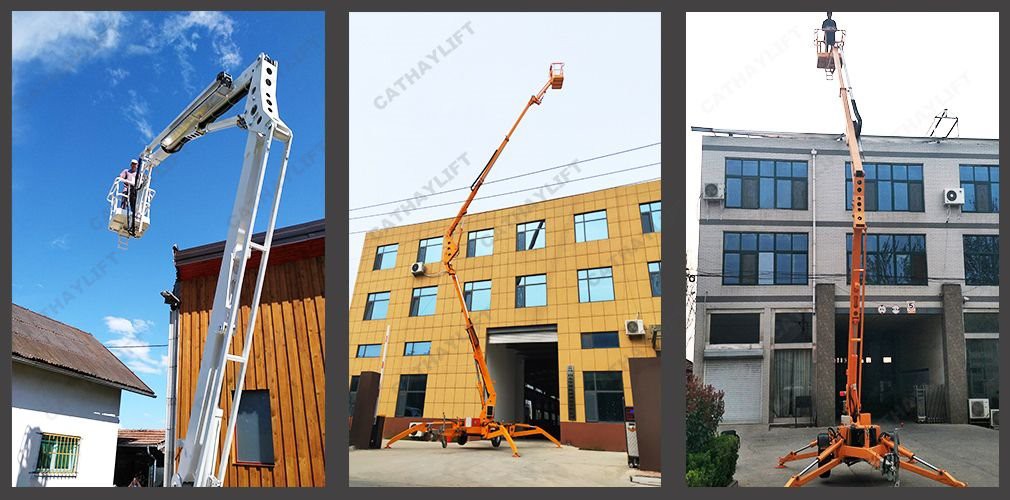

Real Order:
