Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of small cherry picker in China. We warmly welcome you to buy discount small cherry picker for sale here from our factory. Quality products and reasonable price are available.
Model Type | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
Load Capacity | 200KG | |||||
Platform size | 0.9*0.7M | |||||
Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 3000KG | 3100KG |
Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Warranty: 1 after receiving the man lift, We will provide offer free quick-wear parts, and prepare the extra limit switches and seals. In other respects, there will be not any problems .every single product has been accurately tested by our testing workshop before it enters the market. Even after the warranty, we will also continuously provide you with all the technical assistance you need. After receiving your problem feedback, Our engineers will provide you with a solution quickly.

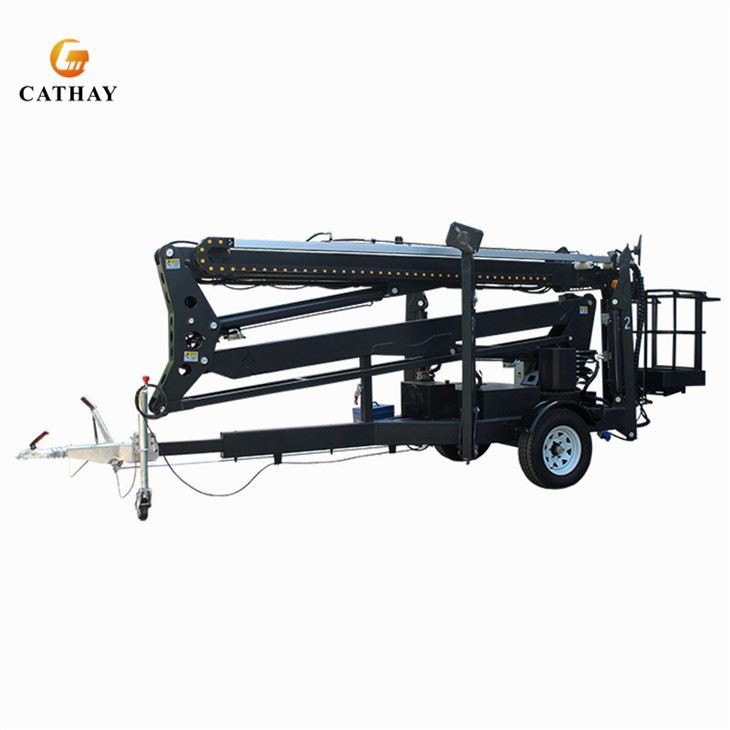

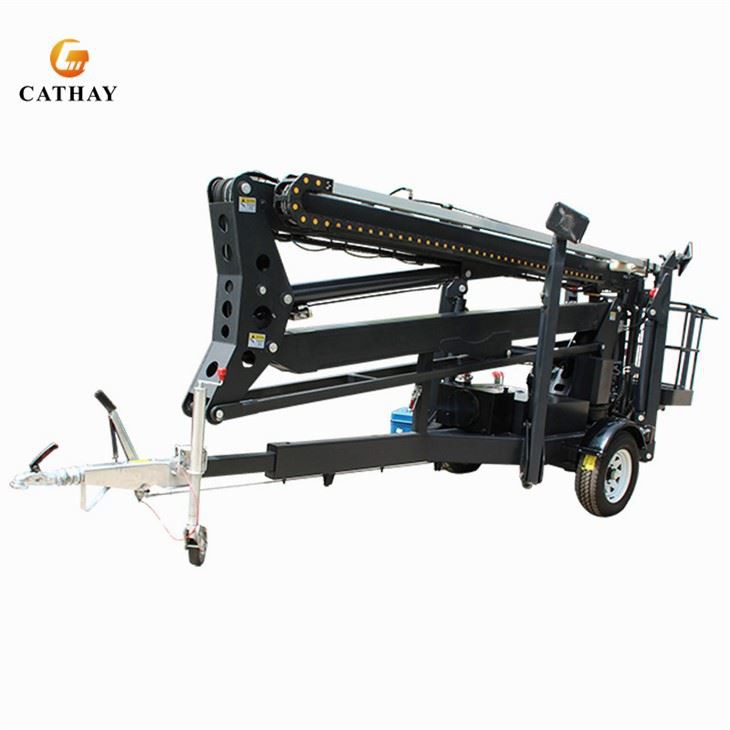

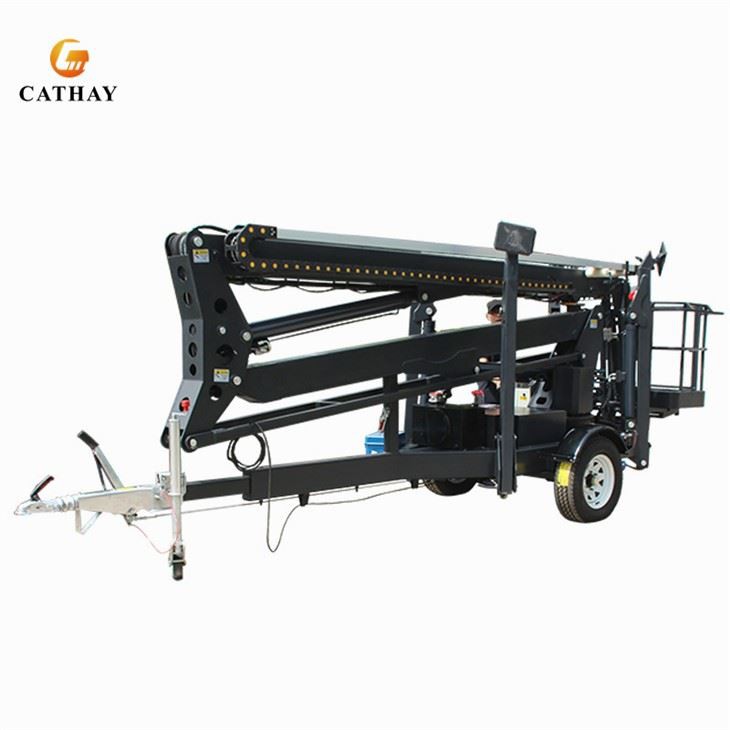

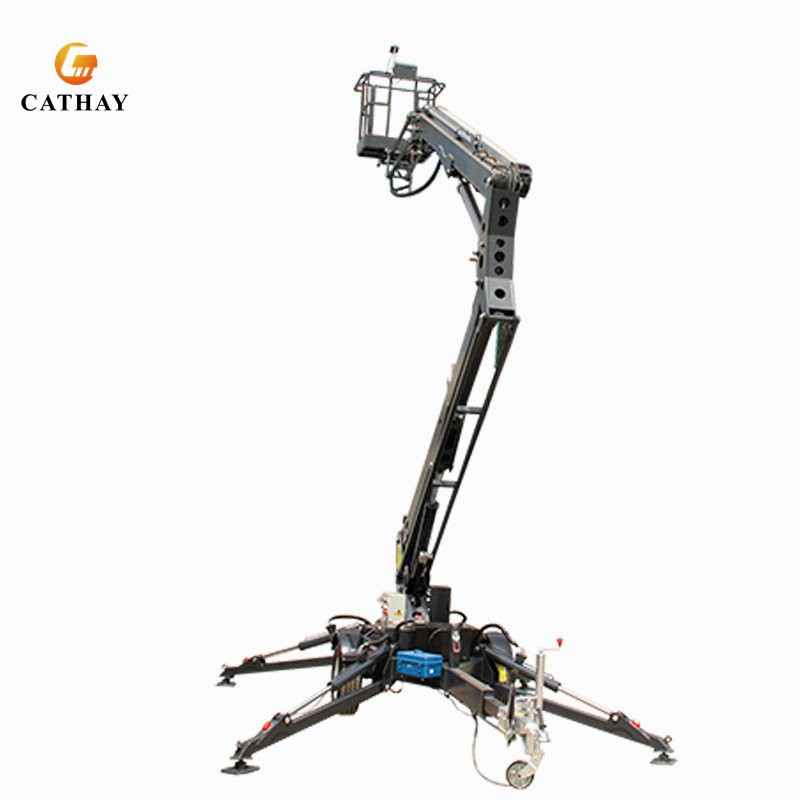

CTA small cherry picker is a lifting equipment used for aerial work. It can cross obstacles for aerial work. The platform can be rotated 360 degrees. It has a compact structure and flexible steering. The width of its site can be used to enter narrow passages and crowded working areas. The backup power unit can be operated to reset the working platform, which is convenient for transportation and can be towed to any place. Easy-to-identify operation panel, multiple mechanical, electrical, and hydraulic safety protection, integrated hydraulic and electrical integration system.
Details Images:
(Germany) Alko Brakes
Swivel Stand (Adjustable Height)
Auxiliary Wheel
Triangular Structure
Precision Connection Point
Boom Pressure Relief Valve
Outrigger Locks (To Prevent Shaking When Moving)
Diesel Motor(Ysd)
Durable Pneumatic Tires
Car Tail Light
Seat Belts Secure The Body
Control Room
Torsion Shaft
Fuel Tank
Two Service Doors
Filter Alarm System
Tilt Sensor
Control Panel
Manual Accelerator
The Electromagnetic Valve
Outriggers Control Switch
Basket With Ladder
Platform Control System
Warning Light
Main Cylinder
Arm Cylinder
Jlb
Self-Balancing Outriggers
Self-Balancing Outrigger Cylinder
Battery Only For Dc Power

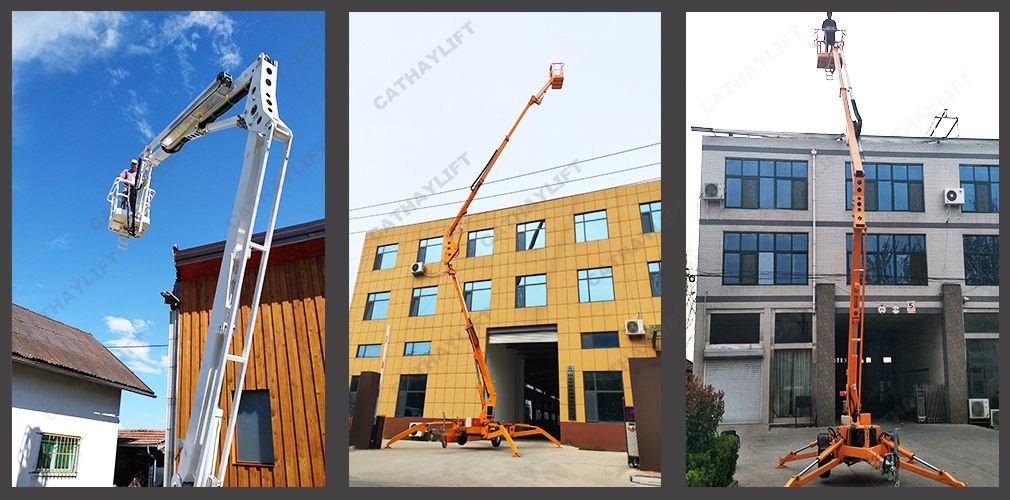

This product is widely used in industries or fields engaged in high-altitude operations such as stations, docks, street lamp maintenance, and public buildings. It has the characteristics of convenient movement, simple operation, a large working surface, and good balance performance. When the road surface is uneven, it can be supported by four legs at the same time or supported by one leg, which is easy to operate and use. High-altitude cleaning street lamp installation
Small cherry picker aerial work platform: easy to move, compact crank arm structure, using new type steel, high strength, lightweight, directly connected to AC or started by the vehicle's own power, fast erection speed, with telescopic arms, the workbench can be raised It can also be extended and rotated 360 degrees, and it is easy to reach the working position across obstacles. It is an ideal high-altitude operation equipment.
The driving mode can be traction, diesel power, or DC.
For non-standard customization, please provide parameters such as load capacity, lifting height, and platform size.

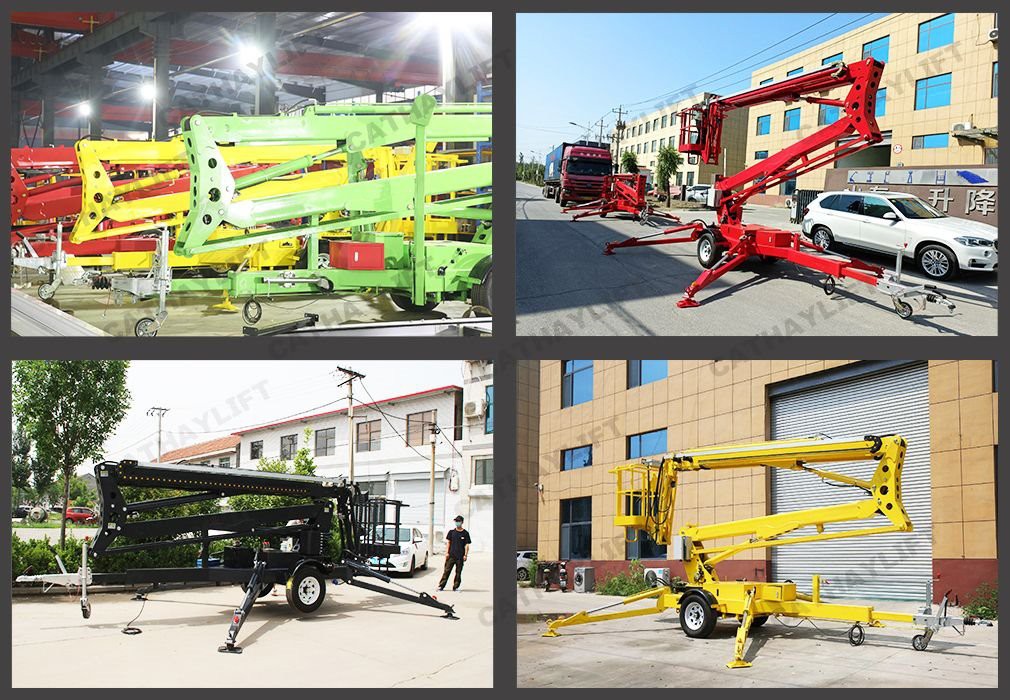

Real Order:
