Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of trailer mounted lift in China. We warmly welcome you to buy discount trailer mounted lift for sale here from our factory. Quality products and reasonable price are available.

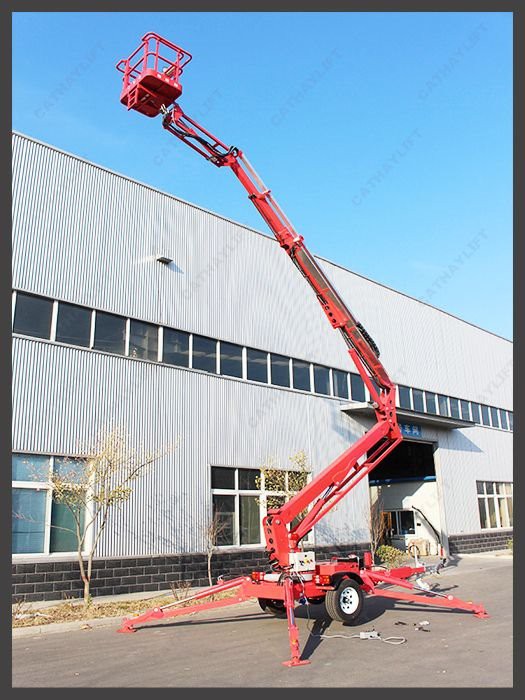

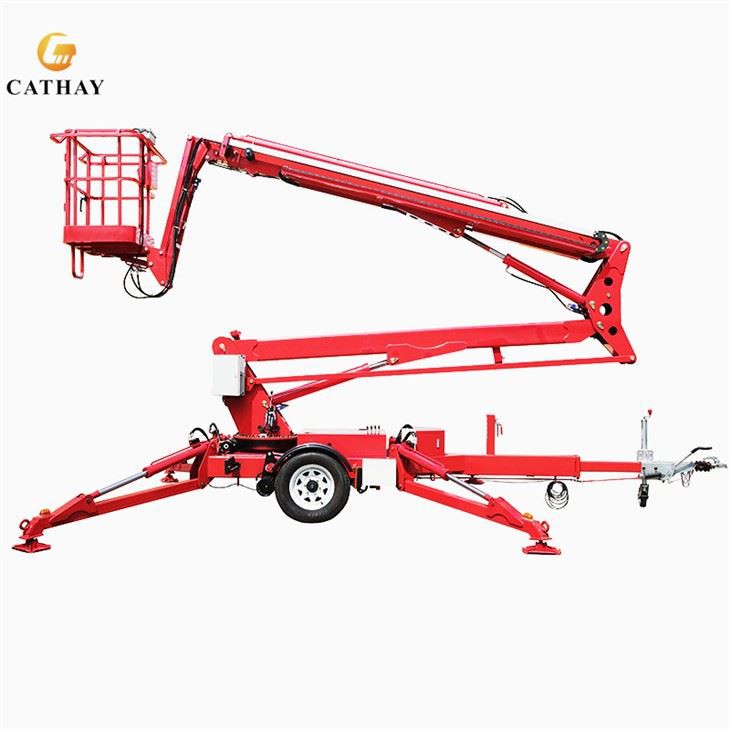

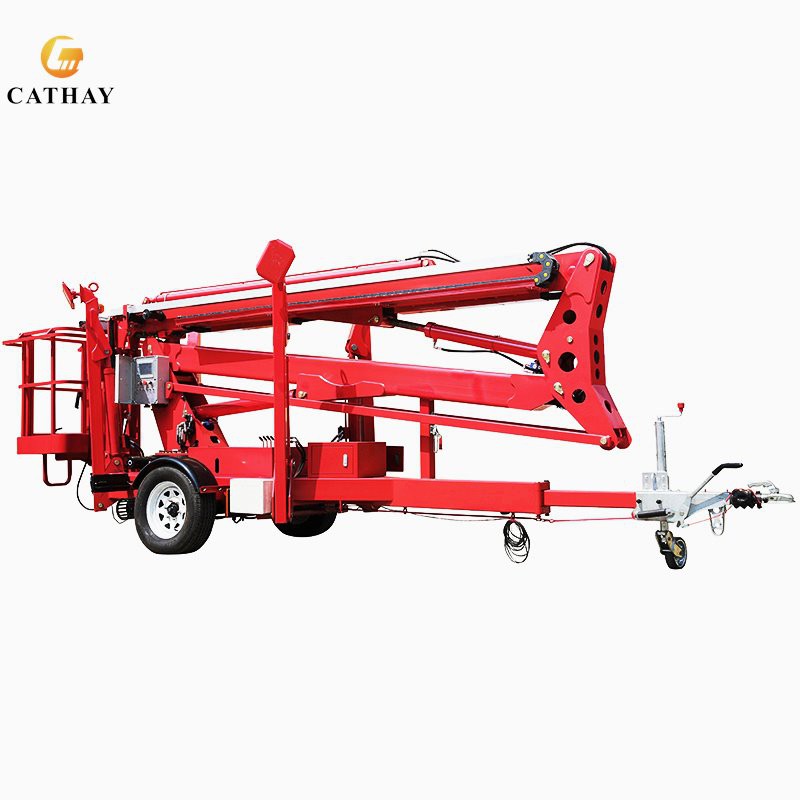

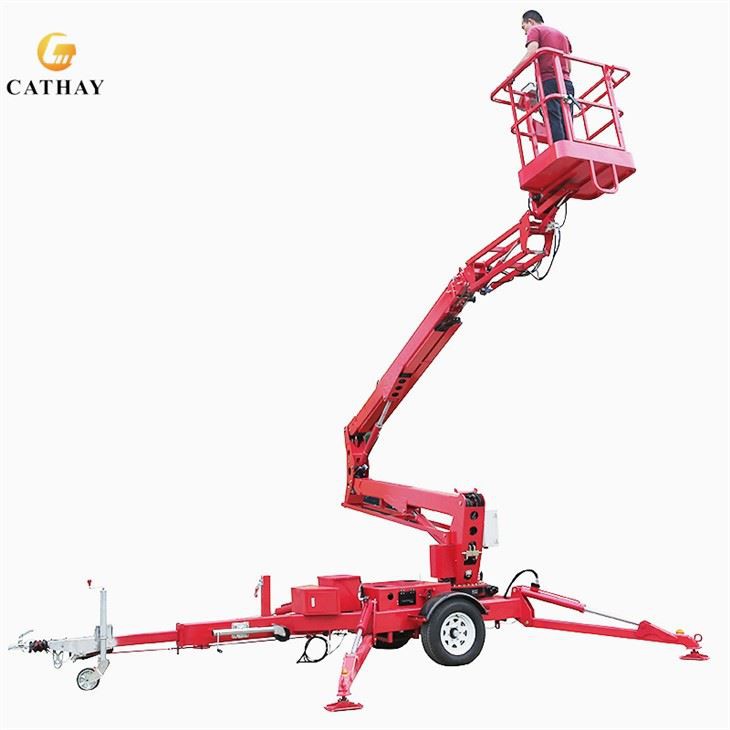

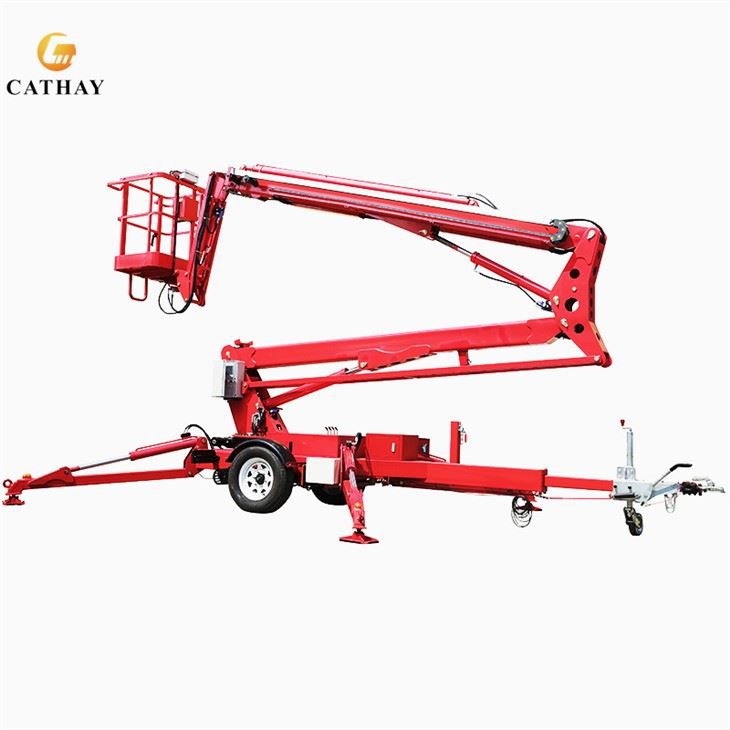

The CATHAYLIFT CTA model Trailer mounted boom lift has an excellent working range and intuitive controls that can be towed to a variety of workplaces. 359˚ non-continuous turntable rotation for versatile positioning, a variety of power can be selected.
Model Type | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
Working height | 12M | 14M | 16M | 18M | 20M | 22M |
Load capacity | 200KG | |||||
Platform size | 0.9*0.7M | |||||
Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 3000KG | 3100KG |
Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Supporting Legs Stride Distance(Horizontal) | 3.0 M | 3.6 M | 3.6 M | 3.9 M | 3.9 M | 3.9 M |
Supporting Legs Stride Distance (Vertical) | 4.7 M | 4.7 M | 4.7 M | 4.9 M | 4.9 M | 4.9 M |
Wind Resistance Level | ≦5 | |||||
20'/40' Container Loading Quantity | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set |
40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/2sets | |
Power optional | AC-electrical Power (Xi'an Motor) | |||||
Diesel Power Motor (YSD Motor) | ||||||
Gasoline Power (Honda Motor) | ||||||
DC Battery Power (Bucher Motor) | ||||||
AC+ Diesel/Gas Power (Dual Power) | ||||||
AC/Diesel/Gas+DC Power (Dual Power) | ||||||
Extra Optional | Friction wheel walking device: (Automatic Moving) | |||||
Product Details:
● Wide range of application.
● Suitable for Long Distance Working: (can be towed by ordinary vehicles)
● Special Structure design can be used both outdoors and indoors.
● Self Leveling Sole
● Two-way cylinder, safe and reliable
● Waterproof control panel and Electric Box
● Electromagnetic Brake
● AC,DC,Diesel, Gasoline,Hybrid power.
● Best value for money
Details Images:

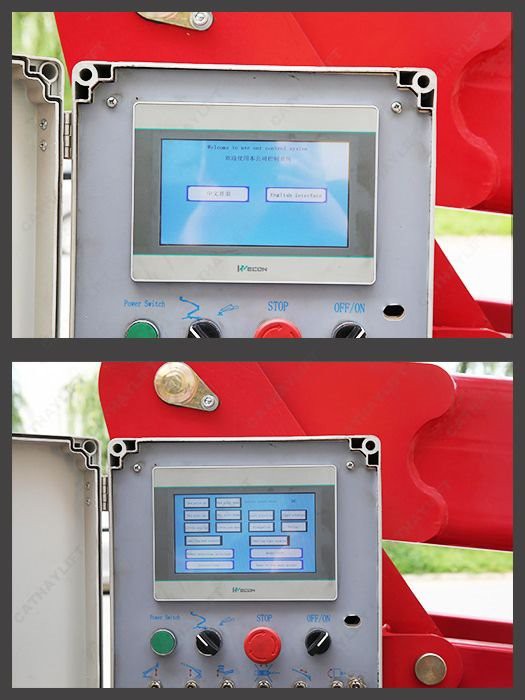

Control Panel:
Waterproof protective cover, with LED control panel inside, multi-language system can be selected, electronic manual included, as well as various parameter configurations of the machine, self-diagnosis system, connected to tilt sensor, can detect the ground angle. For hybrid power, the panel can be used to switch the power supply, which is convenient, efficient and fast.
Basket control panel on the platform and guardrails:
The rods control the work of each arm of the machine respectively, with waterproof design and LED lighting on the edge, which is convenient for night work. High-strength guardrail, revolving latch door, provide security guarantee.
One-touch leveling function:
When the machine is used for a long time or idle for a long time, the countertop will lose its level due to the influence of its own weight. With this device, the basket can be leveled with one key and put into work quickly.

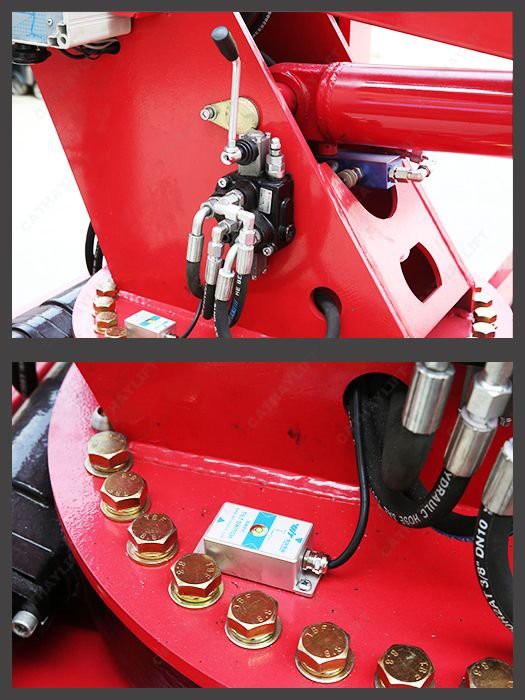

Tilt sensor:
The function of the inclination sensor is to measure the inclination angle of the fuselage in real time. Since the inclination angle changes very little when the machine is fully extended, the sampling frequency of the inclination sensor is in the range of 0.5-10Hz, and the measurement accuracy is higher than 0.05 degrees. At the same time, it is necessary to filter out the noise caused by machine vibration to ensure reliable communication and accurate judgment.
Four handle with Four outriggers:
Four handles control the extension and retraction of the four legs, and the bottom of the legs is Spherical Joint with Self Leveling Function.
Auxiliary friction wheel moving device:
The automatic traveling device is controlled by a remote controller for short-distance movement. This device is optional. It is more convenient to move it in a small area for high-altitude operations.
More details:
Night Work Lights (LED)
Brake warning lights and tail lights
Four warning lights are on the outriggers
ALKO (Germany)Brakes
Platform Control System (Waterproof)
Control handle (anti-misoperation)
Ground control panel with LED display
YSD Diesel Motor
Manual accelerator(Gas,Disel power)
Honda Gasoline Engine (Optional)
Switzerland Bucher DC Battery Motor (Optional)
Charging Socket As Per Requests
Electromagnetic brake, start rubber wheel
Torsion shaft with greater shock absorption
Two Way Cylinder with Balance Valve&Emergency Decline Switch
Built-in oil pipe (absolutely leak-proof)
4 control handles control the four outriggers
Alarm type fuel tank filter reminder
Easy to access for maintenance
360 degree turntable (deceleration technology motor)
Telescopic Boom
Arc joint special design (more precise)
Telescopic boom rollers (durable)
Durable basket (Anti-Pinch Design Structure)
Ladders and Rotary Locking Door
One-button leveling basket device
Automatic moving(Optional)
Platform Cylinde to keep the horizontal of the basket
High strength lifting and balancing mechanical chain
Arm's fixed lock to prevent shaking when towing
Tilt Angle Sensor, ＞4°the machine won't run
Limited Switch (For Security)
Siren
Retractable trailing arm
Laser cutting, shot blasting, plastic spraying
Wear-resistant cable (waterproof, anti-mechanical pressure, anti-high temperature)
Compact and Precise Structure Design
Flexible Hydraulic outriggers
with Automatic Angle Adjustment Function
Balance casters
Warning labels on key parts
Smart Battery Charger(Longsheng)

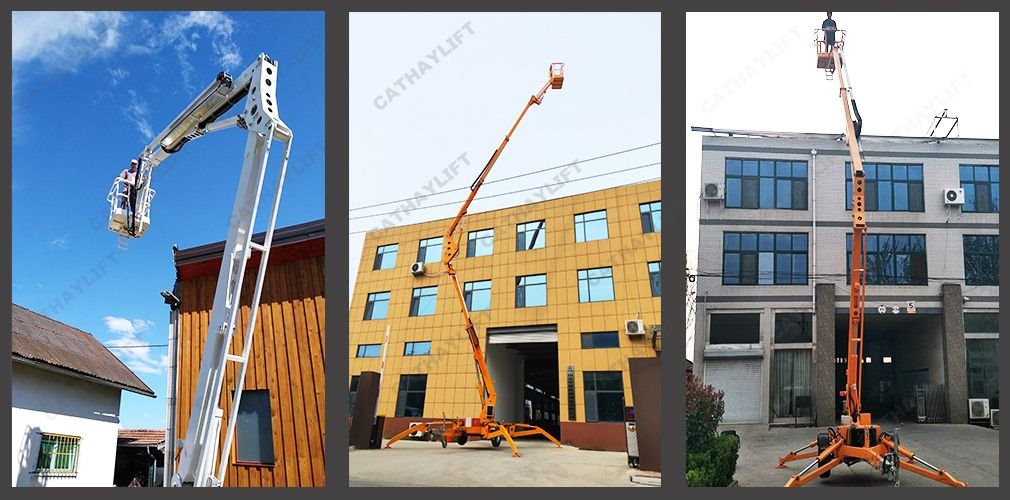

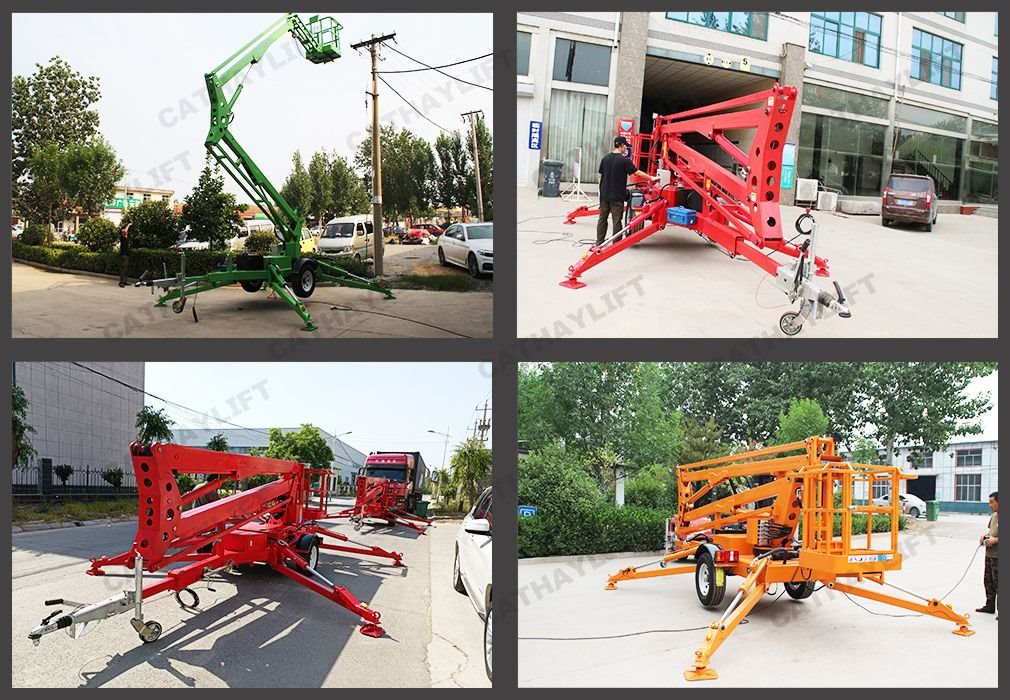

Real Order:
