Towable Man Lift

Only one person can operate the machine to continuously complete the installation of the machine when working at high altitude, and can quickly put it into high-altitude work. Compared with the traditional hydraulic platform, the work efficiency is greatly improved, the number of operators and labor intensity is reduced, and it can adapt to the specific Working environments, can work in humid, corrosive, dusty, high temperature, and low temperature environments. The maximum vertical height of the machine can reach 20m, and the maximum horizontal working radius can reach 11m. The worktable can be raised or extended, and can be rotated 359 degrees, which greatly improves the work efficiency.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of towable man lift in China. We warmly welcome you to buy discount towable man lift for sale here from our factory. Quality products and reasonable price are available.

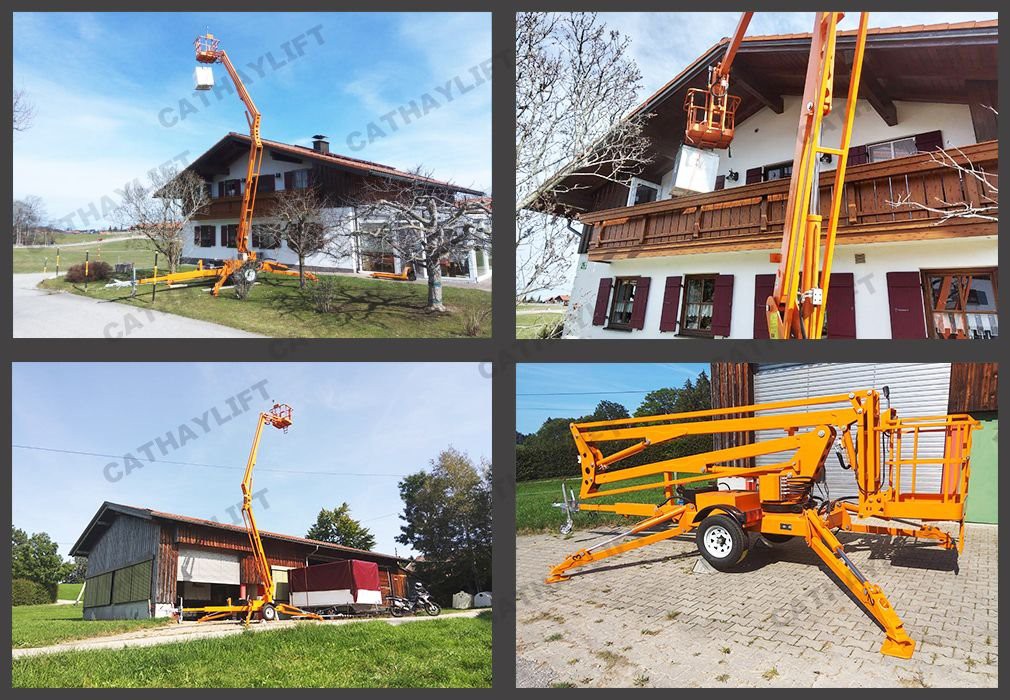

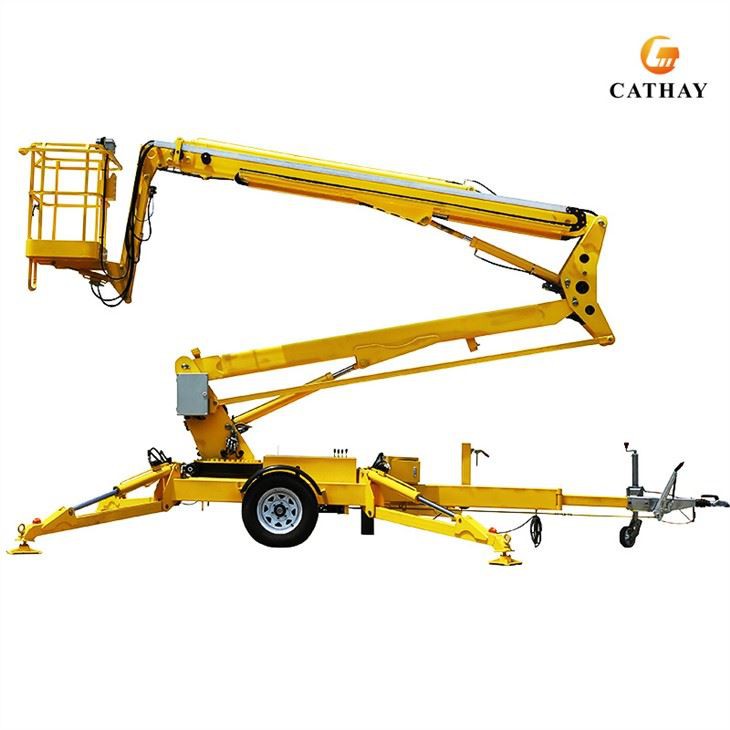

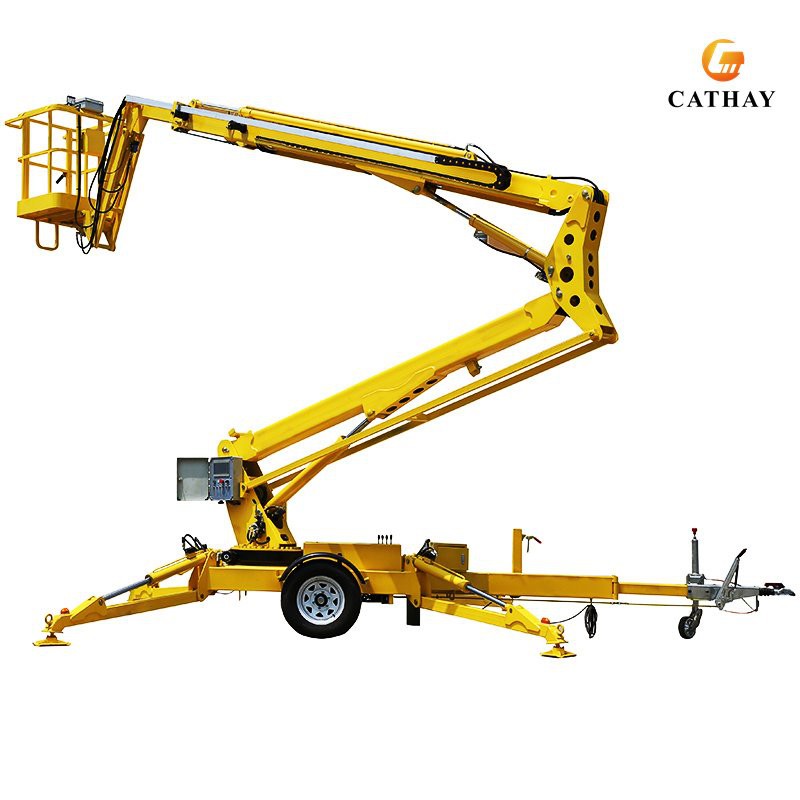

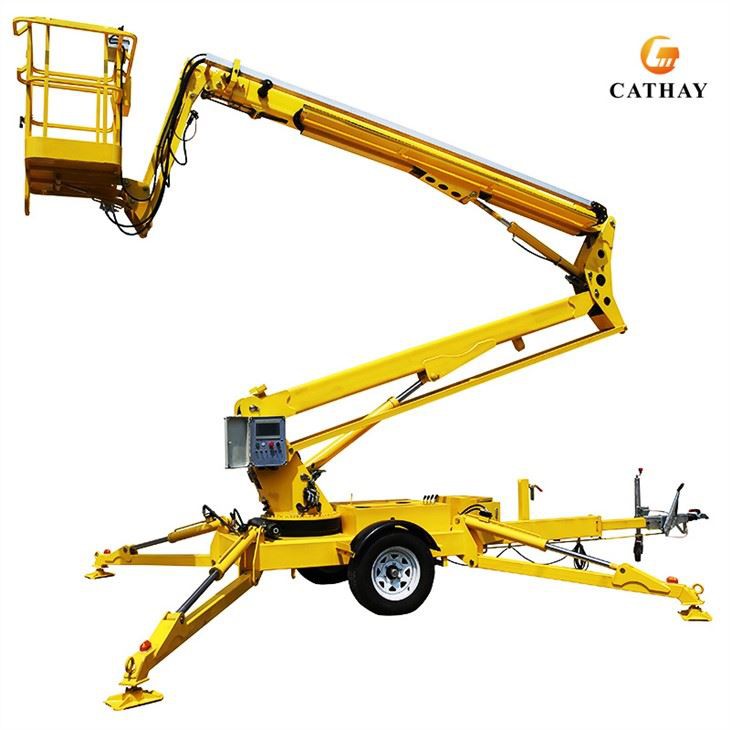

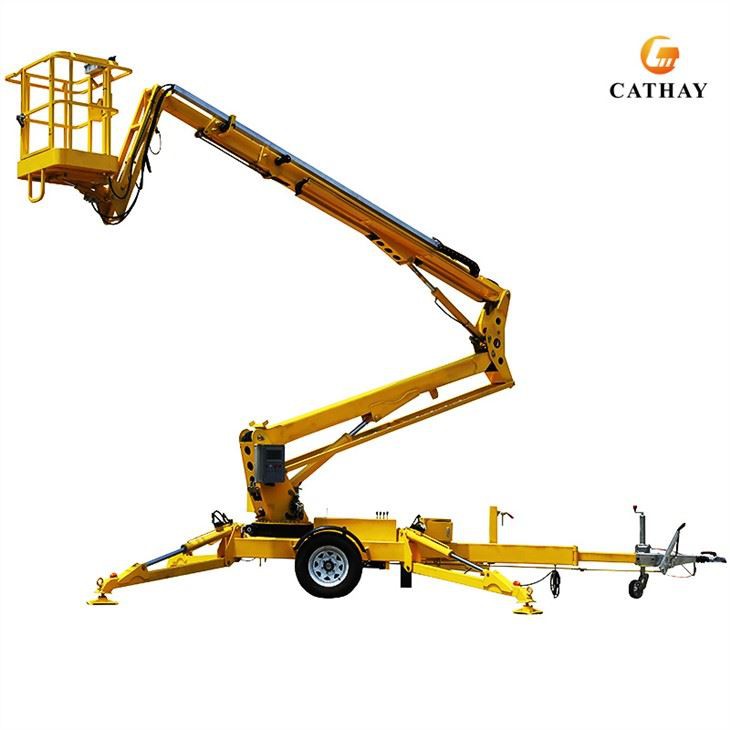

CTA type folding arm trailer type aerial work platform is an aerial work platform that installs the boom on a specific self-made chassis, and realizes walking by pulling and dragging. This model offers the best operational performance in the industry, featuring light weight, versatile operation, and 359°/continuous rotation, making it ideal for congested construction sites and flexible access to construction points in a variety of locations. The equipment is widely used in high-altitude operations such as interior decoration, road and bridge construction, house construction and maintenance, and electrical maintenance.

Model Type	CTA-10A	CTA-12A	CTA-14T	CTA-16T	CTA-18T	CTA-20T
Version	Articulated	Articulated	Telescopic	Telescopic	Telescopic	Telescopic
Lifting height	10M	12M	14M	16M	18M	20M
Working height	12M	14M	16M	18M	20M	22M
Load capacity	200KG
Platform size	0.9*0.7M
Working radius	5.5M	6.5M	8.5M	10.5M	11M	11M
Net Weight	1855KG	2050KG	2500KG	2800KG	3000KG	3100KG
*Overall Size( LWH)*	5.21.72.1M	6.21.72.1M	5.61.72.1M	5.71.72.2M	6.51.82.3M	5.81.92.3M
Supporting Legs Stride Distance(Horizontal)	3.0 M	3.6 M	3.6 M	3.9 M	3.9 M	3.9 M
Supporting Legs Stride Distance (Vertical)	4.7 M	4.7 M	4.7 M	4.9 M	4.9 M	4.9 M
Wind Resistance Level	≦5
20'/40' Container Loading Quantity	20'/1set	20'/1set	20'/1set	20'/1set	20'/1set	20'/1set
20'/40' Container Loading Quantity	40'/3sets	40'/3sets	40'/3sets	40'/3sets	40'/3sets	40'/2sets
Power optional	AC-electrical Power (Xi'an Motor)
	Diesel Power Motor (YSD Motor)
	Gasoline Power (Honda Motor)
	DC Battery Power (Bucher Motor)
	AC+ Diesel/Gas Power (Dual Power)
	AC/Diesel/Gas+DC Power (Dual Power)
Extra Optional	Automatic Moving Use remote control to make the boom lift walk itself,no need to use tractor towing.

CTA have passed the CE Rohs ISO9001 certification, our products can be sold and used in any country in the world, CTA is based on the original model based on a lot of upgrades, making Now this product is an excellent product in terms of work performance and maintenance.All the raw materials of the product are cut by a laser cutting machine, achieving absolute precision, and the surface has been shot blasted and sprayed to achieve corrosion resistance and beautiful appearance. The product production process passes through our four workshops, raw material processing workshop (including laser cutting, shot blasting, plastic spraying) product production assembly workshop (here we will carry out product assembly production), product debugging workshop (our I will conduct professional debugging) Product testing workshop (after the final test of the product, at this stage we will test the product in all aspects) After going through these processes, our products will flow into the market, which means that we can not have quality problems.
