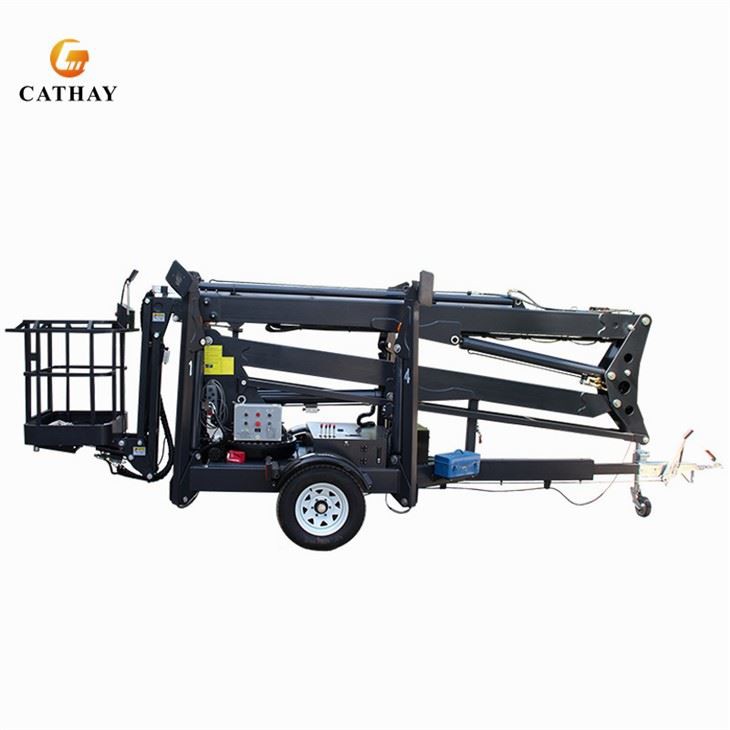

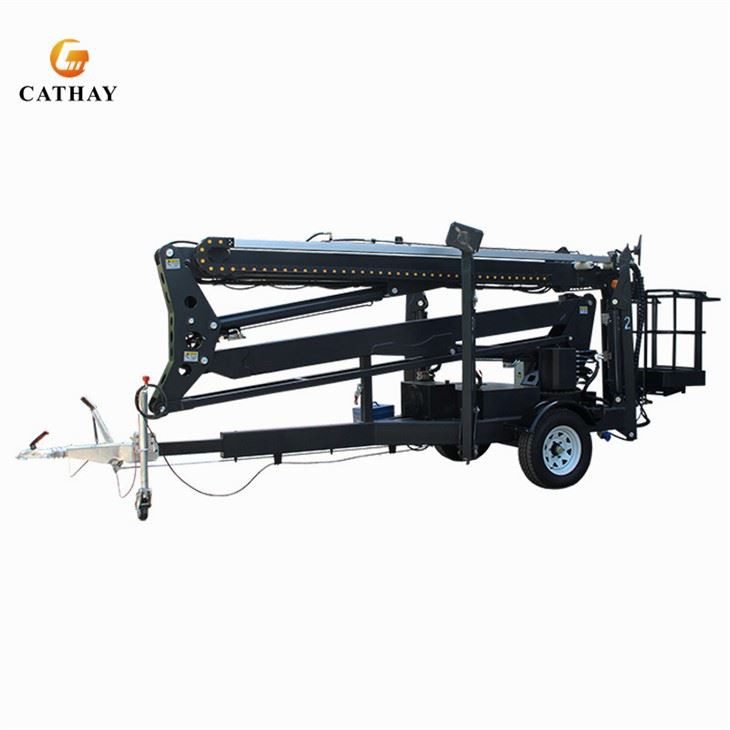

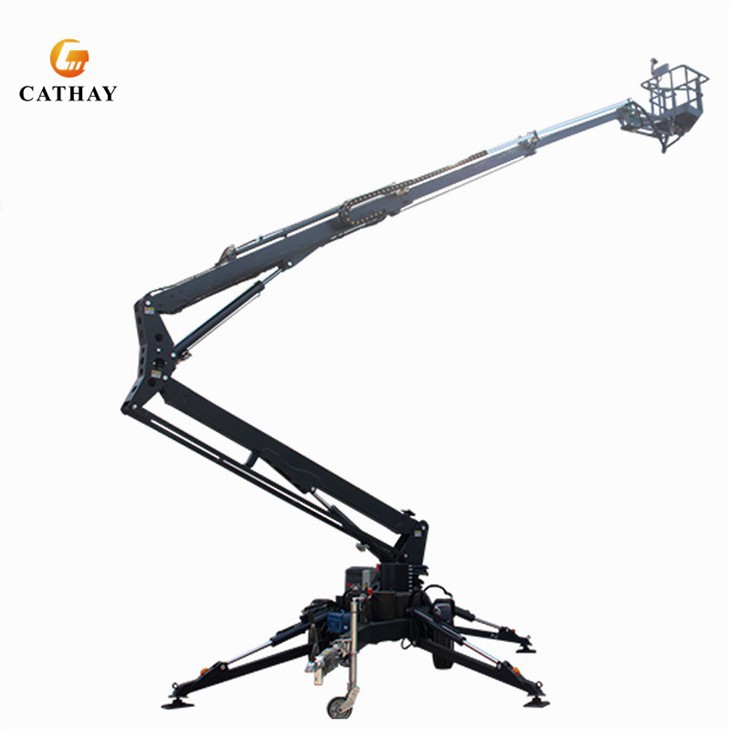

Mini Small Boom Lift

Mini boom lift has obtained CE, Rohs, ISO9001 and other international certifications. In terms of product safety:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Anti-dropping device: Prevent falling of platform
5. Dual check valve and explosion proof valve block

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mini small boom lift in China. We warmly welcome you to buy discount mini small boom lift for sale here from our factory. Quality products and reasonable price are available.

CTA series are obtained and strictly comply with the CE test, and we have carried out more stringent product requirements. Steps for indoor testing, our load test is 150% of the standard load, and the load block is placed on the side that is most prone to rollover, the tilt angle of the platform is adjusted to 2 degrees, and the tilt angle visible to the human eye is 0.5 Degree, we add 1.5 degrees on the basis of 0.5 degrees, and the horizontal force is 1.1 times the standard of the product. After satisfying such conditions, we conduct tests and ensure that no eccentric loading, tipping, and permanent deformation will occur. In outdoor testing, we also need to add wind test, the use of products requires wind force less than or equal to 5.For the tubing burst test of the product, according to the CE standard, when the tubing bursts, it should momentarily stand still and wait for the arrival of rescuers. However, many low-end products will not immediately stop after the burst of the tubing, but will slowly decline. This is a very dangerous and unsafe factor. Because there is explosion-Proof in our cylinder, we can guarantee the safety and stability of our products.

Model Type	CTA-10A	CTA-12A	CTA-14T	CTA-16T	CTA-18T	CTA-20T
Version	Articulated	Articulated	Telescopic	Telescopic	Telescopic	Telescopic
Lifting height	10M	12M	14M	16M	18M	20M
Working height	12M	14M	16M	18M	20M	22M
Load capacity	200KG
Platform size	0.9*0.7M
Working radius	5.5M	6.5M	8.5M	10.5M	11M	11M
Net Weight	1855KG	2050KG	2500KG	2800KG	3000KG	3100KG
*Overall Size( LWH)*	5.21.72.1M	6.21.72.1M	5.61.72.1M	5.71.72.2M	6.51.82.3M	5.81.92.3M
Supporting Legs Stride Distance(Horizontal)	3.0 M	3.6 M	3.6 M	3.9 M	3.9 M	3.9 M
Supporting Legs Stride Distance (Vertical)	4.7 M	4.7 M	4.7 M	4.9 M	4.9 M	4.9 M
Wind Resistance Level	≦5
20'/40' Container Loading Quantity	20'/1set	20'/1set	20'/1set	20'/1set	20'/1set	20'/1set
20'/40' Container Loading Quantity	40'/3sets	40'/3sets	40'/3sets	40'/3sets	40'/3sets	40'/2sets
Power optional	AC-electrical Power (Xi'an Motor)
	Diesel Power Motor (YSD Motor)
	Gasoline Power (Honda Motor)
	DC Battery Power (Bucher Motor)
	AC+ Diesel/Gas Power (Dual Power)
	AC/Diesel/Gas+DC Power (Dual Power)
Extra Optional	Friction wheel walking device: (Automatic Moving) Use remote control to make the boom lift walk itself,no need to use tractor towing.
