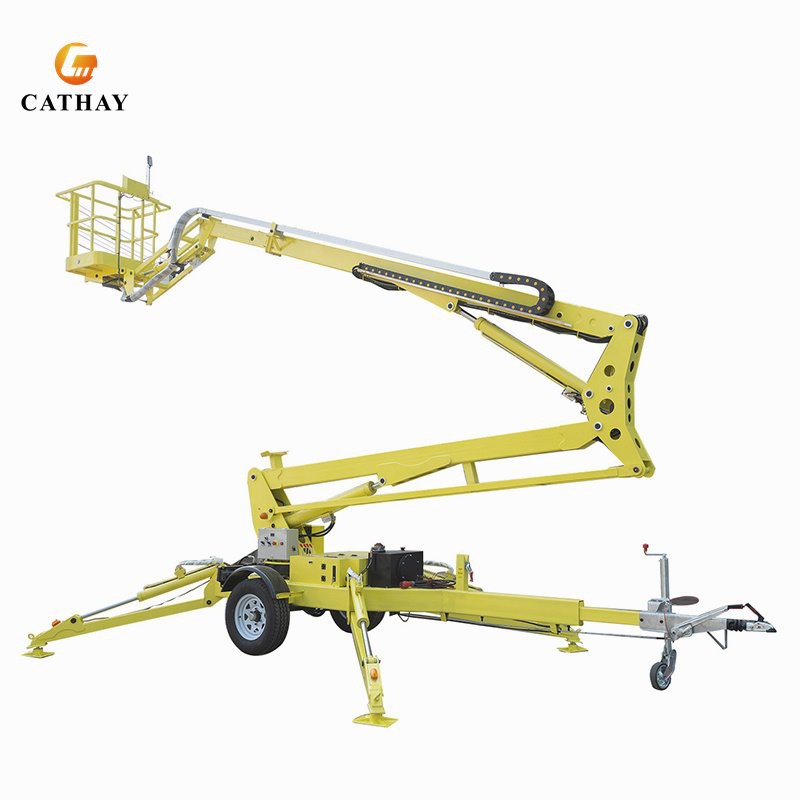

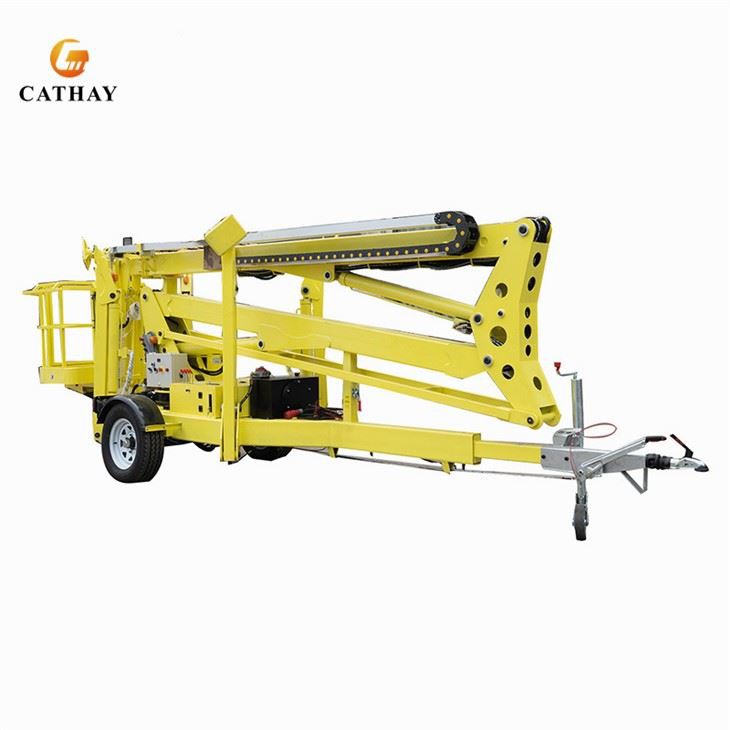

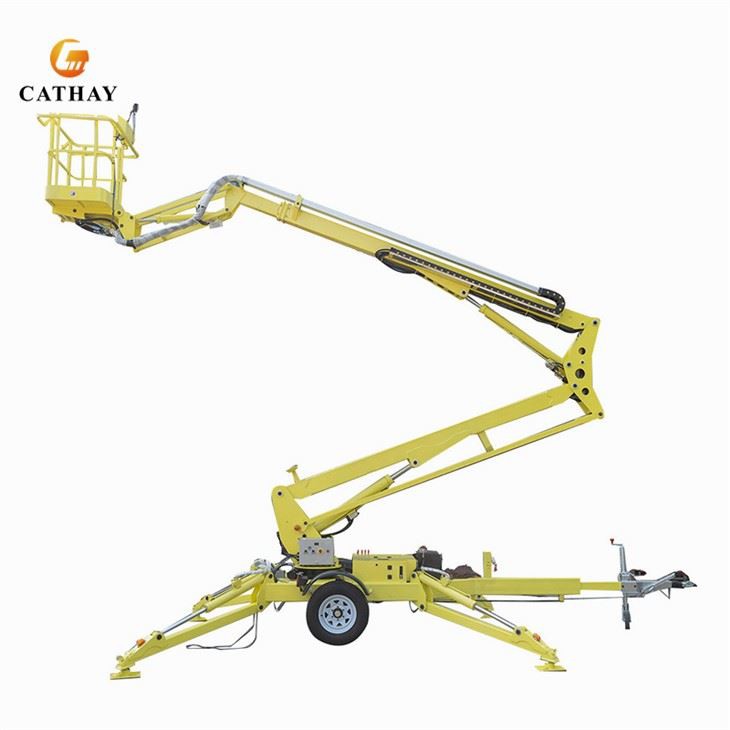

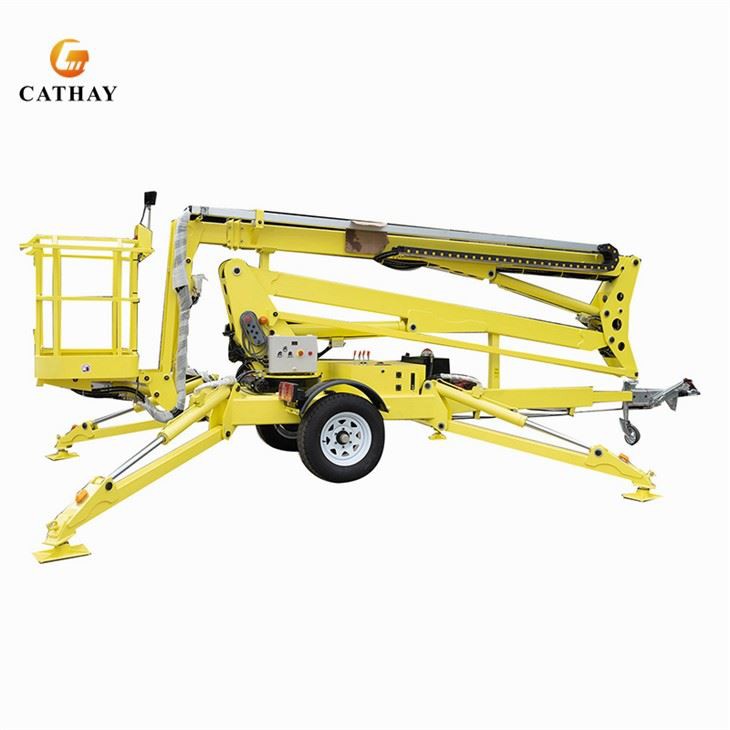

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of portable boom lift in China. We warmly welcome you to buy discount portable boom lift for sale here from our factory. Quality products and reasonable price are available.
Model Type | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
Working height | 12M | 14M | 16M | 18M | 20M | 22M |
Load capacity | 200KG | |||||
Platform size | 0.9*0.7M | |||||
Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 3000KG | 3100KG |
Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Supporting Legs Stride Distance(Horizontal) | 3.0 M | 3.6 M | 3.6 M | 3.9 M | 3.9 M | 3.9 M |
Supporting Legs Stride Distance (Vertical) | 4.7 M | 4.7 M | 4.7 M | 4.9 M | 4.9 M | 4.9 M |
Wind Resistance Level | ≦5 | |||||
20'/40' Container Loading Quantity | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set |
40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/2sets | |
Power optional | AC-electrical Power (Xi'an Motor) | |||||
Diesel Power Motor (YSD Motor) | ||||||
Gasoline Power (Honda Motor) | ||||||
DC Battery Power (Bucher Motor) | ||||||
AC+ Diesel/Gas Power (Dual Power) | ||||||
AC/Diesel/Gas+DC Power (Dual Power) | ||||||
Extra Optional | Automatic Moving | |||||
Why choose us:
● 360degrees rotation of the arm, equipped with lubricated bearing and grease cup, flexible without noise.
● Sealing parts: Japan NOK brand, guarantee that the products run 300, 000 times without leakage or damage.
● The cylinder outlet is equipped with an automatic shut-off valve.
● Equipped with an emergency dropping device.
● Two sets of control systems on the machine and floor, easy and convenient to operate, safe and flexible.
● Equipped with sliding track rollers, reducing the rocking and vibration and ensures the smooth up-down.
More details:
LED Light on the basket for night working
Tail Light & Brake Light
Warning Light on 4pcs automatic supporting legs
Germany Imported ALKO Brand Brakes
Water Proof Control Panel on Platform
Dead Man Switch, Waterproof Control Panel
Waterproof Electrical Box, Battery Power Indicator, Emergency Stop
YSD Diesel Motor (Standard)
Diesel/Gas Motor are equipped with manual accelerator.
Honda Gasoline Engine (Optional)
Switzerland Bucher DC Battery Motor (Optional)
Charging Socket As Per Requests
Torsion Shaft with great shock absorption function
Pneumatic Rubber Wheels, Electric Magnetic Brake
Two Way Cylinder with Balance Valve&Emergency Decline Switch
Precise Hydraulic Hose, absolutely no oil leak
Control Rod for 4pcs Automatic Hydraulic Supporting Legs
Hydraulic Oil Tank Filtration Alarm System
2 Windows for easy maintenance
360degree Turn Plate with Speed Reducer Technology Motor.
Telescopic Boom for 14m 16m model types
Special Design Cambered Joint
Precise Joint Connection/Clamps
Sliding Block of Telescopic Boom
Durable basket with Anti Pinch Design Structure
Ladder and Door of the Platform
Basket Adjust Leveling Switch
Automatic moving(Optional)
Small Cylinder Under Basket to Keep the Platform Horizontal
Lifting and Keep Balance Chain (for 16m)
Safety Lock of Arm.Prevent Shake when Tow the Lift
Tilt Angle Sensor, Platform won't Up/Down if body more than 4°
Limited Switch for Safety Precaution
Siren can be connected or disconnected
Dismountable Towing Rod
Excellent Cutting and Powder Coating Spray Paint
Neat Wiring and Hydraulic Hoses
Very Compact and Precise Structure Design
4pcs Automatic Hydraulic Supporting Legs
with flexible Angle Adjustment Function
Rubber Balance Wheels
Full set of English Warning Notes
Smart Battery Charger

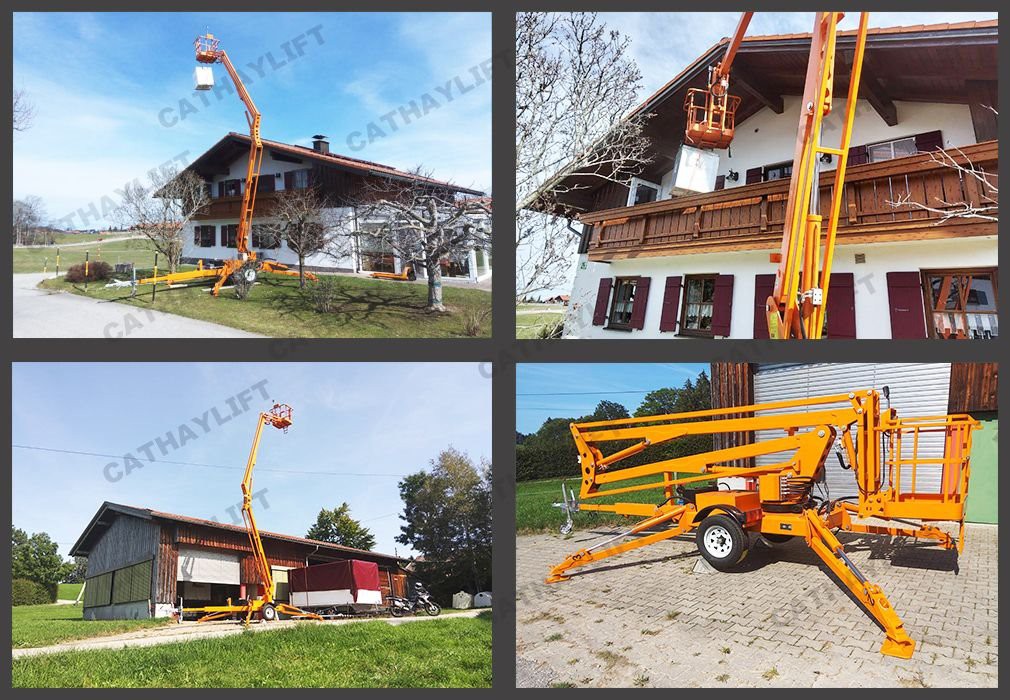

Real Order:
