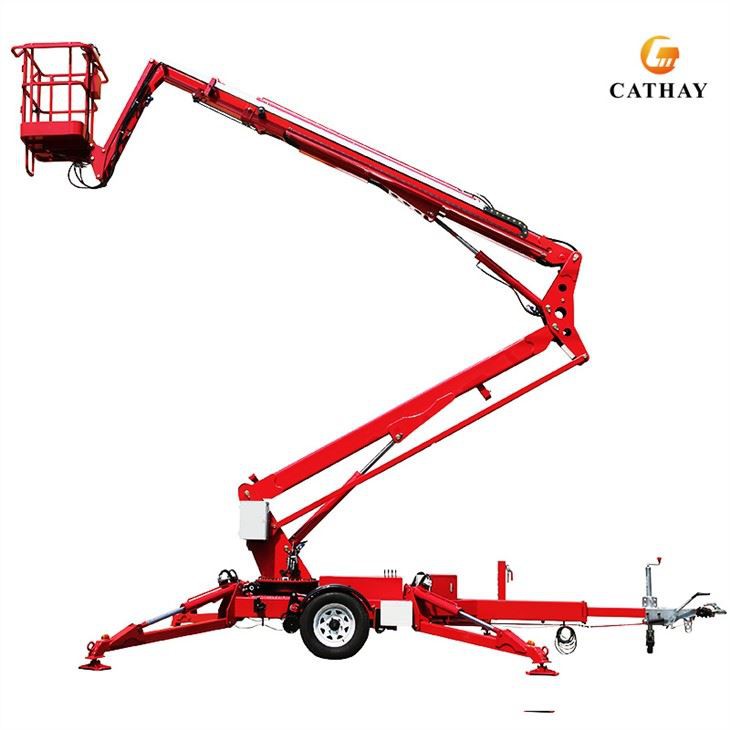

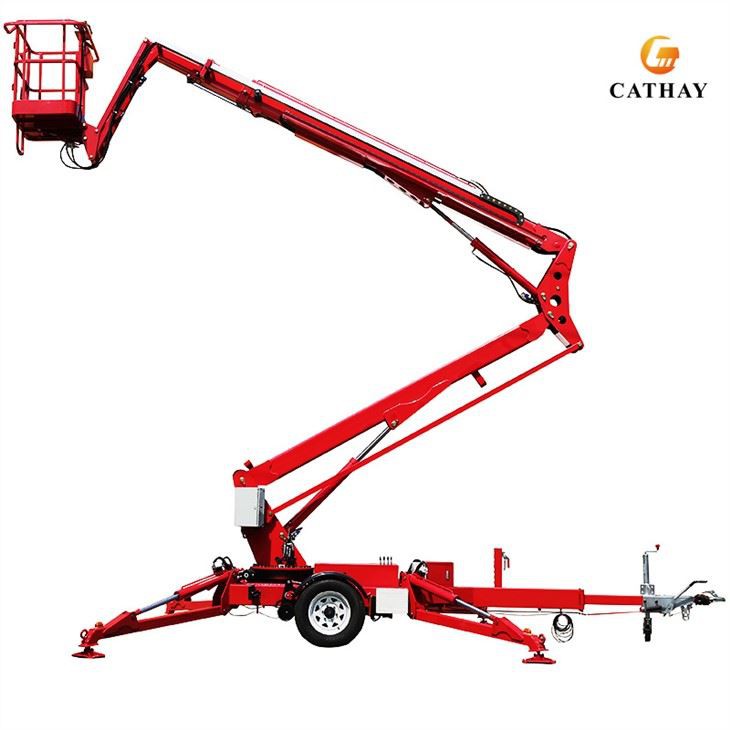

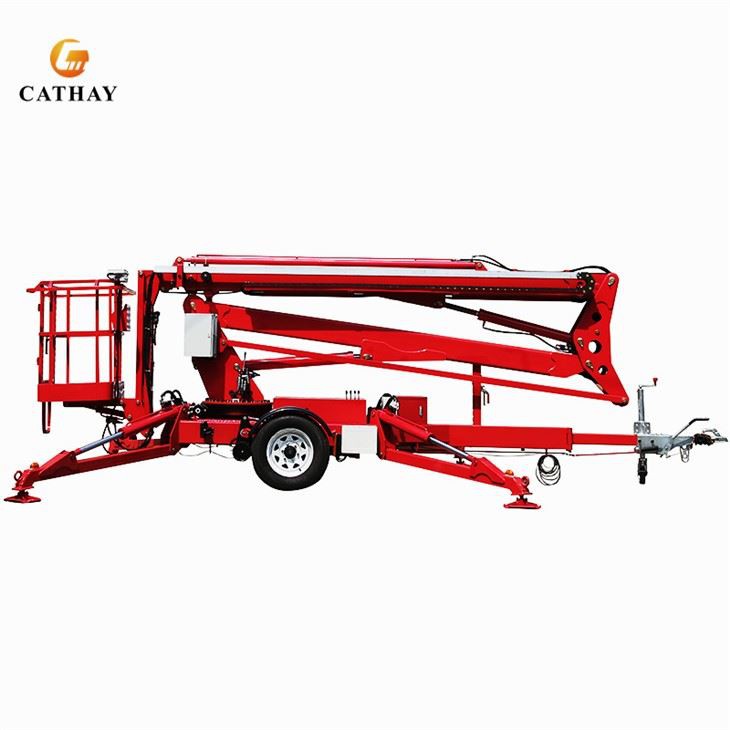

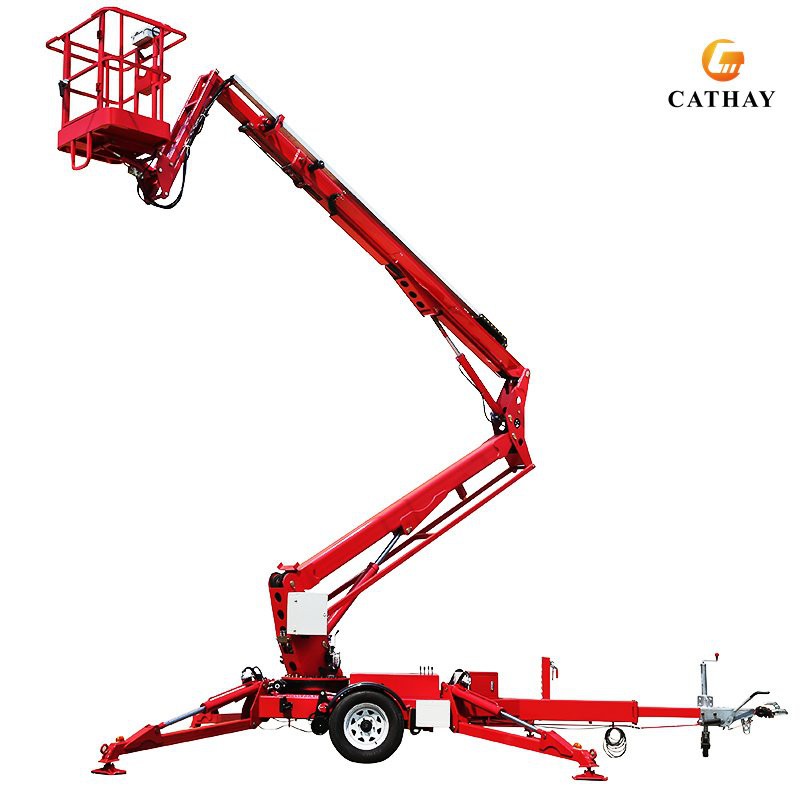

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of pull behind boom lift in China. We warmly welcome you to buy discount pull behind boom lift for sale here from our factory. Quality products and reasonable price are available.
The equipment boom is made of manganese steel, rotates 360°, can cross obstacles, and has fast erection speed. Automatic hydraulic support feet can adjust the height of each foot according to the terrain to achieve the level of the platform. The trailer type is easy to transport and can be directly and quickly towed. , a wide range of operations, suitable for all kinds of field terrain. Made of manganese steel that can cross obstacles for high-altitude operations Made of high-strength manganese steel, can cross obstacles to perform high-altitude operations, suitable for all kinds of rough terrain in the field, flexible steering, easy to use, large operating radius, accurate and sensitive equipment, 3D rotary lifting device* It can automatically maintain the posture of the material being lifted and can realize the adjustment of the lifted material at any height in space, any material and any direction. Speed control is required, accurate and sensitive, with good micro-motion performance, and it can cross obstacles. It is practical and can work at heights across obstacles. , Compact structure, flexible steering, and the width of the chassis can ensure that the equipment can enter narrow passages and crowded industrial areas, with strong practicability, strong wear-resistant high-quality tires, and high-quality tires. Strongly ensure the smooth movement of the equipment, the equipment can move quickly, equipped with a braking system, safe, efficient, good quality, simple and easy to learn. The lifting and turning of each arm of the upper control equipment is convenient, fast, safe and stable, and the operation is simple and easy.
Model Type | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
Working height | 12M | 14M | 16M | 18M | 20M | 22M |
Load capacity | 200KG | |||||
Platform size | 0.9*0.7M | |||||
Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 3000KG | 3100KG |
Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Supporting Legs Stride Distance(Horizontal) | 3.0 M | 3.6 M | 3.6 M | 3.9 M | 3.9 M | 3.9 M |
Supporting Legs Stride Distance (Vertical) | 4.7 M | 4.7 M | 4.7 M | 4.9 M | 4.9 M | 4.9 M |
Wind Resistance Level | ≦5 | |||||
20'/40' Container Loading Quantity | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set |
40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/2sets | |
Power optional | AC-electrical Power (Xi'an Motor) | |||||
Diesel Power Motor (YSD Motor) | ||||||
Gasoline Power (Honda Motor) | ||||||
DC Battery Power (Bucher Motor) | ||||||
AC+ Diesel/Gas Power (Dual Power) | ||||||
AC/Diesel/Gas+DC Power (Dual Power) | ||||||
Extra Optional | Automatic Moving | |||||
More details:
Night Work Lights
Tail & Brake Light
Outriggers(Ring, Warning light)
ALKO (Germany)
Waterproof Control System(on the platform )
Intuitive operation(Anti-operation)
Control system on the ground
YSD Diesel Motor(Diesel power)
Manual accelerator(Diesel,Gas)
Honda Motor (Gasoline)
Bucher(Switherland) DC Battery Motor (DC)
Charging Socket (Custom accepted)
Torsion Shaft with great shock absorption function
Pneumatic Rubber Wheels, Electric Magnetic Brake
Two Way Cylinder with Balance Valve&Emergency Decline Switch
Fully sealed tubing
Control handling for 4 outriggers
Hydraulic oil filter alarm device
2 door for maintenance
360degree Turn Plate with Speed Reducer Technology Motor.
Telescopic Boom for more than 14m model
Special Design Cambered Joint
Precise Joint Connection/Clamps
Sliding Block of Telescopic Boom
Durable basket with Anti Pinch Design Structure
Ladder and Door of the Platform
Basket Adjust Leveling Switch
Automatic moving(Optional)
Small Cylinder Under Basket to Keep the Platform Horizontal
Lifting and Keep Balance Chain (for 16m)
Safety Lock of Arm.Prevent Shake when Tow the Lift
Tilt Angle Sensor,Platform won't Up/Down if body more than 4°
Limited Switch for Safety Precaution
Siren can be connected or disconnected
Dismountable Towing Rod
Excellent Cutting and Powder Coating Spray Paint
Neat Wiring and Hydraulic Hoses
Very Compact and Precise Structure Design
4pcs Automatic Hydraulic Supporting Legs
With flexible Angle Adjustment Function
Rubber Balance Wheels
Full set of English Warning Notes
Smart Battery Charger

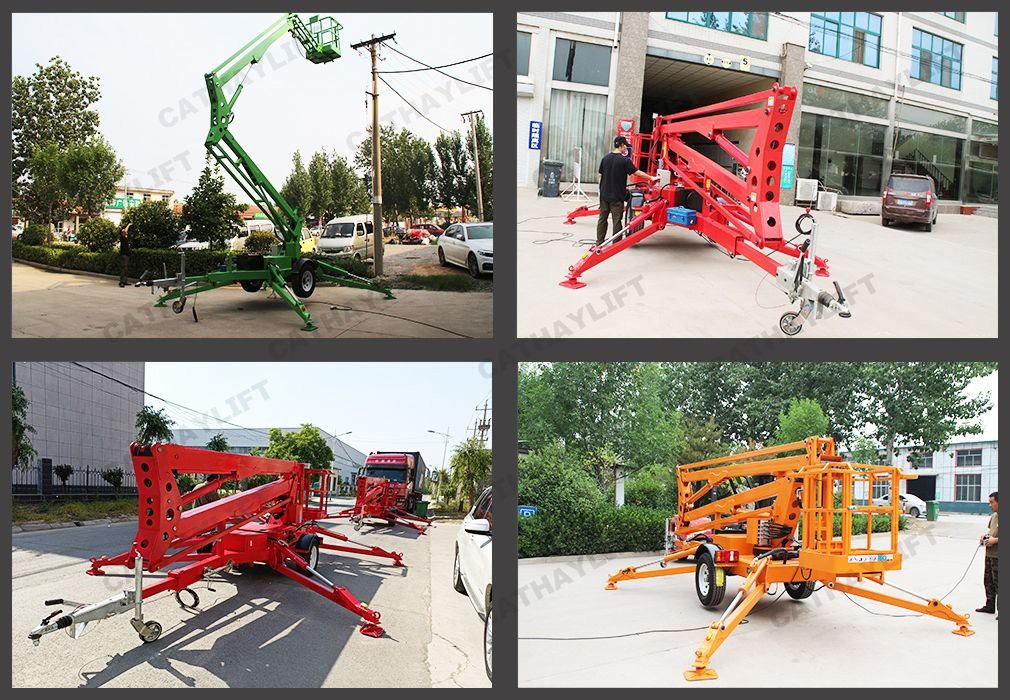

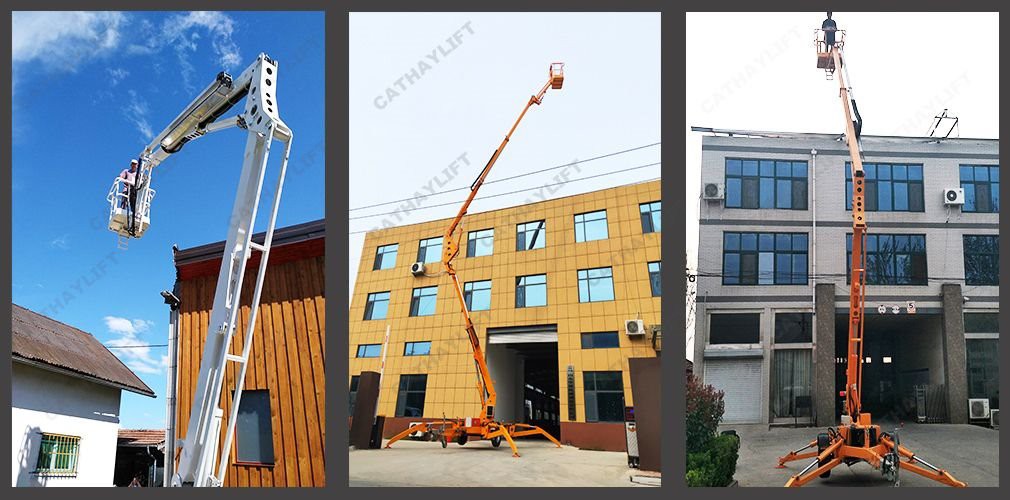

Real Order:
