Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of spider cherry picker in China. We warmly welcome you to buy discount spider cherry picker for sale here from our factory. Quality products and reasonable price are available.

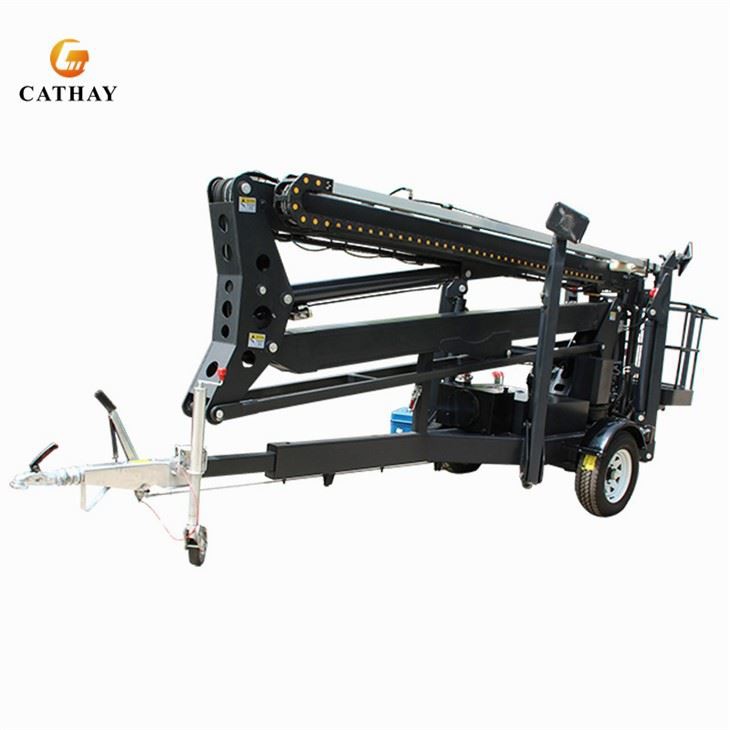

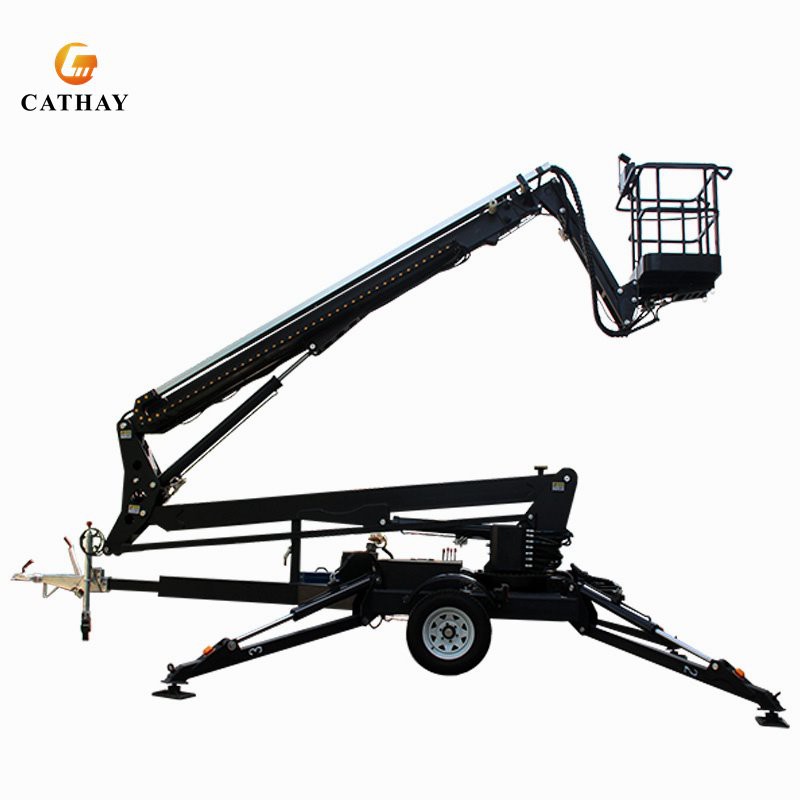

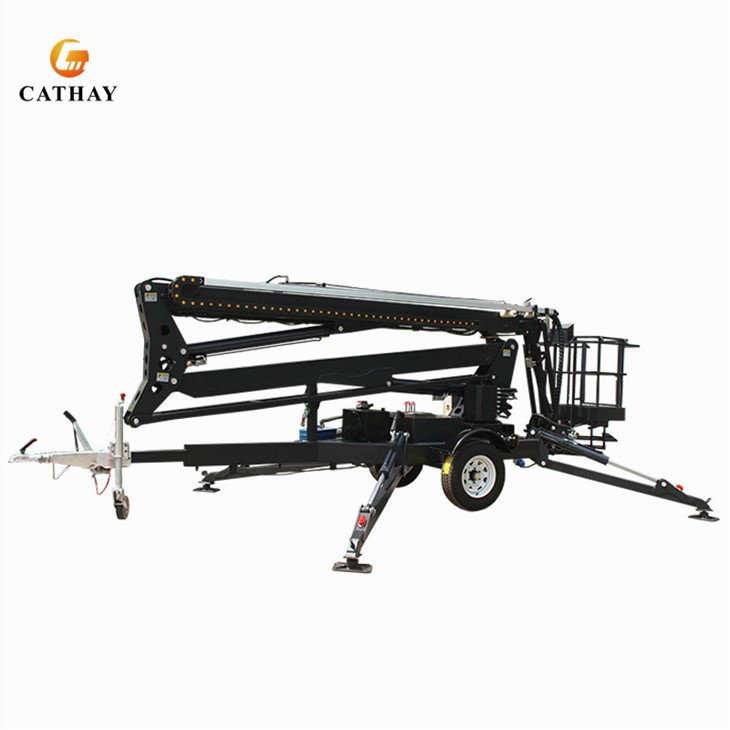

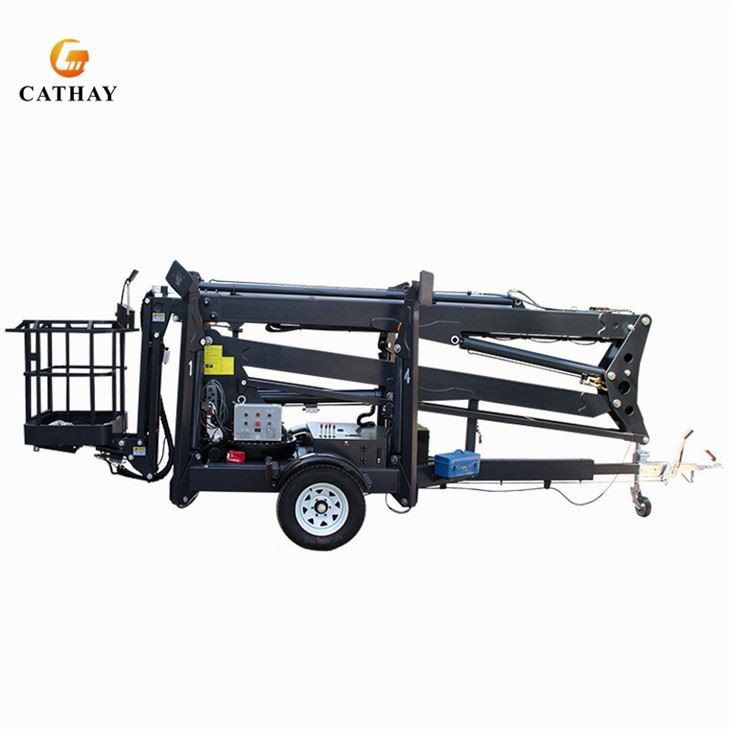

Spider cherry picker is equipped with control devices in the working bucket and on the swivel base. It adopts electro-hydraulic proportional valve to control the movement of the arm, which has good stability. The working arm can rotate 359° left and right continuously. When the main pump fails, the emergency pump can be controlled to lower the working trough. It has night lighting and can lift heavy objects. The outriggers of the car are separately separated and adjustable, so that the whole car can be leveled on uneven roads. The whole vehicle is easy to move and can be suitable for operation in narrow areas and small streets and alleys. Products are widely used in high-altitude work fields such as electricity, street lights, municipal administration, gardens, communications, airports, shipbuilding (repair), transportation, advertising, photography, etc.
Model Type | CTA-10A | CTA-12A | CTA-14T | CTA-16T | CTA-18T | CTA-20T |
Version | Articulated | Articulated | Telescopic | Telescopic | Telescopic | Telescopic |
Lifting height | 10M | 12M | 14M | 16M | 18M | 20M |
Working height | 12M | 14M | 16M | 18M | 20M | 22M |
Load capacity | 200KG | |||||
Platform size | 0.9*0.7M | |||||
Working radius | 5.5M | 6.5M | 8.5M | 10.5M | 11M | 11M |
Net Weight | 1855KG | 2050KG | 2500KG | 2800KG | 3000KG | 3100KG |
Overall Size( L*W*H) | 5.2*1.7*2.1M | 6.2*1.7*2.1M | 5.6*1.7*2.1M | 5.7*1.7*2.2M | 6.5*1.8*2.3M | 5.8*1.9*2.3M |
Supporting Legs Stride Distance(Horizontal) | 3.0 M | 3.6 M | 3.6 M | 3.9 M | 3.9 M | 3.9 M |
Supporting Legs Stride Distance (Vertical) | 4.7 M | 4.7 M | 4.7 M | 4.9 M | 4.9 M | 4.9 M |
Wind Resistance Level | ≦5 | |||||
20'/40' Container Loading Quantity | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set | 20'/1set |
40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/3sets | 40'/2sets | |
Power optional | AC-electrical Power (Xi'an Motor) | |||||
Diesel Power Motor (YSD Motor) | ||||||
Gasoline Power (Honda Motor) | ||||||
DC Battery Power (Bucher Motor) | ||||||
AC+ Diesel/Gas Power (Dual Power) | ||||||
AC/Diesel/Gas+DC Power (Dual Power) | ||||||
Extra Optional | Automatic Moving | |||||
Details Images:
Control system (on the ground):
Composed of LED numerical control panel and control buttons, touch screen design, simple and efficient, with manual (electronic version), parameter indicator (including ground angle), power switch. All control systems are equipped with red emergency stop buttons. In order to prevent danger, the upper control system cannot be used with the ground control system at the same time.
Control system(on the platform):
Intuitive control, waterproof design, emergency stop button, high-strength wear-resistant cable connection, adjustable length, The action of the arm is controlled by an electro-hydraulic proportional valve with good stability.
The working arm can rotate 360 degree left and right continuously, and the level of the working trough is automatically maintained by the linkage mechanism. When the main pump fails, the emergency pump can be controlled to lower the working trough.Basket door with automatic lock.

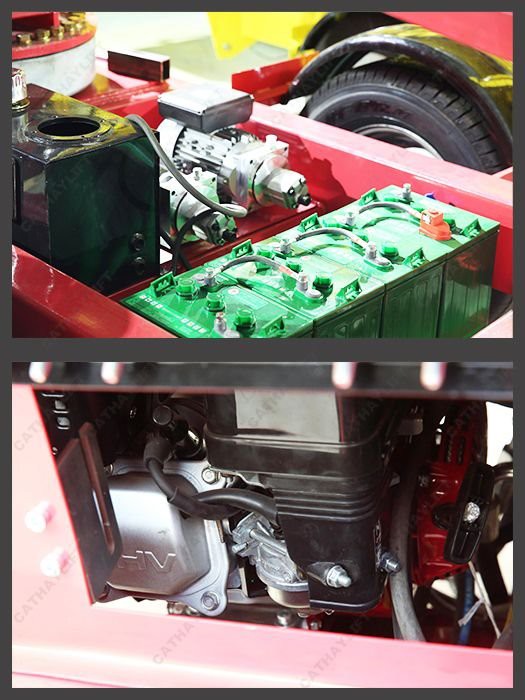

Lead Acid Battery(DC power):
4 Pieces in Series, One Piece is 6V, Total:24V, Total Capacity:230Ah
Equipped with 24V intelligent charger, Need to add distilled water regularly
Fully charged support 8 hours intermittent working.
Honda Motor(Gas power)
Outrigger telescopic control handle:
Before starting work, adjust the control handle so that the four hydraulic outriggers support the body and evenly force it on the ground, and check whether the angle of the LED numerical control panel meets the lifting requirements(if it does not meet the requirements, the equipment can not operate normally).
Friction-assisted running wheels:
The remote control can be used to remotely control the machine for short-distance movement, which is convenient for mobile operations at the workplace. The remote control is equipped with steering, forward, backward, and emergency stop buttons.
More details:
Night Work Lights
Tail & Brake Light
Outriggers(Ring, Warning light)
ALKO (Germany)
Waterproof Control System(on the platform )
Intuitive operation(Anti-operation)
Control system on the ground
YSD Diesel Motor(Diesel power)
Manual accelerator(Diesel, Gas)
Honda Motor (Gasoline)
Bucher(Switherland) DC Battery Motor (DC)
Charging Socket (Custom accepted)
Torsion Shaft with great shock absorption function
Pneumatic Rubber Wheels, Electric Magnetic Brake
Two Way Cylinder with Balance Valve&Emergency Decline Switch
Fully sealed tubing
Control handling for 4 outriggers
Hydraulic oil filter alarm device
2 door for maintenance
360degree Turn Plate with Speed Reducer Technology Motor.
Telescopic Boom for more than 14m model
Special Design Cambered Joint
Precise Joint Connection/Clamps
Roller
Anti-pinch durable basket
Ladder
Self-leveling basket
Auxiliary friction moving wheel
Basket Balance Cylinder
Lift balance chain(more than 16m model )
Arm lock (to prevent shaking during shipping)
Tilt Angle Sensor, Platform won't run if body more than 4°
Limited Switch
Siren can be connected or disconnected
Retractable Towing Arm
Shot blasting, plastic spraying
Neatly sealed hydraulic hoses
Compact and sophisticated sturcture
Four hydraulic outriggers equipped
With horizontal self-balancing device, flexible and efficient
Rubber auxiliary wheel
Warning notes
Smart Battery Charger

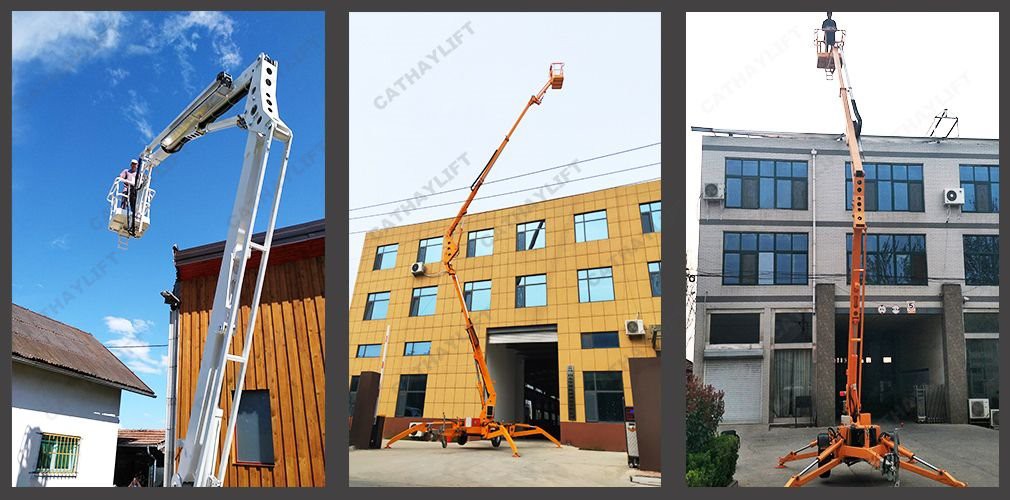

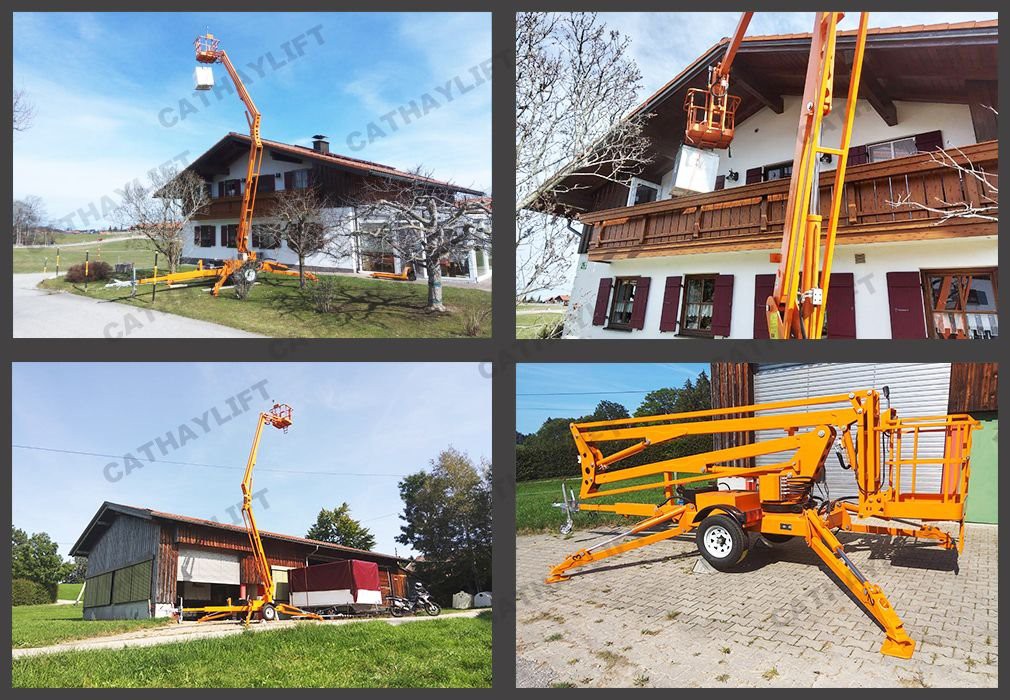

Real Order:
