Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of steering scissor lift in China. We warmly welcome you to buy discount steering scissor lift for sale here from our factory. Quality products and reasonable price are available.

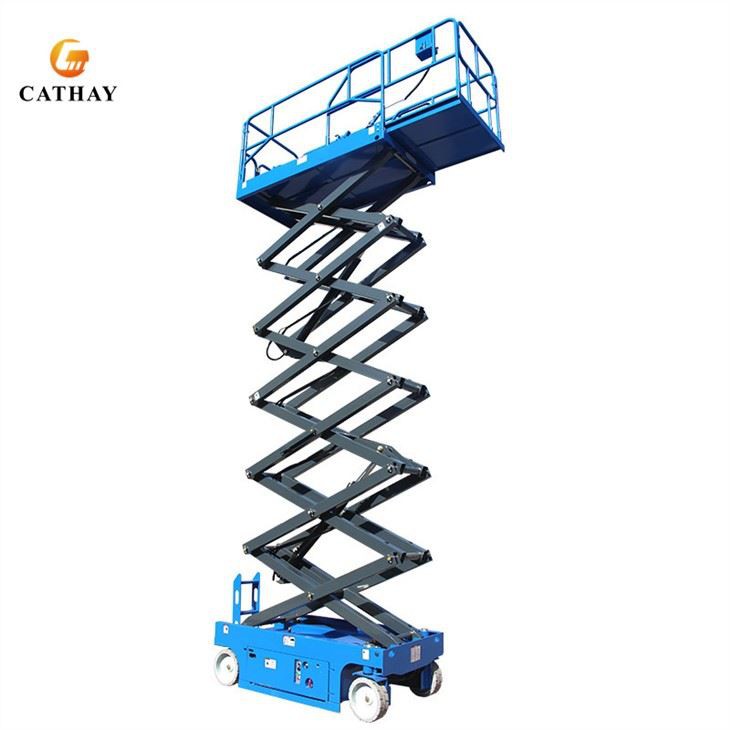

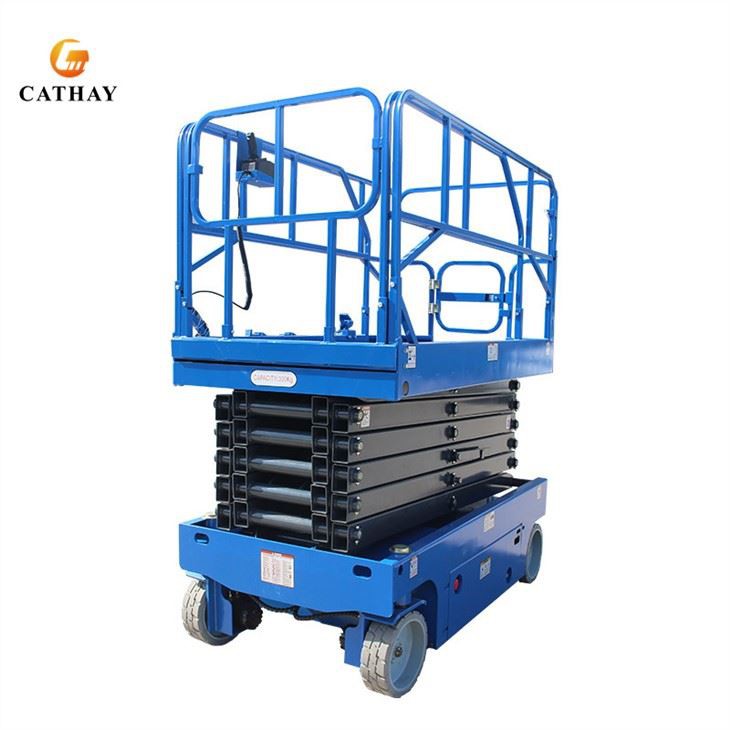

Steering Scissor lift can walk fast and slow at different heights, and can continuously complete lifting, forward, backward, steering and other tasks on a convenient operation platform in the air. This product configuration uses high-strength manganese steel. Proportional control, platform self-locking door, one-way 90cm extension platform, full travel, non-marking tires, 4*2 drive, automatic braking system, emergency descending system, emergency stop button, oil pipe explosion-proof system, fault diagnosis system, tilt protection system, Action buzzer, horn, work schedule, safety maintenance support rod, standard transport forklift hole, charging protection system, folding fence, automatic pothole protection, flashing warning lights and other safety configurations. Make the platform safe, reliable and durable, and the working height can reach 16 meters. The load is 300kg, and the fence can be extended horizontally, which greatly expands the scope of work, and the whole machine is guaranteed for one year. It is suitable for customers who have high-altitude operation needs such as factory workshops, square lobby airports, and parks.
Model | CLS06 | CLS08 | CLS10 | CLS12 | CLS14 |
Lifting Height (mm) | 6000 | 8000 | 10000 | 12000 | 13800 |
Lifting capacity | 300 | 300 | 300 | 300 | 227 |
Max height-guardrail unfold (mm) | 2150 | 2275 | 2400 | 2525 | 2590 |
Max height-guardrail folded (mm) | 1190 | 1315 | 1440 | 1565 | 2050 |
Overall Length (mm) | 2400 | 2640 | |||
Overall Width (mm) | 1150 | 1130 | |||
Platform Size (mm) | 2270×1150 | 2840x1390 | |||
Platform extend size (mm) | 900 | ||||
Min ground clearance (mm) | 110/20 | ||||
Wheelbase (mm) | 1850 | ||||
Min turn radius-inner wheel (mm) | 0 | ||||
Min turn radius-outer wheel (mm) | 2100 | 2700 | |||
Power source (v/kw) | 24/3.0 | 24/4.5 | |||
Running speed-folding (km/h) | 4 | ||||
Running speed-rising (km/h) | 0.8 | ||||
Rising/falling speed (sec) | 40/50 | 70/80 | |||
Battery (V/AH) | 4×12/135 | 4x12/150 | |||
Charger (V/A) | 24/25 | 24v/30 | |||
Max climbing ability (%) | 20 | ||||
Max working allowable angle | 2-3° | ||||
Way of control | Electro-hydraulic proportion control | ||||
Driver | Double front-wheel | ||||
Hydraulic drive | Double rear-wheel | ||||
Wheel size-stuffed&no mark | Φ381×127 | ||||
Whole weight (kg) | 1900 | 2080 | 2490 | 2760 | 3320 |
Product Details:

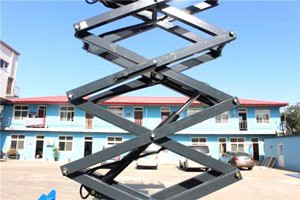

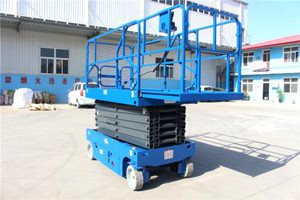

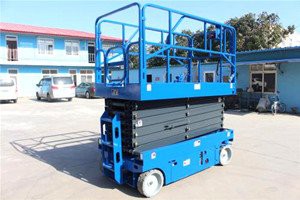

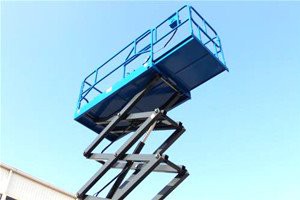

Overview
Overview
Overview
Control Handle(CURTIES)
Platfrom Guardrail (Fordable)
Support
Trojian Battery(America)

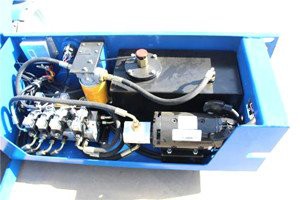

Italy Hydrappp Hydraulic Pump Station and Italy Doyle Hydraulic Valve

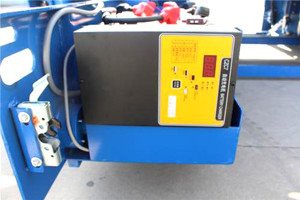

Smart Charger(Internal)
Buzzer, Tilt Sensor

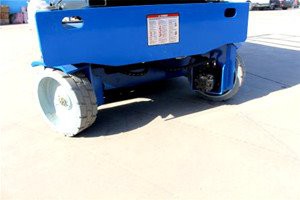

Hydraulic steering(Stable and High Maneuverability)

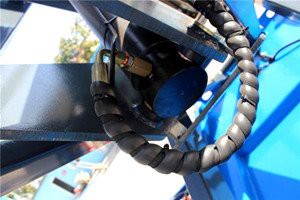

Fully sealed tubing (anti-mechanical pressure)
Advantages:
● DC power supply 4×12V/150Ah, easy operation in 5-level wind;
● The low retraction height ensures free entry and exit of various standard doors and elevators, and the radius ensures free operation in a narrow space, which is light and lightweight, easy to transport and shift, and improves work efficiency.
● Single handle proportional control system; effectively improve the control performance and sensitivity of the product, and can adjust the speed of lifting and walking to effectively achieve precise control;
● Ground control, the staff can realize the lifting function of the equipment on the ground;
● The application of Can-Bus bus technology can greatly reduce the number of wiring harnesses in the vehicle body, and the reduction of wiring harnesses reduces the possibility of failure.
● The on-board self-test and alarm system can reflect the equipment usage status, battery power information and dangerous conditions such as deep pits on the ground, lifting inclination, abnormal lifting, etc. in real time, and alarm in time;
● Emergency stop button emergency protection function, control system and emergency stop button are installed on the lifting platform and chassis respectively, which increases the safety of equipment use;
● The operating platform guardrail and the protective chain at the entrance of the platform are designed in accordance with international safety standards, which can effectively ensure the safety of high-altitude operations. The flap mechanism and the patented technology of the screw lock system, the pit protection safety baffle system can more effectively protect the safety of operators.
● The standard smart charger allows you to easily maintain the power unit during the period of use of the equipment, just check the electrolyte level regularly;
● The pull-out battery box makes the daily maintenance of the battery extremely simple;
● Charging indicator light and low voltage alarm feedback the working status of the battery in time, and the intelligent charger provides charging protection.
