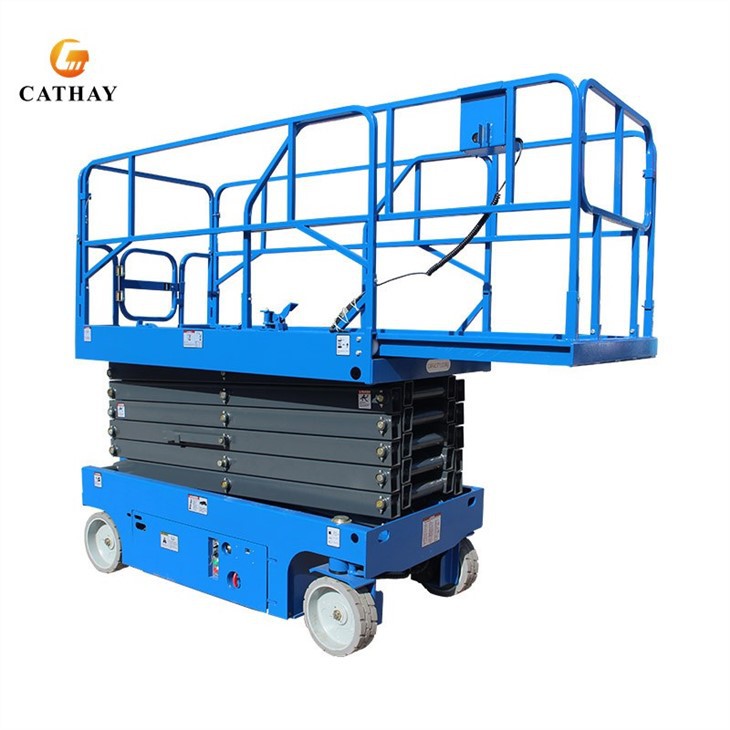

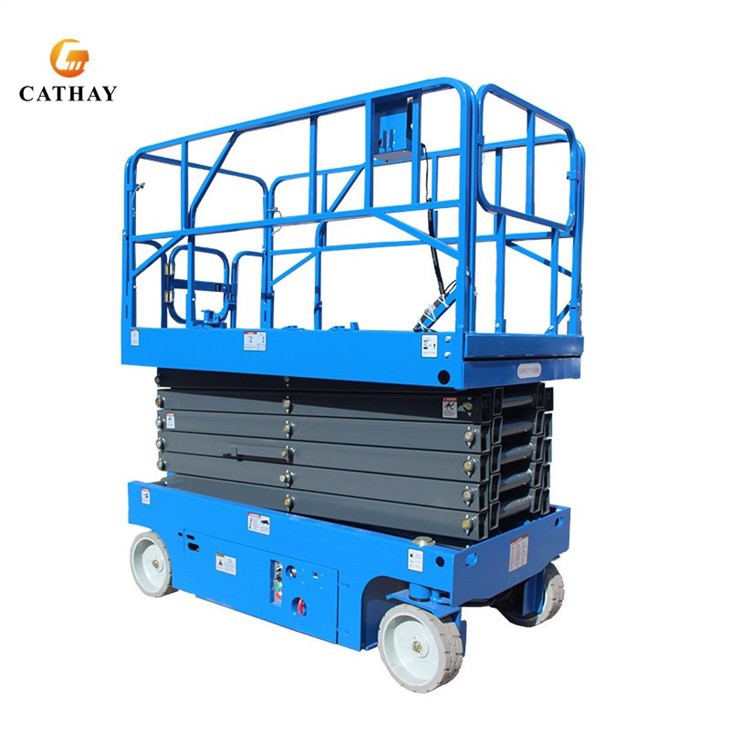

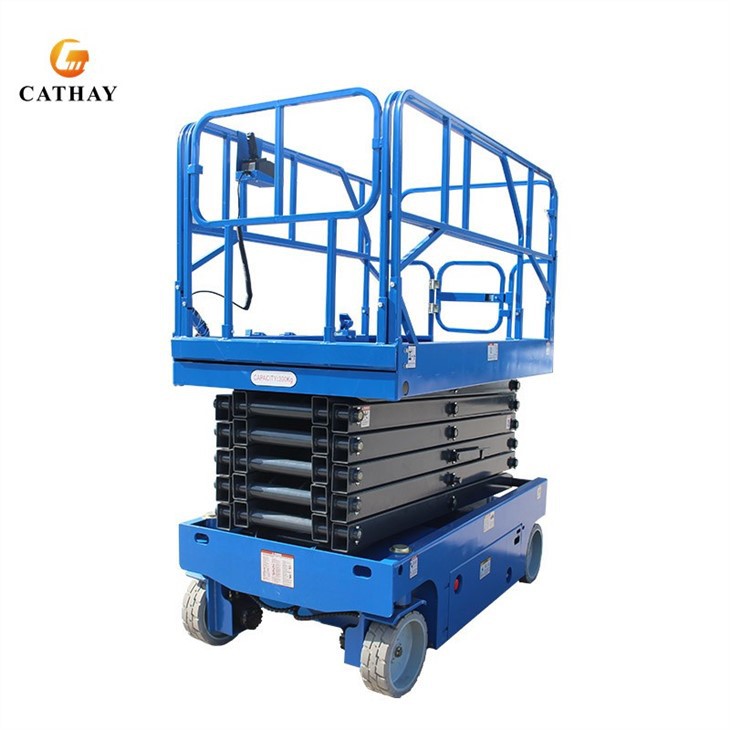

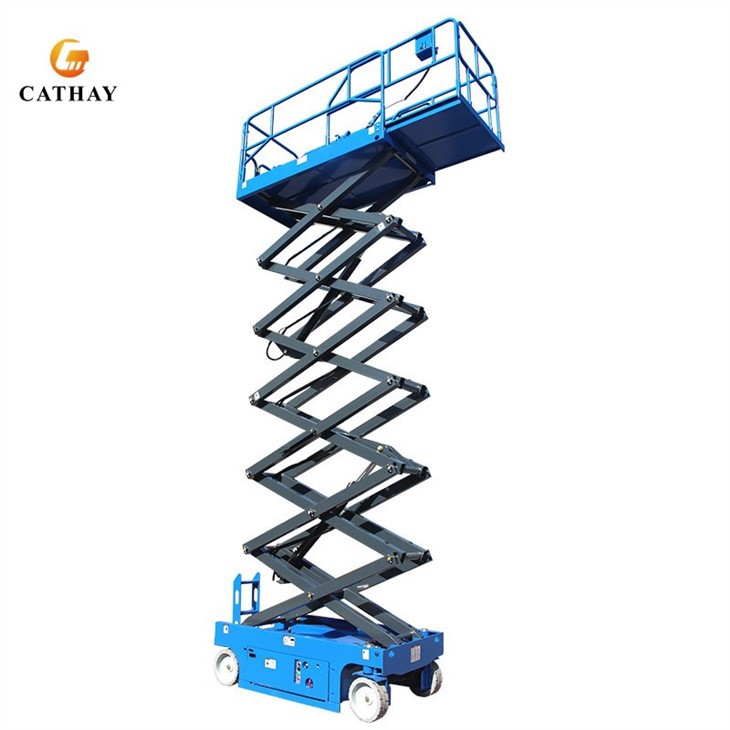

3~14m Lifting Height Self-propelled Electric Motor Scissor Lift
The self-propelled scissor lift Cathaylift CLS series has a load capacity of 300 kg and a lifting height of up to 14 m. The lift is fully self-propelled and can move within the horizontal plane at any lifting height, which undoubtedly facilitates the work of the operator and significantly improves work efficiency. The moving speed of the elevator is 0.8-3.5 km/h, the minimum turning radius is 2500 mm, and the time required for lifting the platform to a height of 12 meters is 110 seconds.
|
Model |
CLS06 |
CLS08 |
CLS10 |
CLS12 |
CLS14 |
|
Lifting Height (mm) |
6000 |
8000 |
10000 |
12000 |
13800 |
|
Lifting capacity |
300 |
300 |
300 |
300 |
227 |
|
Max height-guardrail unfold (mm) |
2150 |
2275 |
2400 |
2525 |
2590 |
|
Max height-guardrail folded (mm) |
1190 |
1315 |
1440 |
1565 |
2050 |
|
Overall Length (mm) |
2400 |
2640 |
|||
|
Overall Width (mm) |
1150 |
1130 |
|||
|
Platform Size (mm) |
2270×1150 |
2840x1390 |
|||
|
Platform extension size (mm) |
900 |
||||
|
Min ground clearance (mm) |
110/20 |
||||
|
Wheelbase (mm) |
1850 |
||||
|
Min turn radius-inner wheel (mm) |
0 |
||||
|
Min turn radius-outer wheel (mm) |
2100 |
2700 |
|||
|
Power source (v/kw) |
24/3.0 |
24/4.5 |
|||
|
Running speed-folding (km/h) |
4 |
||||
|
Running speed-rising (km/h) |
0.8 |
||||
|
Rising/falling speed (sec) |
40/50 |
70/80 |
|||
|
Battery (V/AH) |
4×12/135 |
4x12/150 |
|||
|
Charger (V/A) |
24/25 |
24v/30 |
|||
|
Max climbing ability (%) |
20 |
||||
|
Max working allowable angle |
2-3° |
||||
|
Way of control |
Electro-hydraulic proportion control |
||||
|
Driver |
Double front-wheel |
||||
|
Hydraulic drive |
Double rear-wheel |
||||
|
Wheel size-stuffed&no mark |
Φ381×127 |
||||
|
Whole weight (kg) |
1900 |
2080 |
2490 |
2760 |
3320 |

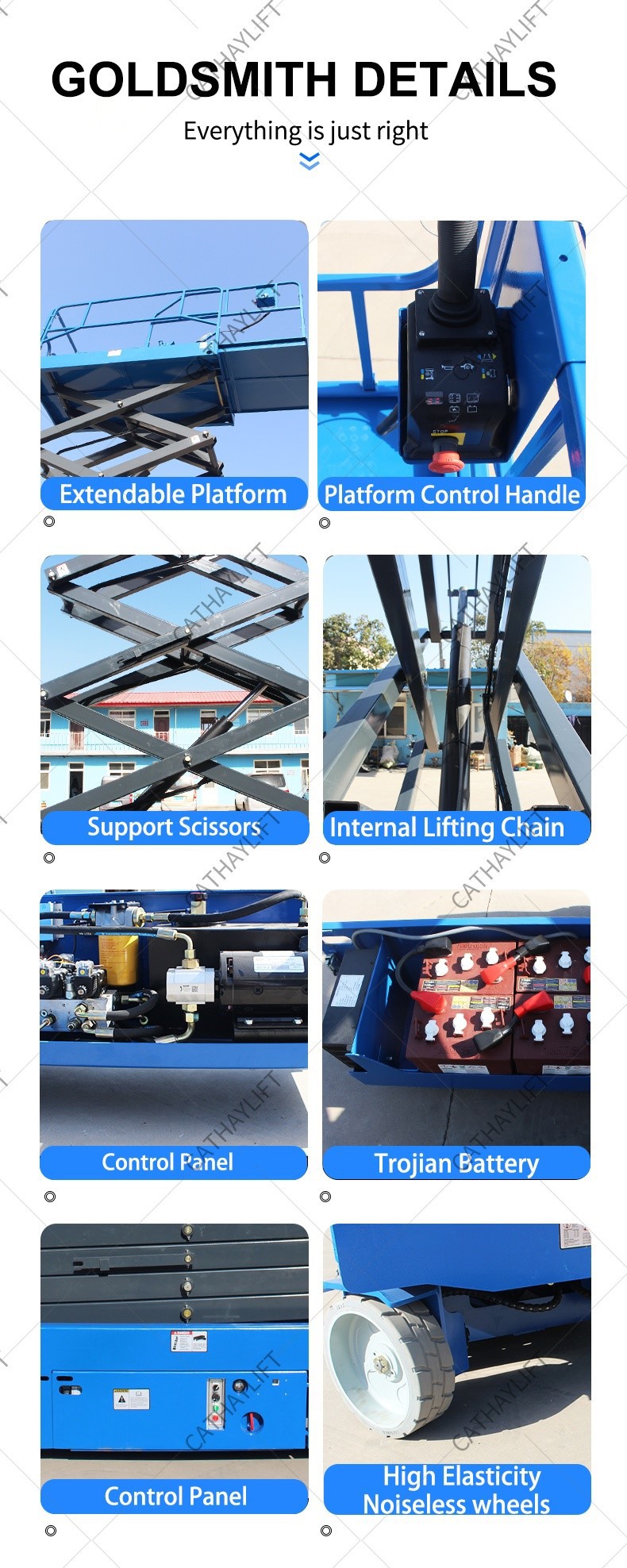

Products Details
The CSL self-propelled electric motor scissor lift is equipped with four rechargeable batteries with a capacity of 210Ah for long-term autonomous operation. The movement of the lift is carried out by means of two driven swivel wheels, each equipped with its own hydraulic drive, which improves maneuverability and smoothness.
Using the multi-function joystick on the operating platform, you can control the direction and movement of the machine in the folded and raised state, select the driving mode - horizontal or vertical, sound warnings, determine the battery level and system error fault codes, and perform an emergency stop.
More Details
The CLS self-propelled electric motor scissor lift has a programmed control module with the CURTIS controller made in the USA, which provides greater operational safety in addition to the smooth operation of all functions:
1. Automatically change the moving speed of the elevator. When the platform rises above 2.5m, the lift sensor is activated and the control module reduces the possible speed of the lift in the horizontal plane.
2. Anti-rollover function. When driving on a slope, the lift will move until the slope of the platform reaches a dangerous value (this value is programmed and equal to 5°). Further lifting of the platform as well as movement in the horizontal plane is impossible.
3. Road bump protection. Two protective beams (channels) automatically extend to the sides of the hoist when the platform starts to rise and automatically fold when the platform is fully lowered.
Tread wheels made of large diameter elastic gray rubber provide good surface traction and passability, and will not leave marks on any floor, recommended in offices, supermarkets, shopping centers, concert venues, sports venues, airports and trains station, assembly and disassembly, construction and repair work of any complexity.
The working platform of the lift is equipped with a telescoping section that allows you to increase the platform length by 30% and significantly expand the operator's working area. For ease of maintenance, all important operating systems and mechanisms are built into the revolving doors at the bottom of the elevator.
Nowadays, a wide range of lifting mechanisms is offered on the market. Models vary in price, platform lift height, cargo volume that can be lifted, and technical capabilities. But all Cathaylift scissor lifts also have the following advantages:
1. Ability to lift fairly heavy loads;
2. The stability of the installation ensures the safety of workers when working at heights;
3. These lifts are very easy to use. They are equipped with two devices that facilitate factory control from the platform;
4. Convenient design, small size, high precision, easy to transport;
5. The lifting height is from three meters to fourteen;
6. The device rides perfectly on any surface because it has fairly wide wheels - almost half a meter in diameter;
7. The lift can work in various locations;
8. If necessary, the working surface can be enlarged by another third of the total size;
9. The lift is equipped with an alarm system and a system that, if necessary, limits the amount of load lifted and, if appropriate, triggers a traffic jam. All this significantly reduces the number of accidents at work;
10. With A variety of models, you can accurately choose the one that suits you in terms of technical indicators and prices.
