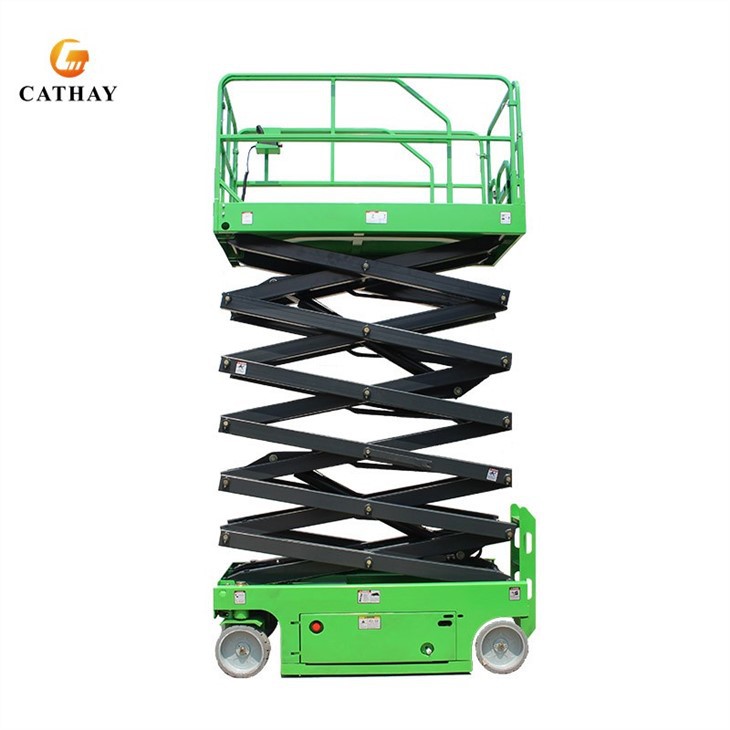

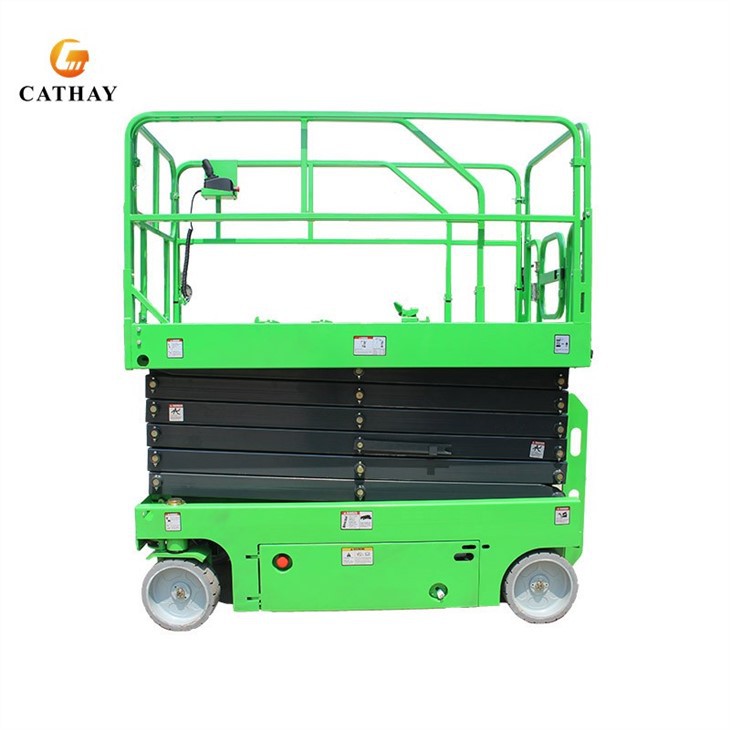

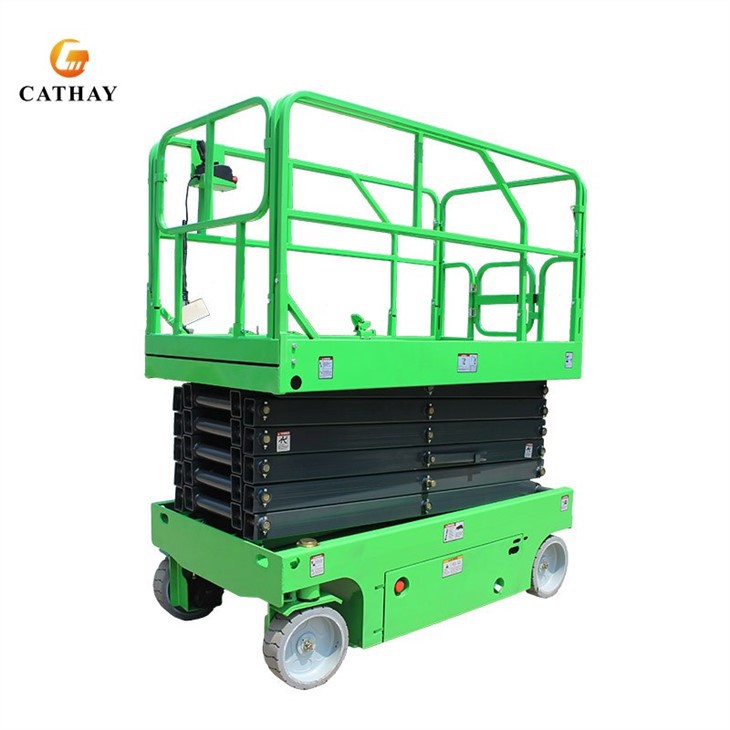

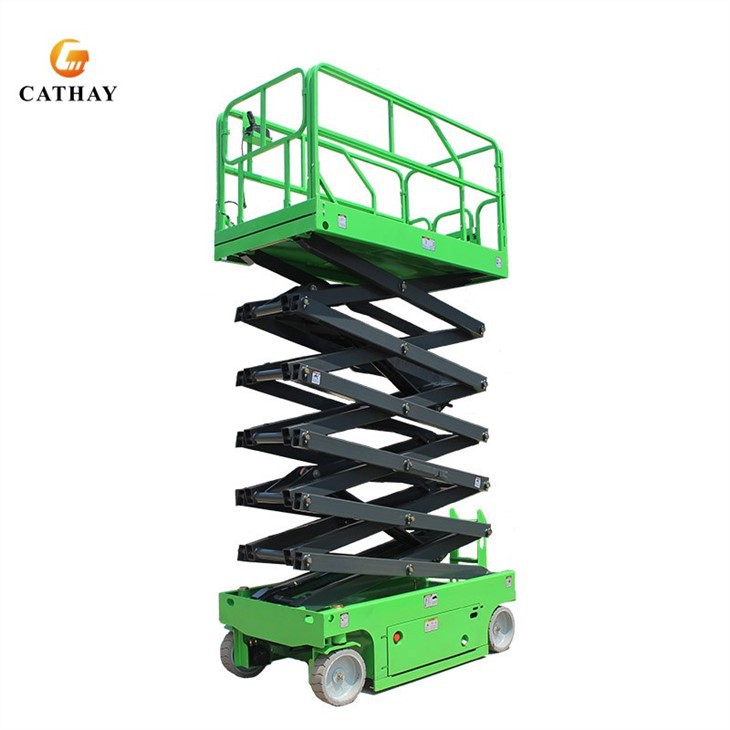

Self Propelled Work Platform

Name: Discount Self Propelled Work Platform Manufacturers Suppliers in China - Cathay Machinery
Brand: Cathaylift
SKU: 197715083

CLS series has a load capacity of 300kg and a maximum platform height of 14m. The surface of the scissor lift is treated with electrophoresis, which is very corrosion-resistant. The scissor lift structure is very compact to ensure the structure is strong enough. Fully automatic production lines are adopted to ensure product quality. High-strength steel structure, stable lifting, and easy operation. The product has a fault self-diagnosis system, and all faults or improper operations will be displayed on the control handle in the form of fault codes to facilitate maintenance by operators

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of self propelled work platform in China. We warmly welcome you to buy discount self propelled work platform for sale here from our factory. Quality products and reasonable price are available.

3~14m 300kg Load Self-Propelled Work Platform

CLS-type scissors elevating platforms are high-altitude operation equipment with excellent elevating stability and wide applicability which are developed and designed on basis of advantages of similar products at home and abroad. It can be used indoors or outdoors. CLS provides users with high-quality and low-cost professional aloft working equipment.

Cathaylift Hydraulic self propeleld scissor lift-Shandong Cathay Machinery Co Ltd 1

Model	CLS06	CLS08	CLS10	CLS12	CLS14
Lifting Height (mm)	6000	8000	10000	12000	13800
Lifting capacity	300	300	300	300	227
Overall Length (mm)	2400				2640
Overall Width (mm)	1150				1130
Platform Size (mm)	2270×1150				2840x1390
Way of control	Electro-hydraulic proportion control
Whole weight (kg)	1900	2080	2490	2760	3320

Products Details

Cathaylift Hydraulic self propeleld scissor lift-Shandong Cathay Machinery Co Ltd 2

Cathaylift mobile scissor lift-Shandong Cathay Machinery Co Ltd

Advantages:

1. The product adopts intelligent control technology.
2. It adopts a DC power supply and can be controlled manually. It can move automatically, and the moving speed is adjustable.
3. It can climb hills very well. Max climbing ability (20%)
4. Faults will limit the rise of the platform to prevent danger.
5. The driving motor has an automatic braking function.
6. Emergency lowering will be locked in case of failure.
7. Faults can be diagnosed automatically, and maintenance is very convenient.
8. The main components are all world-class famous brands.

Cathaylift Hydraulic self propeleld scissor lift-Shandong Cathay Machinery Co Ltd 3

Testing Before Using

After receiving our products, please check the products carefully and test them. We have carried out three strict quality inspection procedures before leaving the factory to ensure that each machine has good working performance and stable operation. The specific inspection steps after receiving the goods are as follows:
1. Choose a strong, level, and unobstructed test area
2. Make sure the batteries are connected
3. Turn on the emergency stop
4. The key switch turn to the ground controller, and the power indicator light
5. Check the LED of the platform controller
6. Emergency test: Turn off the “Emergency stop”, all functions can not run.
7. Raise/decline function test: The horn works at this moment. Raise/decline 60times/s. Hole protection: 300time/s, Platform incline: 600times/s
8. Turn the switch key to the upper controller. Press the raise button, and the platform goes up, press the decline button, and the platform goes down. During this moment, the horn works.
9. Emergency decline test: Press the raise button, and lift the platform to about 60cm. Pull off the Emergency stop handle, the platform should be down slowly, the horn does not work.
10. Platform controller test: Emergency test: Turn off the “Emergency stop”, all functions can not run. Turn on the Emergency stop, the LED light will be on, and the horn works
11. Upper controller raising/decline test: Press the lifting button, Operate the joystick according to the blue arrow, the platform raised, hole protection device open. Release the joystick, and it will stop raising, operate the joystick in a different direction, and the platform gets down, and the horn works.
12. Turn test: Press the moving function button, Hold the control handle, and press the turn switch at the top of the handle, steering wheels will turn in your direction.
13. Brake test: Hold the handles control button to the middle position, and all function stop.
14. Drive speed test. Press the lifting function key, to lift the platform to about 2 meters from the ground. Press the moving function key, and the maximum speed is not over 20cm/s.
15. Tilt sensor test: Attention: During this test, the operator should be standing by the platform, not on the platform. Put 2 pcs 2×4 cm under the two driving wheels, the alarm warning 300 times/min when you lift the platform to 2.1m, you can not move the platform unless declining the platform.
16. Hole protection test:
Hole protection test: Lift the platform to about 1.2m height, the hole protection device will unfold, and start another limited switch to keep working. If the limited switch is broken, the alarm will resound and the platform stop working.
17. Check the workplace to avoid dangerous conditions: abrupt slopes, potholes, obstacles, smooth road surfaces, high tension wires, load surface capacity, and other weather conditions
