Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of scissor lift for sale in China. We warmly welcome you to buy discount scissor lift for sale for sale here from our factory. Quality products and reasonable price are available.

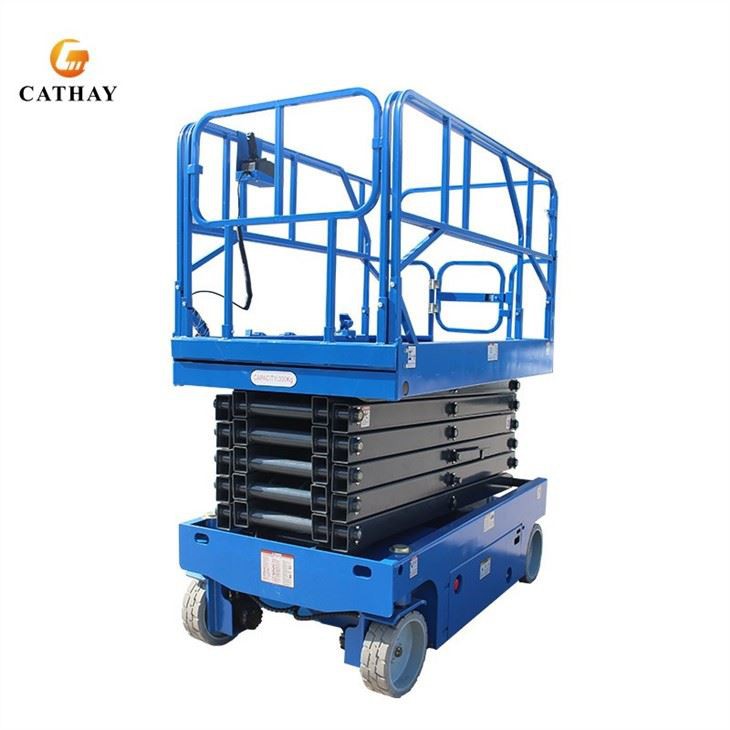

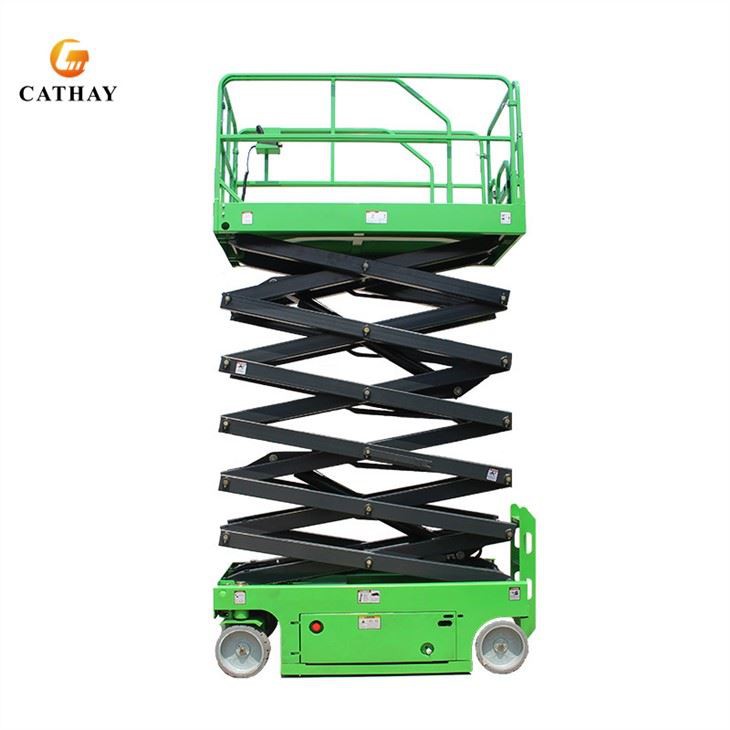

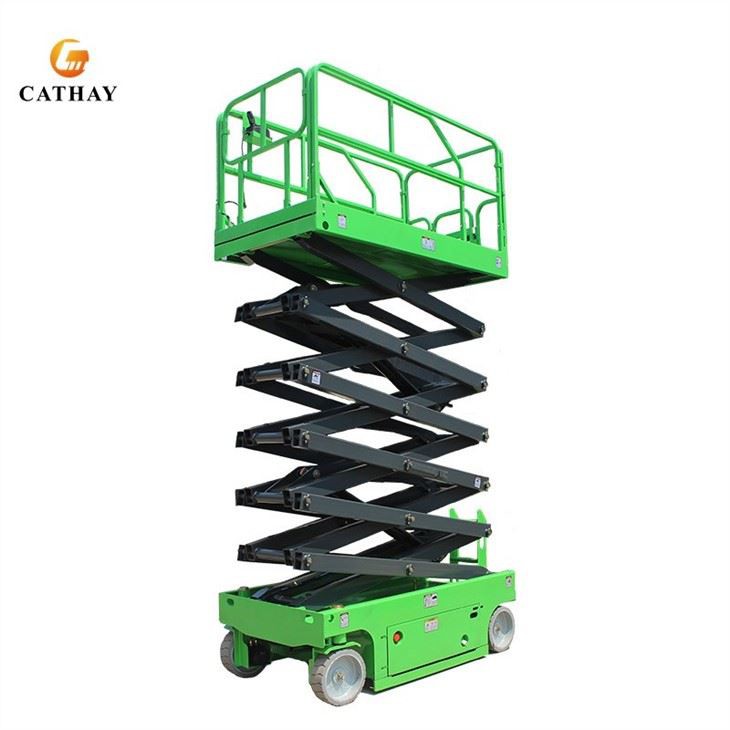

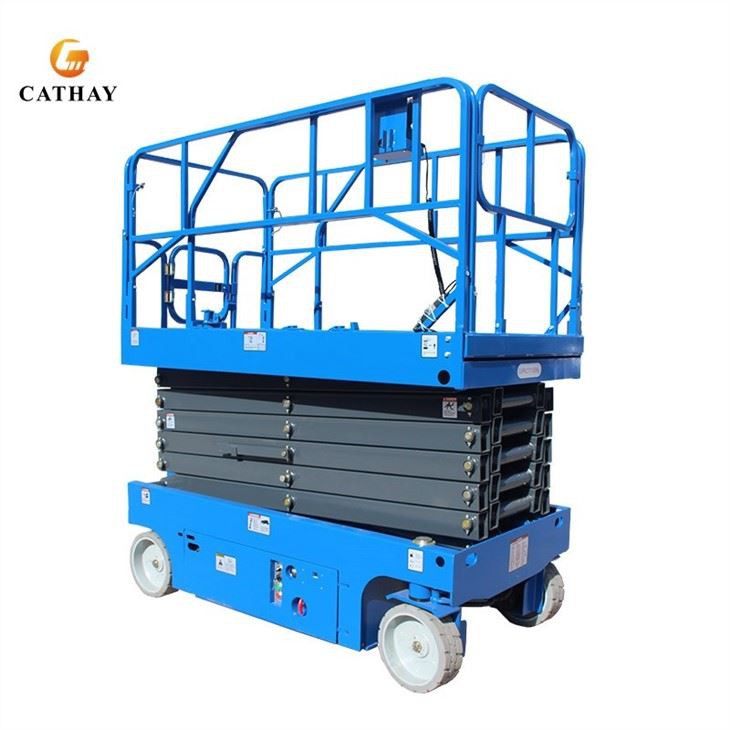

CATHAYLIFT self-propelled scissor-type aerial work platform has the function of self-propelled, which can walk, retreat and turn freely without external power supply and power traction under working conditions. It is flexible to move, easy to operate, and can be lifted and lowered freely. It can be completed by one person. The high chassis is suitable for walking on rough ground. Designed to be durable, reliable and easy to service. Diesel-powered models are available with two-wheel, four-wheel drive and steering. Free turning device. Emergency descent system. Working height from 4 meters to 14 meters, high-end configuration, high-power power, high-skilled operating system. Stable performance, smooth walking and lifting, sensitive direction, simple and convenient control, bring you due convenience in the factory area and indoor high-altitude work and high-floor transportation, reduce your precious time and improve your work efficiency.
Model | CLS06 | CLS08 | CLS10 | CLS12 | CLS14 |
Lifting Height (mm) | 6000 | 8000 | 10000 | 12000 | 13800 |
Lifting capacity | 300 | 300 | 300 | 300 | 227 |
Max height-guardrail unfold (mm) | 2150 | 2275 | 2400 | 2525 | 2590 |
Max height-guardrail folded (mm) | 1190 | 1315 | 1440 | 1565 | 2050 |
Overall Length (mm) | 2400 | 2640 | |||
Overall Width (mm) | 1150 | 1130 | |||
Platform Size (mm) | 2270×1150 | 2840x1390 | |||
Platform extend size (mm) | 900 | ||||
Min ground clearance (mm) | 110/20 | ||||
Wheelbase (mm) | 1850 | ||||
Min turn radius-inner wheel (mm) | 0 | ||||
Min turn radius-outer wheel (mm) | 2100 | 2700 | |||
Power source (v/kw) | 24/3.0 | 24/4.5 | |||
Running speed-folding (km/h) | 4 | ||||
Running speed-rising (km/h) | 0.8 | ||||
Rising/falling speed (sec) | 40/50 | 70/80 | |||
Battery (V/AH) | 4×12/135 | 4x12/150 | |||
Charger (V/A) | 24/25 | 24v/30 | |||
Max climbing ability (%) | 20 | ||||
Max working allowable angle | 2-3° | ||||
Way of control | Electro-hydraulic proportion control | ||||
Driver | Double front-wheel | ||||
Hydraulic drive | Double rear-wheel | ||||
Wheel size-stuffed&no mark | Φ381×127 | ||||
Whole weight (kg) | 1900 | 2080 | 2490 | 2760 | 3320 |

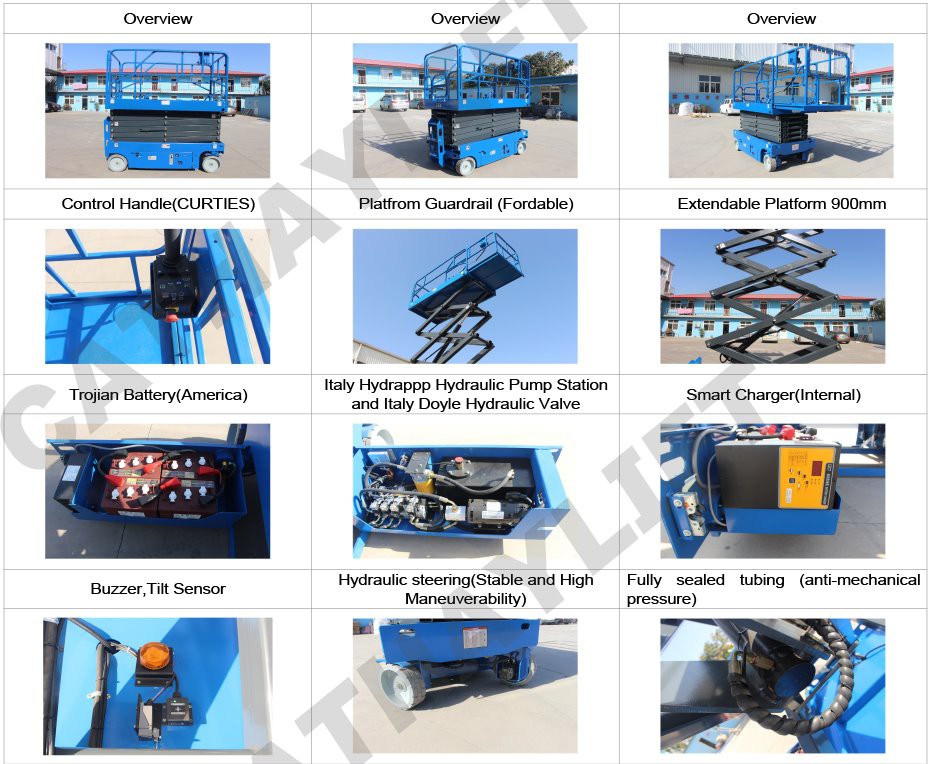

Products Details:
Advantage：
1. High-strength rectangular pipes made of high-strength rectangular pipes made by steel plate bending, underframe and scissor fork structure.
2. Hydraulic cylinder with built-in explosion-proof valve (to prevent the oil pipe from breaking and the platform from stalling and falling), using imported sealing ring, durable and non-leakage.
3. Install an emergency descending valve, and the platform can be manually controlled to descend when the platform is powered off.
4. The built-in relief valve can prevent the system pressure from being too high during upward movement, and play an overload protection function.
5. Electric up and down electric control, emergency stop button is installed in the control button box to protect property and personal safety.
6. Use electrostatic powder spraying; the coating has excellent appearance quality, strong adhesion and mechanical strength, high color and brightness, and will not fade for a long time.

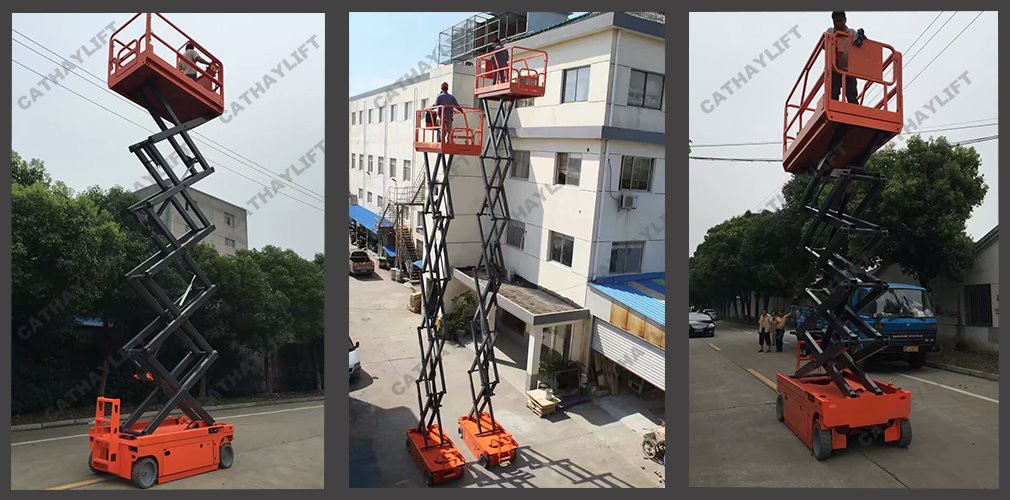

Real Order：
