Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of drivable scissor lift in China. We warmly welcome you to buy discount drivable scissor lift for sale here from our factory. Quality products and reasonable price are available.

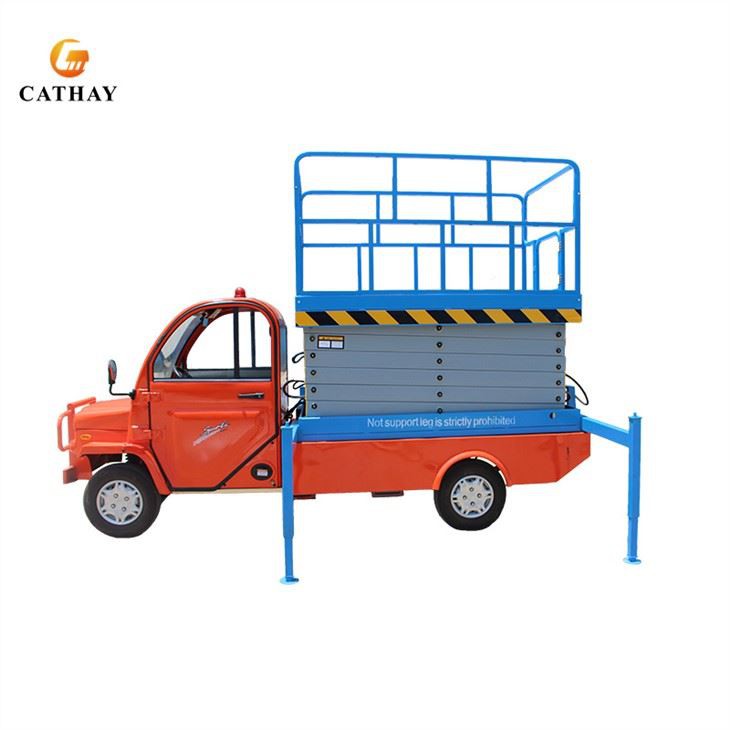

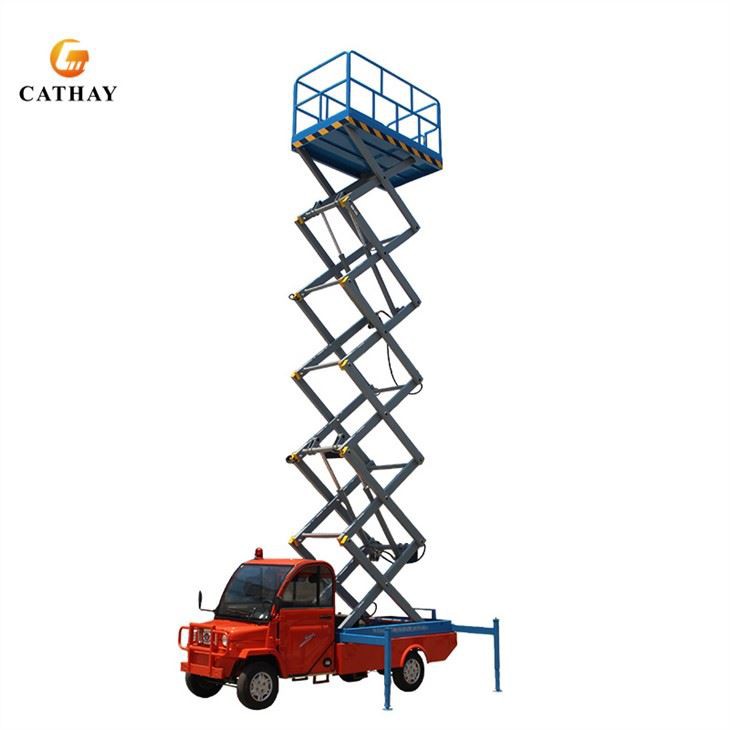

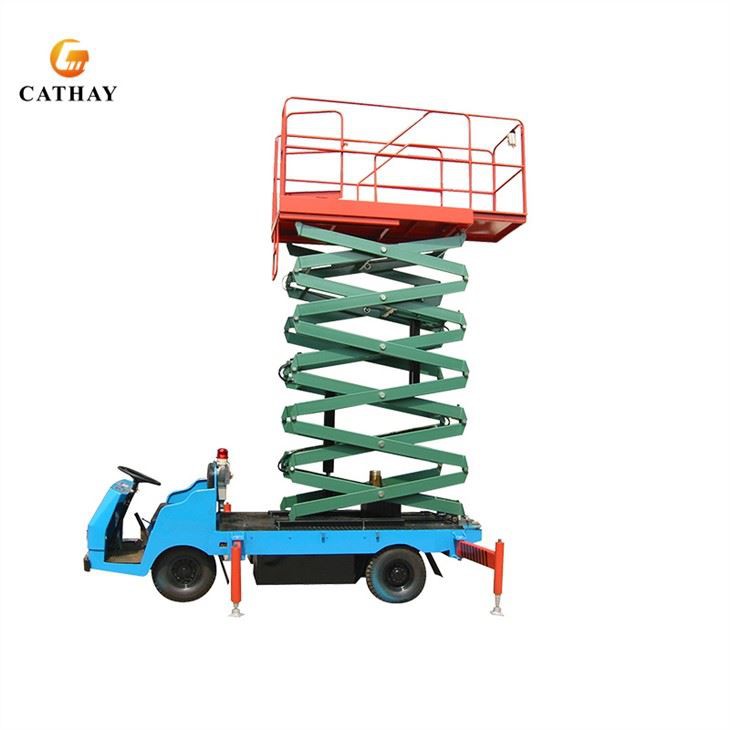

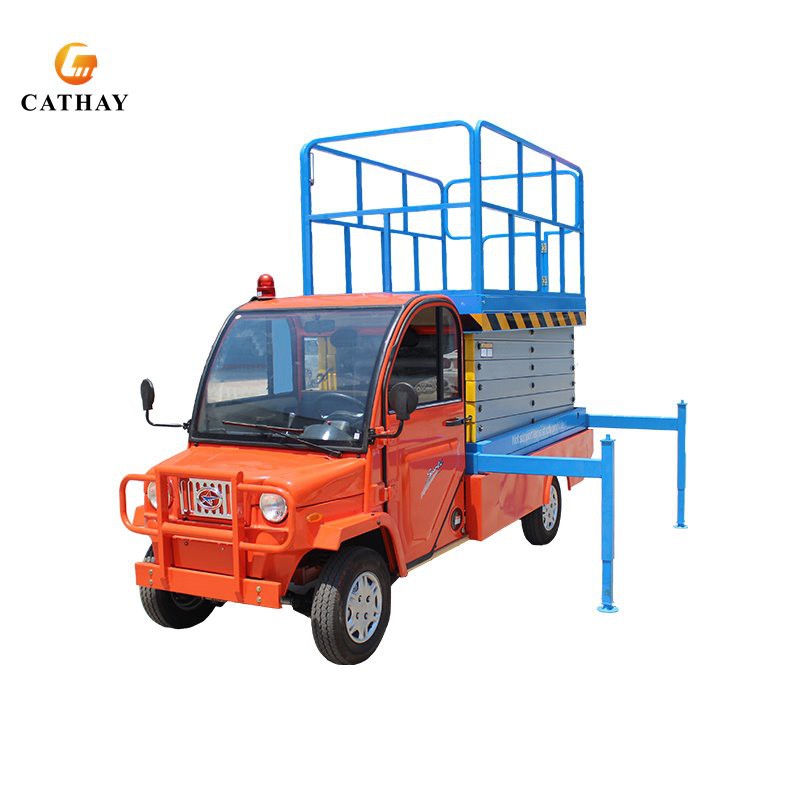

The vehicle-mounted lift is an aerial work platform equipment modified from a scissor lift platform and a battery car or a car. The platform uses a DC power supply or vehicle power to drive the platform to lift. The walking function of the vehicle can make the aerial work platform have better flexibility and mobility. It can make aerial work more efficient, and can adapt to a wider range and greater mobility of aerial work platform equipment.
Model Type | CLDP10 |
Lifting height(m) | 10 |
Working height(m) | 12 |
Load capacity(kg) | 500kg |
Platform Size | 2100 * 1230mm |
Rise Time | 100s |
Driving Motor | 3.5Kw |
Lifting motor | 2.2Kw |
Battery voltage | 60V/5pieces |
Battery Capacity | 60V / 310Ah |
Driving Range | ≥80KM |
Turning Radius | 6.5m |
Maximum Gradeability | 20% |
Braking Length | ≤7m |
Max Speed | 35KM/H |
Final Ratio | 1:12 |
Charging Time | 8~10Hours |
Overall Length | 3900mm |
Overall Width | 1250 mm |
Total height | 1700mm |

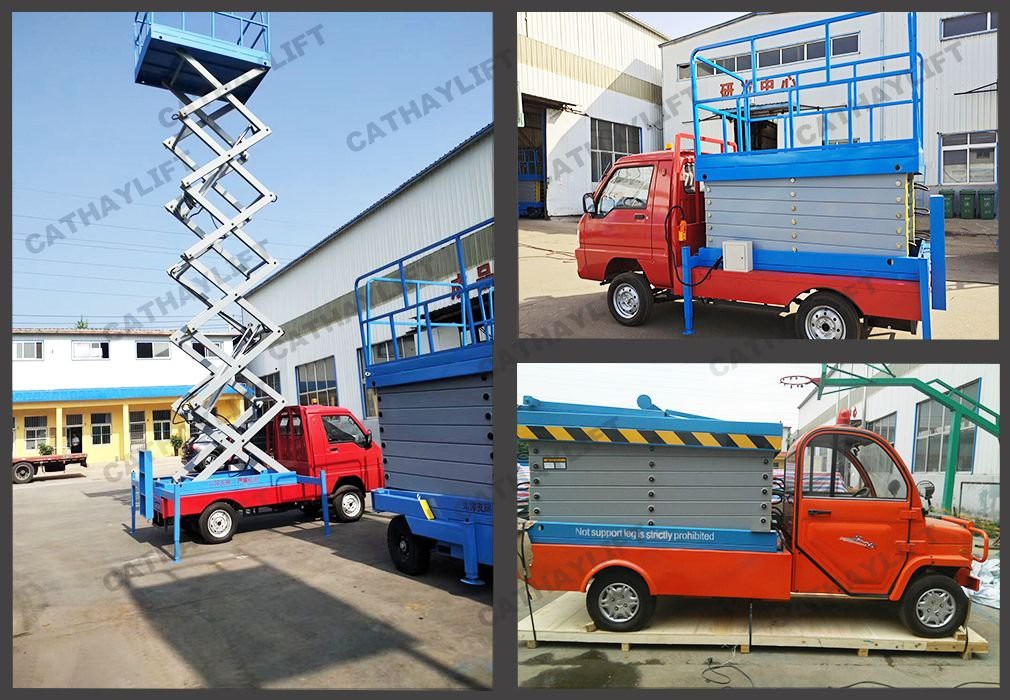

Real Order
