Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of portable electric scissor lift in China. We warmly welcome you to buy discount portable electric scissor lift for sale here from our factory. Quality products and reasonable price are available.
Portable Electric scissor lift is a wide range of special equipment for aerial work. Its scissor mechanical structure makes the lifting platform have high stability, wide working platform and high bearing capacity, so that the aerial work range is larger, and it is suitable for multiple people to work at the same time, CATHAYLIFT scissor type aerial work The platform makes aerial work more efficient and safer. Platform heights are 3 meters, 3.9 meters, 6 meters, 7.5 meters, 8 meters, 9 meters, 11 meters, 12 meters, 14 meters, 16 meters and so on. There are 300kg, 500Kg, 1000kg and so on respectively.
Model No. | Loading Capacity (kg) | Lifting Height (m) | Platform Size (m) | Overall size | Lifting Time(s) | Voltage | Motor | Wheels(φ) | Net Weight (kg) |
CLH0406 | 450 | 6 | 1.85*0.88 | 1.95*1.08*1.1 | 55 | AC380 | 1.5 | 200 PU | 800 |
CLH0407 | 450 | 7.5 | 1.8*1.0 | 1.95*1.2*1.54 | 60 | AC380 | 1.5 | 400-8 Rubber | 1000 |
CLH0409 | 450 | 9 | 1.8*1.0 | 1.95*1.2*1.68 | 70 | AC380 | 1.5 | 400-8 Rubber | 1200 |
CLH0411 | 450 | 11 | 2.1*1.15 | 2.25*1.35*1.7 | 80 | AC380 | 2.2 | 500-8 Rubber | 1580 |
CLH0412 | 450 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 125 | AC380 | 3 | 500-8 Rubber | 2450 |
CLH0414 | 450 | 14 | 2.45*1.35 | 2.5*1.55*2.0 | 165 | AC380 | 3 | 500-8 Rubber | 2650 |
CLH1006 | 1000 | 6 | 1.8*1.0 | 1.95*1.2*1.45 | 60 | AC380 | 2.2 | 500-8 Rubber | 1100 |
CLH1009 | 1000 | 9 | 1.8*1.25 | 1.95*1.45*1.75 | 100 | AC380 | 3 | 500-8 Rubber | 1510 |
CLH1012 | 1000 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 135 | AC380 | 4 | 500-8 Rubber | 2700 |
CLH0316 | 300 | 16 | 2.75*1.5 | 2.85*1.75*2.1 | 173 | AC380 | 3 | 500-8 Rubber | 3200 |
Product Details:

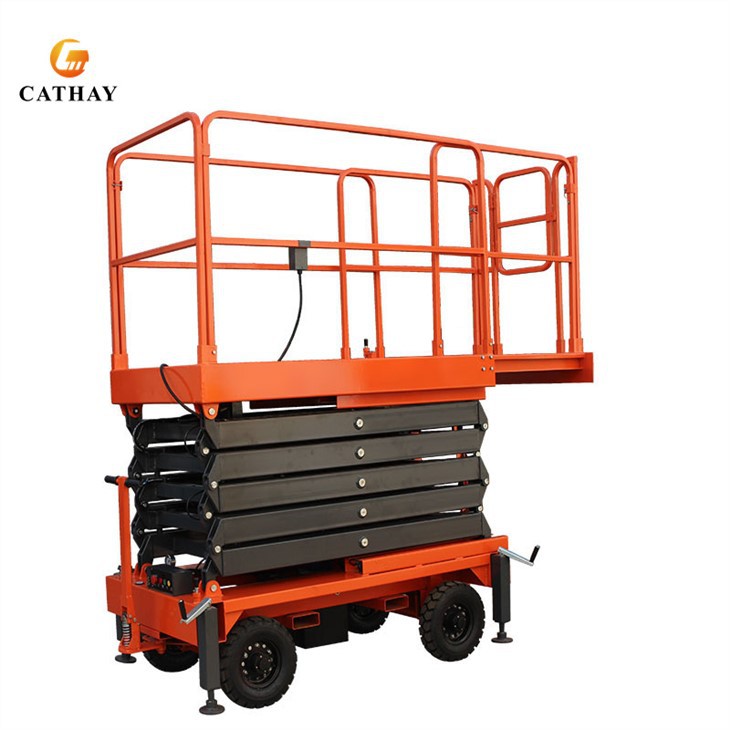

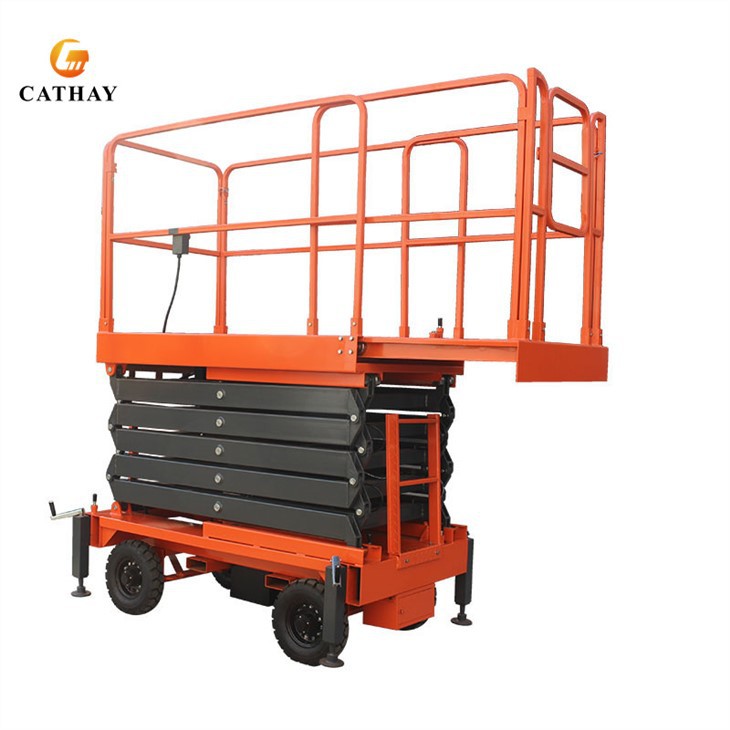

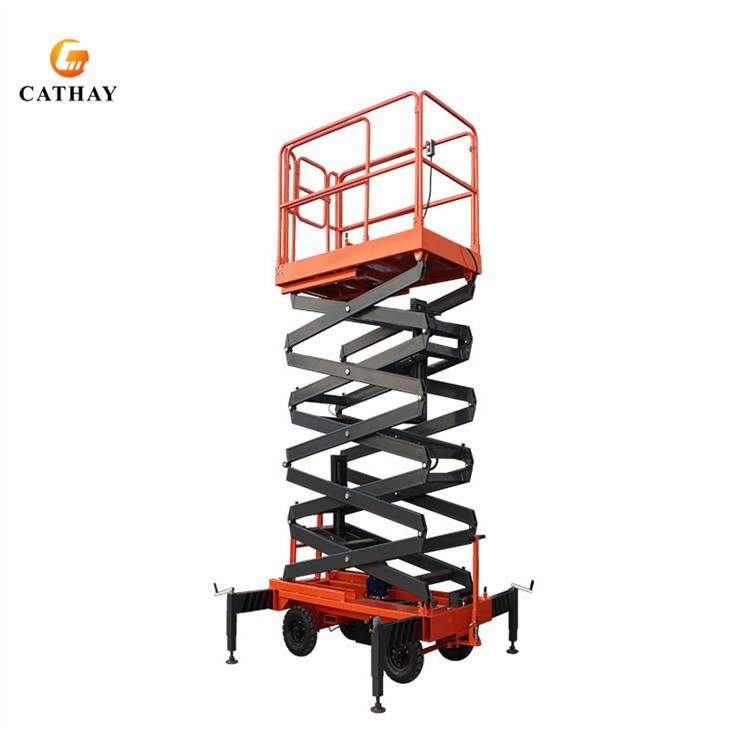

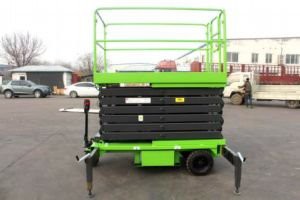

Overview
Overview
Overview

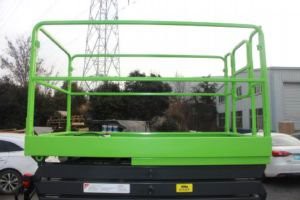

Platfrom With Guardrail
Control Panel (One The Platform)
Control Panel (Ground)
Ladder For Easy To Climp

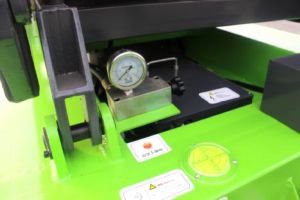

Pressure Gauges&Emergency Decline Valve

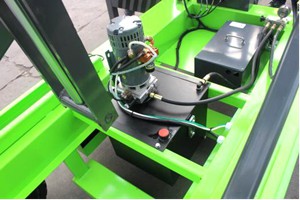

Hydraulic Pump Station

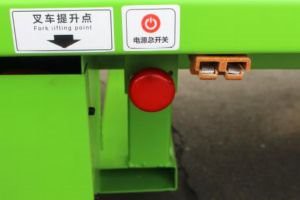

Main Power

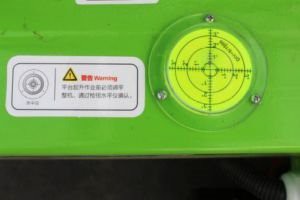

Leveling Indicator
Support Legs

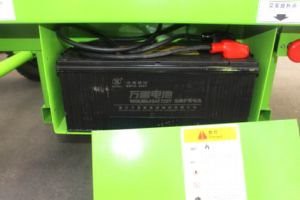

Battery (Optional)

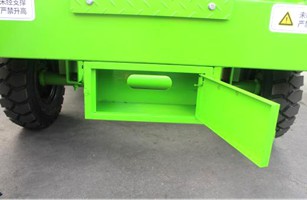

Tool box

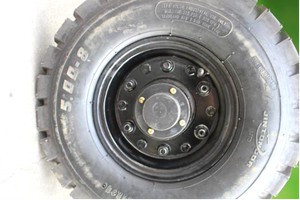

Rubber Wheels
Advantages:
● The movement is sensitive and the traction is convenient. The front wheel of the scissor lift platform adopts the universal wheel, which is very convenient to move.
● One-button lifting, two-way operation, the scissor lift platform body is equipped with a lift switch, and the operation channel has the same function, so it is simple and easy to operate.
● The lifting table body adopts the principle of hydraulic transmission, the lifting process is stable, and it is suitable for work in indoor and residential areas with high requirements.
● Safe and efficient, if the equipment is suddenly powered off during work, you can use the method of pressing the pressure relief valve to reduce it, which is safe and easy to operate.
● The power source of scissor lift is diverse, and the equipment can choose AC power supply, DC power supply, diesel engine, gasoline engine, etc., which is convenient for field work.

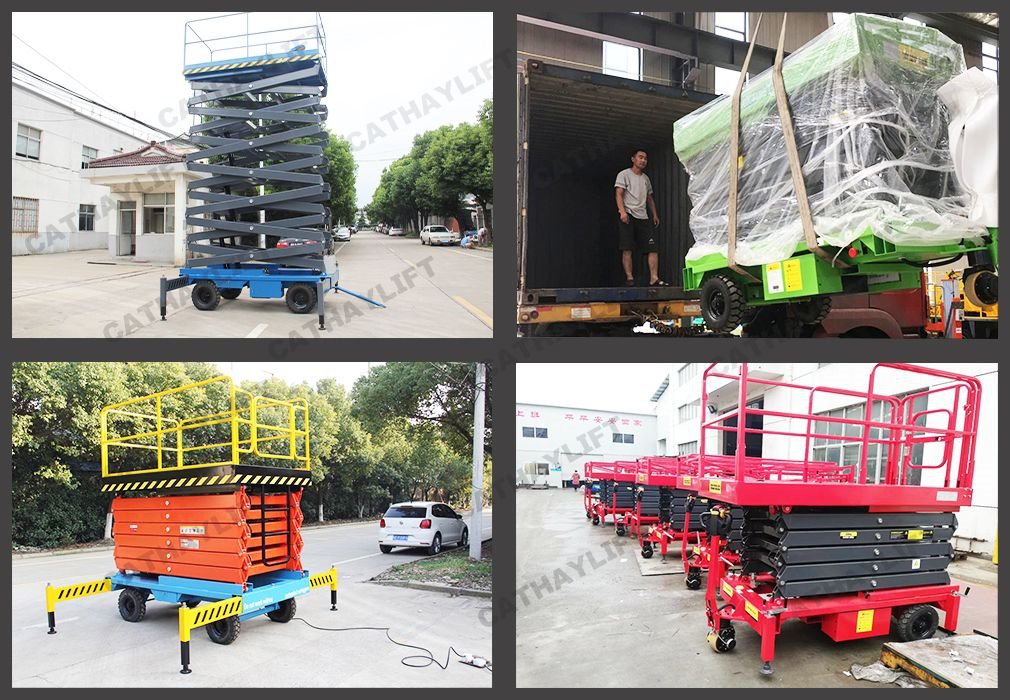

Real Order:
