Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric hydraulic lift in China. We warmly welcome you to buy discount electric hydraulic lift for sale here from our factory. Quality products and reasonable price are available.

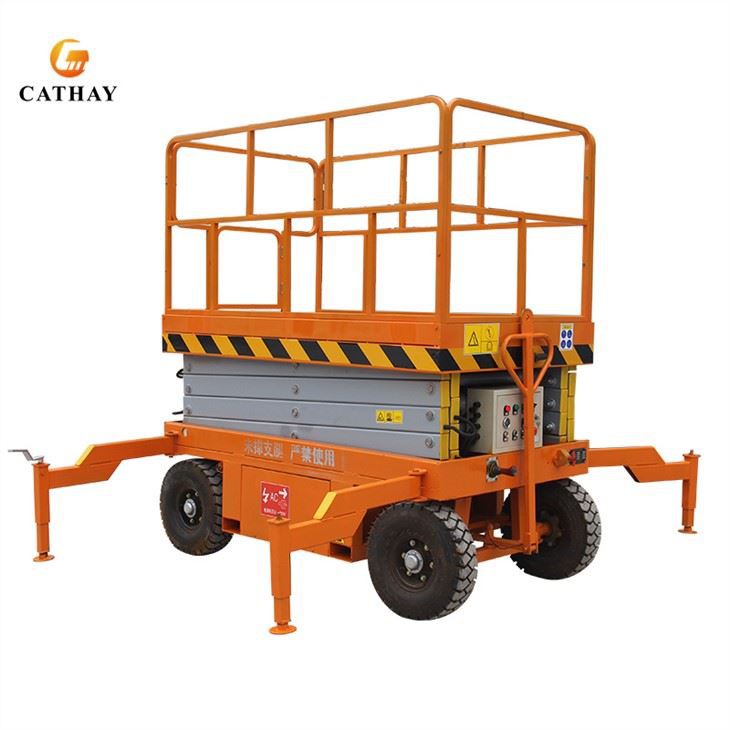

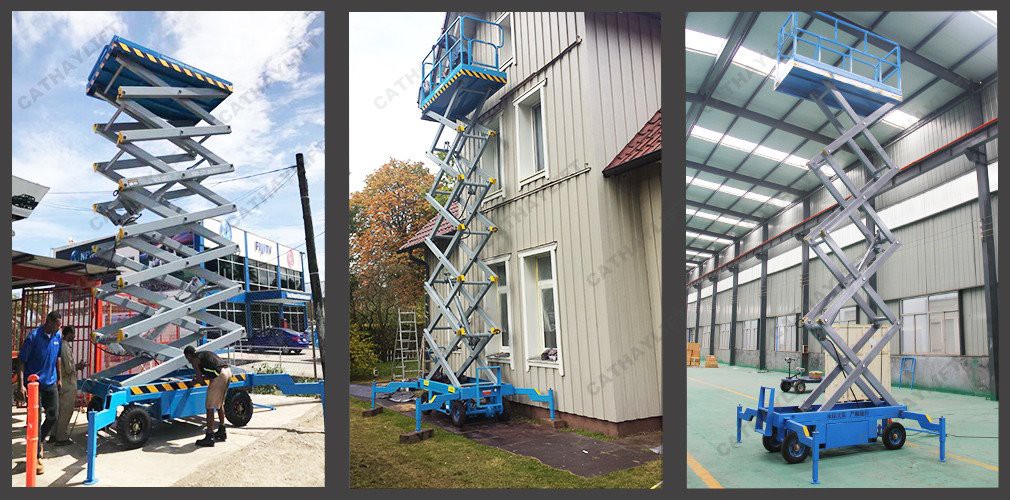

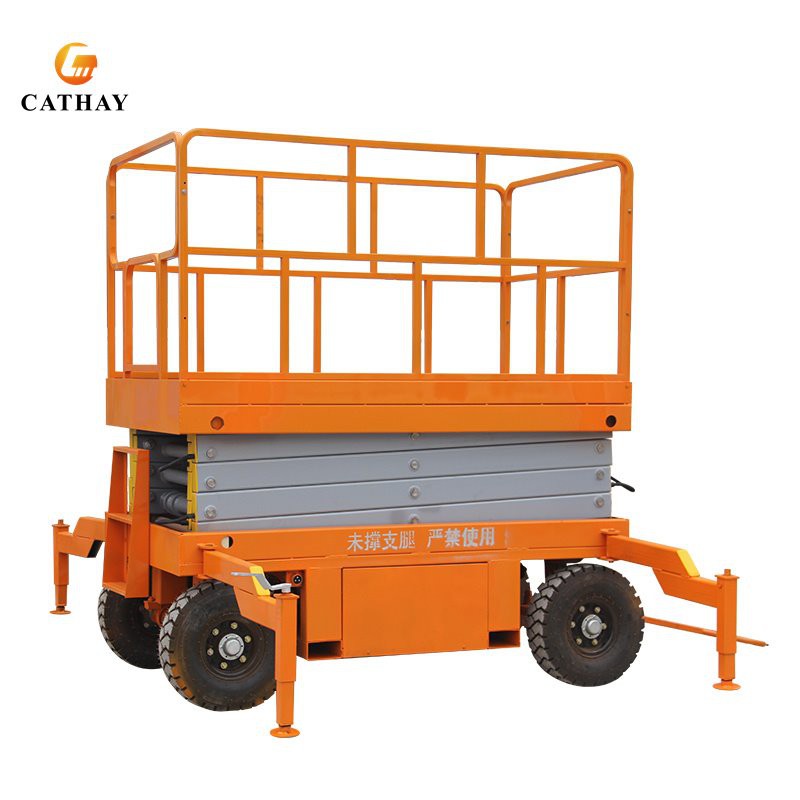

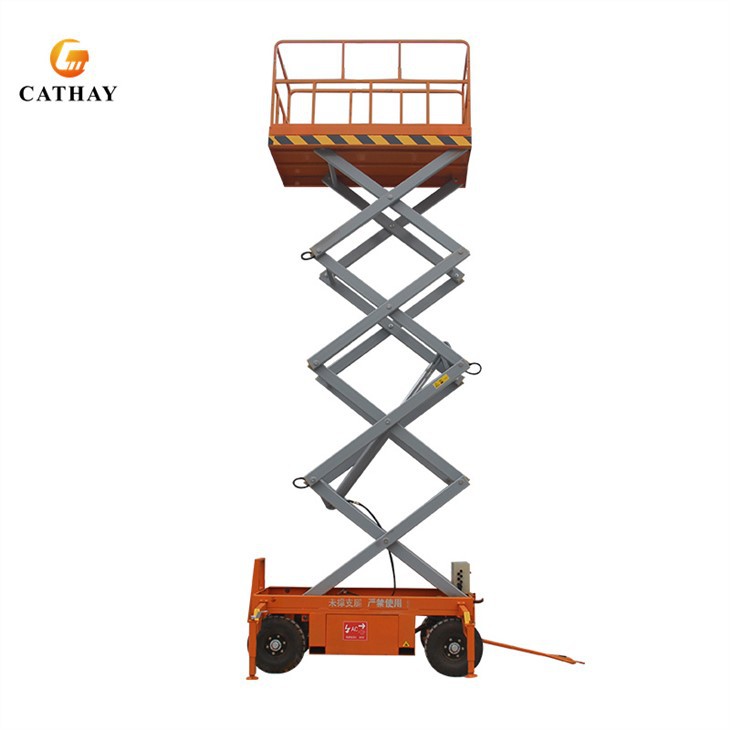

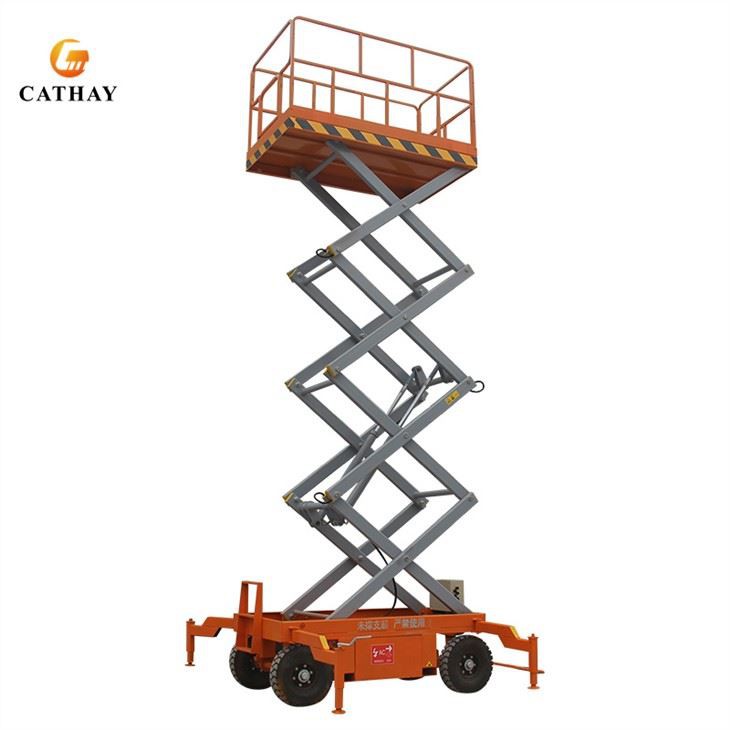

The Electric hydraulic lift series has been acting as a "generalist" since its launch. Due to its convenient four-wheel movement, it has more flexible maneuverability. Gas stations, sports factories and other occasions have a wide range of applications, so in recent years, more and more users will choose this cost-effective mobile scissor lift platform to help themselves work at heights.
Model No. | Table Size | Loading Capacity | Platform Height | Working Height (m) | Retract Height (m) | Voltage | Overall size | N.W.(kg) |
CL0506 | 2100*830 | 500 | 6 | 8 | 1.2 | 1 or 3phase | 2250*950*1200 | 880 |
CL0507 | 2100*830 | 500 | 7 | 9 | 1.28 | 1 or 3phase | 2250*950*1280 | 970 |
CL0508 | 2100*930 | 500 | 8 | 10 | 1.38 | 1 or 3phase | 2250*1060*1380 | 1050 |
CL0509 | 2100*930 | 500 | 9 | 11 | 1.5 | 1 or 3phase | 2250*1060*1500 | 1165 |
CL0510 | 2100*1230 | 500 | 10 | 12 | 1.53 | 1 or 3phase | 2250*1350*1530 | 1360 |
CL0511 | 2100*1230 | 300 | 11 | 13 | 1.65 | 1 or 3phase | 2250*1350*1650 | 1400 |
CL0512 | 2550*1530 | 500 | 12 | 14 | 1.75 | 1 or 3phase | 2796*1670*1750 | 2260 |
CL0514 | 2812*1530 | 500 | 14 | 16 | 1.81 | 1 or 3phase | 3067*1730*1810 | 2400 |
CL0316 | 2812*1600 | 300 | 16 | 18 | 2.08 | 1 or 3phase | 3067*1800*2080 | 3500 |
CL0318 | 3070*1600 | 300 | 18 | 20 | 2.08 | 1 or 3phase | 3321*1810*2080 | 3900 |
CL1004 | 2100*1200 | 1000 | 4 | 6 | 1.18 | 3phase | 2250*1350*1180 | 1250 |
CL1006 | 2100*1200 | 1000 | 6 | 8 | 1.3 | 3phase | 2200*1350*1300 | 1400 |
CL1008 | 2100*1200 | 1000 | 8 | 10 | 1.42 | 3phase | 2200*1350*1420 | 1585 |
CL1010 | 2100*1200 | 1000 | 10 | 12 | 1.53 | 3phase | 2200*1350*1530 | 1700 |
CL1012 | 2550*1530 | 1000 | 12 | 14 | 1.75 | 3phase | 2796*1670*1750 | 2560 |
CL1014 | 2812*1530 | 1000 | 14 | 16 | 1.81 | 3phase | 3067*1750*1810 | 2765 |
CL1506 | 2100*1530 | 1500 | 6 | 8 | 1.53 | 3phase | 2250*1750*1530 | 1780 |
CL1508 | 2100*1530 | 1500 | 8 | 10 | 1.69 | 3phase | 2250*1750*1690 | 2070 |
CL1510 | 2100*1530 | 1500 | 10 | 12 | 1.85 | 3phase | 2250*1750*1850 | 2250 |
CL1512 | 2550*1530 | 1500 | 12 | 14 | 1.85 | 3phase | 2250*1762*1850 | 2900 |
CL1514 | 2816*1600 | 1500 | 14 | 16 | 1.96 | 3phase | 3045*1852*1960 | 3400 |
CL2006 | 2100*1530 | 2000 | 6 | 8 | 1.53 | 3phase | 2250*1750*1530 | 1780 |
CL2008 | 2100*1530 | 2000 | 8 | 10 | 1.69 | 3phase | 2250*1750*1690 | 2070 |
CL2010 | 2100*1530 | 2000 | 10 | 12 | 1.85 | 3phase | 2250*1750*1850 | 2250 |
CL2012 | 2550*1600 | 2000 | 12 | 14 | 1.954 | 3phase | 2796*1852*1954 | 3200 |
CL2014 | 2816*1600 | 2000 | 14 | 16 | 2.23 | 3phase | 3067*1852*2230 | 3900 |

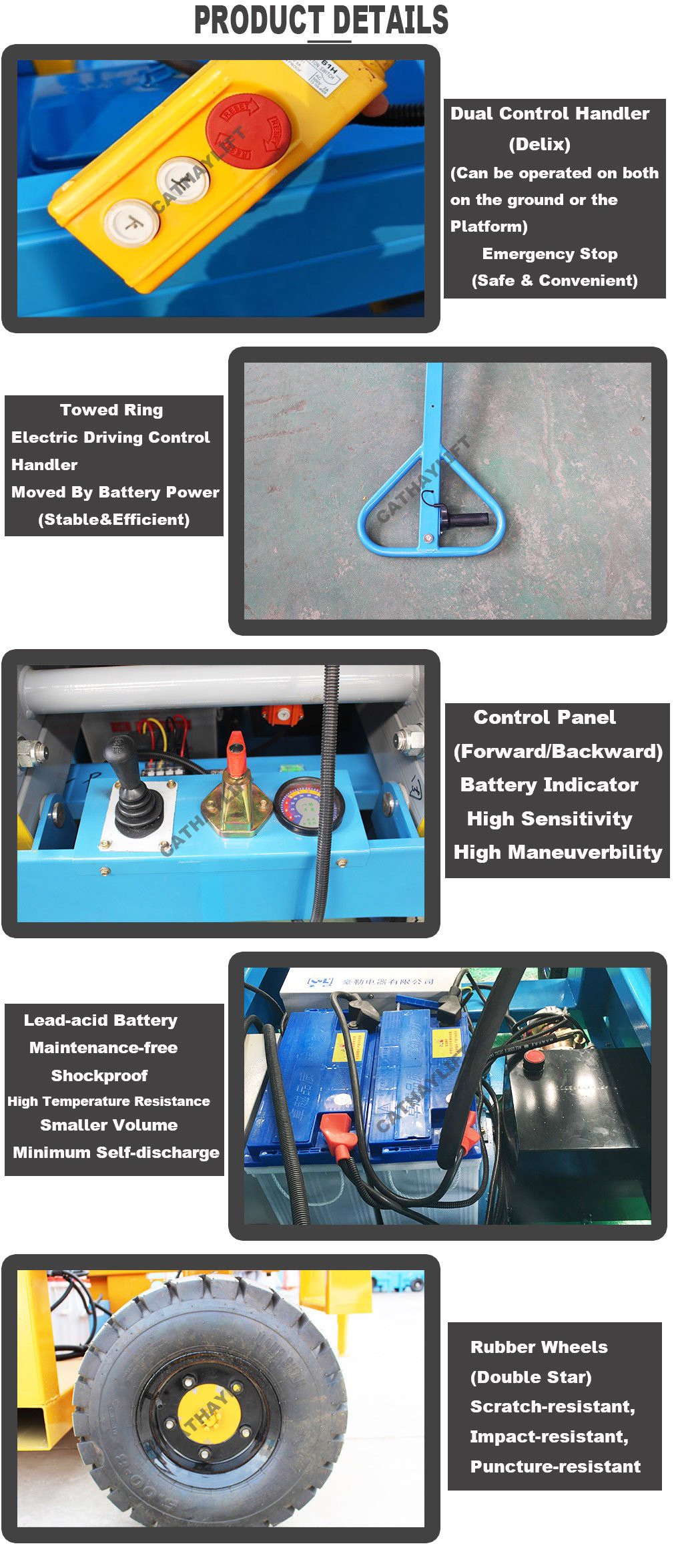

Product Details:
The mobile scissor lift is composed of electrical appliances, walking systems, hydraulic systems, electric control systems, oil cylinders, hydraulic oil pipes, tires, countertops, rails, brackets, axle pins, tires, guardrails, rectangular tube support angles, control handles, chassis, A combination of pump stations, etc.
The working principle of the mobile scissor lift: the hydraulic oil is formed by the vane pump to a certain pressure, and enters the lower end of the liquid cylinder through the oil filter, explosion-proof electromagnetic reversing valve, throttle valve, hydraulic control one-way valve and balance valve, so that the The piston of the cylinder moves upwards to lift the heavy objects, and the return oil at the upper end of the cylinder returns to the fuel tank through the explosion-proof electromagnetic reversing valve. The rated pressure is adjusted through the overflow valve, and the reading value of the pressure gauge is observed through the pressure gauge.
The four advantages of mobile scissor lift are as follows:
1. The appearance is online: First, let's take a look at the appearance. The mobile scissor lift adopts a relatively square and tough design. The classic color matching is also the consistent style of Huaxiong Machinery. The classic color matching makes this mobile lift. It still looks so energetic, not only does it not feel like an old-fashioned dragon, but it has more points and texture.
2. Excellent performance: the equipment is made of high-strength manganese steel pipes, and the overall structure is firm and compact. It can reach 2816*1600mm, the maximum load can reach 1500kg, the maximum working height can reach 18m, the largest external dimension: 3045*1852*1960mm, the maximum weight is 3400kg, and its equipment can be operated by many people at the same time, which greatly improves the work efficiency. In addition, the mobile scissor lift also has the advantages of low noise and large stroke.
3. Details, connotation design: The polyurethane wheels used in the mobile scissor lift are soft in texture, and will not cause damage to the ground even in places such as furniture floors. The coefficient is increased, the electrical appliances use the Delixi brand, and the operation part uses 24v safety power supply, which is safe to use, guardrails, detachable, and easy to use.
4. Simple operation: In terms of operation, it has been widely recognized by the majority of users. The speed is moderate, the switching is stable, and it is mature and stable. I believe that users who have operated this mobile lift are full of praise for this product.

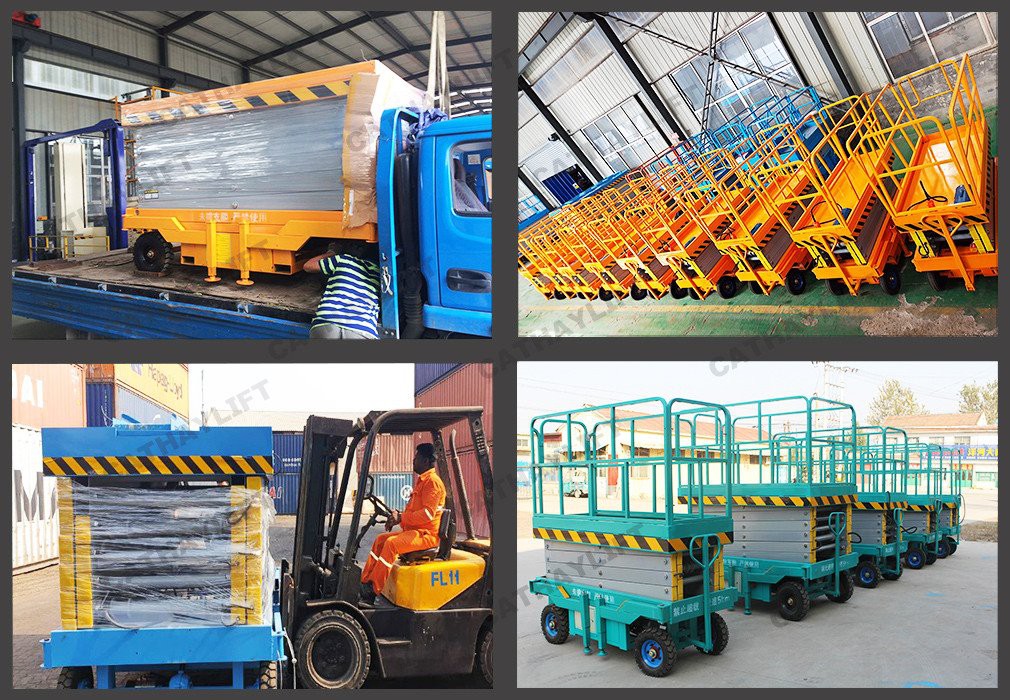

Real Order:
