Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of aerial scissor lift in China. We warmly welcome you to buy discount aerial scissor lift for sale here from our factory. Quality products and reasonable price are available.

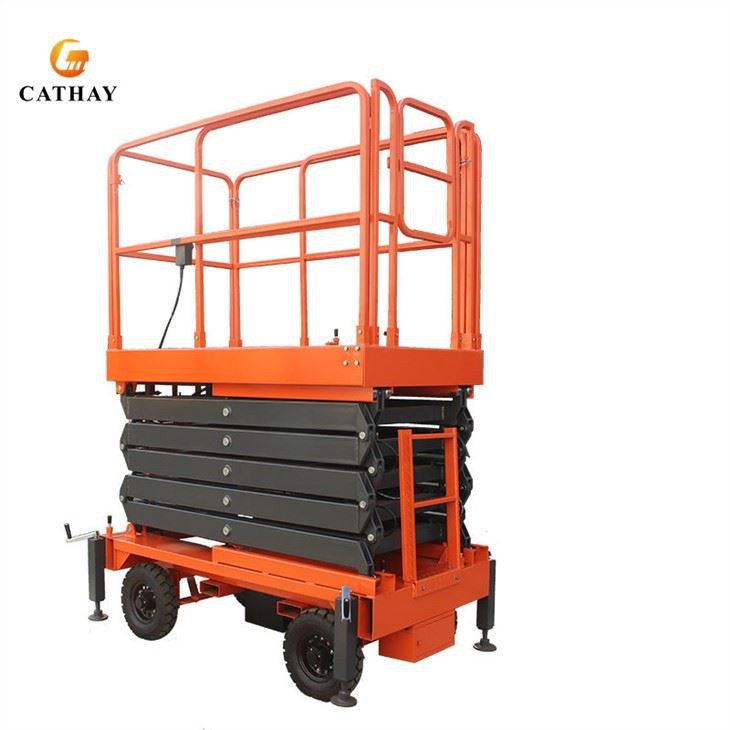

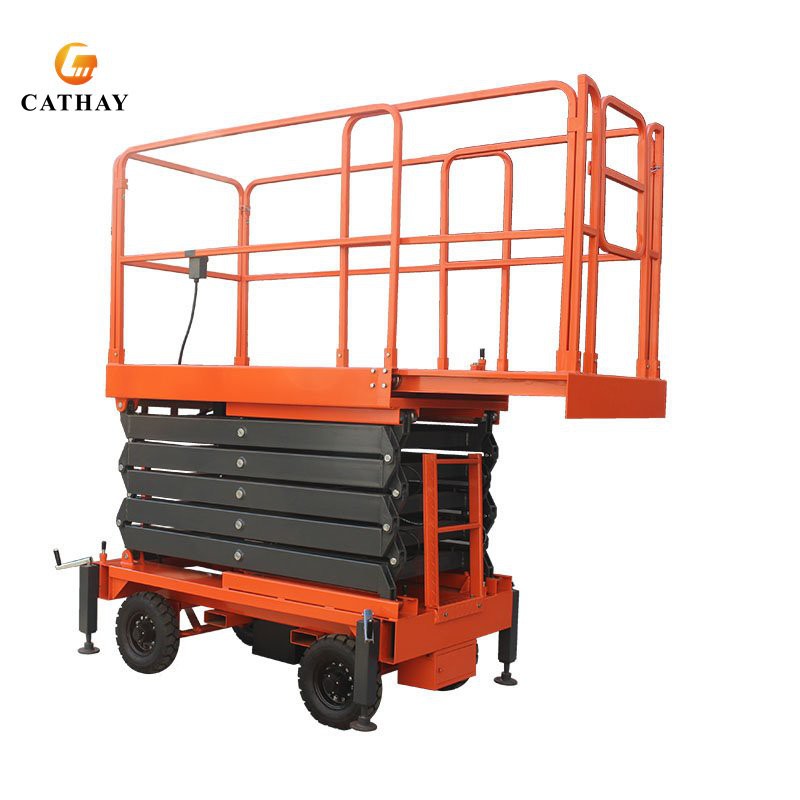

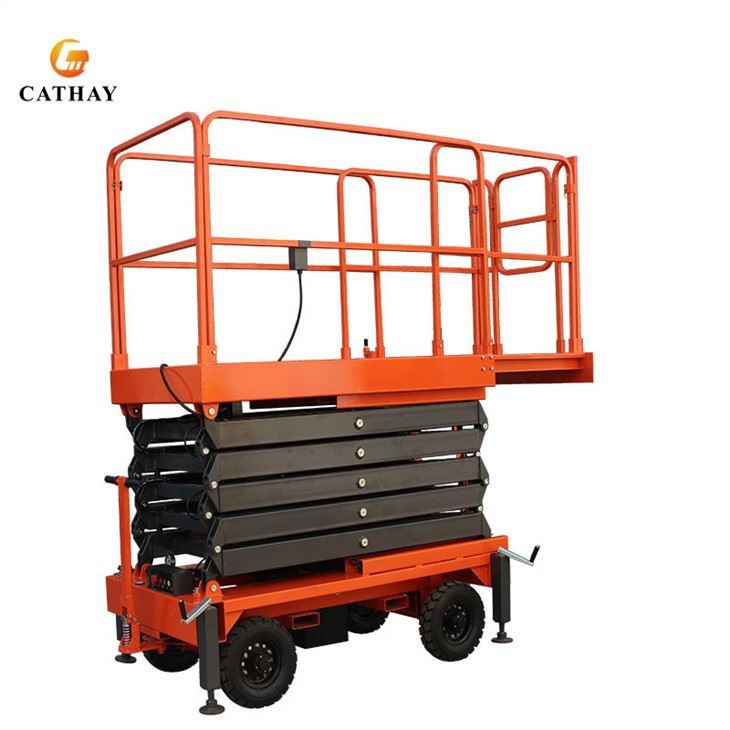

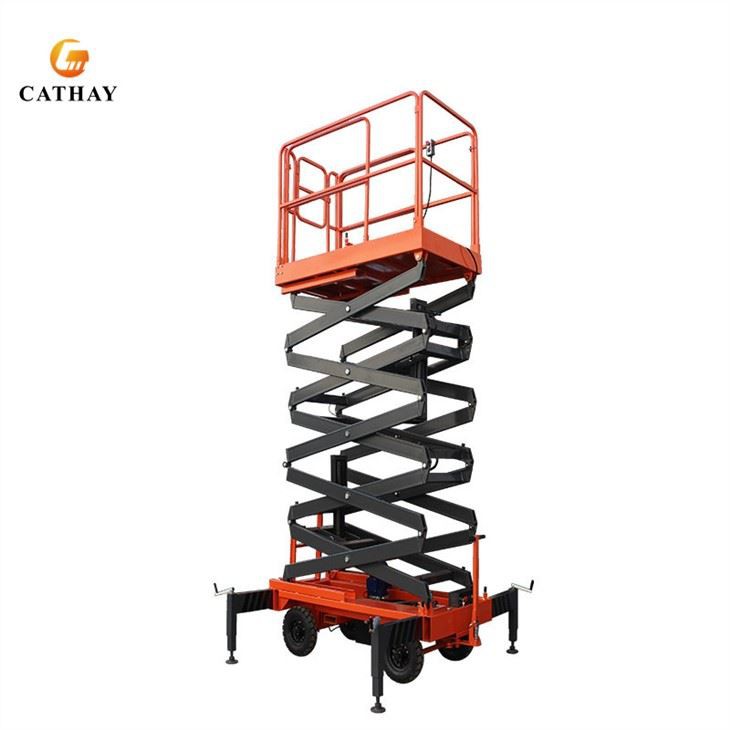

The scissor structure of the aerial scissor lift is mainly made of steel rectangular tubes. Its scissor mechanical structure makes the lifting platform have high stability, wide working platform and high bearing capacity, so that the high-altitude working range can be achieved. Larger and suitable for multiple people to work at the same time. The lifting power of the platform is manual or electric, and it can be controlled by electric hand or remote control, which can still be used in the event of a power failure. This product has the characteristics of flexible movement, stable lifting, convenient operation and large carrying capacity. Lifting power is divided into 220V or 380V power supply (battery, diesel engine can also be used as lifting power), using Italian and domestic hydraulic pump stations, the table is equipped with non-slip insulating plastic gussets, easy to replace, and overall beautiful and generous.
Model No. | Loading Capacity (kg) | Lifting Height (m) | Platform Size (m) | Overall size | Lifting Time(s) | Voltage | Motor | Wheels(φ) | Net Weight (kg) |
CLH0406 | 450 | 6 | 1.85*0.88 | 1.95*1.08*1.1 | 55 | AC380 | 1.5 | 200 PU | 800 |
CLH0407 | 450 | 7.5 | 1.8*1.0 | 1.95*1.2*1.54 | 60 | AC380 | 1.5 | 400-8 Rubber | 1000 |
CLH0409 | 450 | 9 | 1.8*1.0 | 1.95*1.2*1.68 | 70 | AC380 | 1.5 | 400-8 Rubber | 1200 |
CLH0411 | 450 | 11 | 2.1*1.15 | 2.25*1.35*1.7 | 80 | AC380 | 2.2 | 500-8 Rubber | 1580 |
CLH0412 | 450 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 125 | AC380 | 3 | 500-8 Rubber | 2450 |
CLH0414 | 450 | 14 | 2.45*1.35 | 2.5*1.55*2.0 | 165 | AC380 | 3 | 500-8 Rubber | 2650 |
CLH1006 | 1000 | 6 | 1.8*1.0 | 1.95*1.2*1.45 | 60 | AC380 | 2.2 | 500-8 Rubber | 1100 |
CLH1009 | 1000 | 9 | 1.8*1.25 | 1.95*1.45*1.75 | 100 | AC380 | 3 | 500-8 Rubber | 1510 |
CLH1012 | 1000 | 12 | 2.45*1.35 | 2.5*1.55*1.88 | 135 | AC380 | 4 | 500-8 Rubber | 2700 |
CLH0316 | 300 | 16 | 2.75*1.5 | 2.85*1.75*2.1 | 173 | AC380 | 3 | 500-8 Rubber | 3200 |
Product Details:
Overview
Overview
Overview
Platfrom With Guardrail
Control Panel (One The Platform)
Control Panel (Ground)
Ladder For Easy To Climp
Pressure Gauges&Emergency Decline Valve
Hydraulic Pump Station
Main Power
Leveling Indicator
Support Legs
Battery (Optional)
Tool box
Rubber Wheels
Advantages:
● The main structure of the lift table is made of high-strength manganese steel rectangular tube, which has high strength and durability.
● Equipped with a lifting platform overload hydraulic safety protection system,
● It consists of three parts: base, boom and workbench. The base is welded by channel steel; the boom is a scissor cross-chain vertical lift.
● Equipped with anti-fall safety protection system to prevent pipeline burst.
● Equipped with a manual drop valve for emergency drop in case of power failure.
● The finely ground hydraulic cylinder body and imported seals are used to ensure the good sealing performance of the cylinder.
● The height of the guardrail of the lifting platform is between 900MM-1200MM, and the customer can choose the height of the guardrail according to the requirements.
● Equipped with manual hydraulic device, it can be lifted and lowered as usual in places with power failure or no power supply
● A telescopic platform can be added, which can be extended to the required position when the length of the platform is insufficient, thereby improving work efficiency.
● Solid tires and pneumatic tires can be selected according to the site of use.
Real Order:
