Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of 20 ft scissor lift in China. We warmly welcome you to buy discount 20 ft scissor lift for sale here from our factory. Quality products and reasonable price are available.
30 ft 20 ft Scissor Lift

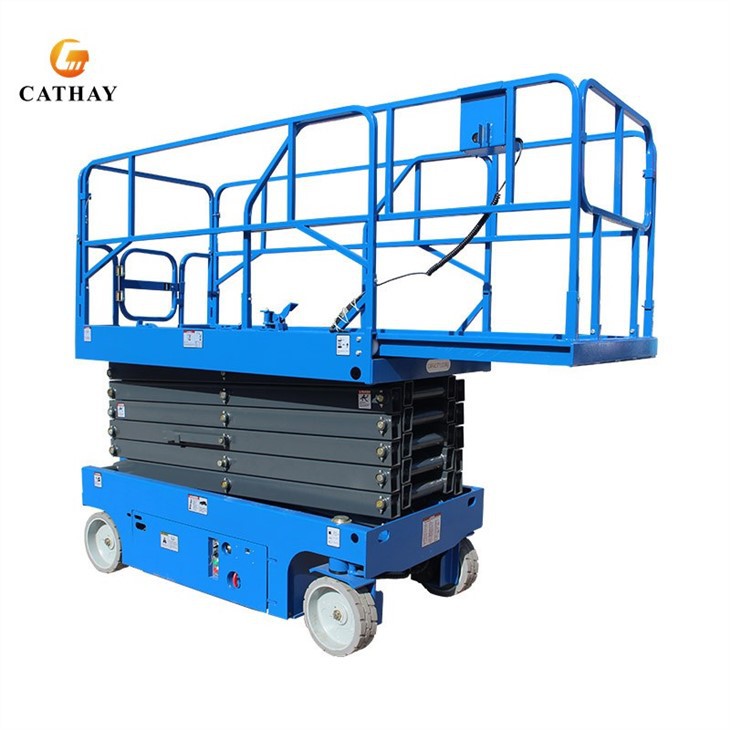

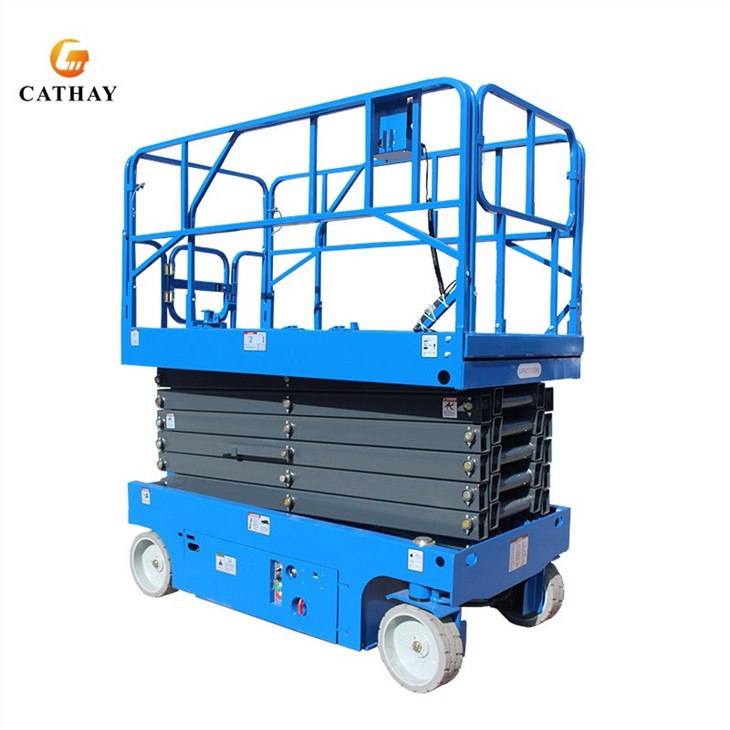

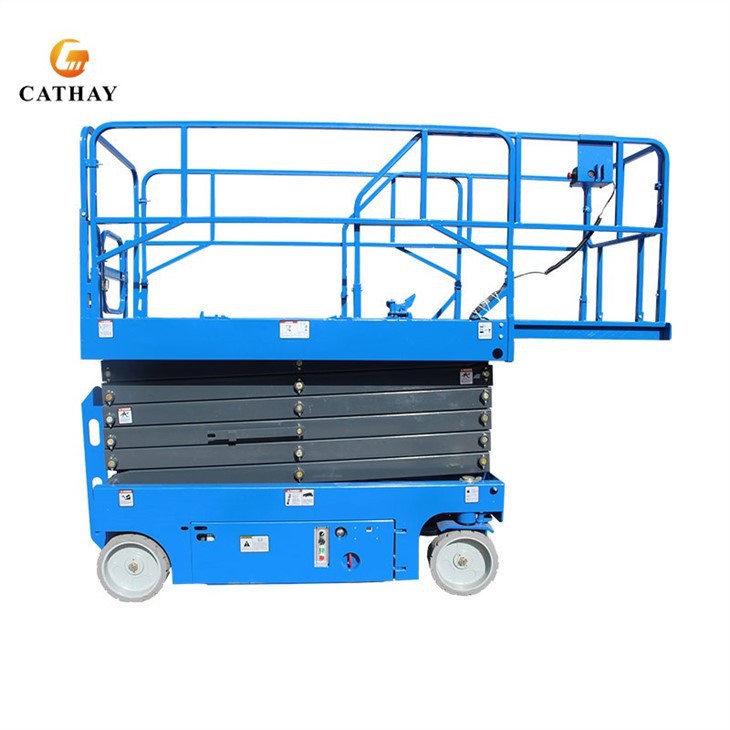

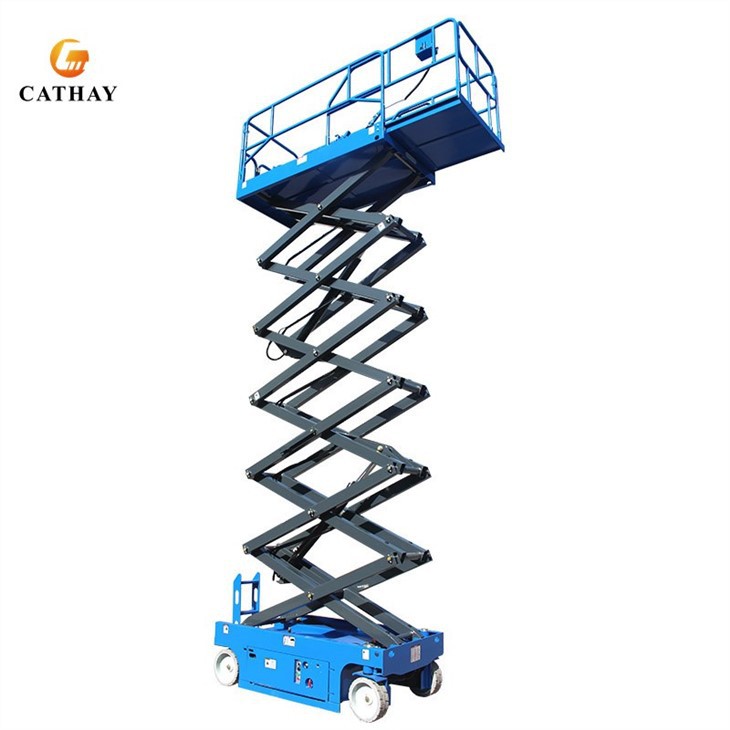

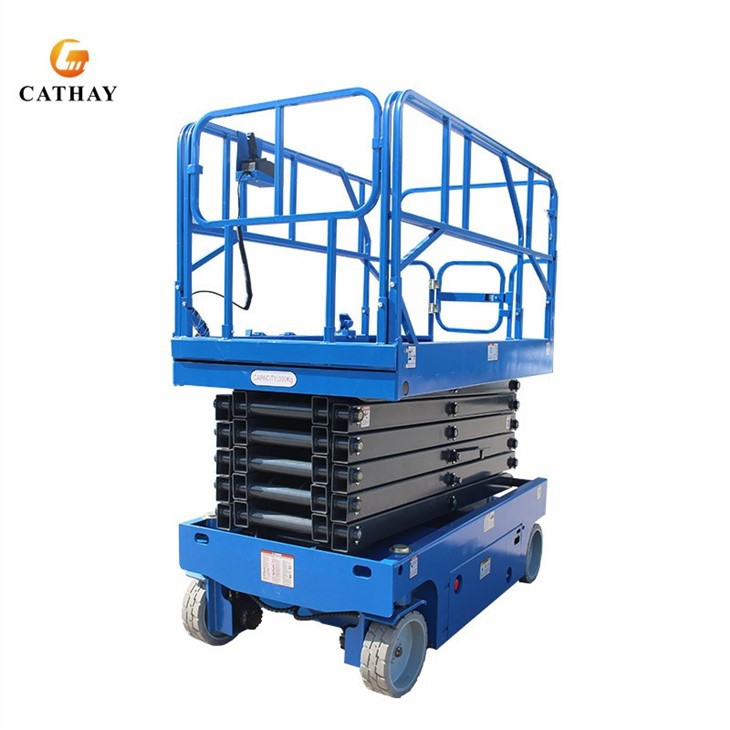

CATHAYLIFT 30ft 20 ft scissor lift is a self-propelled scissor lift mainly used for high-altitude operations. The product uses a Curtis control handle to control the machine with high sensitivity and high precision to perform various movements and lifting actions. The maintenance-free battery saves maintenance costs, and the extremely small width allows it to easily enter various workplaces. All faults or wrong operations will be processed by the ECU and displayed on the control handle and the operation panel of the fuselage in the form of fault codes, which is convenient for professionals to perform quick maintenance.
|
Model |
CLSE6 |
CLSE8 |
|
|
Max.Platform Height |
mm |
6000 |
8000 |
|
Max. Work Height |
mm |
8000 |
10000 |
|
Ground Clearance |
mm |
20 |
20 |
|
Lift Rated Capacity |
kg |
300 |
300 |
|
Platform Extend Capacity |
kg |
100 |
100 |
|
Platform Size |
mm |
1880×900 |
1880×900 |
|
Platform Extend Length |
mm |
900 |
900 |
|
Overall Size(L*W*H) |
mm |
2050*900*2150 |
2050*900*2270 |
|
Overall Net Weight |
kg |
1500 |
1700 |
Products Details
Maintenance
Maintaining a hydraulic system is crucial for ensuring its longevity and proper functioning. Here are some original insights and recommendations based on the provided text:
To begin with, regular maintenance checks should be conducted to ensure the hydraulic pressure and connectors of oil tubes are in good condition. Any damaged or broken components must be promptly replaced to prevent further damage to the system. Another important maintenance task is to dismantle and clean the down valve with compressed air to prevent any blockages or malfunctions.
In addition, the hydraulic oil used in the system plays a vital role in its overall performance, and it's important to choose the correct type of oil. It is recommended to follow the manufacturer's recommendations and use hydraulic oil with the same performance and specifications as the original brand. Mixing different grades of hydraulic oil should be avoided to prevent any chemical reactions and changes in performance. If the oil appears dark brown, or white or has a noticeable odor, it's a sign of oil deterioration and should not be used.
Preventing solid impurities from entering the hydraulic system is also critical. Clean hydraulic oil is the lifeblood of the system, and any solid impurities that enter can cause damage to the precise parts, leading to machine malfunction and unsafe working conditions. To prevent solid impurities from entering the system, it's important to keep the tools and hydraulic components clean, and to regularly clean and replace the suction strainers in the system.
Finally, when facing common problems such as a work platform that cannot lift or is weak, there are a number of potential causes to investigate. These include incorrect pressure of the overflow valve, oil cylinder leakage, chucking or leaking of the reversing valve, lack of oil or a blocked oil filter, motor problems, or leakage of the one-way valve. Identifying and addressing the root cause of the problem is crucial for maintaining the proper functioning of the hydraulic system.
