Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hydraulic lift in China. We warmly welcome you to buy discount hydraulic lift for sale here from our factory. Quality products and reasonable price are available.

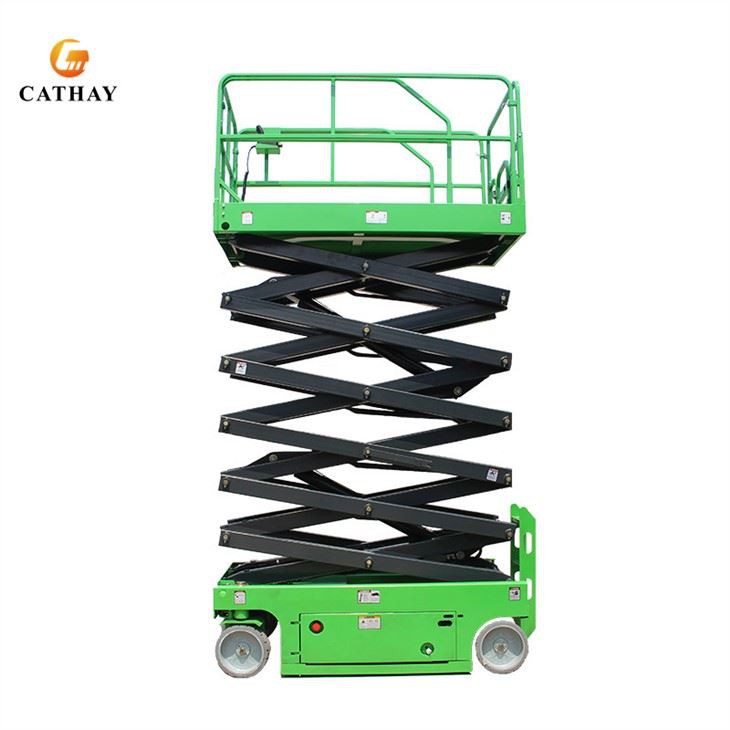

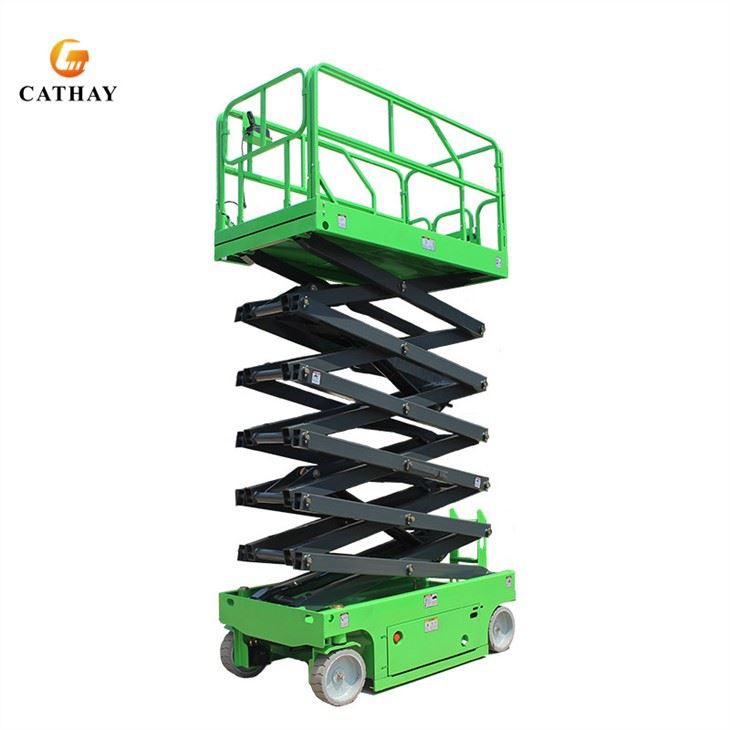

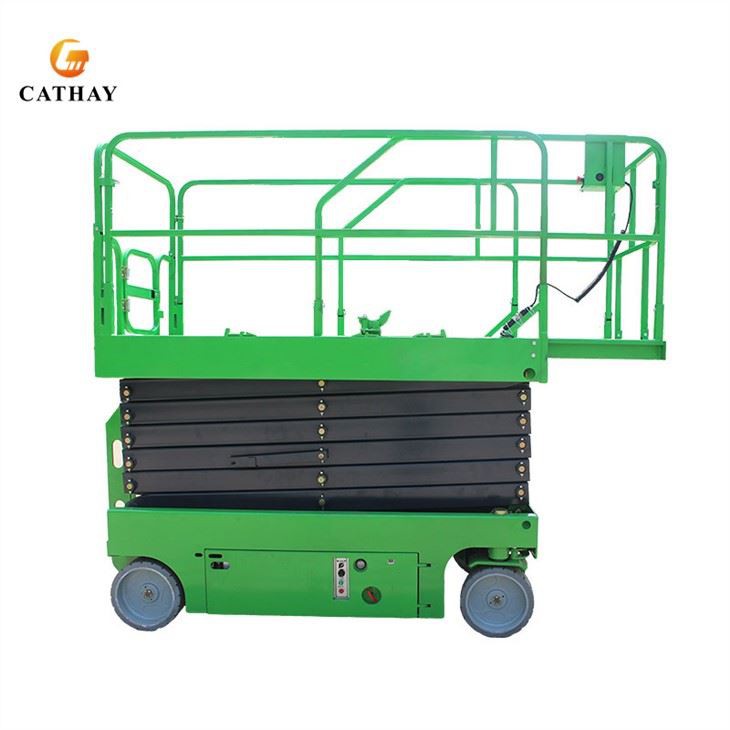

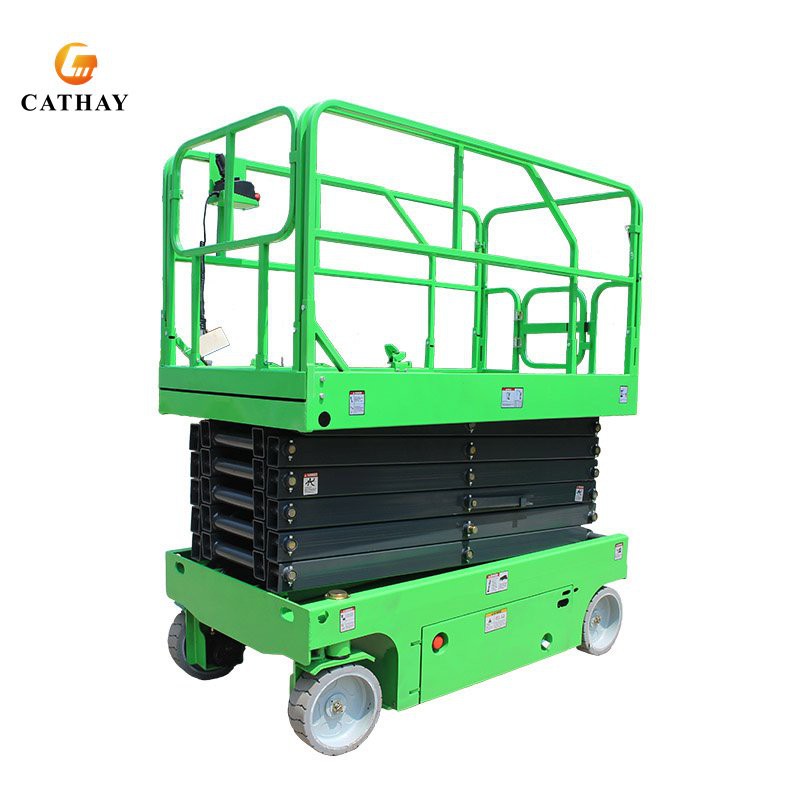

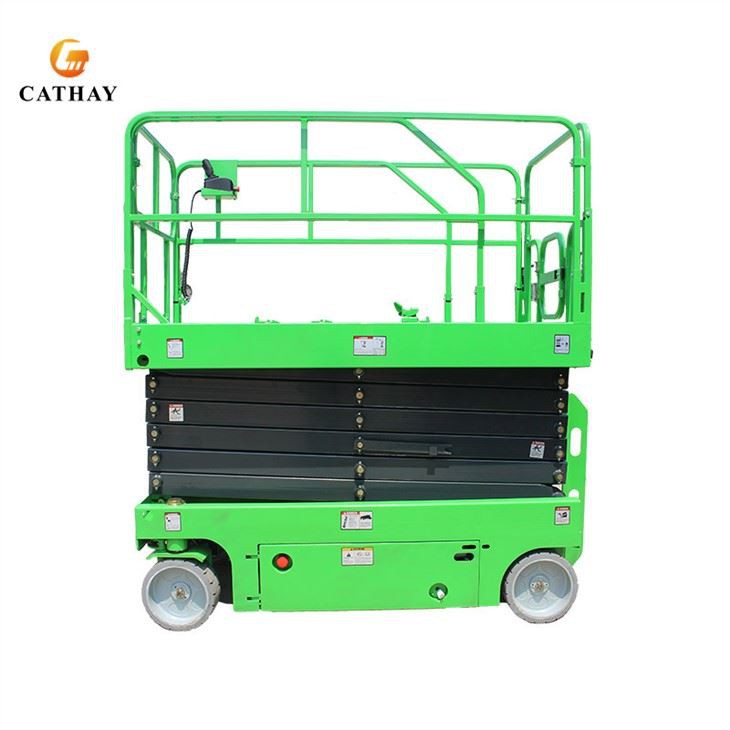

CATHAYLIFT Hydraulic lift is a mobile scissor-type aerial work platform. The main components are all world-renowned brands to ensure product quality. The 90cm additional extension platform can easily lift objects and facilitate complex terrain aerial work. The whole vehicle The mechanism is shot blasting, plastic spraying, anti-rust, anti-corrosion and highly waterproof. The integrated design of the whole machine meets the requirements of different working conditions, no external power supply, no need to drag and move it, and only one person can complete the moving and steering independently.
Model | CLS06 | CLS08 | CLS10 | CLS12 | CLS14 |
Lifting Height (mm) | 6000 | 8000 | 10000 | 12000 | 13800 |
Lifting capacity | 300 | 300 | 300 | 300 | 227 |
Max height-guardrail unfold (mm) | 2150 | 2275 | 2400 | 2525 | 2590 |
Max height-guardrail folded (mm) | 1190 | 1315 | 1440 | 1565 | 2050 |
Overall Length (mm) | 2400 | 2640 | |||
Overall Width (mm) | 1150 | 1130 | |||
Platform Size (mm) | 2270×1150 | 2840x1390 | |||
Platform extend size (mm) | 900 | ||||
Min ground clearance (mm) | 110/20 | ||||
Wheelbase (mm) | 1850 | ||||
Min turn radius-inner wheel (mm) | 0 | ||||
Min turn radius-outer wheel (mm) | 2100 | 2700 | |||
Power source (v/kw) | 24/3.0 | 24/4.5 | |||
Running speed-folding (km/h) | 4 | ||||
Running speed-rising (km/h) | 0.8 | ||||
Rising/falling speed (sec) | 40/50 | 70/80 | |||
Battery (V/AH) | 4×12/135 | 4x12/150 | |||
Charger (V/A) | 24/25 | 24v/30 | |||
Max climbing ability (%) | 20 | ||||
Max working allowable angle | 2-3° | ||||
Way of control | Electro-hydraulic proportion control | ||||
Driver | Double front-wheel | ||||
Hydraulic drive | Double rear-wheel | ||||
Wheel size-stuffed&no mark | Φ381×127 | ||||
Whole weight (kg) | 1900 | 2080 | 2490 | 2760 | 3320 |
Product Details:
Overview
Overview
Overview
Control Handle(Curties) Intuitive Control, High Maneuverability
Ground Control Panel(Up,Down,Emergency Lowing Valive,Battery Power Indicator)
Fordable Guardrails&900mm Extra Extendable Platform
Trojian Battery(America)Check Regularly, Add Distilled Water
Italy Hydrappp Hydraulic Pump Station And Italy Doyle Hydraulic Valve
Smart Charger(Internal)
Buzzer, Tilt Sensor Strobe Light
Hydraulic Steering(Stable And High Maneuverability)
Manually Release The Brake(Automatic Braking System)
Advantages:
● Check valve: hydraulic oil circuit control switch.
● Relief valve (safety valve): when the hydraulic oil flow is too large, it acts as an overflow regulator.
● Speed regulating valve: adjust the speed of hydraulic oil and control the speed of platform lifting.
● Hydraulic valve: The hydraulic system pressure is too large, as the ultimate pressure protection system
● Explosion-proof valve: prevent the oil pipe from bursting due to unexpected situations.
● Manual brake release The machine is equipped with an automatic brake, when the product is powered off, the brake needs to be released for traction.
● Pothole protection system: When the platform rises to 2~3m (system setting), the flap will open. During the opening process of the flap, if the ground slope is large or encounters obstacles, the flap will not be able to open normally. At this time, the platform cannot rise, but can only descend and move, and when the flap is fully opened, there is almost no space to touch the rock.
● In the event of a malfunction emergency descent will be locked.
Real Order:
