Electric Pallet Scissor Lift

The biggest feature of this product is that it is ergonomic, workers do not need to bend over to load and unload goods, which greatly reduces the strain on the back of the human body. Load models are divided into 600kg, 1000kg, 1500kg.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric pallet scissor lift in China. We warmly welcome you to buy discount electric pallet scissor lift for sale here from our factory. Quality products and reasonable price are available.

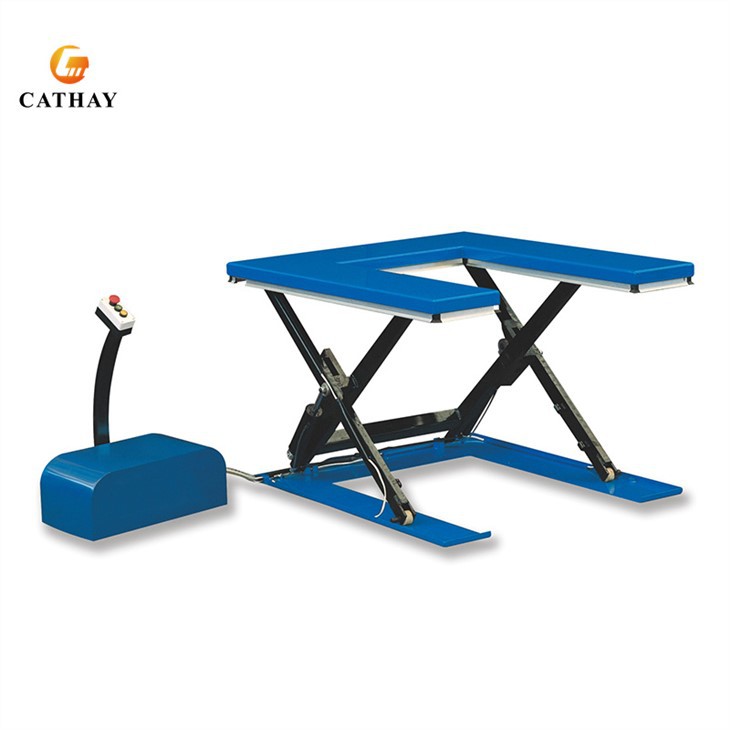

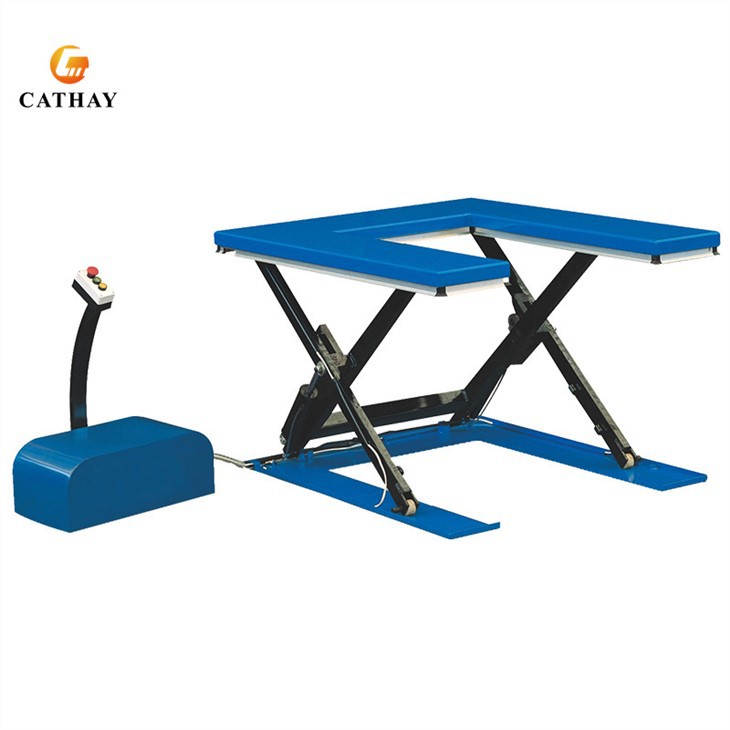

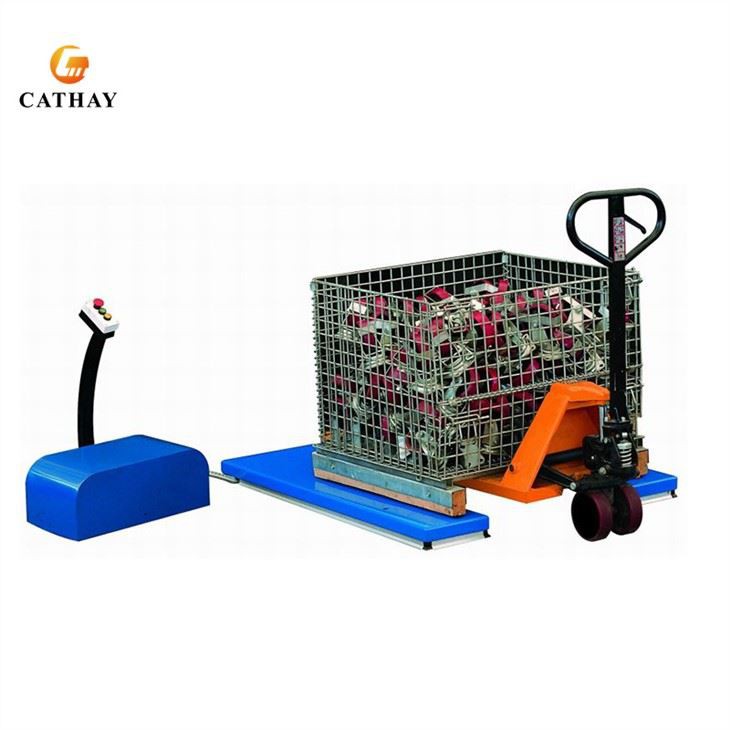

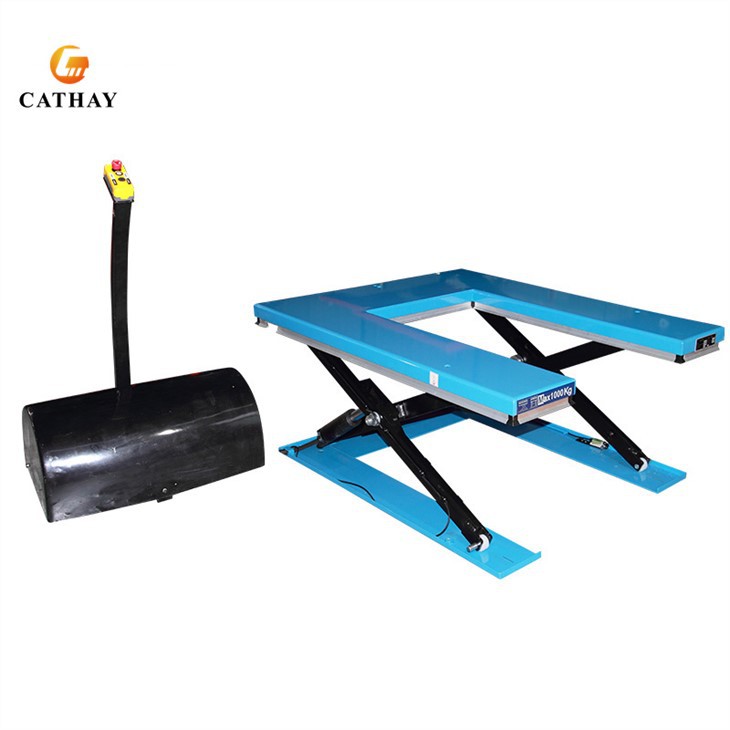

The U-shaped Electric Pallet Scissor Lift is one of the most popular products in scissor lift work platforms. It is controlled by the electronic control system to control the lifting and running of the equipment, and the external hydraulic pump station is specially designed, so that the height of the table is only 85mm when it falls to the lowest position, which is convenient for pallet trucks or other wheeled cargo equipment to lift the goods from the table. Load and unload.

Model		LPU600	LPU1000	LPU1500
Load Capacity	kg	600	1000	1500
Platform size LxW	mm	1450x985	1450x1140	1600x1200
Size A	mm	200	280	305
Size B	mm	1080	1080	1150
Size C	mm	580	580	590
Min.Platform Height	mm	85	85	105
Max.Platform Height	mm	870	870	870
Base size LxW	mm	1335x947	1335x947	1335x947
Lifting time	s	25-35	25-35	30-40
Power		380V/50Hz	380V/50Hz	380V/50Hz
Net weight	kg	207	280	380
