Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of hydraulic pallet lift table in China. We warmly welcome you to buy discount hydraulic pallet lift table for sale here from our factory. Quality products and reasonable price are available.

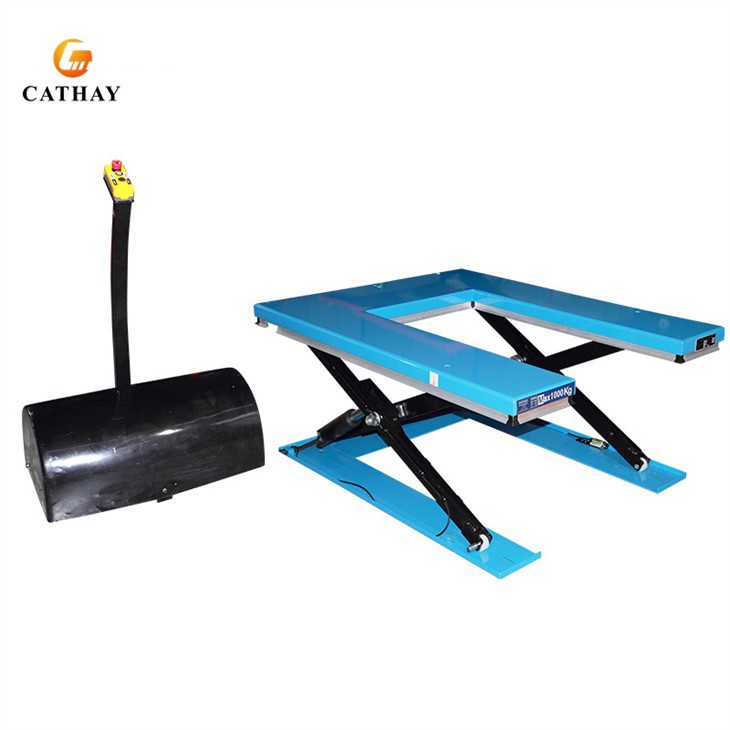

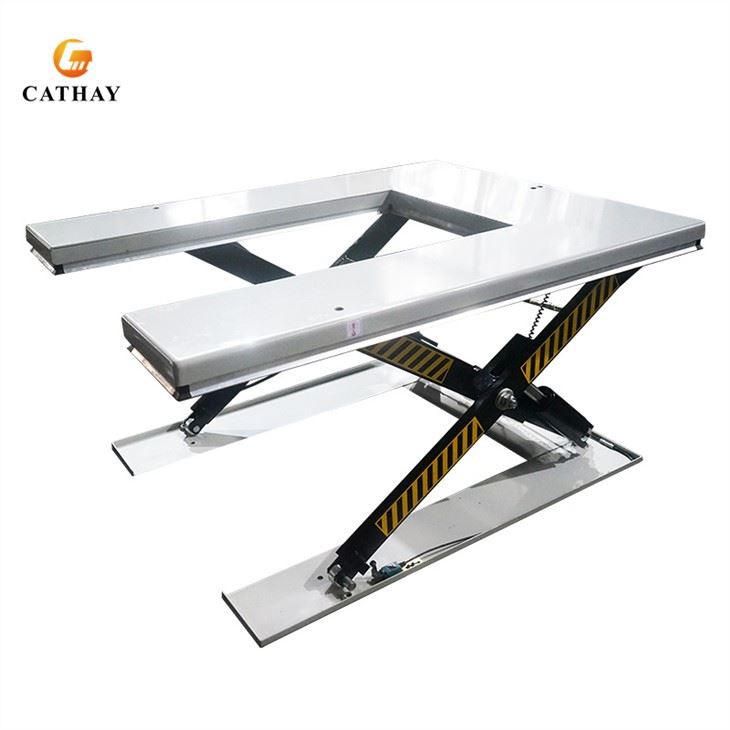

The Hydraulic Pallet Lift Table is specially designed to facilitate the loading and unloading of goods on pallet trucks or forklifts, if the standard model does not meet your needs. We can customize the appropriate size to fit the size of the pallet truck's fork, if you have specific needs, please send an inquiry, we will provide you with the most reasonable solution.
Model | LPU600 | LPU1000 | LPU1500 | |
Load Capacity | kg | 600 | 1000 | 1500 |
Platform size LxW | mm | 1450x985 | 1450x1140 | 1600x1200 |
Size A | mm | 200 | 280 | 305 |
Size B | mm | 1080 | 1080 | 1150 |
Size C | mm | 580 | 580 | 590 |
Min.Platform Height | mm | 85 | 85 | 105 |
Max.Platform Height | mm | 870 | 870 | 870 |
Base size LxW | mm | 1335x947 | 1335x947 | 1335x947 |
Lifting time | s | 25-35 | 25-35 | 30-40 |
Power | 380V/50Hz | 380V/50Hz | 380V/50Hz | |
Net weight | kg | 207 | 280 | 380 |

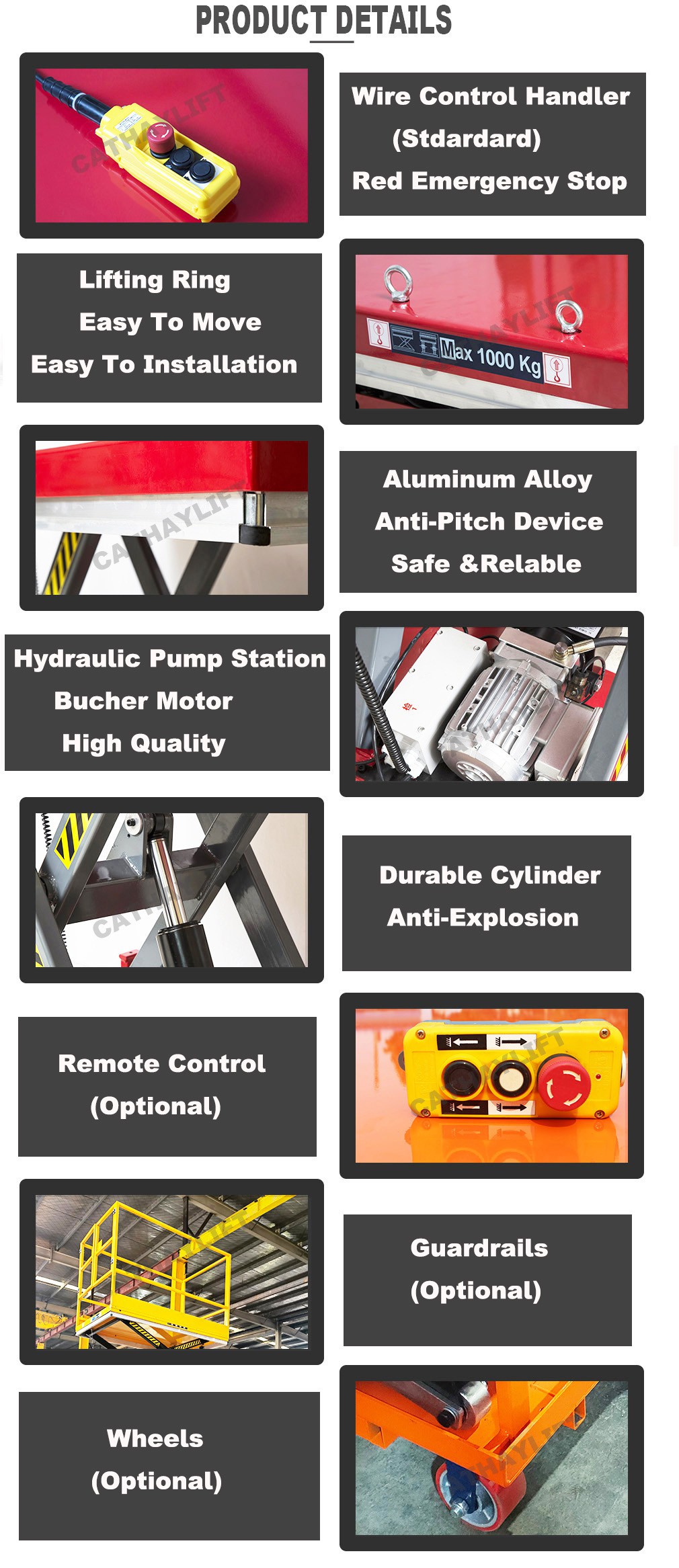

Product Details

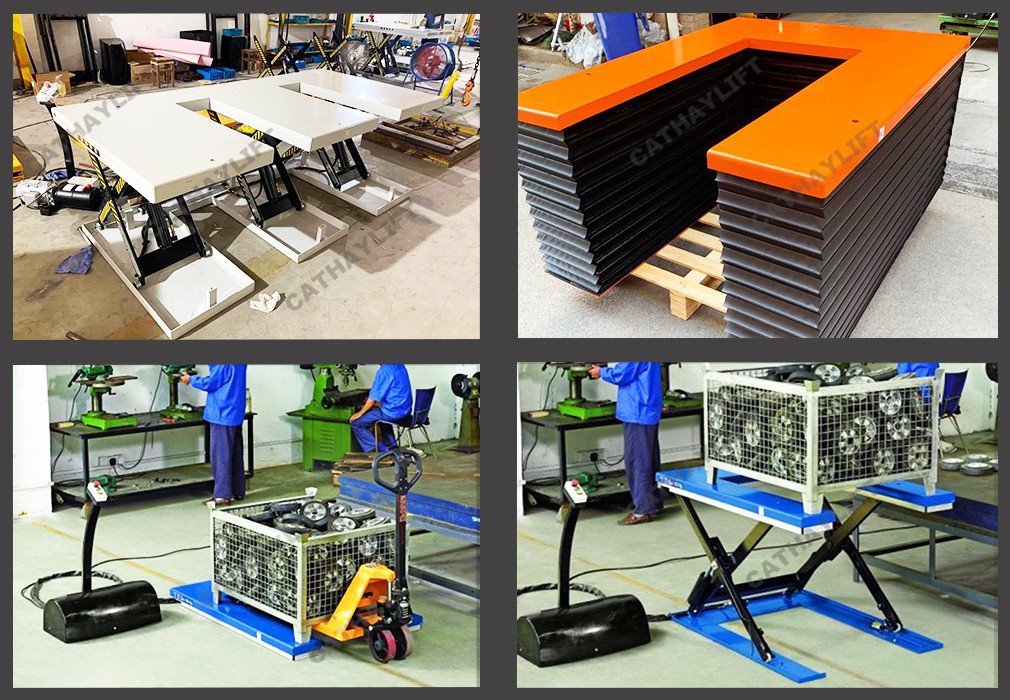

Real Order
Hot Tags: hydraulic pallet lift table, Small Lift Table, Small Hydraulic Lift Table, Electric Pallet Scissor Lift, Hydraulic Pallet Lift Table, Low Profile Hydraulic Lift Table, Low Profile Scissor Lift
