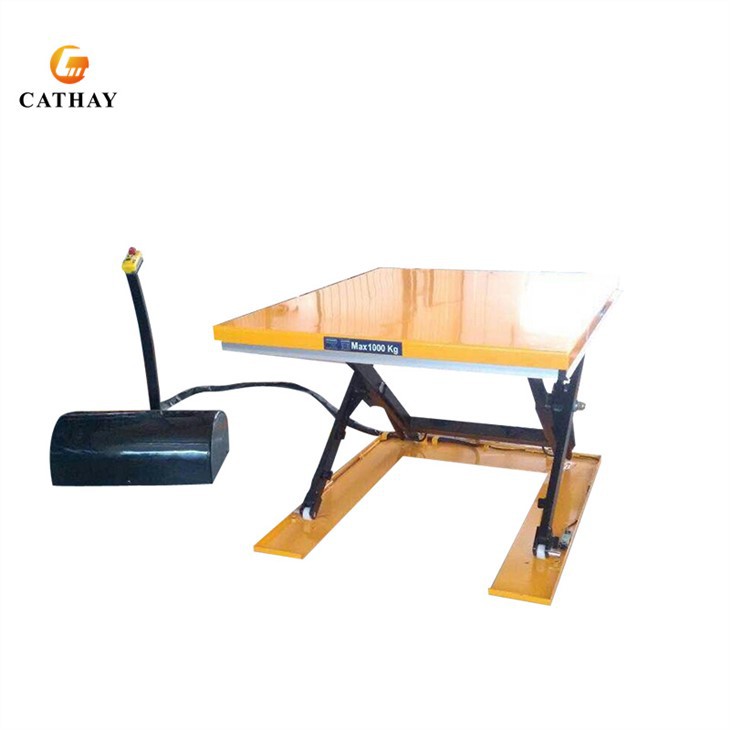

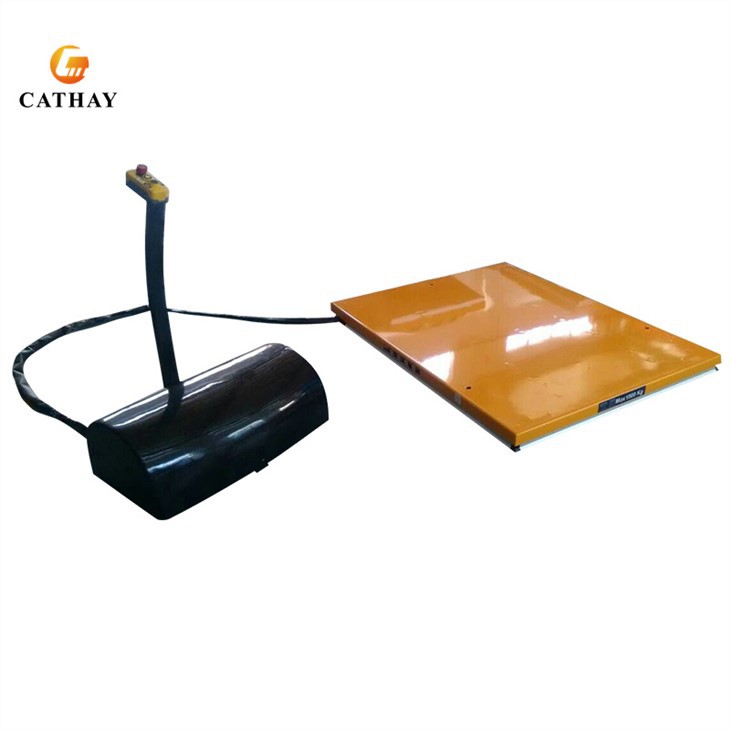

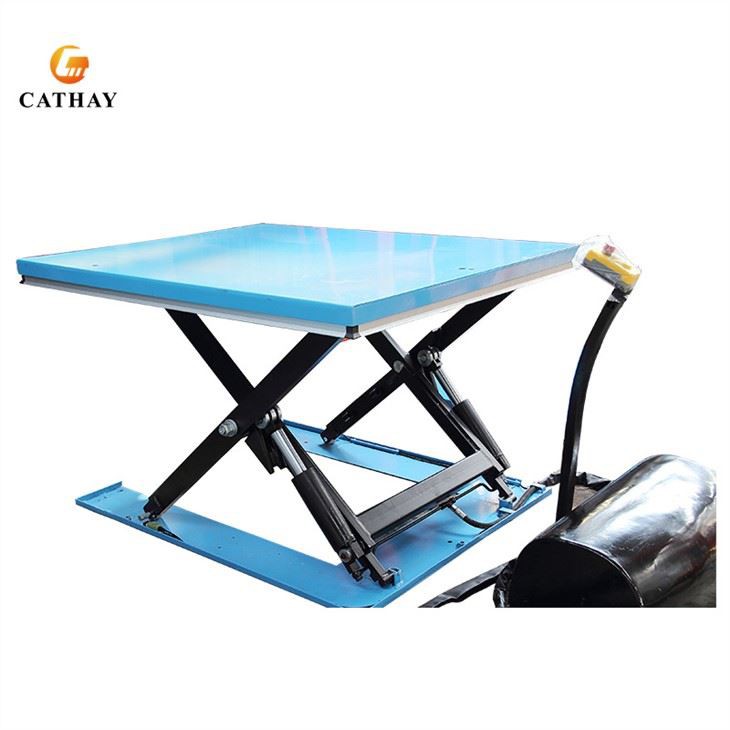

Low Profile Scissor Lift Table

The Low Profile Scissor Lift Table is a machine specially used to lift goods. Its bottom height is only 850mm and the maximum load is 2000kg, which is very suitable for factory processing and logistics processing.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of low profile scissor lift table in China. We warmly welcome you to buy discount low profile scissor lift table for sale here from our factory. Quality products and reasonable price are available.

The Low Profile Scissor Lift Table adopts electrostatic spraying, high temperature baking paint, the table surface is flat, smooth and beautiful, durable and corrosion-resistant, and there are safety bar devices around the bottom of the table to ensure safety. High-quality oil cylinder, equipped with overload protection device, equipped with overload protection device to prevent overload damage, good sealing, prevent leakage, and improve the safety performance of the whole vehicle. The anti-pinch and thickened scissors are designed with anti-pinch scissors to prevent pinching.Safety rails, there are safety rails around the bottom of the table, when the table falls and encounters obstacles, it will stop descending immediately to ensure safety.

Model	Loading Capacity(kg)	Platform Size (mm)	Base Size (mm)	Self Height (mm)	Max Platform Height (mm)	Lifting Time(s)	Power (V/Hz)	Net Weight(kg)
LP1001	1000	1450x1140	1325x1074	85	860	25	as per your local standard	357
LP1002	1000	1600x1140	1325x1074	85	860	25		364
LP1003	1000	1450x800	1325x734	85	860	25		326
LP1004	1000	1600x800	1325x734	85	860	25		332
LP1005	1000	1600x1000	1325x734	85	860	25		352
LP1501	1500	1600x800	1325x734	105	870	30		302
LP1502	1500	1600x1000	1325x734	105	870	30		401
LP1503	1500	1600x1200	1325x734	105	870	30		415
LP2001	2000	1600x1200	1427x1114	105	870	35		419
LP2002	2000	1600x1000	1427x734	105	870	35		405

Product Details

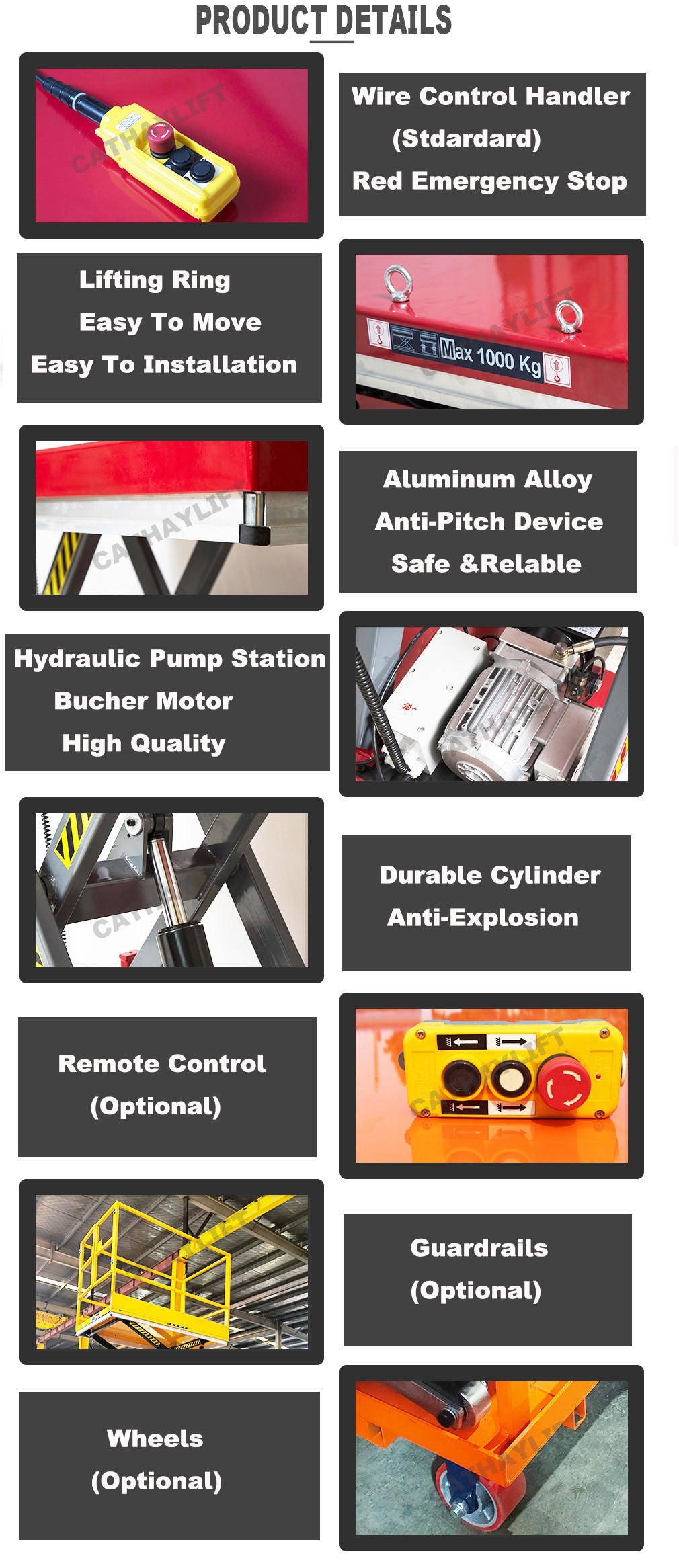

hydraulic lift table-details 3

Features & Advantages:

● Use 380V/50Hz AC power supply (can also customize power supply according to customer requirements) high-quality power supply units that meet EN1570 and ANSI/ASME safety standards.

● There is a safety bar set under the table. When the table falls and encounters obstacles, it stops falling to ensure safety.

● The internal power pack is equipped with a safety valve and a compensation flow switch. Safety valve can prevent overload operation, compensation flow switch can control low speed, hydraulic system is equipped with explosion-proof valve, when the oil pipe bursts, it can prevent the platform truck from sliding down rapidly.

● The bushings at the pivot point are all self-lubricating design.

● Removable lifting eye for easy operation and installation of lifting platform.

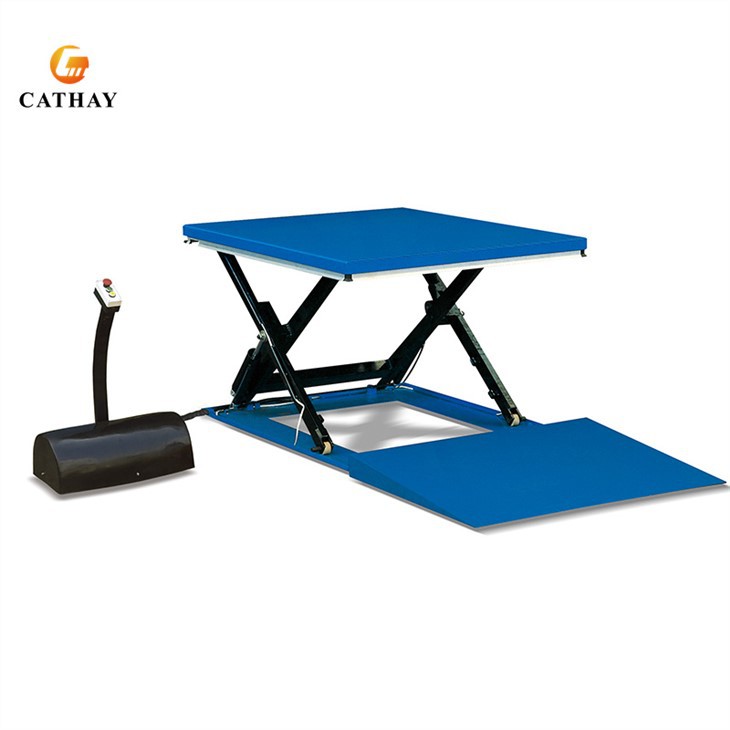

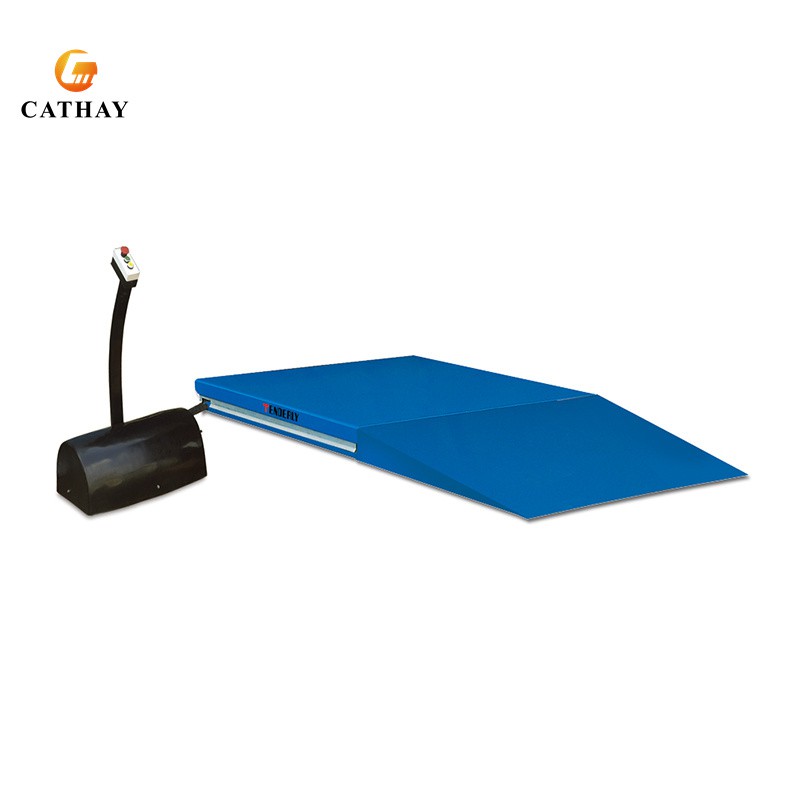

● Unique low profile design and sloped plate for easy use with trucks.
