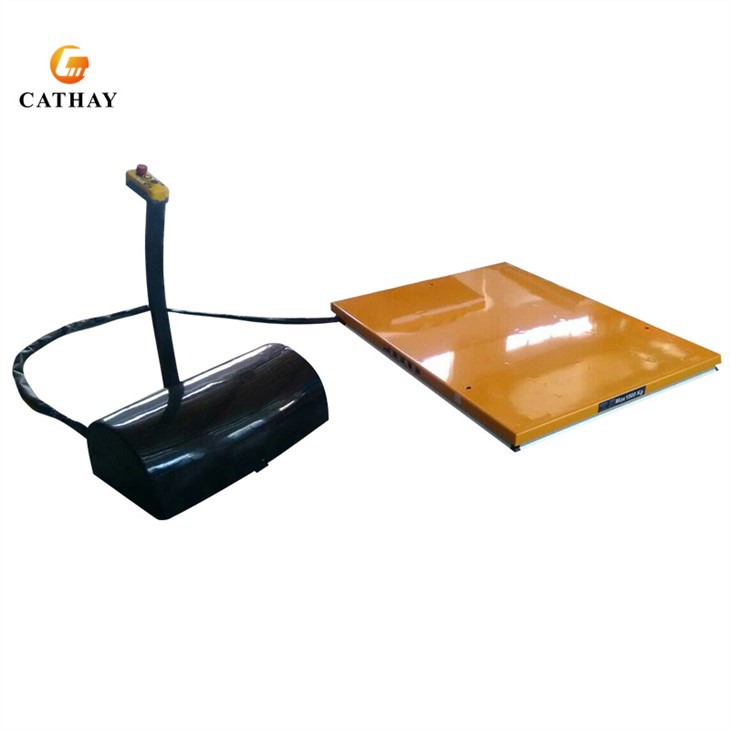

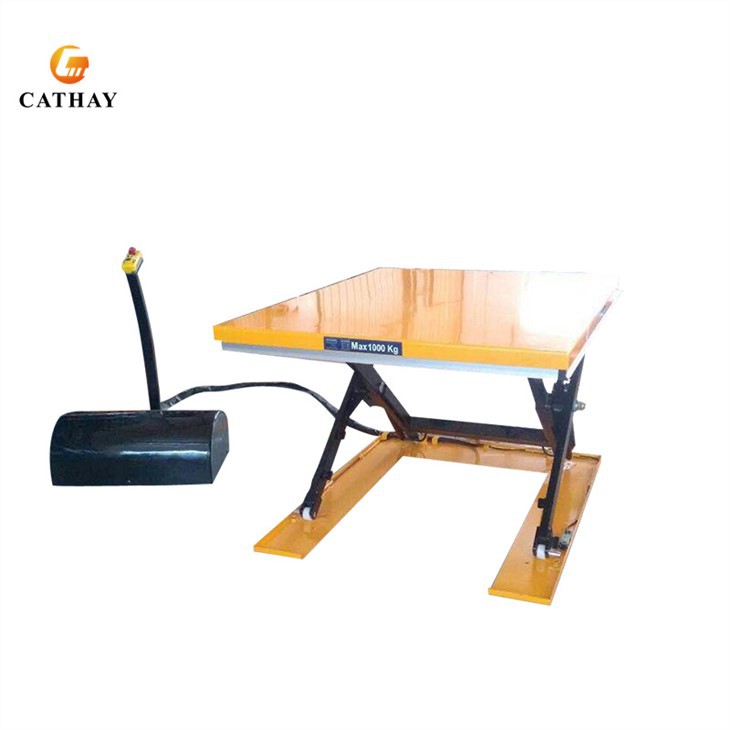

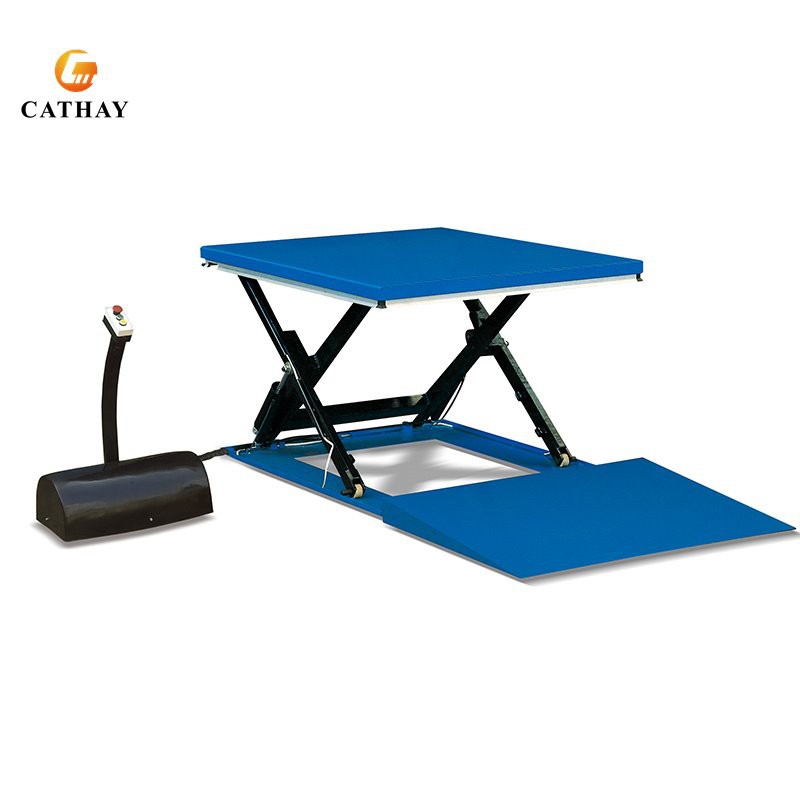

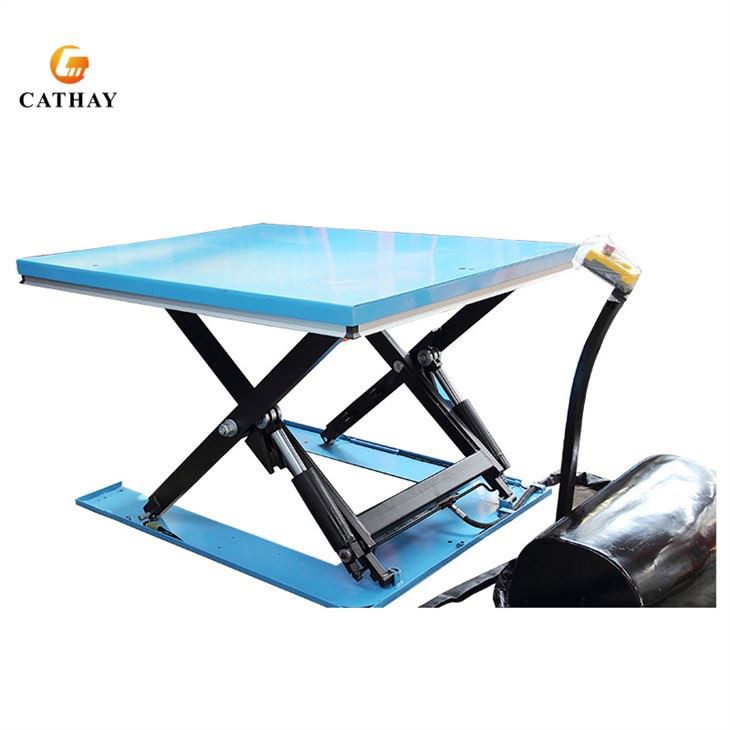

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of low profile scissor lift in China. We warmly welcome you to buy discount low profile scissor lift for sale here from our factory. Quality products and reasonable price are available.

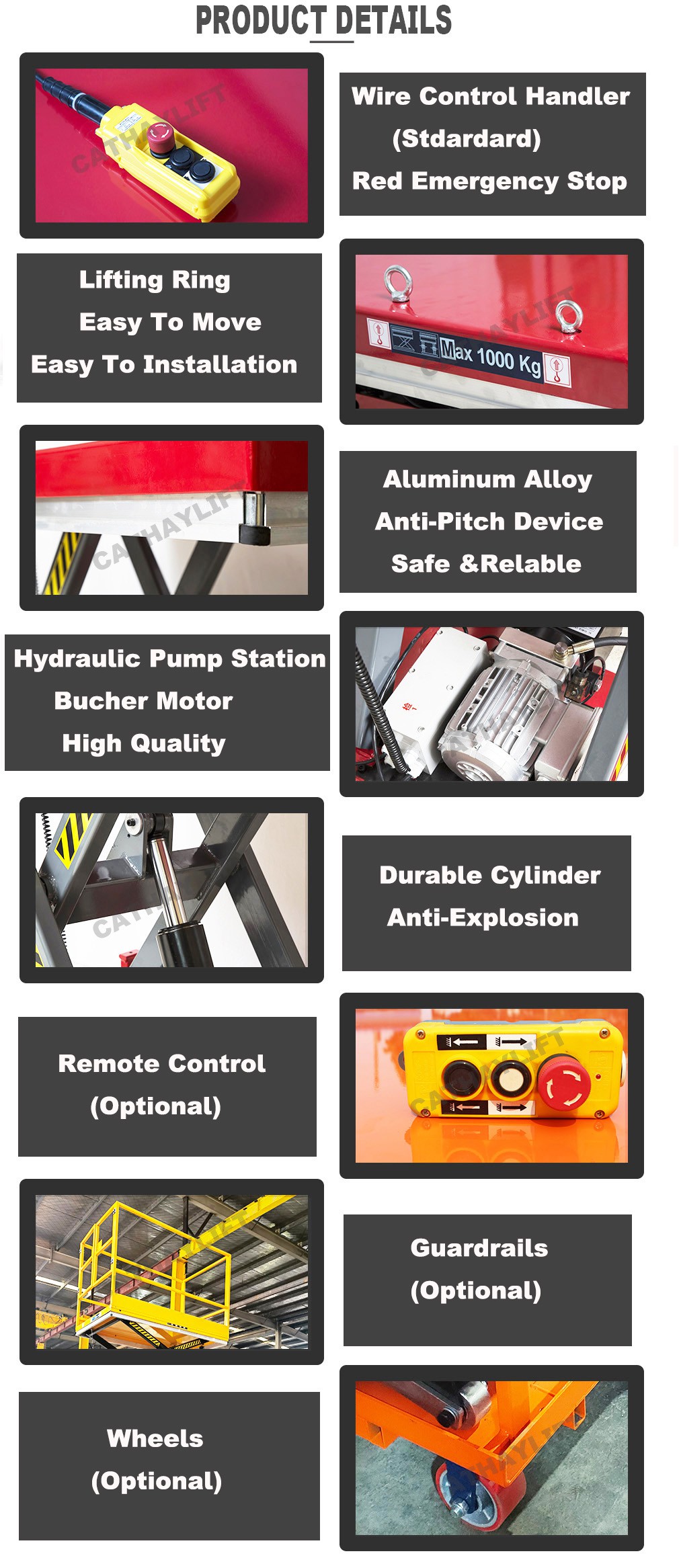

The Low Profile Scissor lift adopts the anti-pinch scissor fork design, and the main pin shaft adopts the self-lubricating design, which is maintenance-free for life; Before choosing this product, please consider the specific workflow, as well as the required specific height requirements, load requirements, and voltage configuration. For the order quantity of two and above, we accept custom colors for free.
Model | Loading Capacity(kg) | Platform Size | Base Size | Self Height (mm) | Max Platform Height (mm) | Lifting Time(s) | Power | Net Weight(kg) |
LP1001 | 1000 | 1450x1140 | 1325x1074 | 85 | 860 | 25 | as per your local standard | 357 |
LP1002 | 1000 | 1600x1140 | 1325x1074 | 85 | 860 | 25 | 364 | |
LP1003 | 1000 | 1450x800 | 1325x734 | 85 | 860 | 25 | 326 | |
LP1004 | 1000 | 1600x800 | 1325x734 | 85 | 860 | 25 | 332 | |
LP1005 | 1000 | 1600x1000 | 1325x734 | 85 | 860 | 25 | 352 | |
LP1501 | 1500 | 1600x800 | 1325x734 | 105 | 870 | 30 | 302 | |
LP1502 | 1500 | 1600x1000 | 1325x734 | 105 | 870 | 30 | 401 | |
LP1503 | 1500 | 1600x1200 | 1325x734 | 105 | 870 | 30 | 415 | |
LP2001 | 2000 | 1600x1200 | 1427x1114 | 105 | 870 | 35 | 419 | |
LP2002 | 2000 | 1600x1000 | 1427x734 | 105 | 870 | 35 | 405 |
SERVICE INSTRUCTIONS:
Do a routine check of fasteners, packing, and oil leaking.
Do a routine check of the function of the lift table.
Before servicing, the lift table, make sure to turn off the AC power supply.
After service, it is necessary to check the function of the lift table again.
Only qualified personnel can do service work.
Do a routine check of the micro-switches on the safety guard.
Do a routine check of the hydraulic system by listening to its noise, and touching the motor's surface.
Caution: It is necessary to turn off the AC power supply before touching the motor's surface.
Pay attention to clearing or even replacing the oil filter after operating it for a long time.
Appropriate lubrication is necessary to make the lift table work easily and have a prolonged service life.
The following table is recommended to service the lift table periodically.

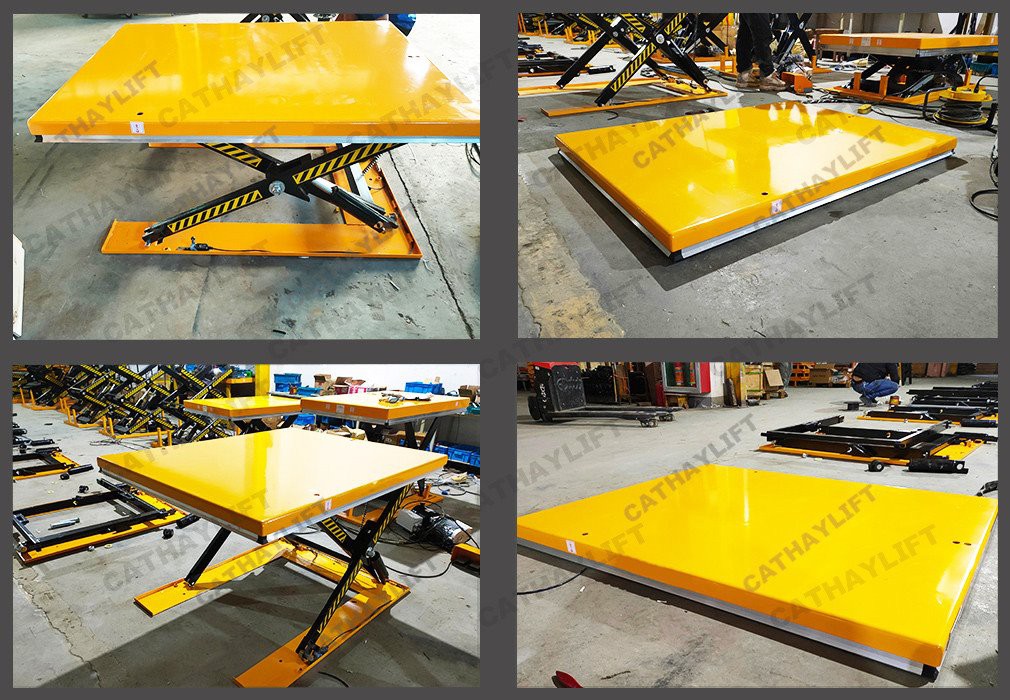

Real Order
