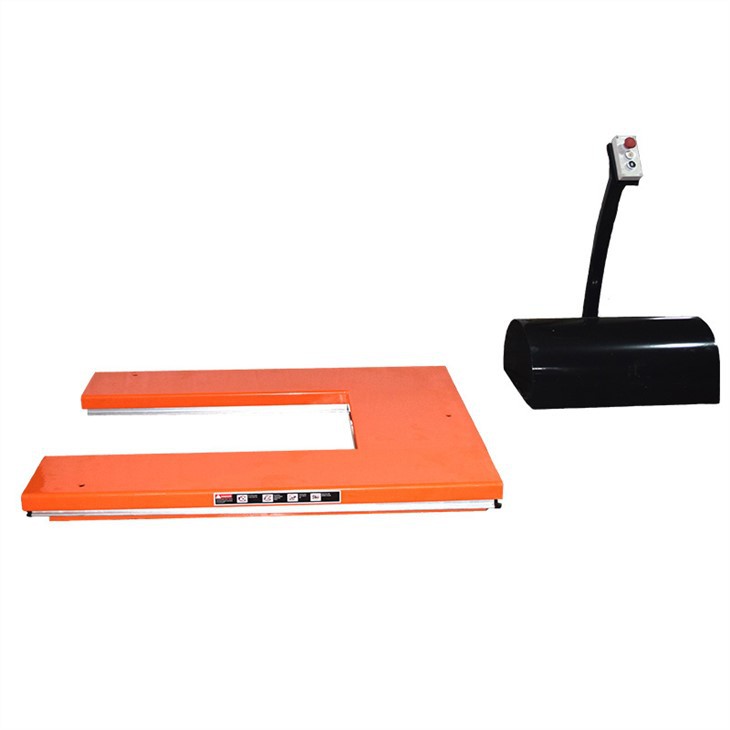

Small Hydraulic Lift Table

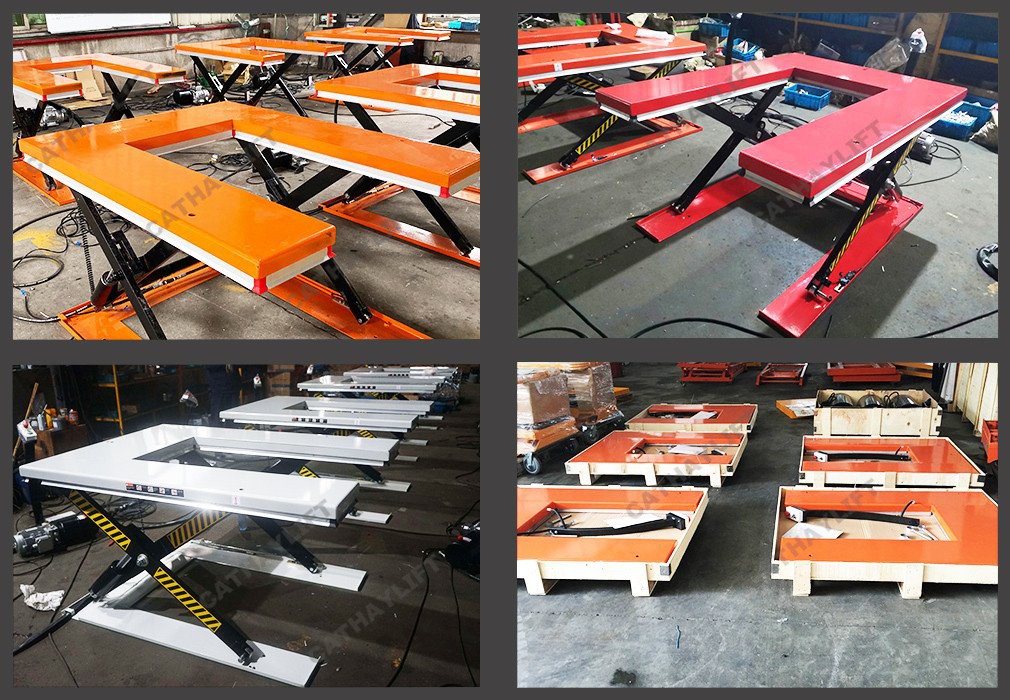

The products are divided into E shape and U shape, which are convenient for pallet trucks or forklifts to pick and place goods.

Send Inquiry

Chat Now

Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of small hydraulic lift table in China. We warmly welcome you to buy discount small hydraulic lift table for sale here from our factory. Quality products and reasonable price are available.

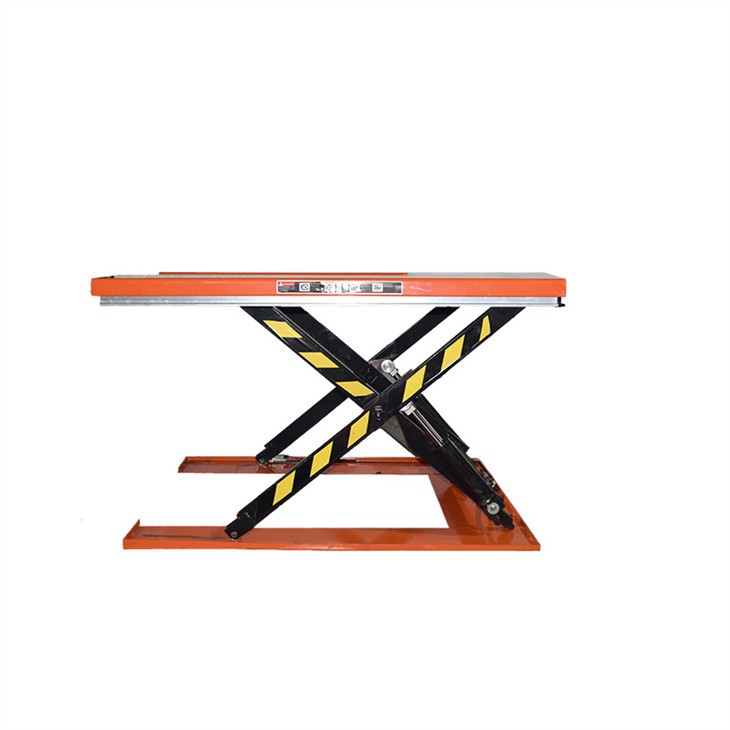

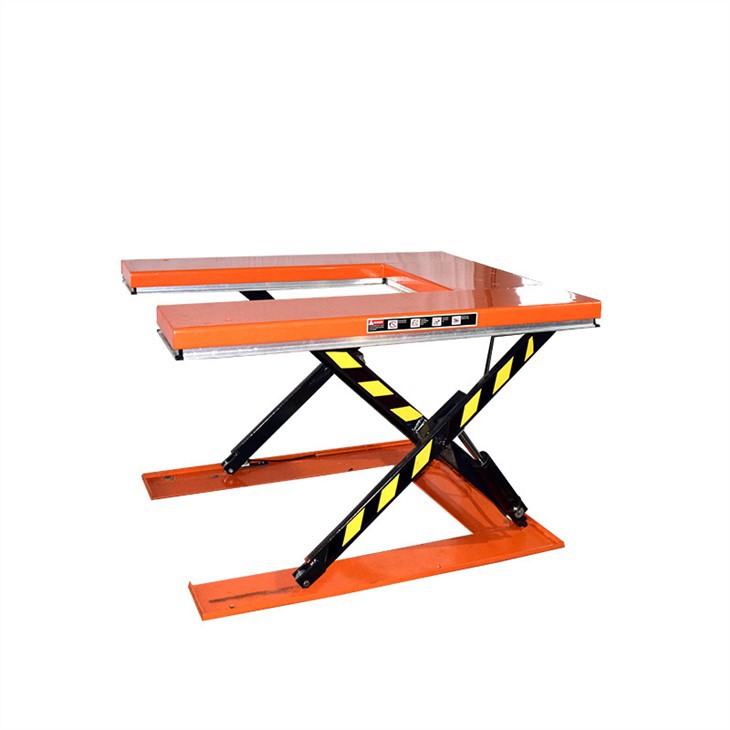

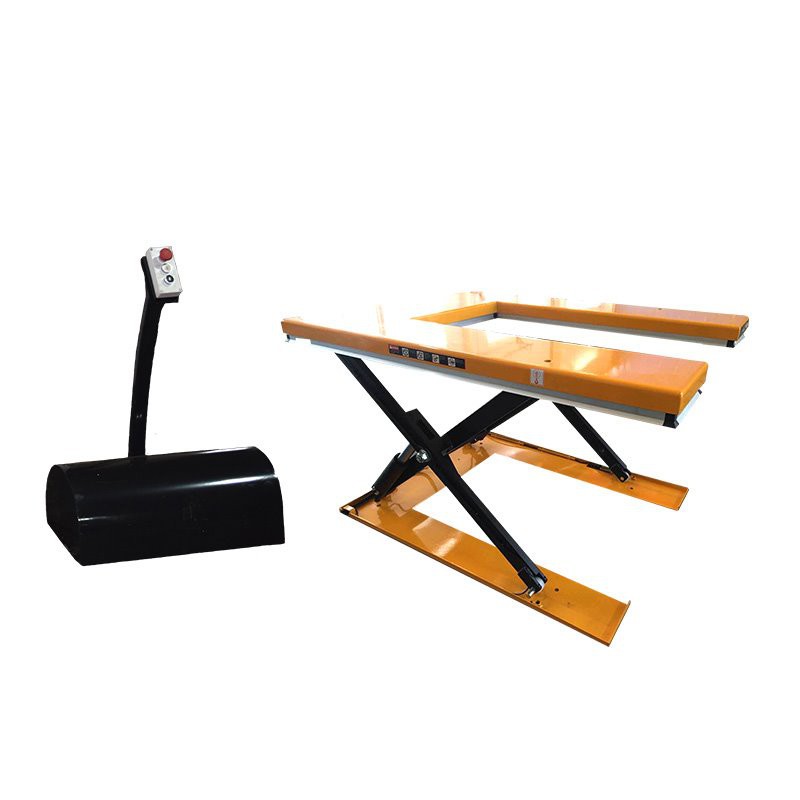

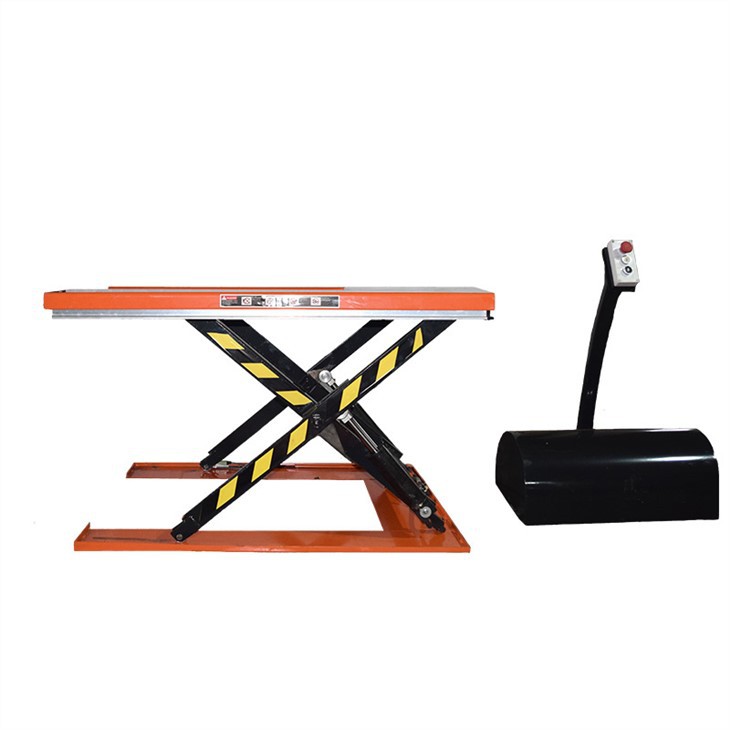

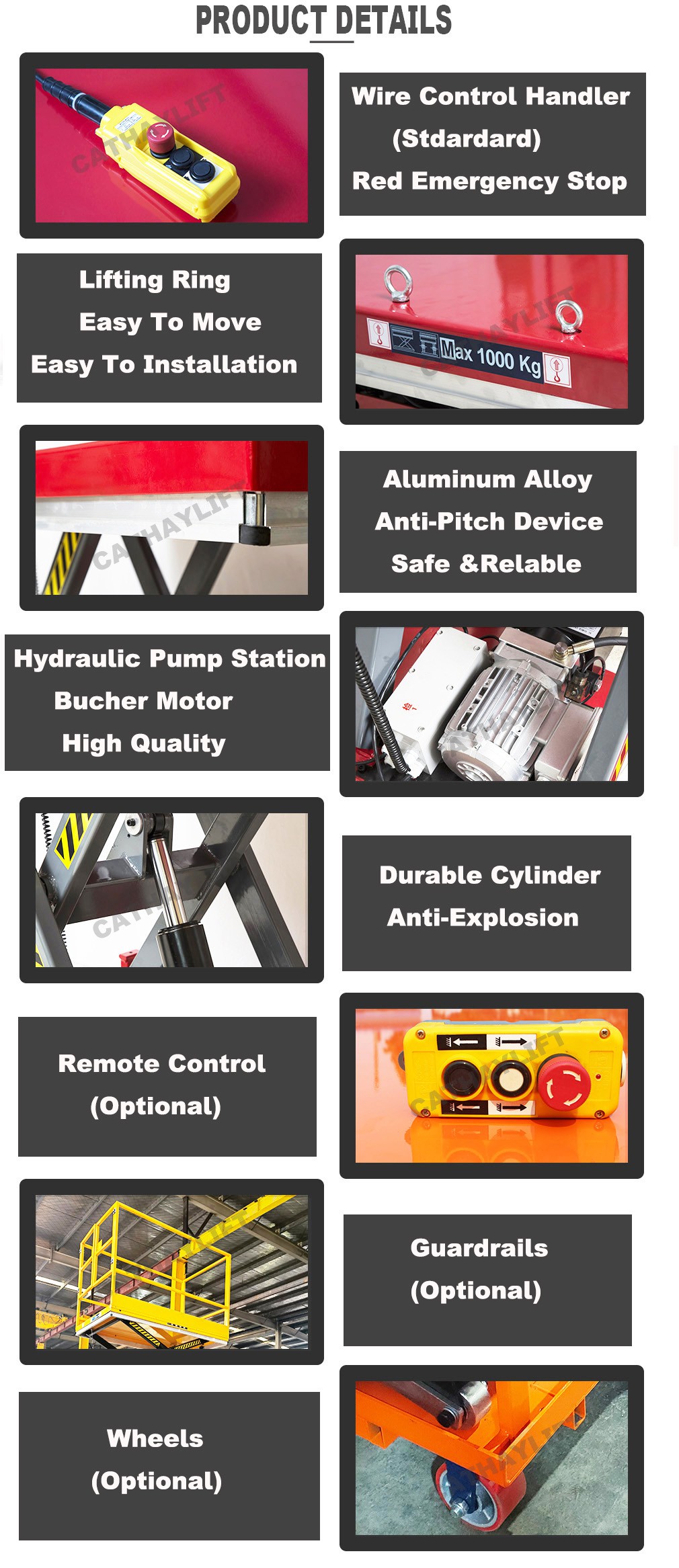

The Small Hydraulic Lift Table is used to lift and lower the goods smoothly and efficiently to the required height under the premise of ensuring the safety of the workers. The main component is the top high-strength manganese steel table (shot blasting, electrostatic spraying treatment) (optional Aluminum alloy), scissor support, lower chassis, as well as a scissor system driven by one or more cylinders and a high-quality hydraulic pump station. This kind of lifting equipment has become a common equipment in many different fields and industries. It is a representative product of material handling and provides the best solution for loading, unloading and lifting of goods.

Model		LPU600	LPU1000	LPU1500
Load Capacity	kg	600	1000	1500
Platform size LxW	mm	1450x985	1450x1140	1600x1200
Size A	mm	200	280	305
Size B	mm	1080	1080	1150
Size C	mm	580	580	590
Min.Platform Height	mm	85	85	105
Max.Platform Height	mm	870	870	870
Base size LxW	mm	1335x947	1335x947	1335x947
Lifting time	s	25-35	25-35	30-40
Power		380V/50Hz	380V/50Hz	380V/50Hz
Net weight	kg	207	280	380
