Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of low profile hydraulic lift table in China. We warmly welcome you to buy discount low profile hydraulic lift table for sale here from our factory. Quality products and reasonable price are available.

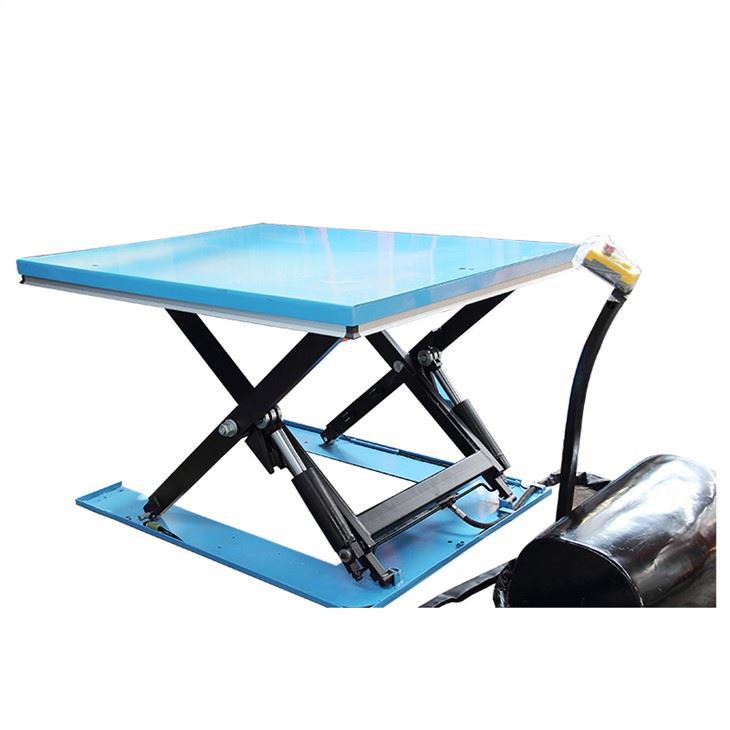

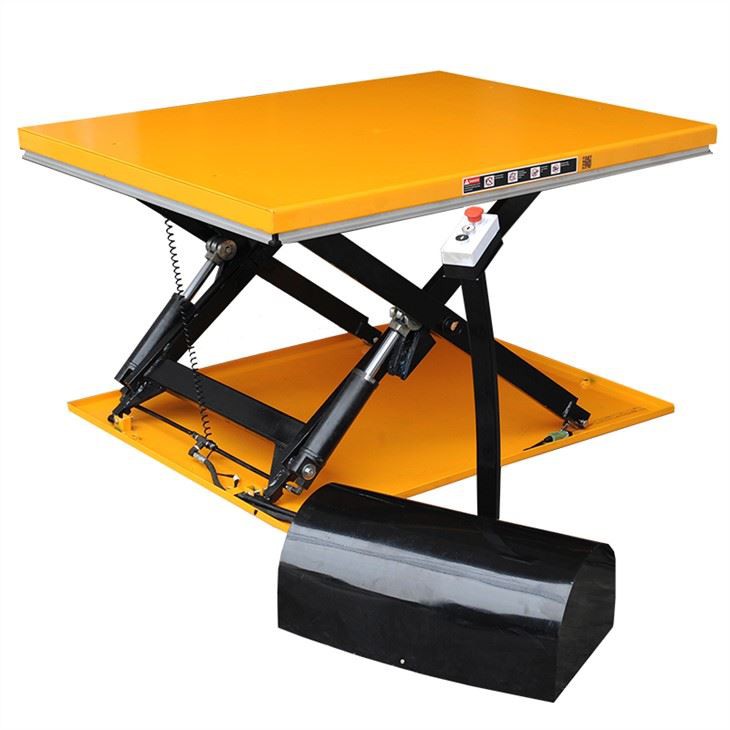

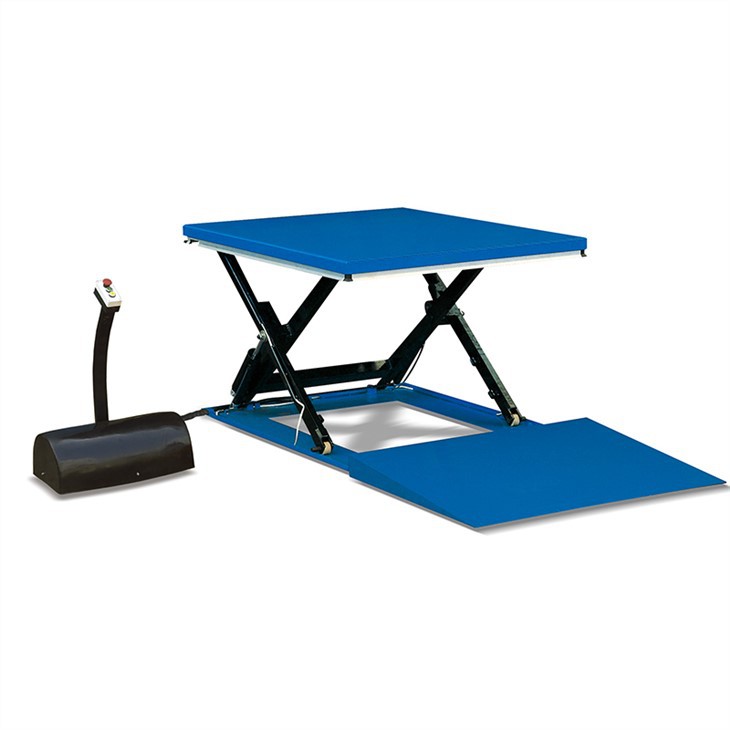

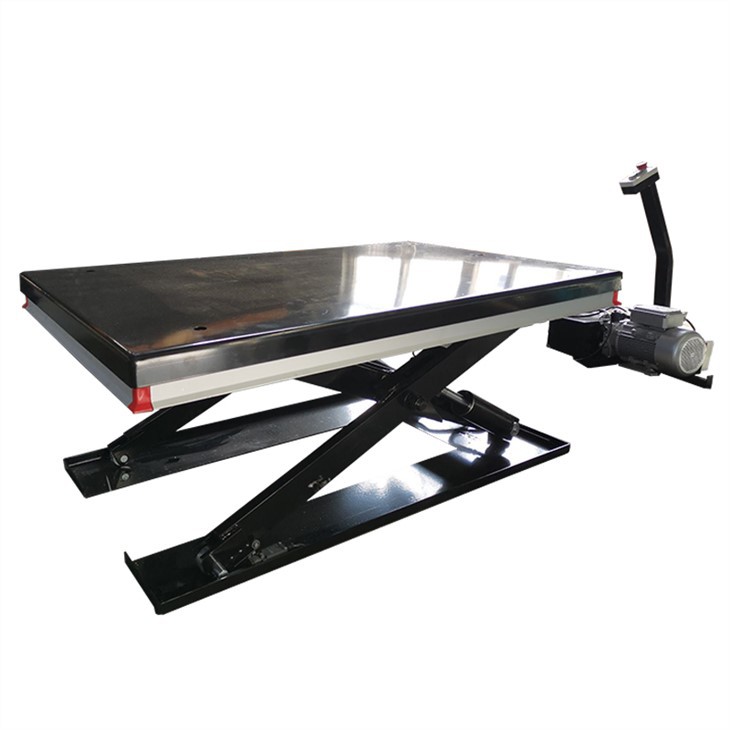

Low Profile Hydraulic Lift Table is mainly used in truck lifting platform, freight lifting platform, high-altitude installation, maintenance and other operations, logistics center cargo transportation, construction and decoration, production line, maintenance and other line height differences.
Model | Loading Capacity(kg) | Platform Size | Base Size | Self Height (mm) | Max Platform Height (mm) | Lifting Time(s) | Power | Net Weight(kg) |
LP1001 | 1000 | 1450x1140 | 1325x1074 | 85 | 860 | 25 | as per your local standard | 357 |
LP1002 | 1000 | 1600x1140 | 1325x1074 | 85 | 860 | 25 | 364 | |
LP1003 | 1000 | 1450x800 | 1325x734 | 85 | 860 | 25 | 326 | |
LP1004 | 1000 | 1600x800 | 1325x734 | 85 | 860 | 25 | 332 | |
LP1005 | 1000 | 1600x1000 | 1325x734 | 85 | 860 | 25 | 352 | |
LP1501 | 1500 | 1600x800 | 1325x734 | 105 | 870 | 30 | 302 | |
LP1502 | 1500 | 1600x1000 | 1325x734 | 105 | 870 | 30 | 401 | |
LP1503 | 1500 | 1600x1200 | 1325x734 | 105 | 870 | 30 | 415 | |
LP2001 | 2000 | 1600x1200 | 1427x1114 | 105 | 870 | 35 | 419 | |
LP2002 | 2000 | 1600x1000 | 1427x734 | 105 | 870 | 35 | 405 |

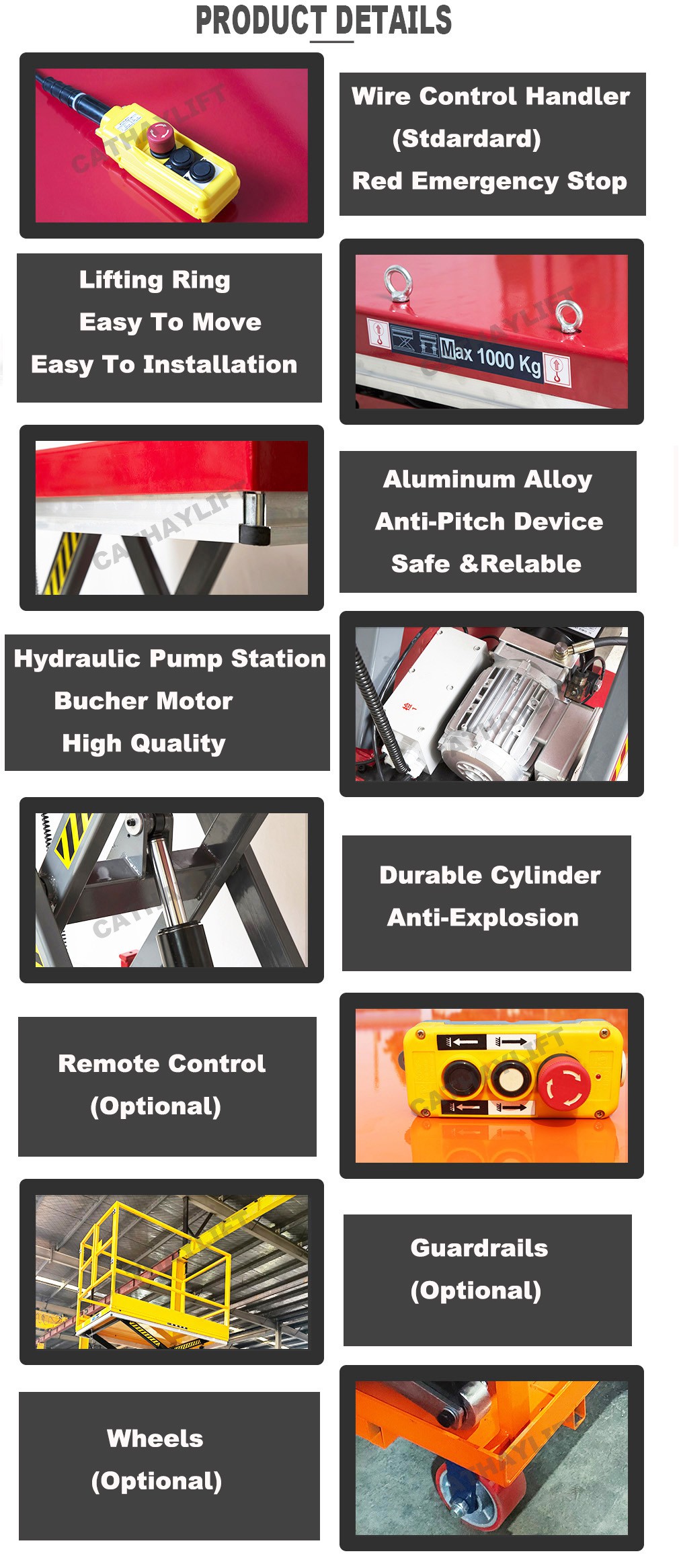

Product Details
Features & Advantages:
● Ultra-low platform, no need to build underground pits for installation; heavy-duty design, ultra-long table;
● Comply with all European safety standards, including EN1570:1999 safety standard;
● High-quality AC power supply components, IP54 protection grade; power supply: AC 380V/50HZ/3 phases;
● 24V low voltage control box with up and down buttons and instant stop buttons;
● Anti-overload safety valve and pressure-compensated flow valve can precisely control the descending speed;
● There is a safety device under the table to ensure that the table stops falling when it encounters an obstacle;
● Heavy duty oil cylinder with return device and check valve to prevent the table from falling when the oil pipe bursts;
● The linkage part is equipped with a self-lubricating guide ring to reduce the wear between parts;
● Detachable lifting ring is convenient for installation and maintenance on the countertop;
● Equipped with safety wedges for maintenance.

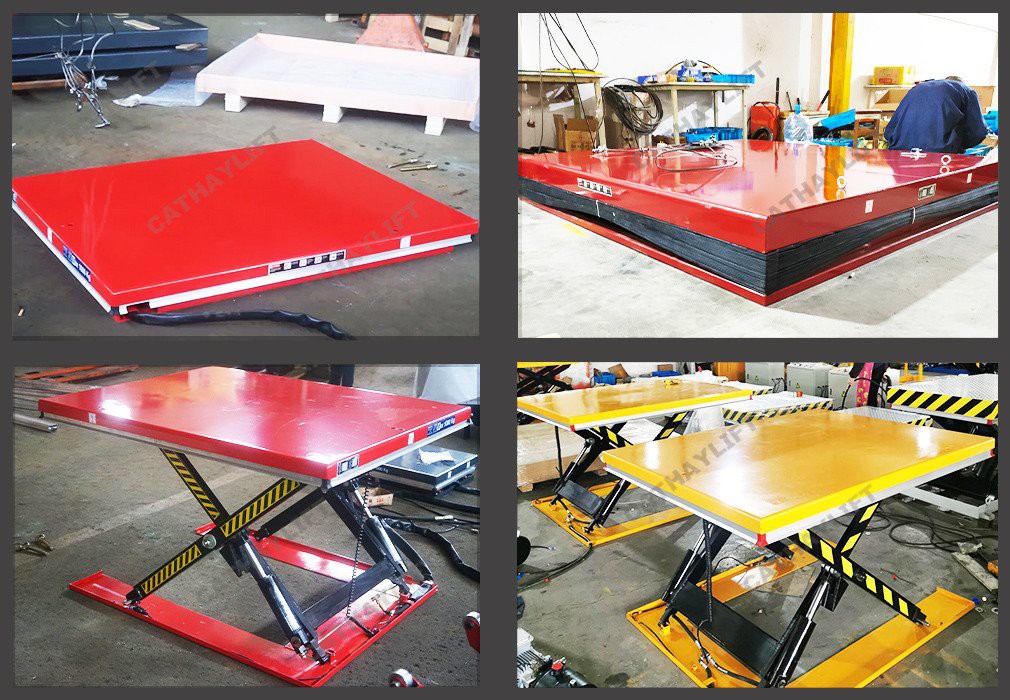

Real Order
