Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of small glass lifting suction cups in China. We warmly welcome you to buy discount small glass lifting suction cups for sale here from our factory. Quality products and reasonable price are available.

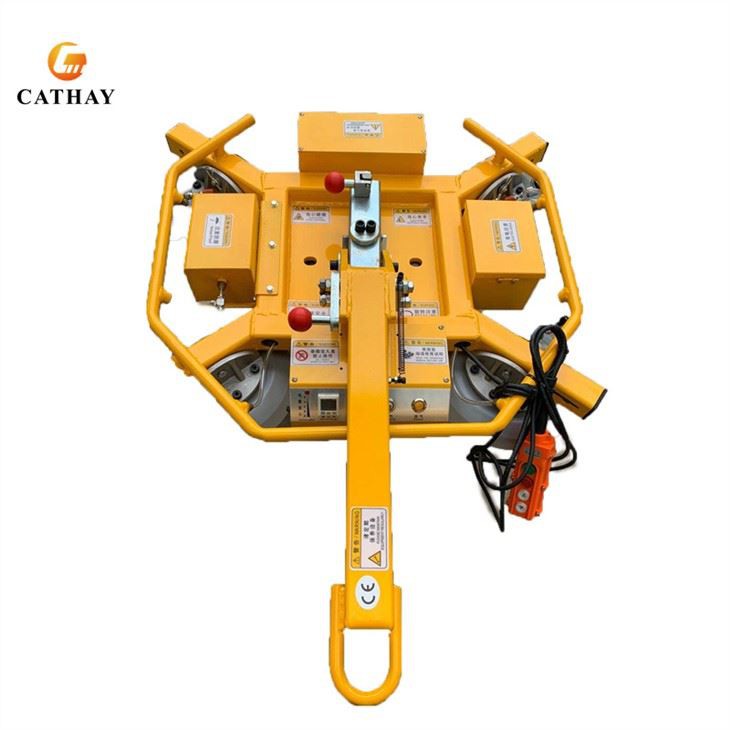

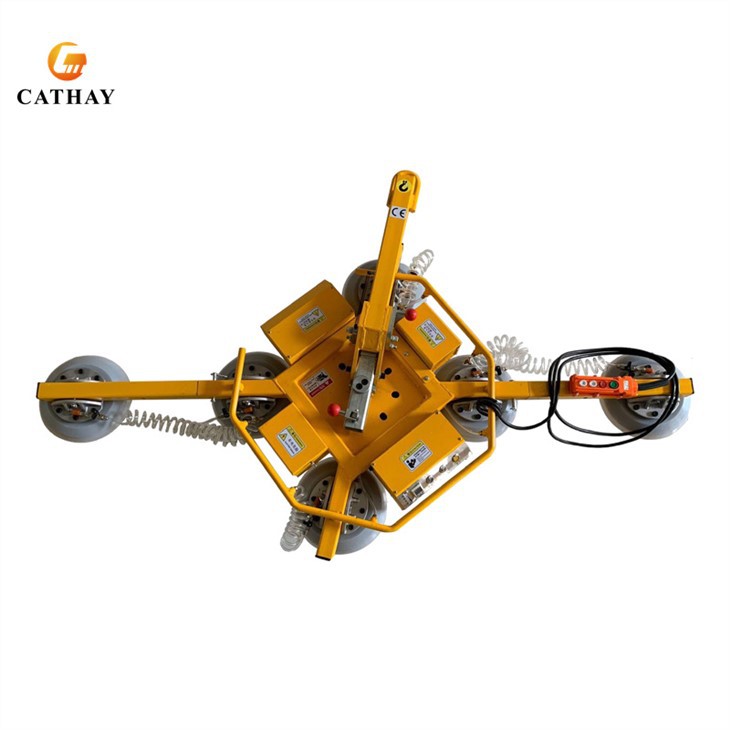

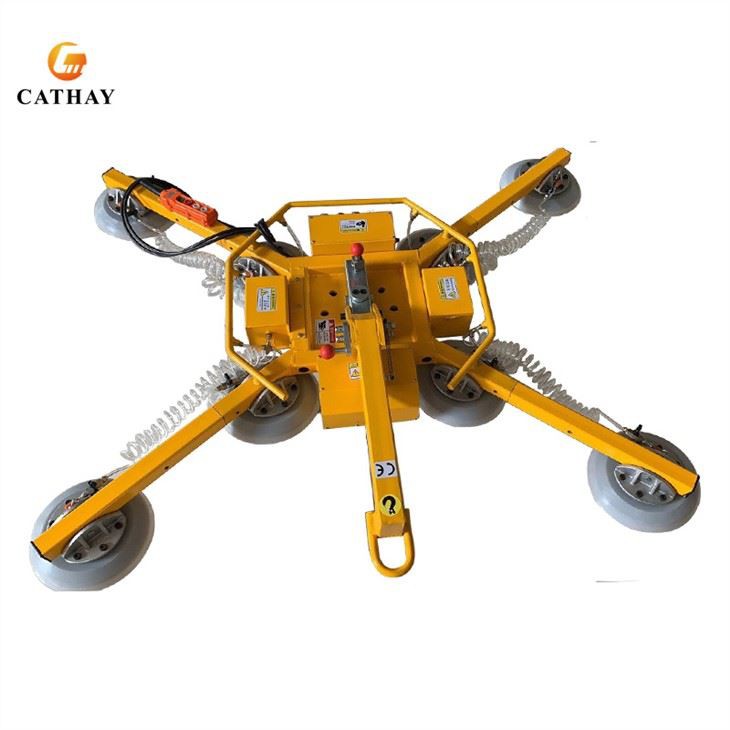

Small Glass Lifting Suction Cups can be rotated 360 degrees in the vertical plane and 90 degrees in the horizontal plane for easy operation. The rack adopts a combined design, and at least four styles can be combined. Thomas DC oil-free vacuum pump from the United States has super suction power and is subjected to high-precision pressure Tested and highly airtight vacuum barrels to ensure safety and reliability.
Model | XC-S400 | XC-S600 | XC-S800 | XC-S1000 | XC-S1200 | |
Lifting Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
Cup Qty | / | 4 | 6 | 8 | 10 | 12 |
Single Cup Diameter | mm | 300 | 300 | 300 | 300 | 300 |
Single Cup Capacity | kg | 100 | 100 | 100 | 100 | 100 |
Rotation | / | 360°manual rotate | ||||
Tilting | / | 90° manual | ||||
Voltage | V | DC12 | ||||
Charger | V | AC220/110 custom | ||||
Weight | kg | 70 | 90 | 100 | 120 | 120 |
Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |
Extension Bar Length | mm | 500 | ||||
Control System | / | Integrated Control Cabinet and Wired Remote Control | ||||
Overall Size | mm | 1230*910*390mm, packed by wooden box | ||||
Gross Weight | kg | 97 | 110 | 123 | 150 | 163 |

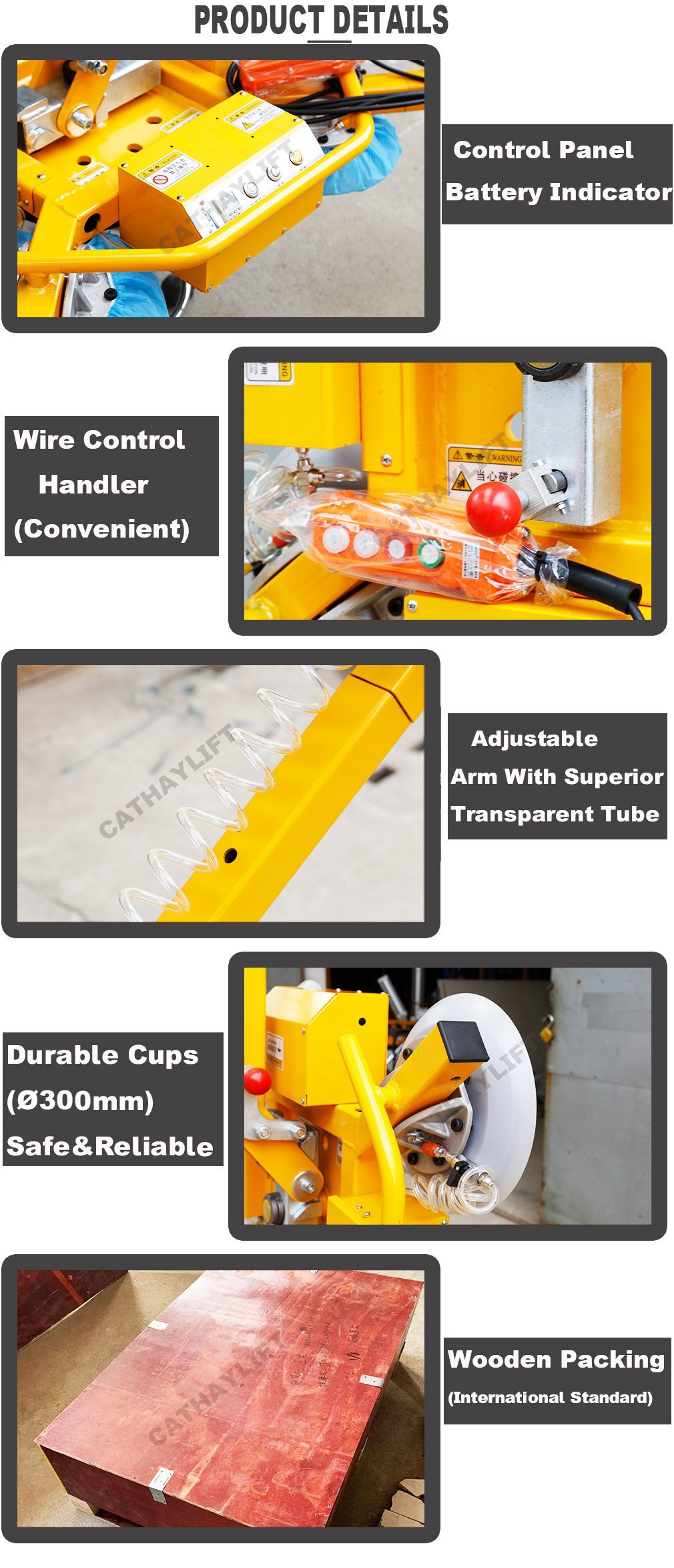

Product Details
Advantages:
● The product uses a sealing cover to protect the internal electronic components, which is safe and reliable. The equipment is usually used in conjunction with a crane or hoist for glass installation operations or glass deep processing and handling operations.
● Adjustable boom, at least four shapes can be combined to adapt to different sizes of glass, and can also be customized according to the size of the glass.
● It can be rotated 360 degrees in the vertical plane, flipped 90 degrees in the horizontal plane, electric control of suction and release, manual rotation, easy to operate.
● Using American THOMAS vacuum pump and high-quality maintenance-free battery, it is easy to use, simple to maintain, and no external power supply is required.
● Japan's Panasonic digital vacuum pressure switch, battery indicator, to ensure stable and safe monitoring during use
● The vacuum pressure automatic balancing system ensures that the entire system is maintained at a relatively constant safe pressure value to prevent accidents when in use.
● Equipped with a power failure and pressure maintaining device and an automatic alarm device, which can prolong the working time and make it safer to use.
● Equipped with a 12v battery and a spare battery, which can be replaced at any time to ensure that the project can be completed quickly.
● We accept OEM&ODM services, please tell us the specific parameters of the lifting material, and we will tailor the most suitable equipment for you.

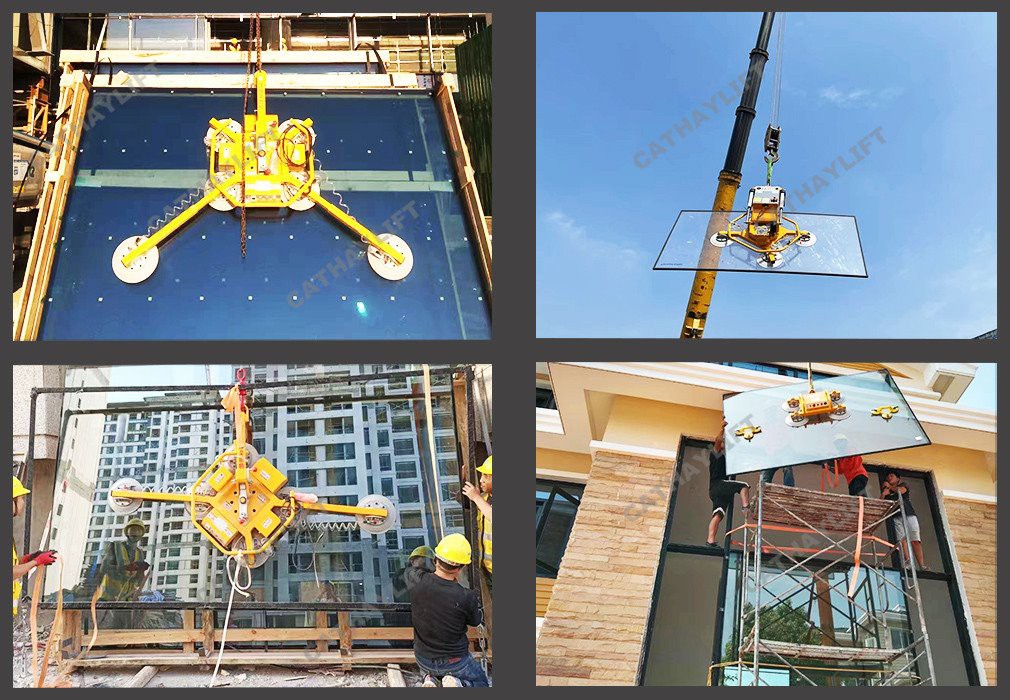

Real Order
