Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of electric vacuum glass lifter in China. We warmly welcome you to buy discount electric vacuum glass lifter for sale here from our factory. Quality products and reasonable price are available.

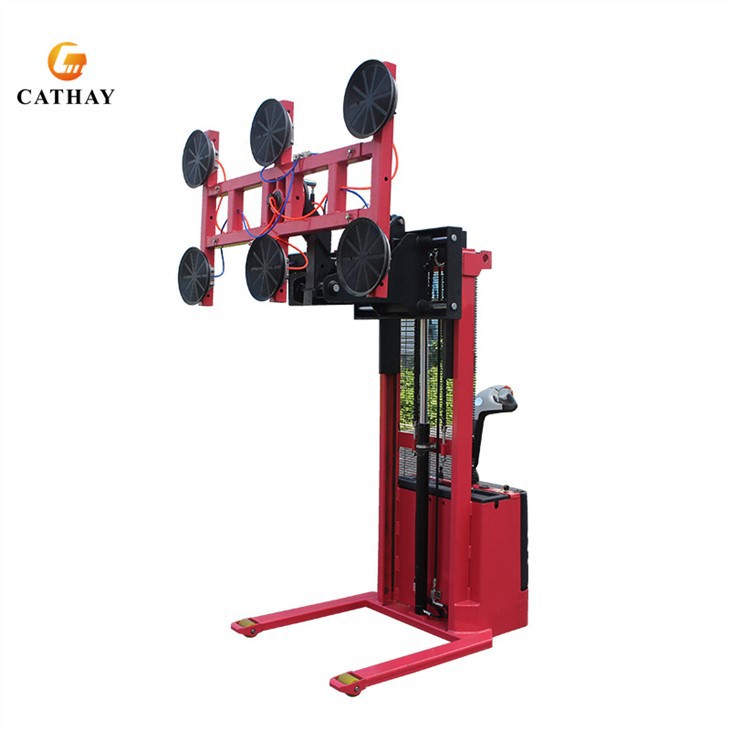

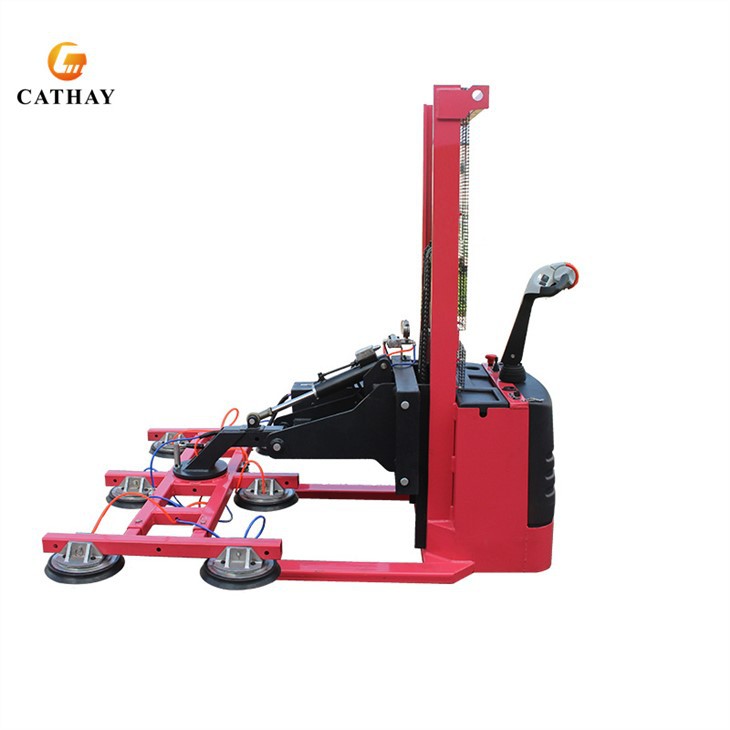

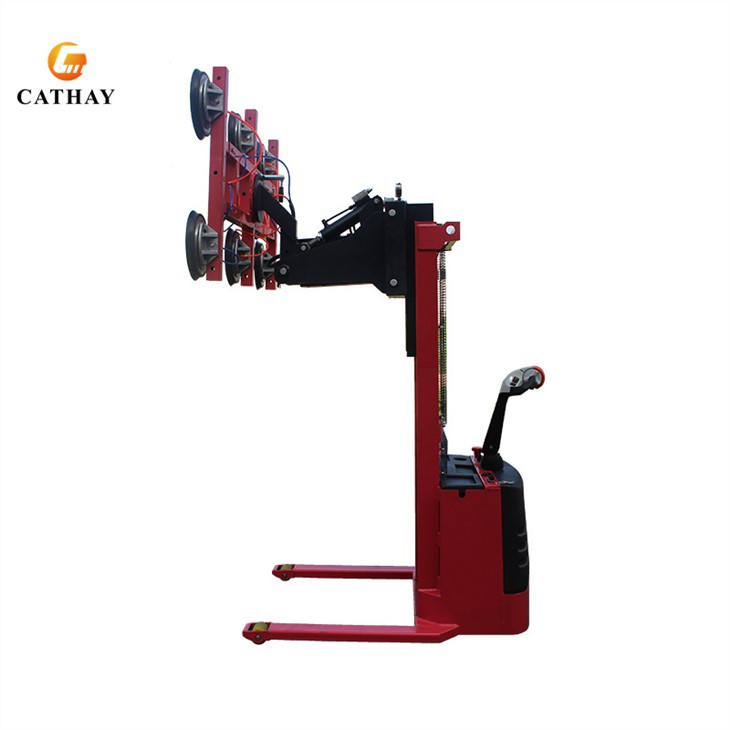

CATHAYLIFT Electric Vacuum Glass Lifter is mainly used for handling, loading and unloading, and flipping installation of various types of flat plates, glass, and other materials. The suction cup handling manipulator fixture has its own power supply, uses European safety standards to automatically adjust and control the working pressure, and adopts a dual-pipeline system for safety monitoring to prevent accidents. Electric Vacuum Glass Lifter is environmentally friendly, efficient, and easy to operate, and has the following functions: Electric travel, and electronic step-less speed regulation. Electric hydraulic lift, electric side shift, electric forward shift, electric tilt forward or backward, from vertical state to a horizontal state. ) of the travel wheel. Product categories are walking type economical type, standard type folding pedal standing type, balance weight type, cockpit steering wheel control type, etc. Configuration: intelligent ten-level power display meter, multi-function control handle, large-capacity battery pack, intelligent microcomputer charger.
Model | XC-H400(4) | XC-H400(6) | XC-H600(6) | XC-H600(8) | |
Rated Load Capacity | 400kgs | 600kgs | |||
Safe Load Capacity | 200kgs | 300kgs | |||
Lifting Height | 1500mm | 1500mm | |||
QTY of Suction Caps | 4pcs | 6pcs | 6pcs | 8pcs | |
Cap Diameter | Ø300mm | Ø300mm | |||
Plate Size (customized) | 1220x1830mm | 2440x1830mm | |||
Load Center | 650mm | 950mm | |||
Drive Motor | 24V/500W | 24V/700W | |||
Hydraulic Motor | 24V/2000W | 24V/2000W | |||
Battery | 2x12V/70Ah | 2x12V/100Ah | |||
Charger | 24V/10A | 24V/15A | |||
Movements | Automatic | 1.Driving automatic | |||
Manual | Pad frame tilt left/right 90° manual | ||||
Uages | Mainly used for handling and moving heavy panels in workshop and project site | ||||
Model | XC-H800(8) | XC-H800(10) | XC-H800(8) | XC-H800(10) | |
Rated Load Capacity | 800kgs | 800kgs | |||
Safe Load Capacity | 400kgs | 400kgs | |||
Lifting Height | 1500mm | 2500mm | |||
QTY of Suction Caps | 8pcs | 10pcs | 8pcs | 10pcs | |
Cap Diameter | Ø300mm | Ø300mm | |||
Plate Size (customized) | 3660x2440mm | 3660x2440mm | |||
Load Center | 1250mm | 1250mm | |||
Drive Motor | 24V/900W | 24V/900W | |||
Hydraulic Motor | 24V/2000W | 24V/2000W | |||
Battery | 2x12V/160Ah | 2x12V/160Ah | |||
Charger | 24V/20A | 24V/20A | |||
Movements | Automatic | 1.Driving automatic | |||
Manual | Pad frame tilt left/right 90° manual | ||||
Uages | Mainly used for handling and moving heavy panels in workshop and project site | ||||

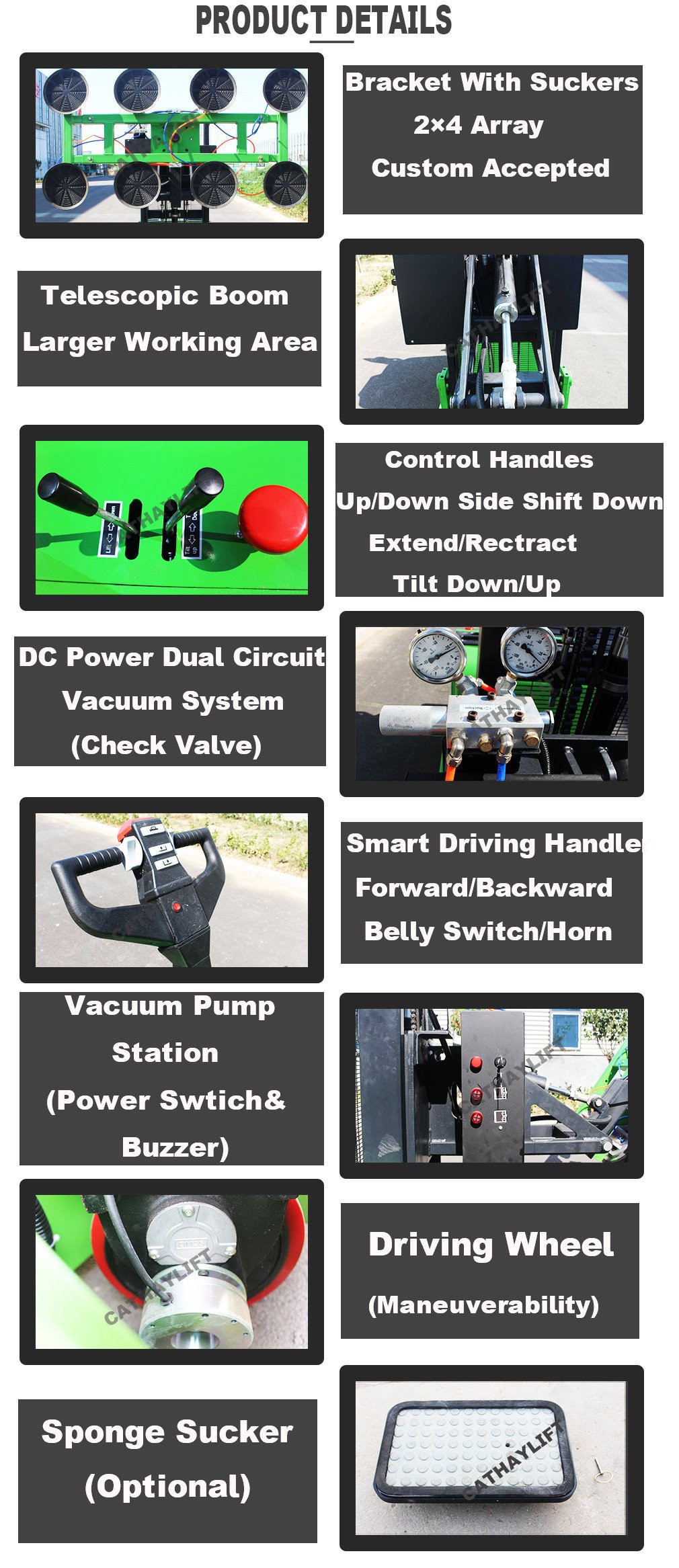

Product Details
Real Order
