Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of glass lifting suction cups in China. We warmly welcome you to buy discount glass lifting suction cups for sale here from our factory. Quality products and reasonable price are available.

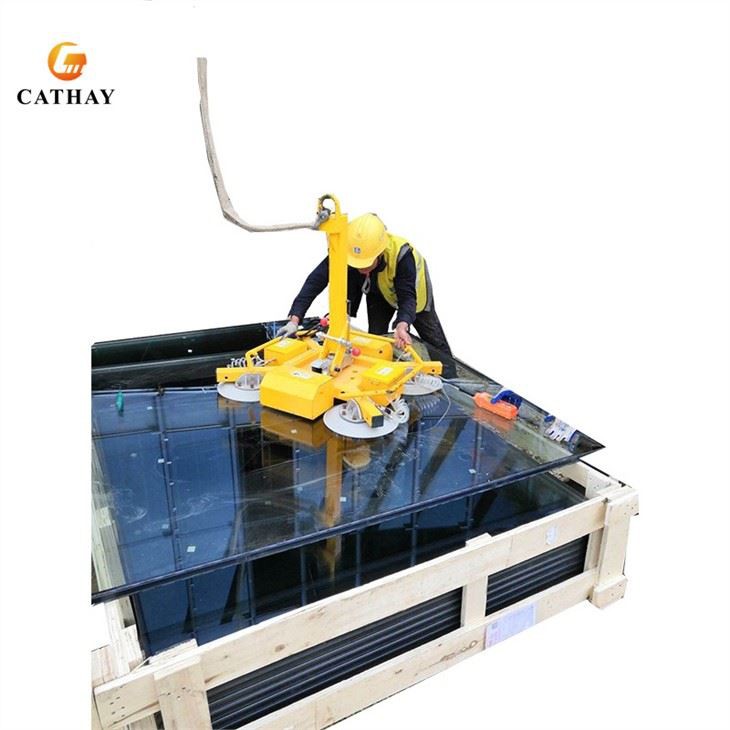

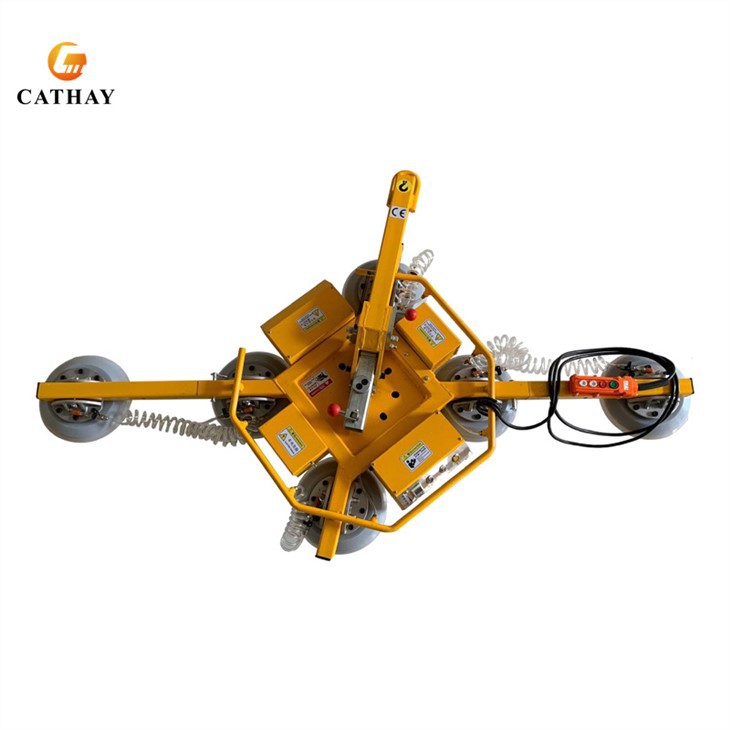

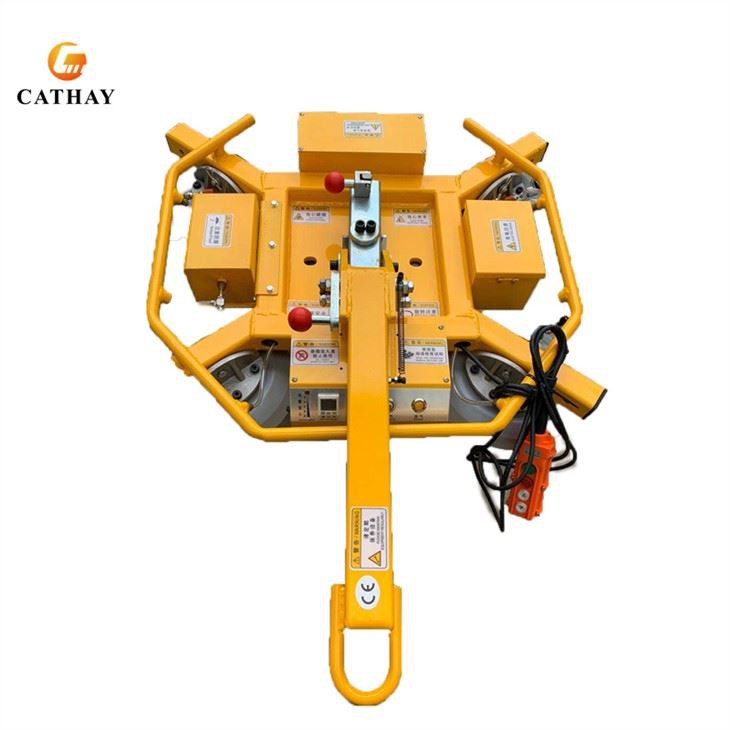

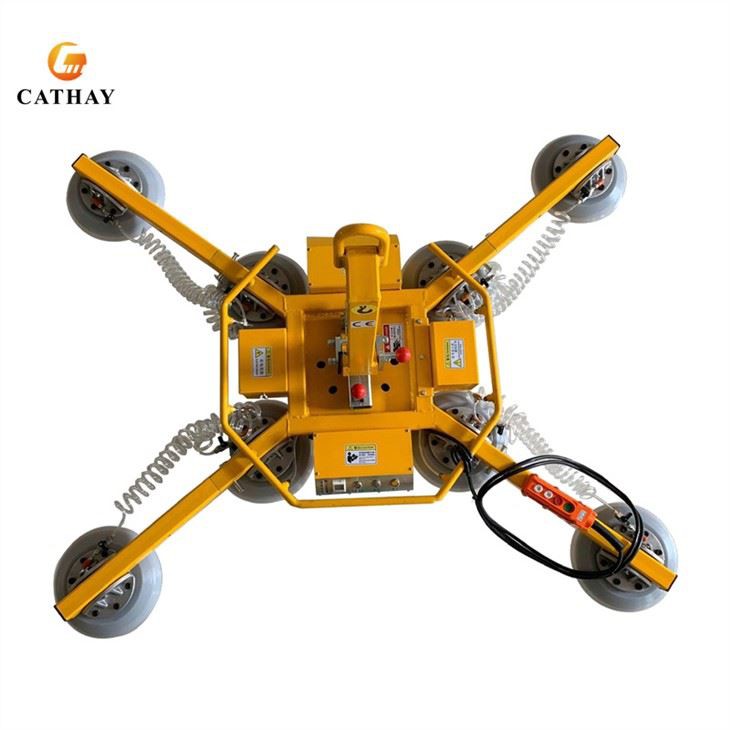

Glass Lifting Suction Cups require the cooperation of lifting equipment during use, and can be used with a simple hook connection without external power supply. When the load is in the vertical or horizontal state of 90 degrees, the automatic locking angle function is standard. Button control suction and release is safe and reliable, energy storage and pressure keeping vacuum system, higher safety, can be rotated 360 continuously; manual rotation function, the position of suction cup can be adjusted; extension rod can be installed and removed, better adapt to the size and shape of various loads , application and glass production and processing, glass curtain wall, etc.
Model | XC-S400 | XC-S600 | XC-S800 | XC-S1000 | XC-S1200 | |
Lifting Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
Cup Qty | / | 4 | 6 | 8 | 10 | 12 |
Single Cup Diameter | mm | 300 | 300 | 300 | 300 | 300 |
Single Cup Capacity | kg | 100 | 100 | 100 | 100 | 100 |
Rotation | / | 360°manual rotate | ||||
Tilting | / | 90° manual | ||||
Voltage | V | DC12 | ||||
Charger | V | AC220/110 custom | ||||
Weight | kg | 70 | 90 | 100 | 120 | 120 |
Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |
Extension Bar Length | mm | 500 | ||||
Control System | / | Integrated Control Cabinet and Wired Remote Control | ||||
Overall Size | mm | 1230*910*390mm, packed by wooden box | ||||
Gross Weight | kg | 97 | 110 | 123 | 150 | 163 |
Product Details
Advantages:
● Lightweight and easy to operate.
● 12V battery drive, no external power supply required.
● Extension rods can be added according to the glass size.
● It can be manually turned 90° and 360° manually, with a labor-saving device.
● Digital display of air pressure and digital display of battery power.
● Fully enclosed shell protection, more suitable for outdoor curtain wall installation.
● Equipped with insufficient vacuum and power-off pressure maintaining and alarm devices.
● Ultra-large vacuum accumulator, accidental power failure can prolong the emergency treatment time and make it safer to use.
