Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of glass lifter in China. We warmly welcome you to buy discount glass lifter for sale here from our factory. Quality products and reasonable price are available.

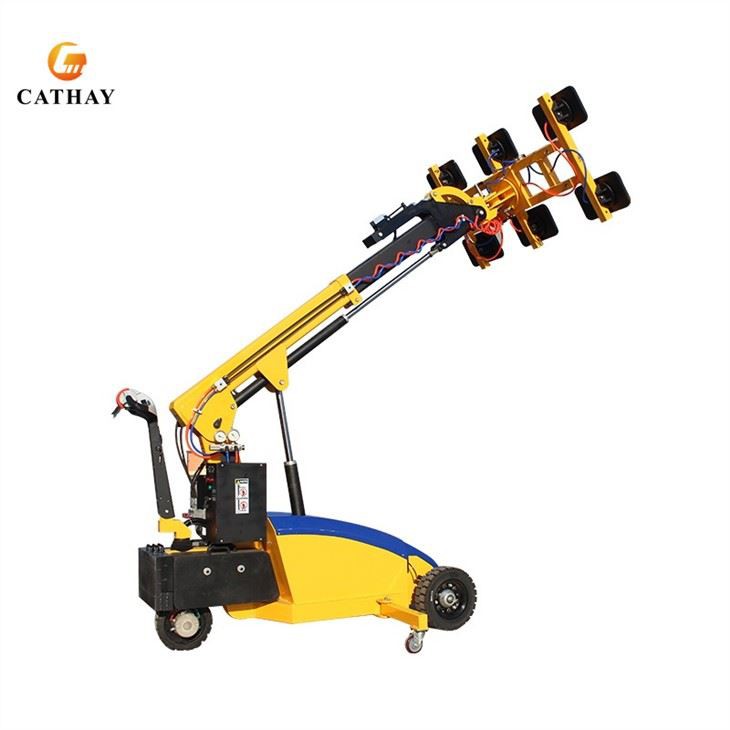

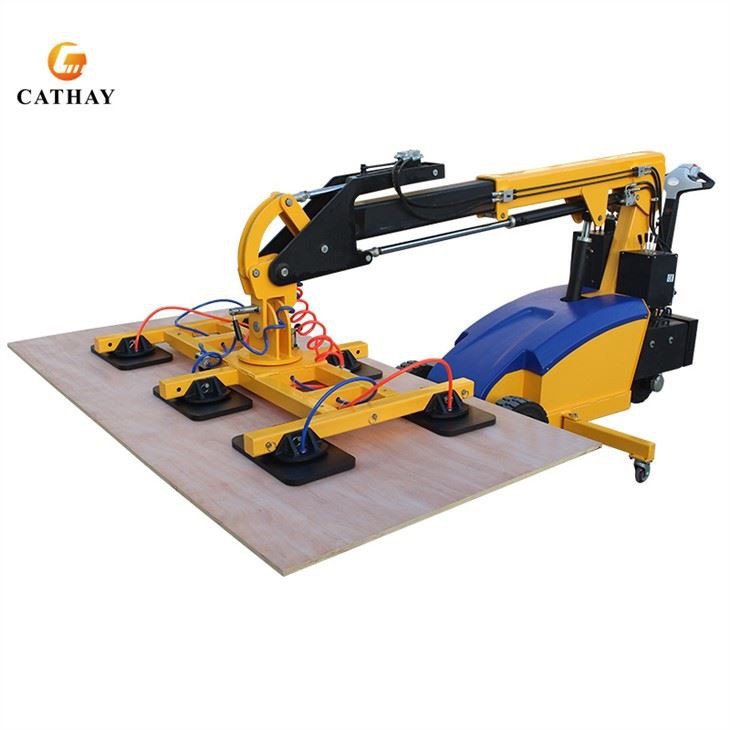

CATHAYLIFT Glass Lifter is suitable for handling and lifting of glass, steel plate, marble, flat plate and other plates; it is equipped with four suction cups, six suction cups, eight suction cups, etc. The suction cups can be turned 360 degrees in both directions; In two rows), the suction cup finished font (the product font refers to the arrangement of the suction cups) controls the car to lift and turn over flat goods such as glass and marble. During operation, by controlling the suction cups, the flipped flat plate can be sucked up and lifted. With: electric front and rear walking, electric hydraulic lifting, suction cup suction guarantee system, electric flip and other functions. The suction cup suction guarantee system, if one set of suction cups leaks, the other set of suction cups can also suck the goods, ensuring that the car can suck up and lift the flipped flat plate during normal operation. Small product appearance; easy to enter and exit the elevator. Smart design; the multi-function keys are concentrated on the control handle. Easy to move; electric walking, electronic stepless speed regulation, stable walking, high-power drive motor, to ensure the safety of the carrier glass. Convenient charging: The vehicle is equipped with an intelligent charger, which is convenient to replenish the power of the truck at any time.
Model | XC-L350 | XC-L600 | XC-L800 | |
Load Capacity | 350kg (arm retract) | 600kg (retract) | 800kg (retract) | |
Lifting Height | 3500mm | 3650mm | 5000mm | |
QTY of Suction Cap | 4pcs | 6pcs | 8pcs | |
Rubber Suction Cap | Ø300mm | Ø300mm | Ø300mm | |
Maintenance-free Battery | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | |
Battery Charger | Smart Charger | Smart Charger | Smart Charger | |
Drive motor | 24V/600W | 24V/900W | 24V/1200W | |
Lifting Motor | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/12L | |
Front Wheel | Ø310x100mm | Ø375x110mm | Ø400x150mm | |
Driving Wheel | Ø250x80mm | Ø310x100mm | Ø300x125mm | |
N.W/G.W | 780/820kg | 1200/1250kg | 1600/1700kg | |
Packing Size | Wooden carton: 3150x1100x1860mm. (1x20GP Loading Qty: 5sets) | |||
Movement | Automatic | 1.Pad frame vertical up/down 180°automatic 2.Boom in/out 610/760mm automatic 3.Powered arm up/down automatic 4.Lateral side shift 100mm automatic | ||
Manual (2kinds) | 1.Pad frame tilt left/right 90° manual 2.Pad frame rotation 360°manual | |||
Usages | Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps. | |||

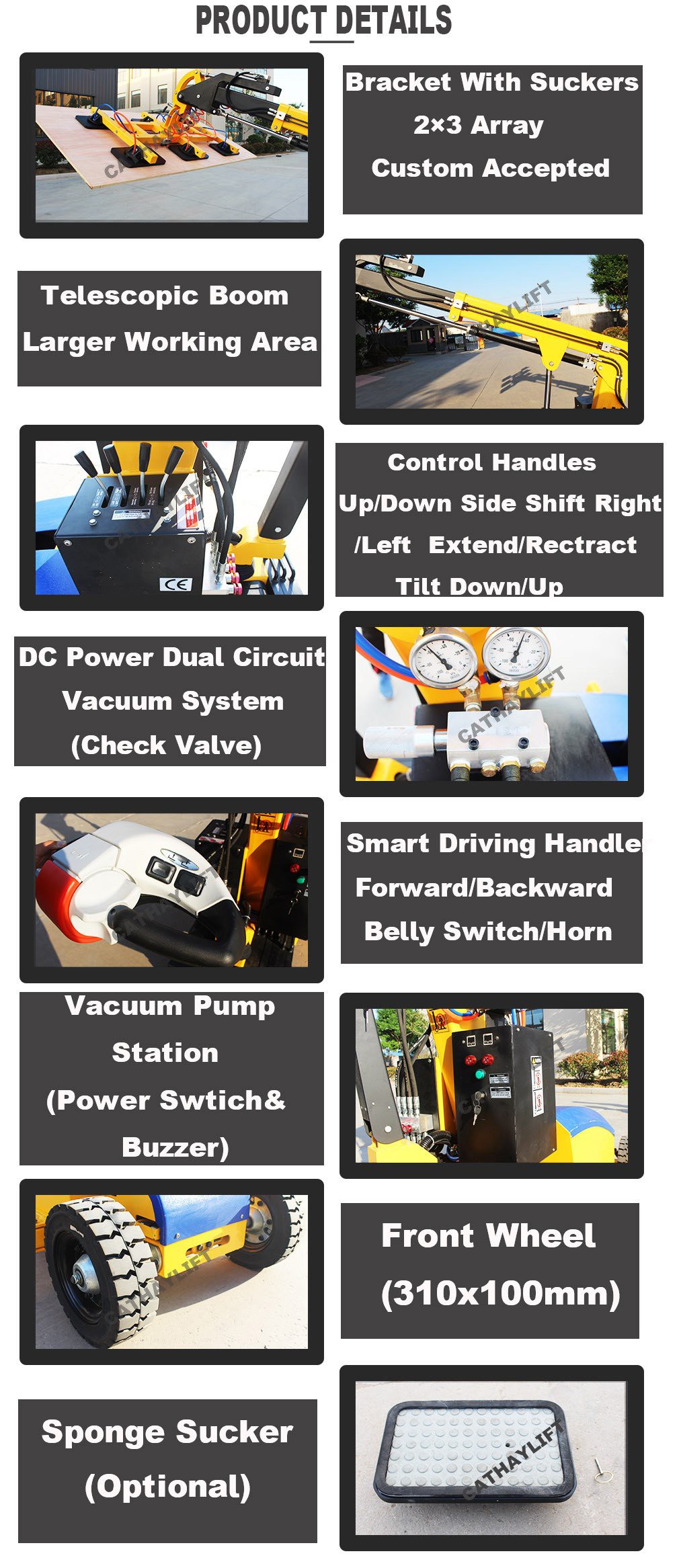

Product Details
Advantages:
● Integrated control system for fast and automatic vertical and horizontal positioning at the touch of a button.
● DC24V reliable lift, extend and tilt actuator. Efficient and precise. Self-propelled, various circuit vacuum suction.
● The price is favorable, saving personnel and effectively improving the working environment.
● The CATHAYLIFT vacuum spreader is shot blasted and painted, with high anti-corrosion performance.
● The high-quality pump station makes the lifting and lowering of the vacuum spreader very stable.
● Heavy duty cylinder with drain system and check valve to stop the scissor lift from descending in the event of a hose burst.
● The pressure reducing valve prevents overload operation, and the flow control valve makes the descending speed adjustable.
● Simple structure, convenient operation and maintenance.
● Comply with American standard ANSI/ASME and European standard EN1570.
Safety Precautions:
● Explosion-proof valve: protect the hydraulic pipe and prevent the hydraulic pipe from breaking.
● Overflow valve: when the machine rises, it can prevent high pressure. Adjust pressure.
● Check valve: prevent the backflow of hydraulic oil
● Emergency lowering valve: When you encounter an emergency or power failure, you can use this valve to quickly drop the boom back to the retracted state.
● Dual circuit vacuum system
● Emergency stop button
● Two support legs

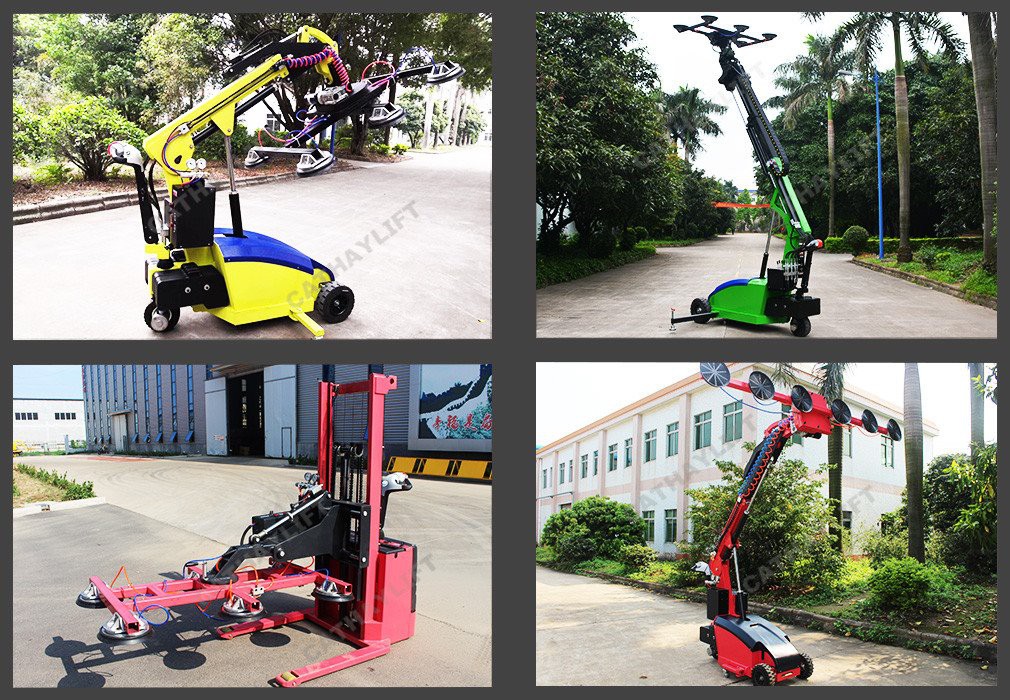

Real Order
