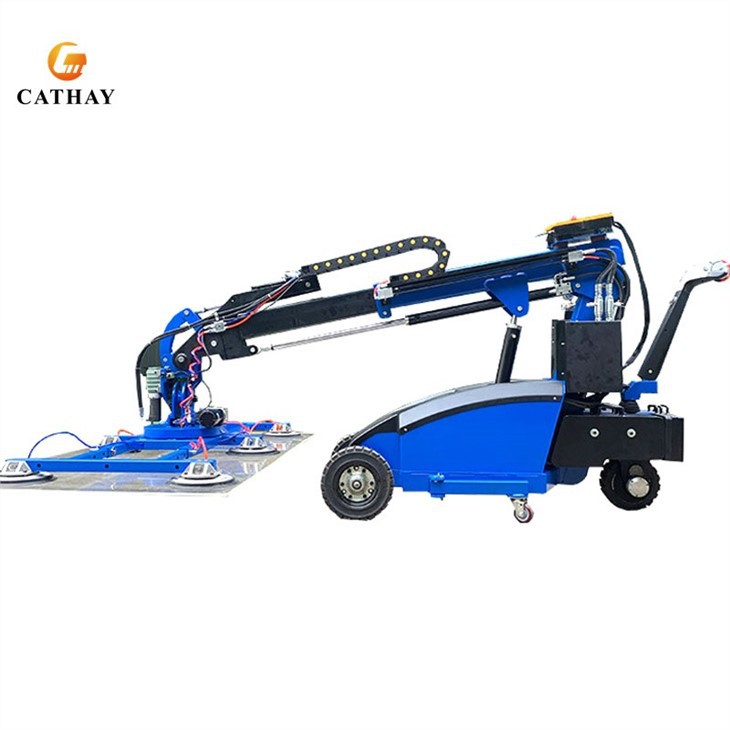

Mobile Vacuum Lifter
video

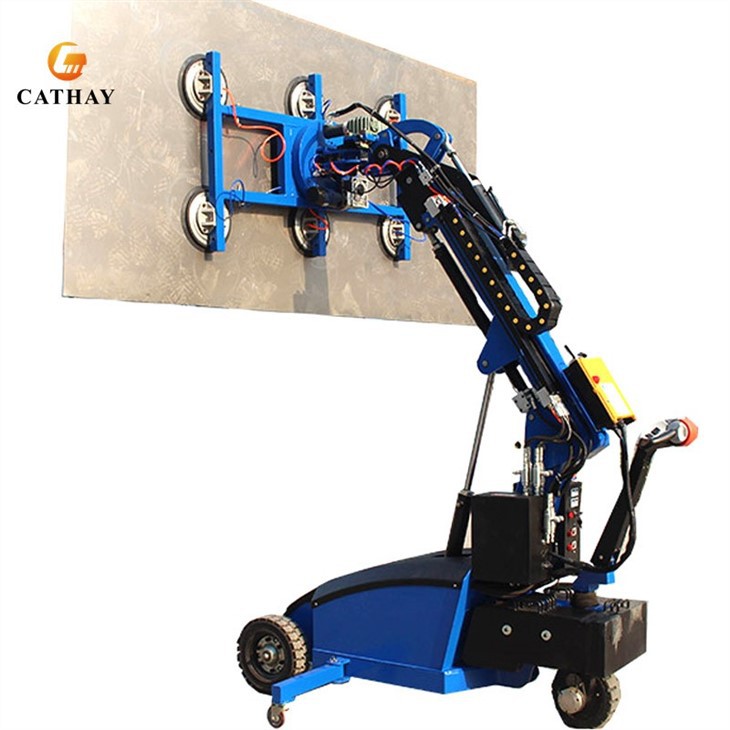

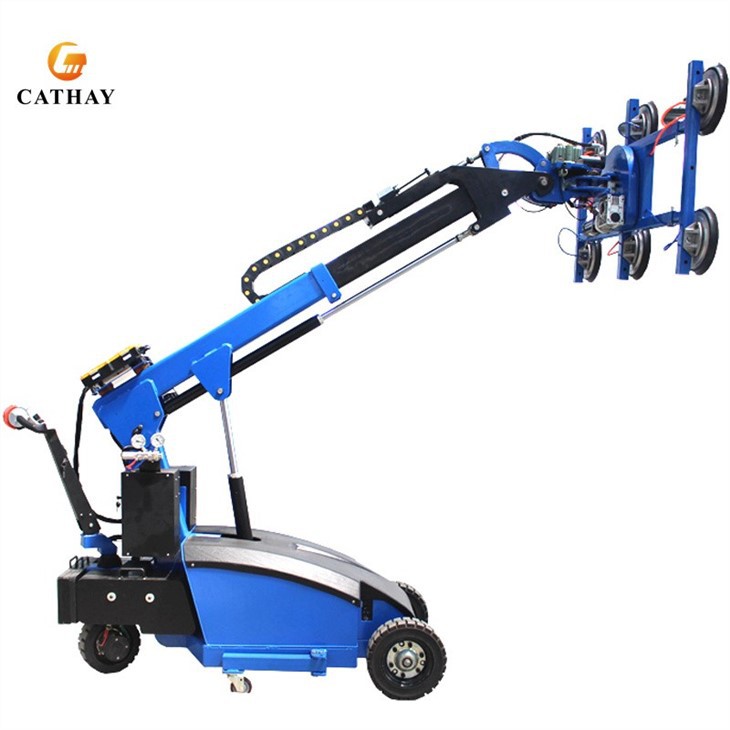

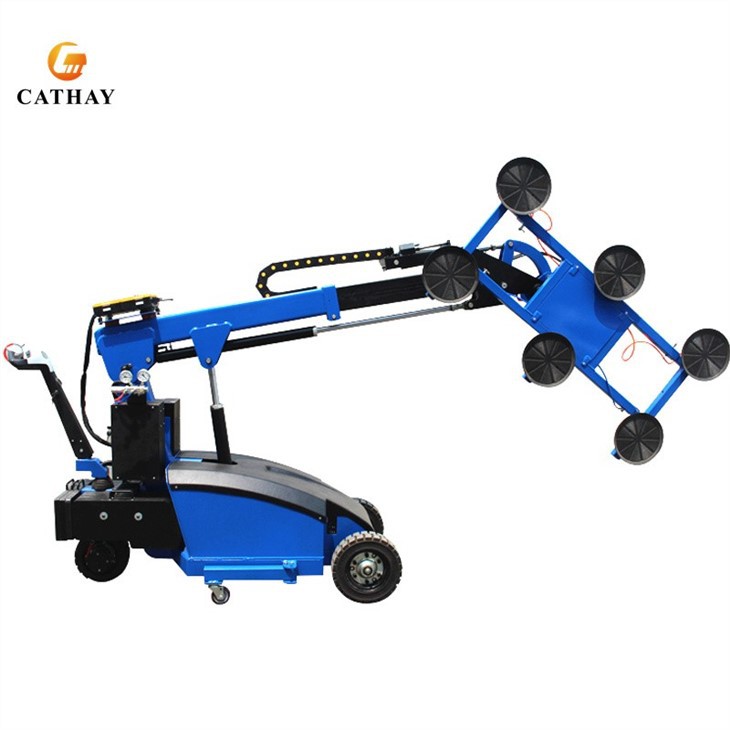

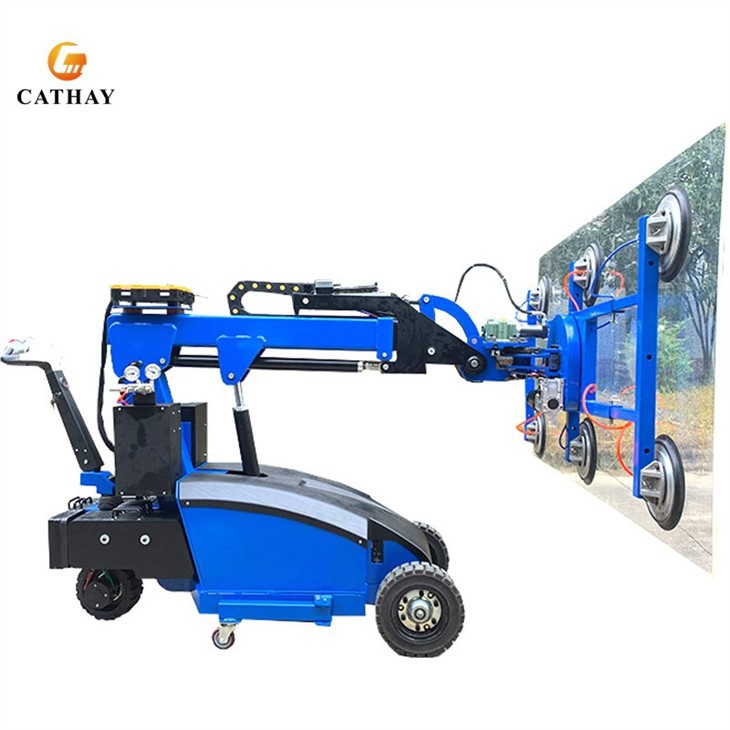

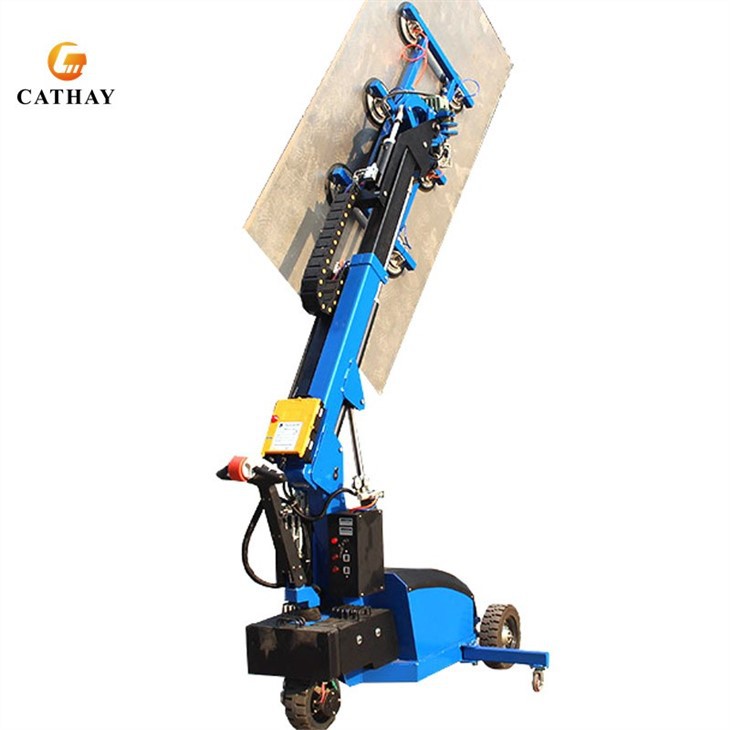

Mobile Vacuum Lifter

Mobile Vacuum Lifter

Cathaylift Mobile vacuum lifter adopts a dual control system, dual air circuit control, and battery power, and no external power supply is required for use. Rubber tires ensure that work can be performed on rougher surfaces. And according to needs, the suction cup holder can be manually rotated 360°, and manually flipped 90°, which greatly improves the work efficiency. It can be widely used in the handling and installation of wood, board, glass, stone, and other materials.
Send Inquiry
Chat Now
Description

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of mobile vacuum lifter in China. We warmly welcome you to buy discount mobile vacuum lifter for sale here from our factory. Quality products and reasonable price are available.



350kg~800kg Load Capacity Vacuum Glass Lifter Robot

Cathaylift Mobile vacuum lifter is equipped with the latest automatic pressure balance device, which can maintain a constant safe pressure range for the balance pressure in the whole process of work, so as to prevent any dangerous situation from happening, and in emergency situations, such as power failure, it will automatically The balanced pressure system can maintain the pressure value for a certain period of time, extending the processing time. With a load capacity of 350kg~800kg and a maximum lifting height of 5m, it can greatly facilitate material handling and installation.

Model

XC-L350

XC-L600

XC-L800

Load Capacity

350kg (arm retract)
175kg (extend)

600kg (retract)
300kg (extend)

800kg (retract)
400kg (extend)

Lifting Height

3500mm

3650mm

5000mm

QTY of Suction Cap

4pcs

6pcs

8pcs

Rubber Suction Cap

Ø300mm

Ø300mm

Ø300mm

Maintenance-free Battery

2x12V/100AH

2x12V/120AH

2x12V/120AH

Battery Charger

Smart Charger

Smart Charger

Smart Charger

Drive motor

24V/600W

24V/900W

24V/1200W

Lifting Motor

24V/2000W/5L

24V/2000W/5L

24V/2000W/12L

Front Wheel

Ø310x100mm

Ø375x110mm

Ø400x150mm

Driving Wheel

Ø250x80mm

Ø310x100mm

Ø300x125mm

N.W/G.W

780/820kg

1200/1250kg

1600/1700kg

Packing Size

Wooden carton: 3150x1100x1860mm. (1x20GP Loading Qty: 5sets)

Movement

Automatic
(4 kinds)

1. Pad frame vertical up/down 180°automatic

2. Boom in/out 610/760mm automatic

3. Powered arm up/down automatic

4. Lateral side shift 100mm automatic

Manual (2kinds)

1. Pad frame tilt left/right 90° manual

2. Pad frame rotation 360°manual

Usages

Special design for handling different kinds of heavy plates, such as steel, glass, granite, marble, and so forth, with different materials of vacuum suction caps.

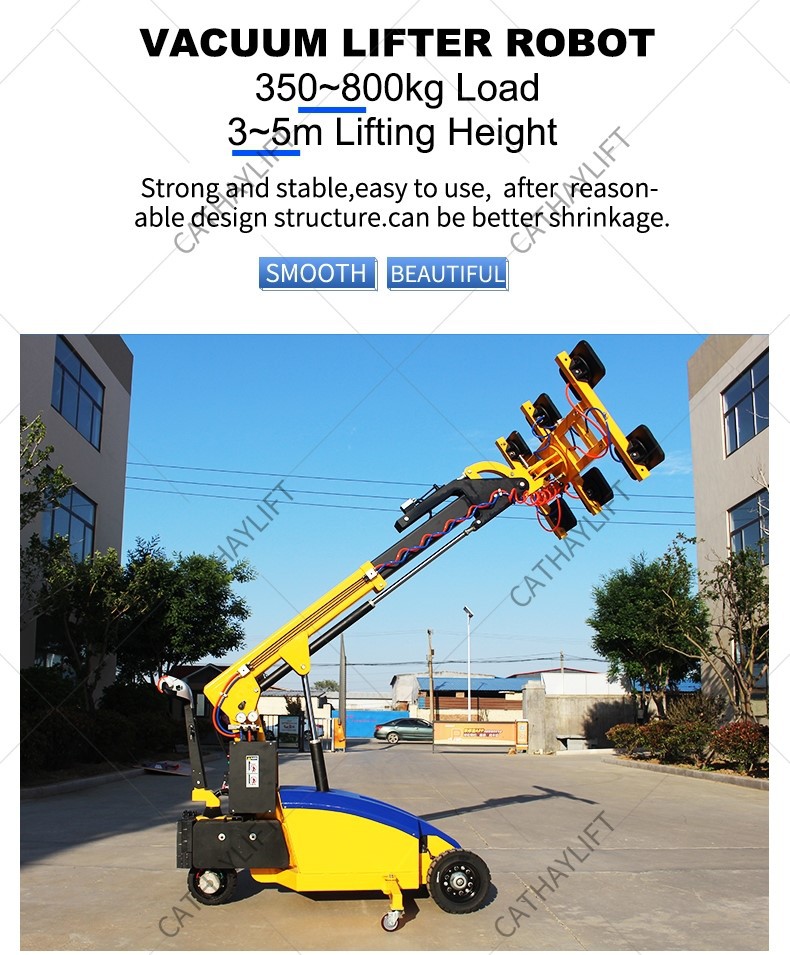

L04



Products Details

L03

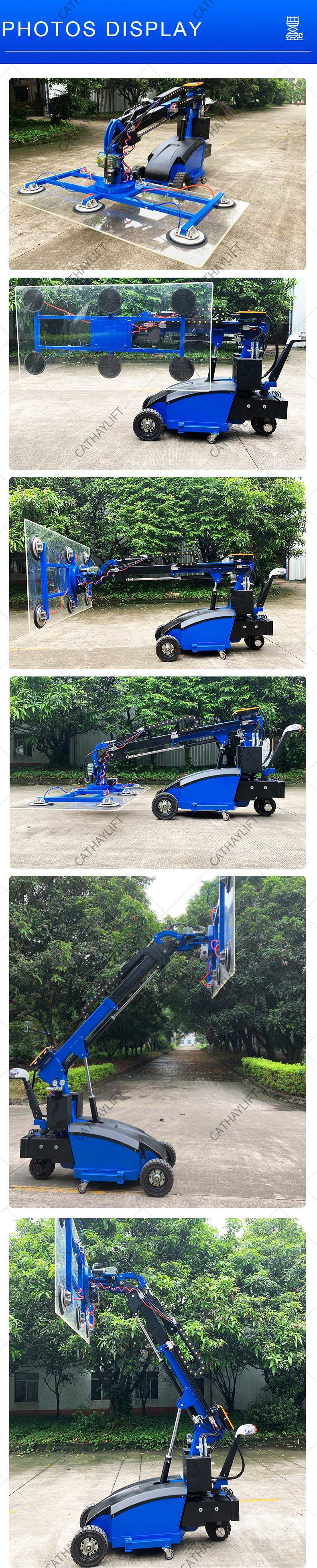

L07

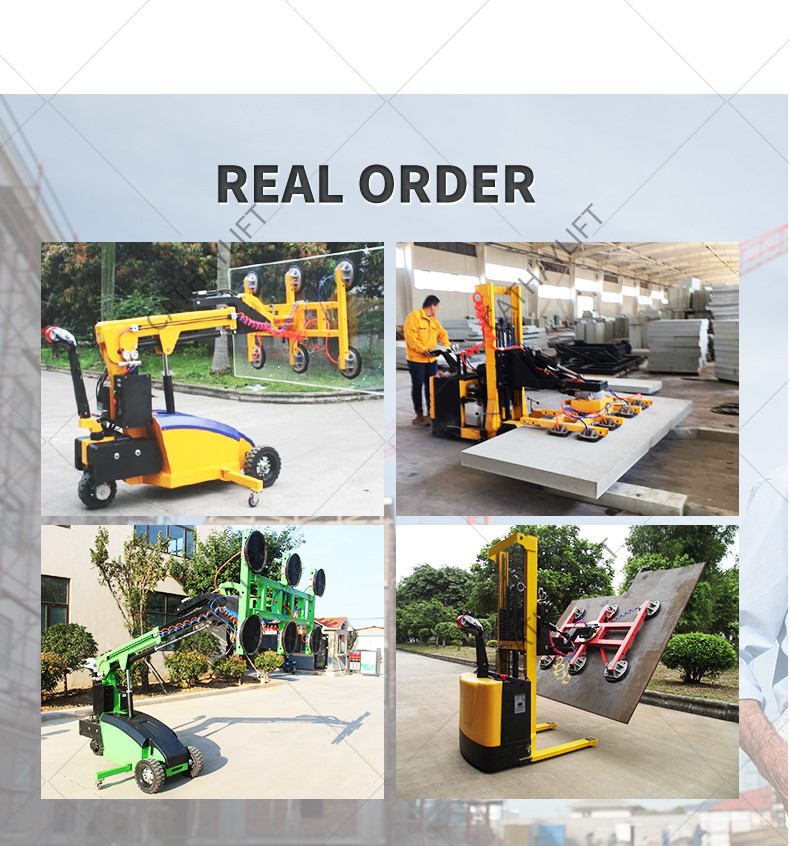

L14

L15
