Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of vacuum glass lifter in China. We warmly welcome you to buy discount vacuum glass lifter for sale here from our factory. Quality products and reasonable price are available.

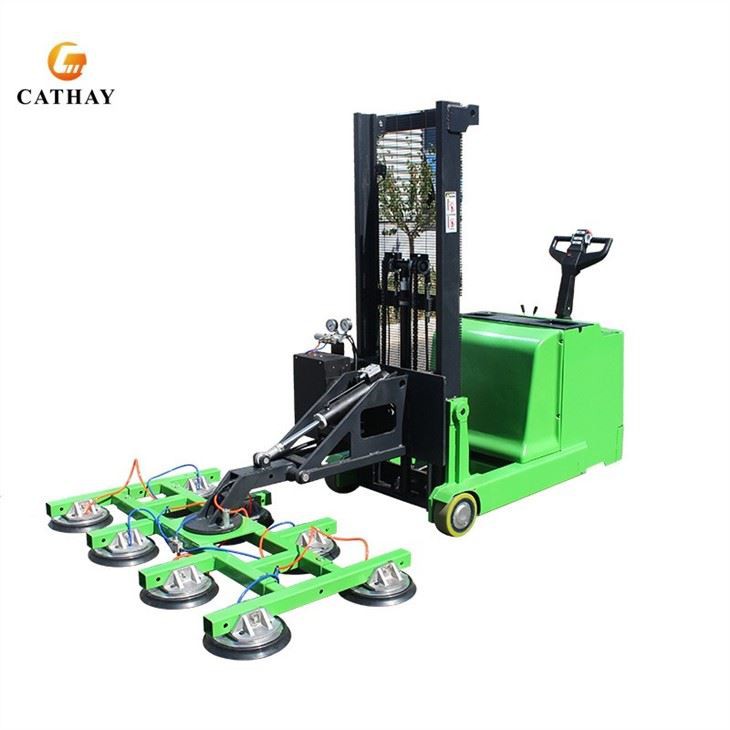

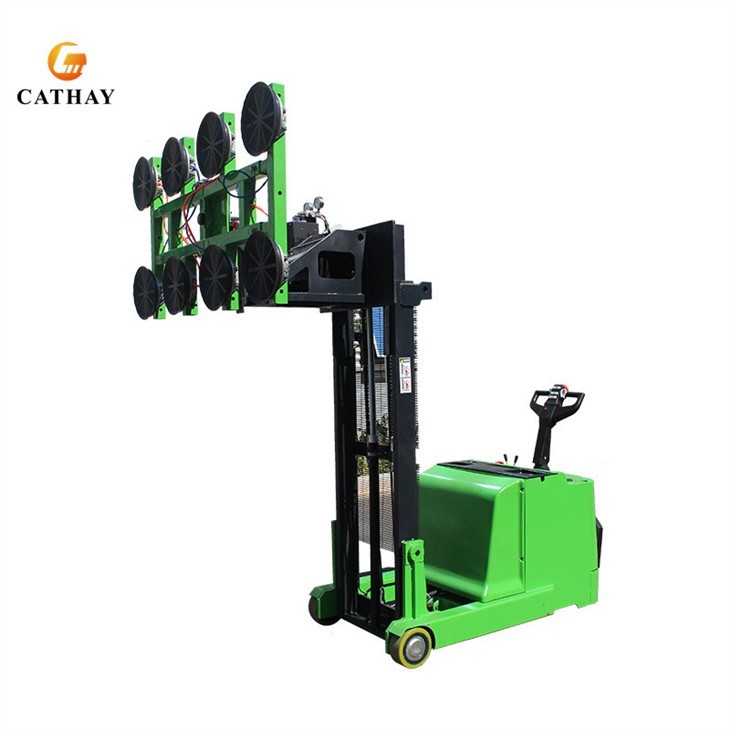

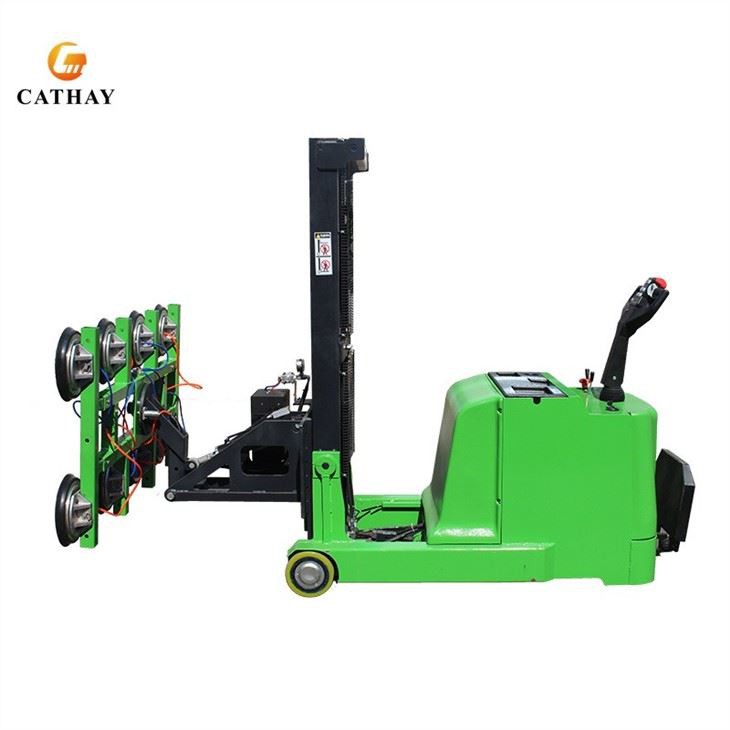

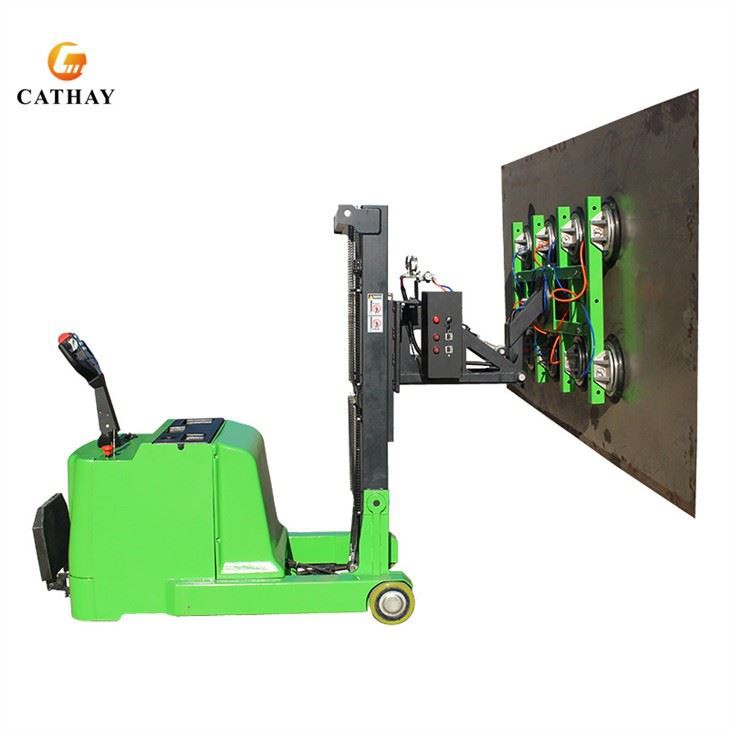

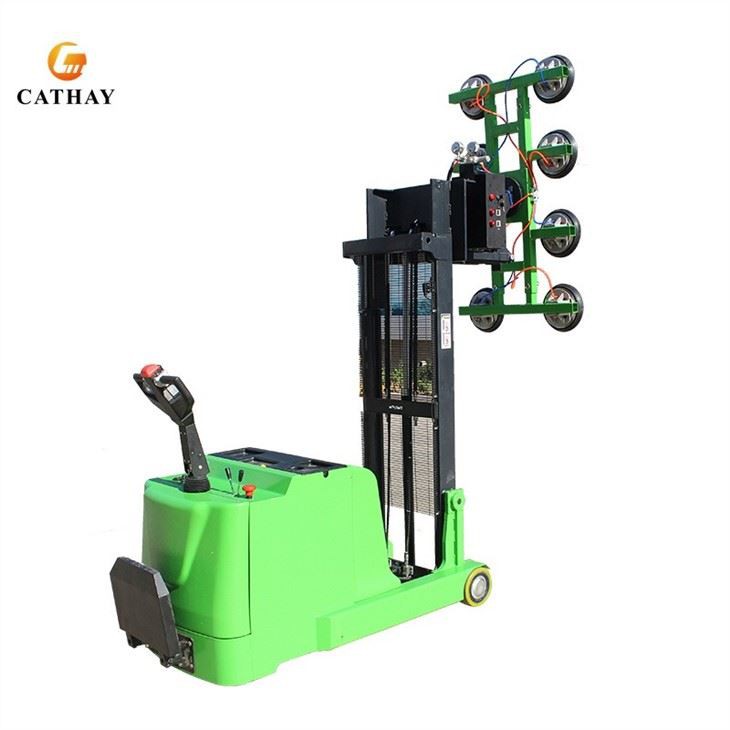

The CATHAYLIFT electric sheet suction cup car is easy to operate. The vacuum suction cup feeding device of the small mobile lifting glass truck can realize the vacuum processing of iron plates, steel plates, aluminum plates, stainless steel and other metal plates. The suction cup attaches itself to the metal plate by a vacuum generated by an electric vacuum pump. The vacuum creates a very strong connection between the suction cup and the metal plate. Tilt, swivel and move it to any desired position. Non-destructive heavy-duty handling Vacuum accumulator and sound prompt device, with excellent workability and process reliability Suction cup and beam position can be adjusted to facilitate adsorption of different sizes of plates Adopt energy-saving control of the vacuum generator, reducing operating costs. CATHAYLIFT-XC This model can continuously rotate 360°, electric suction and deflation, suitable for large-scale glass handling in workshops and heavy-duty installation of outdoor glass and windows. It is able to adjust right/left and horizontally.
Working principle The forward and reverse of the vehicle installed on the suction cup and the power switch of the battery and the function of the horn are all operated by the handle. The forward and reverse of the vehicle are completed by the drive motor through the gearbox. The braking type of the vehicle is electromagnetic braking, and the brake pads act directly. For the drive motor, when the joystick is at the highest and lowest position, the vehicle will be braked, and when the joystick is at the middle position, the vehicle can move forward or reverse. When the joystick is pushed up, the pump station works, and the pressure oil passes through the oil cylinder to make the boom rise; when the joystick is pulled down, the pump station works, and the oil cylinder returns oil to make the boom go down; when the joystick is pushed forward, , the pump station works, and the pressure oil passes through the oil cylinder to make the boom move forward; when the joystick is pulled back, the pump station works, the oil cylinder returns oil, and the boom retracts.
Products Details
● Imported silicone suction cup, three-layer sealing ring, good sealing performance, soft material, environmentally friendly and odorless, easy to clean, long service life, suitable for glass ceramics and other industries. Another high wear-resistant nitrile rubber suction cup is optional.
● Dual system control, air pressure gauge imported from Japan, air pressure pump imported from Europe, stable quality and high safety performance
● Wear-resistant outdoor drive wheels, high-power motor, strong power. Solid wear-resistant front wheels, suitable for outdoor work
● The multi-layer rocker arm design is convenient for electric flipping of the board
● The design of side support legs can better maintain the stability of the body and ensure safe use
Real Order
