Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of glass lifting vacuum cups in China. We warmly welcome you to buy discount glass lifting vacuum cups for sale here from our factory. Quality products and reasonable price are available.
Glass Lifting Vacuum Cups cooperate with lifting equipment during use, and can be connected with a simple hook,Standard manual side flip 90 degrees, glass horizontal flip 360 degrees, optional electric flip, suction cup position and extension rod can be used in any combination to meet different sizes of plates.
Model | XC-S400 | XC-S600 | XC-S800 | XC-S1000 | XC-S1200 | |
Lifting Capacity | kg | 400 | 600 | 800 | 1000 | 1200 |
Cup Qty | / | 4 | 6 | 8 | 10 | 12 |
Single Cup Diameter | mm | 300 | 300 | 300 | 300 | 300 |
Single Cup Capacity | kg | 100 | 100 | 100 | 100 | 100 |
Rotation | / | 360°manual rotate | ||||
Tilting | / | 90° manual | ||||
Voltage | V | DC12 | ||||
Charger | V | AC220/110 custom | ||||
Weight | kg | 70 | 90 | 100 | 120 | 120 |
Sucker Frame Size | mm | 850*750*300 | 1800*900*300 | 1760*1460*300 | 1900*1600*300 | 1900*1600*300 |
Extension Bar Length | mm | 500 | ||||
Control System | / | Integrated Control Cabinet and Wired Remote Control | ||||
Overall Size | mm | 1230*910*390mm, packed by wooden box | ||||
Gross Weight | kg | 97 | 110 | 123 | 150 | 163 |

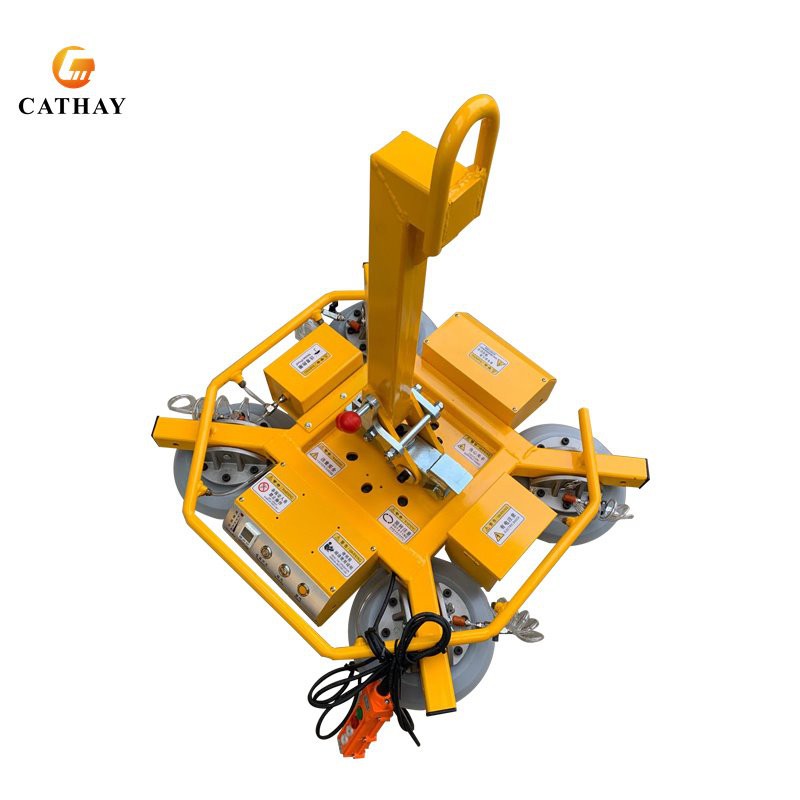

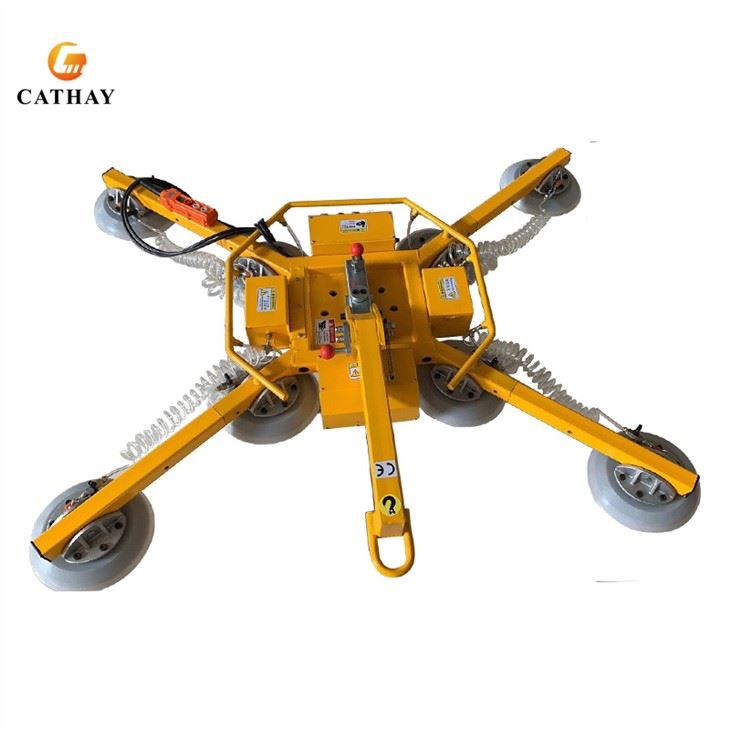

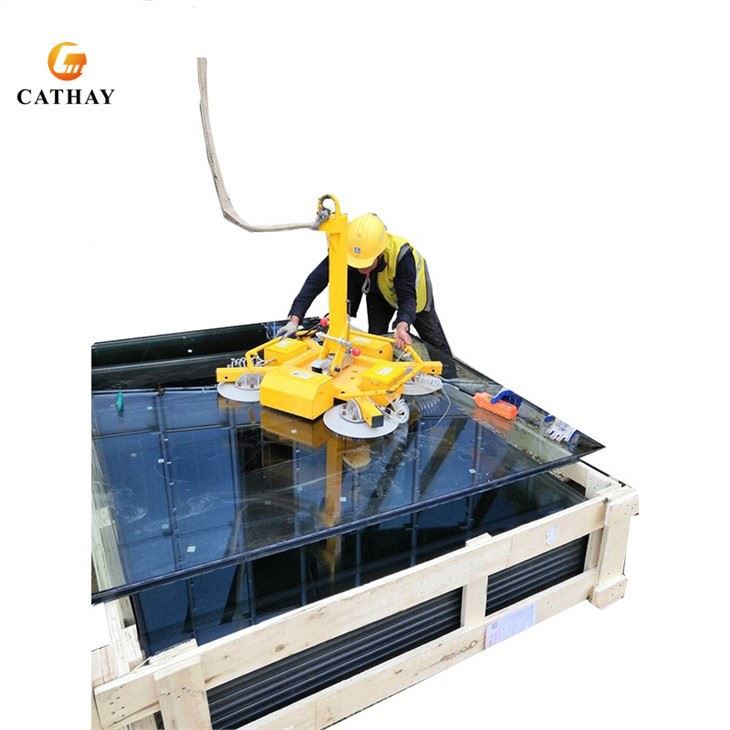

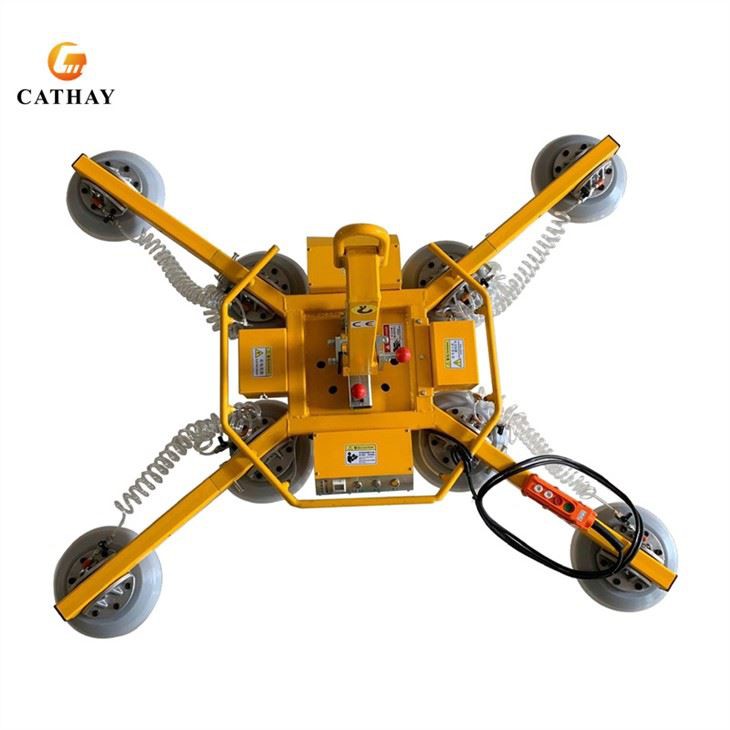

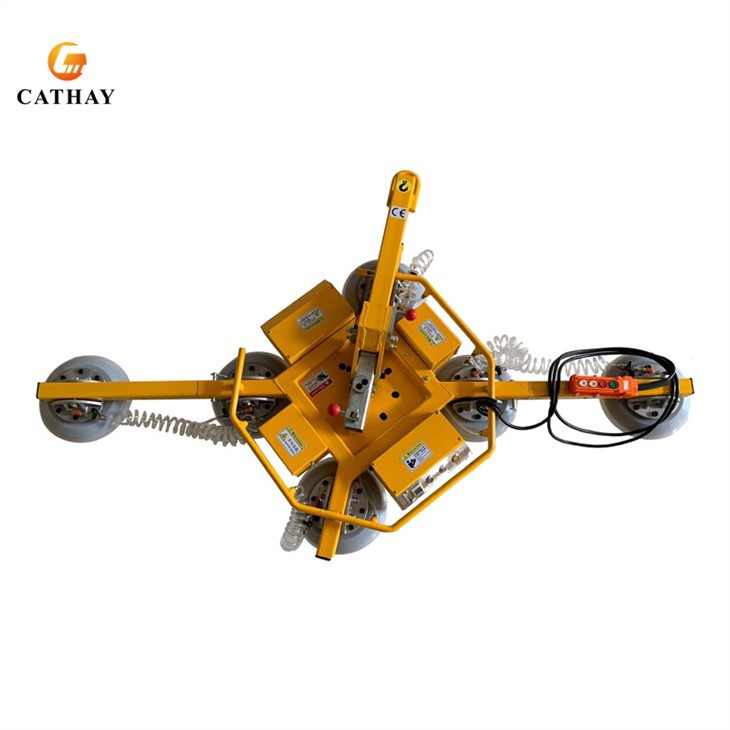

Product Details

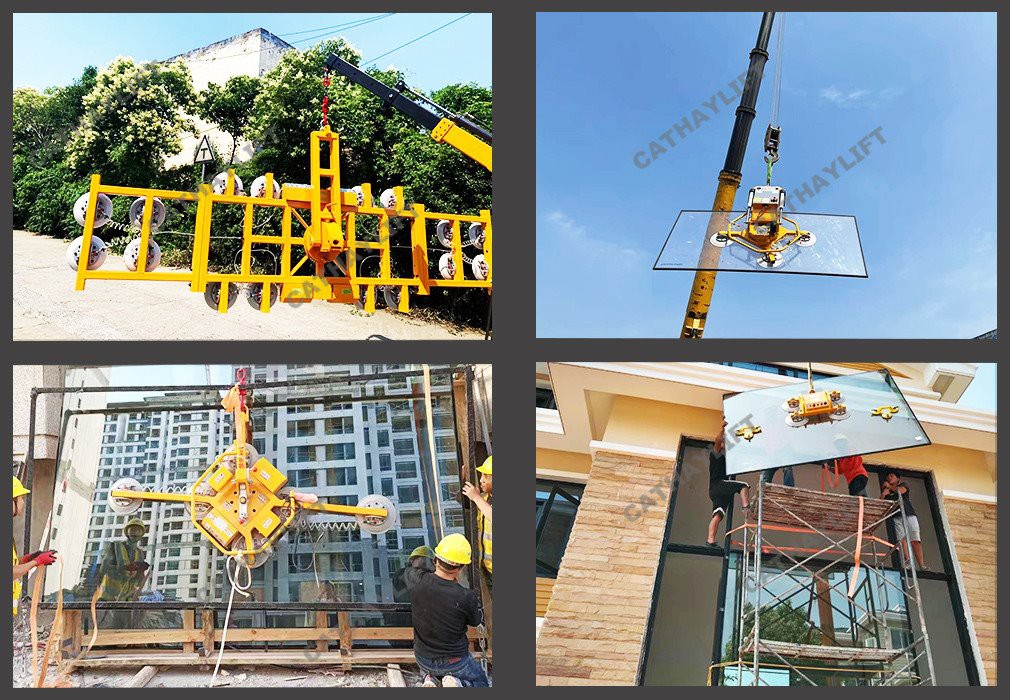

Real Order
