Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of glass vacuum lifter in China. We warmly welcome you to buy discount glass vacuum lifter for sale here from our factory. Quality products and reasonable price are available.

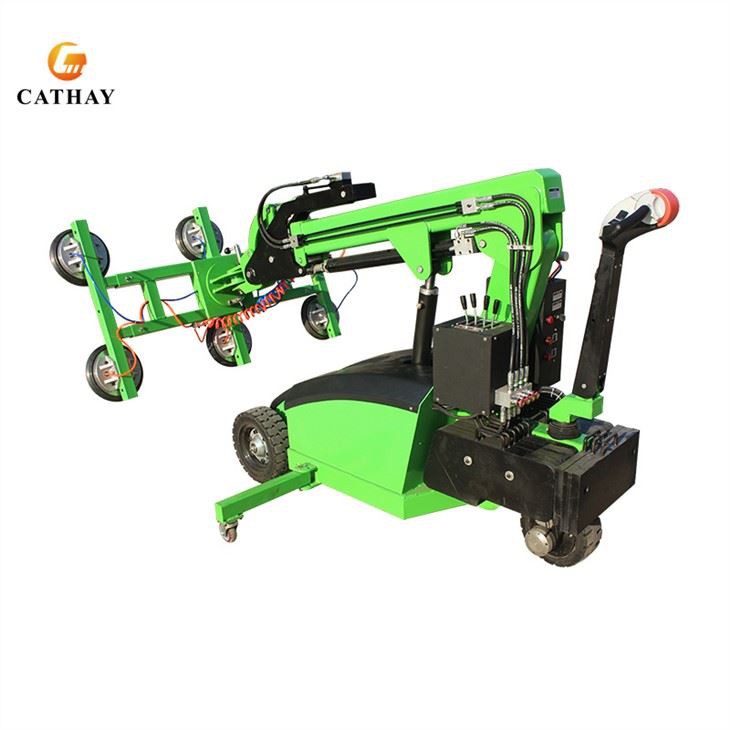

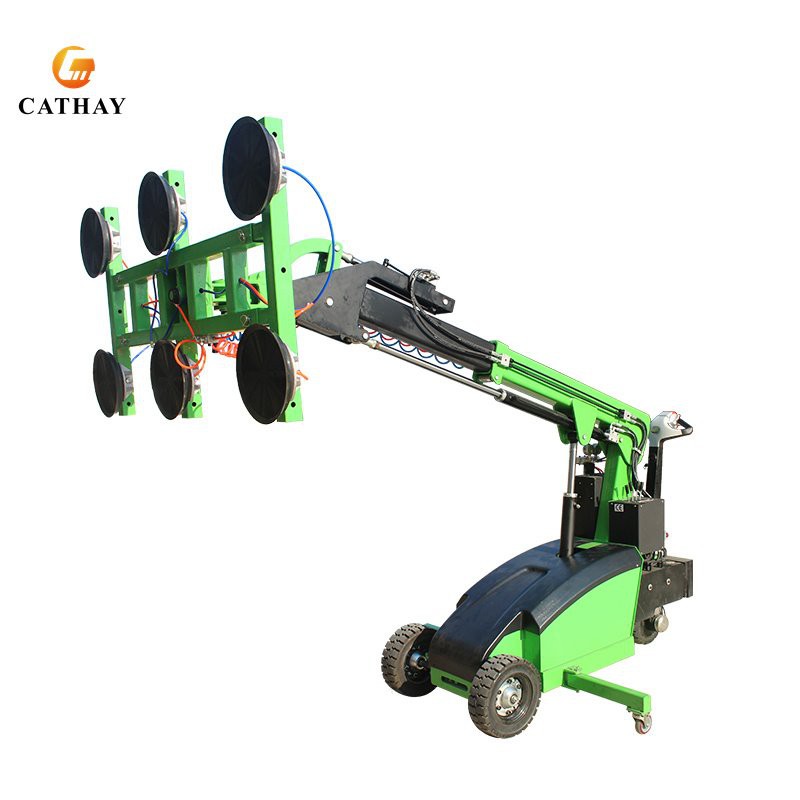

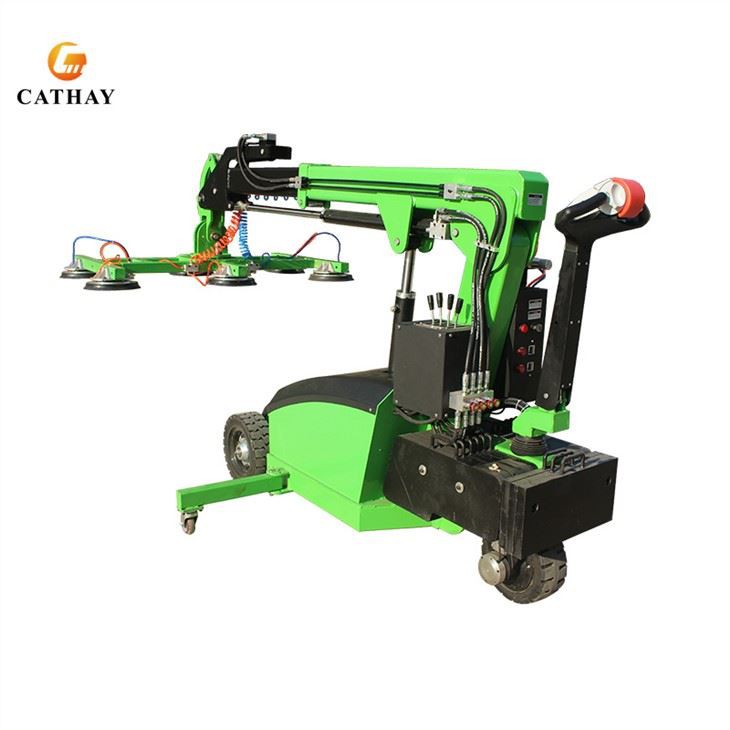

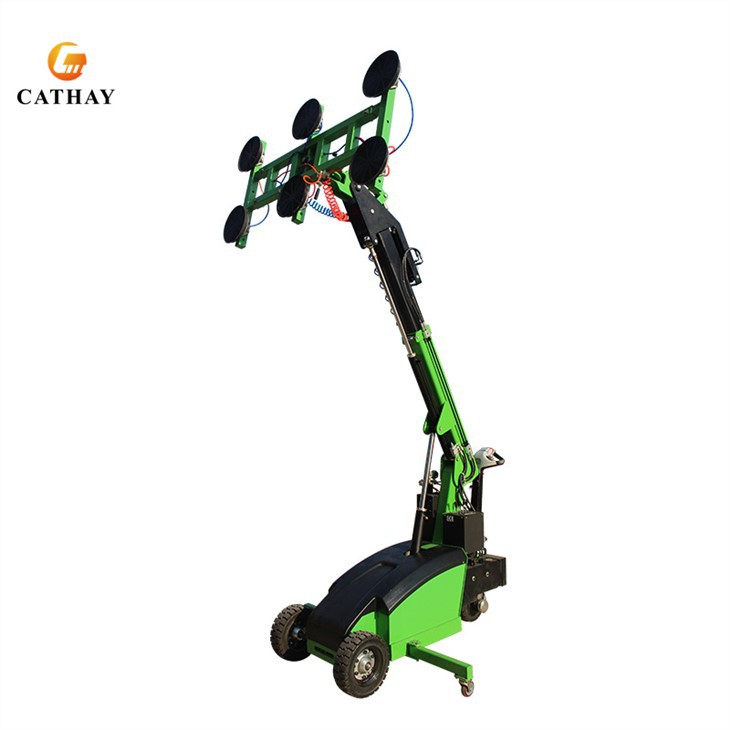

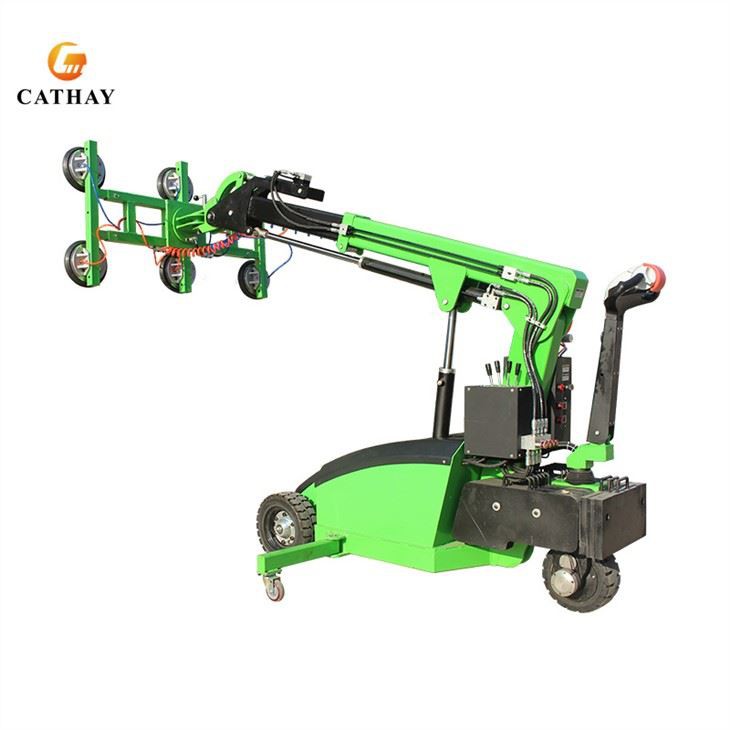

CATHAYLIFT Glass Vacuum Liter is suitable for smooth surfaces such as glass, ceramic, stone and sheet. Imported suction cup, three-layer sealing ring, good sealing and soft texture. Dual system control, standard air pressure gauge, high quality air pressure pump, stable quality and high performance. Lift, move and rotate with ease using the vacuum suction cups and powerful drive system. The equipment mainly used for handling glass is used for glass production and processing, glass curtain wall, construction site engineering glass installation, etc. The glass installation machine is suitable for handling insulating glass, tempered glass, glass curtain wall, glass deep processing, glass transfer in solar photovoltaic glass workshop, etc. The glass installation machine can not only greatly reduce the work injury rate in the glass building installation project, but also improve the production efficiency in the material handling and installation production process, save labor costs, and meet the market demand.
Model | XC-L350 | XC-L600 | XC-L800 | |
Load Capacity | 350kg (arm retract) | 600kg (retract) | 800kg (retract) | |
Lifting Height | 3500mm | 3650mm | 5000mm | |
QTY of Suction Cap | 4pcs | 6pcs | 8pcs | |
Rubber Suction Cap | Ø300mm | Ø300mm | Ø300mm | |
Maintenance-free Battery | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | |
Battery Charger | Smart Charger | Smart Charger | Smart Charger | |
Drive motor | 24V/600W | 24V/900W | 24V/1200W | |
Lifting Motor | 24V/2000W/5L | 24V/2000W/5L | 24V/2000W/12L | |
Front Wheel | Ø310x100mm | Ø375x110mm | Ø400x150mm | |
Driving Wheel | Ø250x80mm | Ø310x100mm | Ø300x125mm | |
N.W/G.W | 780/820kg | 1200/1250kg | 1600/1700kg | |
Packing Size | Wooden carton: 3150x1100x1860mm. (1x20GP Loading Qty: 5sets) | |||
Movement | Automatic | 1.Pad frame vertical up/down 180°automatic | ||
Manual (2kinds) | 1.Pad frame tilt left/right 90° manual(Standard) | |||
Usages | Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with different materials of vacuum suction caps. | |||

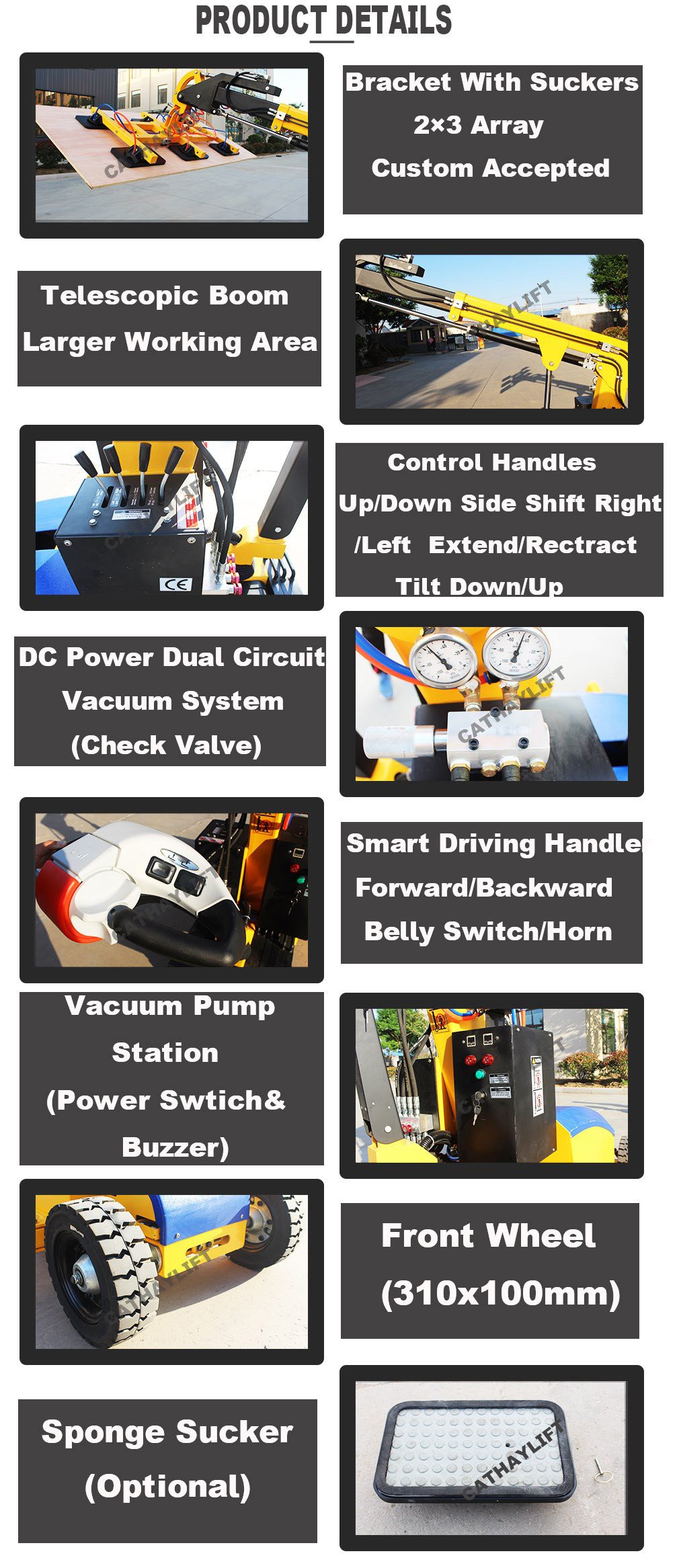

Product Details
More Details:
Overview
Overview
Overview
Control Handler
Forward/Backward Knob,Belly Switch(Maneuverability)

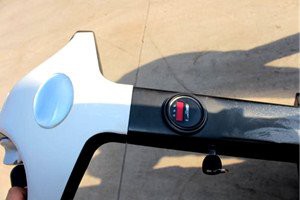

Power Swtich&Battery Indicator
Counter Weight
Compact Chasis(Easy Access To The Doors)

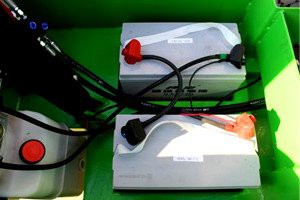

Maintenance Free Battery(Lifetime Maintenance Free)

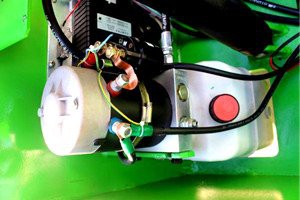

Italy Hydrappp Hydraulic Pump Station
Smart Control Handles(All Movements)
Power Swtich & Buzzer
Dc Power Dual Circuit Vacuum System With Check Valve(Stable&Safety)

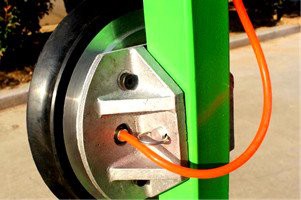

High Quality Suctions(Ø300)
Solenoid Valve And Tube With Corrosion Resistance, Wear Resistance And Certain Mechanical Pressure Resistance
Main Boom(High Strength Steel, Shot Blasting For Corrosion Resistance)
Emgergency Realease Valve
Side Shaft Actuator&Smart Battery Charger(Internal)

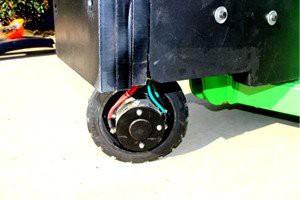

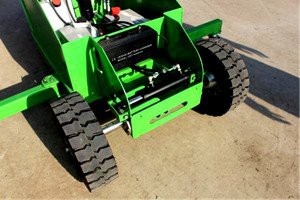

Electric Driven &Steering(Rear Wheels,Highly Sensitive Electromagnetic Brake)
Outriggers With Pu Wheels
Front Rubber Wheels(310x100mm)
Wooden Packing(International Standard)

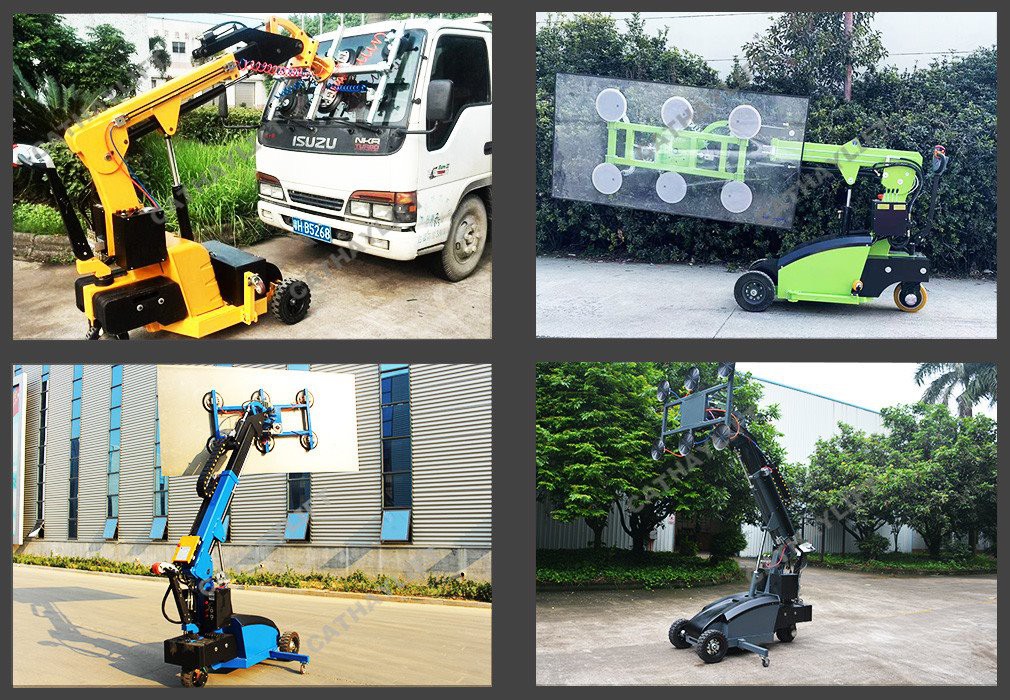

Real Order
