Glass Vacuum Suction Lifter

Shandong Cathay Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of glass vacuum suction lifter in China. We warmly welcome you to buy discount glass vacuum suction lifter for sale here from our factory. Quality products and reasonable price are available.

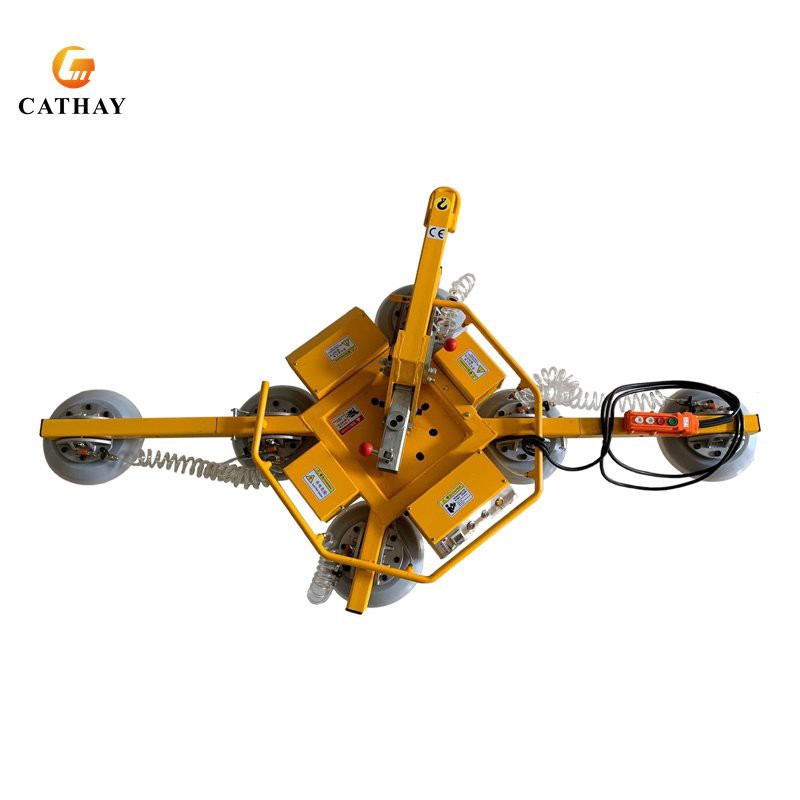

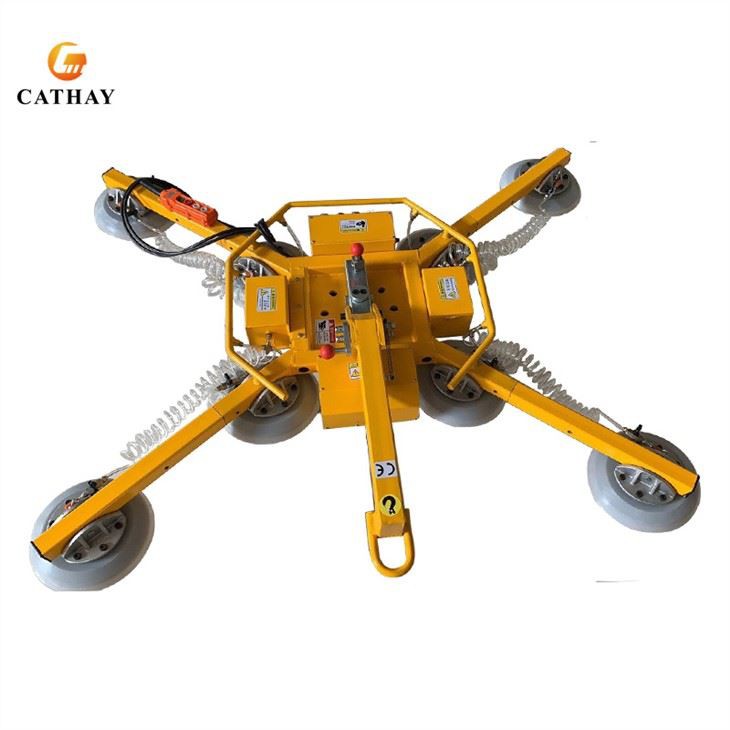

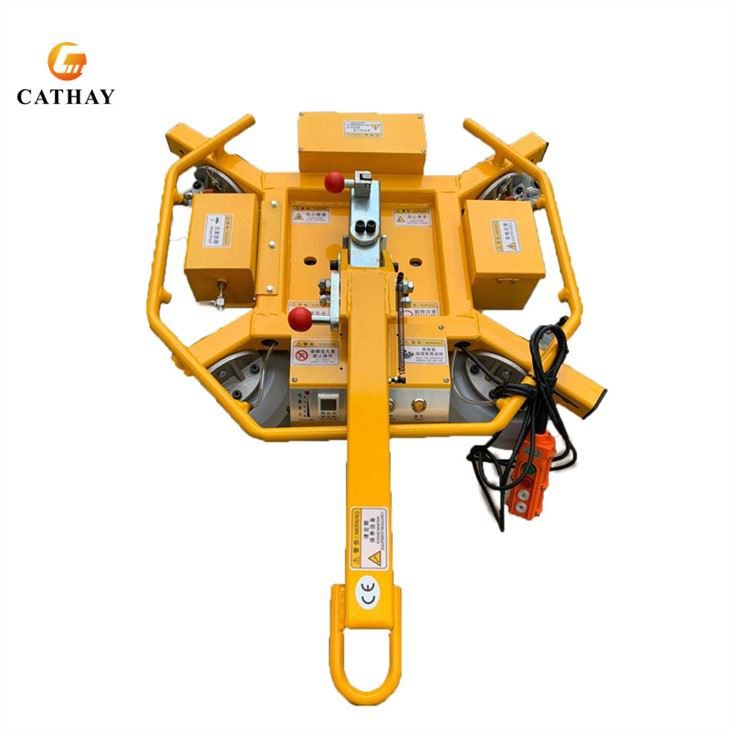

Glass Vacuum Suction Lifter is retractable at both ends, suitable for occasions with large size changes. Imported oil-free vacuum pump, valve, fast, labor-saving, accumulator and pressure detection ensure that the suction cup position is adjustable and can be manually closed. The usage method is as follows:

1. Start-up of glass suction hoist vacuum hoist

Turn on the power switch on the control box, the vacuum pump starts, and the air in the accumulator is first evacuated to ensure sufficient vacuum. When the pressure is lower than 50, the sound and light alarm light will alarm until the required vacuum pressure is reached. When the pressure reaches CM01 to the set pressure, the vacuum pump will automatically stop running to save power. The vacuum hoist is now ready.

2. Glass suction crane positioning

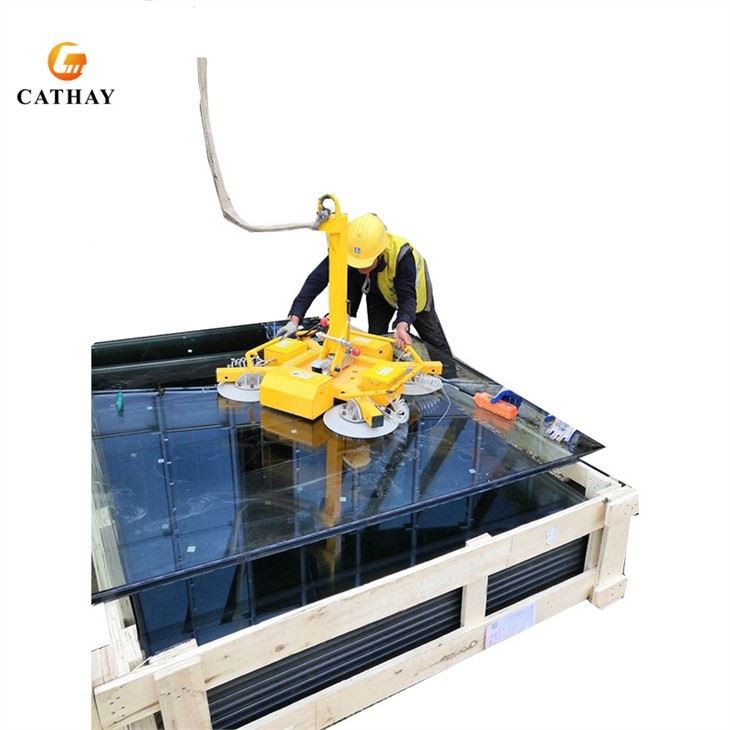

Control the movement of the hoisting equipment so that the suction cup of the suction crane is close to the glass surface, and the suction cup of the suction crane is fully fitted and sealed with the glass surface at this time;

3. Glass adsorption

Push the manual hand slide valve on the operating handle, at this time the suction cup is connected to the vacuum system, the suction crane automatically absorbs the glass, and the vacuum pressure gauge will display the vacuum degree (pressure) at this time. When the pressure gauge shows that it reaches 55 vacuum degree ( -0.55kg/f), it means that it can be transported, and this process takes about 2-3 seconds;

4. Glass flip:

Pull out the locking shaft pin, push the suction cup holder forcefully to make the workpiece turn upside down, until the shaft pin automatically locks the suction cup frame when it reaches the position of about 90 degrees, at this time, the workpiece can be turned vertically 90 degrees.

5. Glass lifting/unloading handling:

Control the electric hoist to transport the board to the discharging position;

6. Glass release:

Pull back the manual slide valve on the operating handle to make each suction cup communicate with the atmosphere, then the vacuum pressure between the suction cup and the glass surface disappears, and the glass and the suction cup are separated.

7. Repeat the operation:

Control the lifting equipment to move to the next board to be transported, and repeat step 2.

After turning off the power of the Glass Vacuum Suction Lifter, a part of the magnetism will still be preserved on the sleeve and the electric suction cup, which is called residual magnetism, so the workpiece is not easy to be removed. In the direction of the current in the coil, when a workpiece with a large bottom area is removed from the electric suction cup, it is not easy to remove the workpiece because of the remanence and the adhesion between the smooth surface, otherwise the suction cup table will be rough. The table surface of the electric suction cup should be flat and bright, and the electric suction cup should be connected to the power supply during grinding to make it in working condition. The amount of grinding should be as little as possible, as long as the countertop is lighted out. Do not operate excessively and reduce the service life of the electric suction cup. If the equipment has not been used for a long time, in order to prevent the hydraulic cylinder piston rod from rusting, the working equipment should be placed on the ground; the whole machine should be washed and stored in a dry indoor environment; if the conditions are limited, it can only be stored outdoors. Apply a thin layer of butter to the exposed surface of the cylinder piston rod, remove the negative terminal of the battery, add an appropriate proportion of antifreeze to the cooling water according to the lowest temperature, the electric suction cup walking oil pump is a bidirectional variable piston pump, and drives the vibration wheel and Bidirectional variable motor for left and right wheels. Twist the travel speed selection switch to select the travel speed range of the roller, and each speed range can operate the travel lever to achieve stepless speed regulation. The walking lever is also the operating lever of the forward and backward reversing equipment. The electric suction cup can smoothly change the traveling direction, and the operation is very simple.
